Product SKU: A-BusV4-WH-DMR18-14

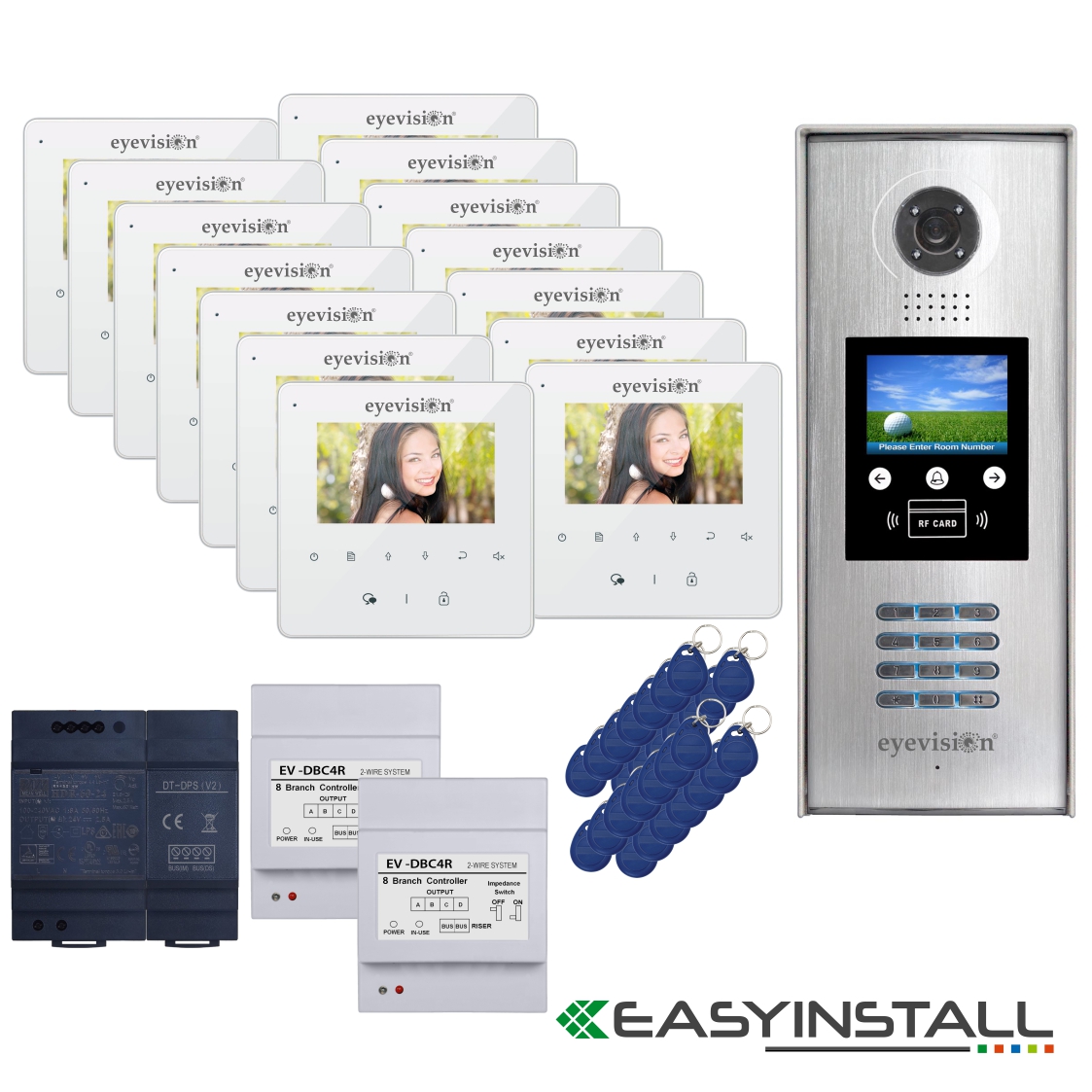

Multi Key LCD Outdoor Station - 14 Apartment System Complete Package with 4 Inch Monitors

  • In Stock

Get More Info.. Get More Info..

Kit Price:

$3,032.00

  • Includes 28 RFID Swipe Tags

  • Kit Includes

    01 4 Inch Standard Series Add On Monitor(QTY: 14)
    02 Semi Flush Mount Multi Key LCD Door Station with RFID Reader(QTY: 1)
    03 Type A Multi Monitor Distributor(QTY: 4)
    04 24V Central Power Supply(QTY: 1)
    05 DPS Power Seperator(QTY: 1)
    06 Em Swipe Tag(QTY: 28)
  • Customise Kit
  • Product Information

Customise your Kit

Upgrades are available for following items

Product Information




For 14 Apartments NO polarity 2 Wires System With User-friendly keypad and ID card door station

A-Bus digital technology at its best, the A-Bus 2 wire video intercom system with colour digital clarity is packed with features
14 Apartments video intercom system with keypad + Proximity card reader

Package Contents

14 x 4" True Colour Screen Monitors with Touch Sensitive Buttons
28 x Swipe Tags (2 tags for each apartment)
1 x Apartment Door station with Keypad and swipe card reader
1 x Recess Box for mounting the door station
1 x 24V Power Supply
4 x DBC-4A Distributors
1 x DPS Power Separator
Installation Manual

A-Bus 4 " Monitor

14 Apartments video intercom system with keypad + Proximity card reader
Monitors features:

- True colour 4" Digital screen
- Touch sensitive buttons with easy to use menus
- Adjustable monitoring time
- Night door bell volume setting to, normal, low or mute (6pm to 6am)
- Inner intercom calling between installed monitors (if more than 1 monitor is installed in the one apartment)
- 12 Door bell melodies to choose from
- Supports unlocking/opening operation of a lock or automatic gates


Monitor's Specifications

Power Supply 24V DC Supplied by system power supply
Power Consumption Standby 8mA, Working 190mA
Screen size 4" Colour LCD
Monitor Dimension 137(H) x 137(W) x 17(Thick)

Door Station

Door Station Product Code: EV-DMR18
Apartments keypad door station, with LCD screen, compatible with all the Eyevision® video intercom systems.

Door Station Features

- 2 Wire connection
- 31 Apartments + 1 Guard unit connection capacity
- Aluminum alloy panel design with keypad
- Proximity access control (max.1000pcs EM cards/tags)
- Powerful password access control
- Adjustable camera angle
- 3.5 inch color TFT display
- Screen Resolution: 320 x 240 RGB
- User freindly name list display option for easy calling (must be programmed at our factory)
- Multi door stations supported
- 4 Infrared for night vision
- IP 55 protection rating
- Compatible with all two wire system models
- Size: 350mm x 128mm

14 Apartments video intercom system with keypad + Proximity card reader

Door Station Parts Descriptions

14 Apartments video intercom system with keypad + Proximity card reader

Connection Terminals Descriptions

* +12V: 12VDC power output.
* LK-(GND): Power ground.
* LK+(COM): Common contact of the Relay .
* NO.:Normally open contact of the Relay(refer to DT technical guide for Lock
connection detail information).
* EB+: Exit button connection port.
* EB-: Exit button connection port.
* JP-LK: For electronic lock safety type setting.
* T/R-: USB-RS485 communication terminal negative.
* T/R+: USB-RS485 communication terminal positive.
* Bus (L1,L2): non-polarity bus line.
14 Apartments video intercom system with keypad + Proximity card reader

Door Station Dimensions

14 Apartments video intercom system with keypad + Proximity card reader

Cable Requirement

14 Apartments video intercom system with keypad + Proximity card reader

This system is supplied with twisted pair cables, please see package contents.
CAT5 up to 90m between the door station and each apartment.
Straight Pair 1mm2 up to 50m between the door station and each apartment.
Twisted Pair 1mm2 up to 120m between the door station and each apartment.
Twisted Pair 1.5mm2 up to 200m between the door station and each apartment.
Recommendation: The 2 wire video intercom is very powerful monitor and will deliver high quality video and audio, it is recommended to use the best quality cables that will suit your installation, always use cables with very good quality copper conductor in order to maximize the clarity of the video intercom.
If you are not committed to cable such as CAT5 or Straight Pair, then it is highly recommended to use a Twisted pair between 1mm2 & 1.5mm2, using this cable will guarantee the best optimized results in video and audio transmission for up to 200m.


Wiring Example

14 Apartments video intercom system with keypad + Proximity card reader
