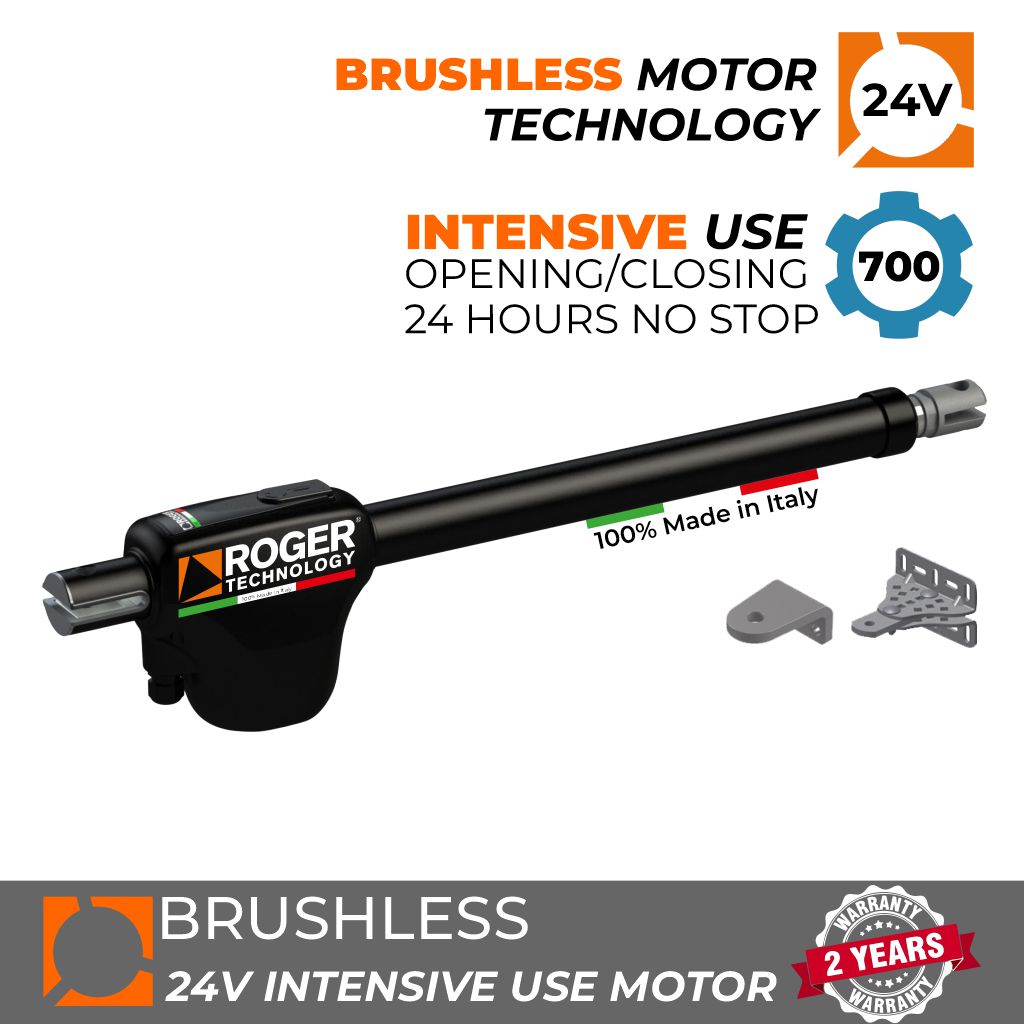

Italian-Made Roger Technology Brushless Swing Gate Motor
| Max. 4M or 450KG Each Leaf | Super Intensive Use |
100% Duty Cycle Brushless Engine With Telescopic Arm
Electromechanical actuator BRUSHLESS, low voltage, super intensive use, with native encoder onboard, ideal for swing gates with leaf up to 4m length, with telescopic arm.
All measurements are expressed in mm.
All measurements are expressed in mm.
| Power line supply: | 230V AC - 50Hz |
| Motor power supply: | 24V |
| Power rating: | 200W |
| Frequency of use: | Intensive use |
| Thrust: | 2200N |
| Operating temperature: | -20 C° +55 C° |
| Protection level: | IP44 |
| Manoeuvre speed: | 2,10 cm/s |
| Opening time: | 19-35 s |
| Stroke: | 400 mm |
| Limits | No Limits (Need a physical gate stop for close position) |
| Encoder: | Digital native encoder SENSORLESS 48 PPR |
| Operating cycles per day (opening/closing - 24 hours, no stop): | 700 |
| Maximum dimension product in mm (L x W x H): | 1223 x 178 x 111 |
* Need a gate stop as there are no limits in this motor.
