Product SKU: ML-P1000-DC-S

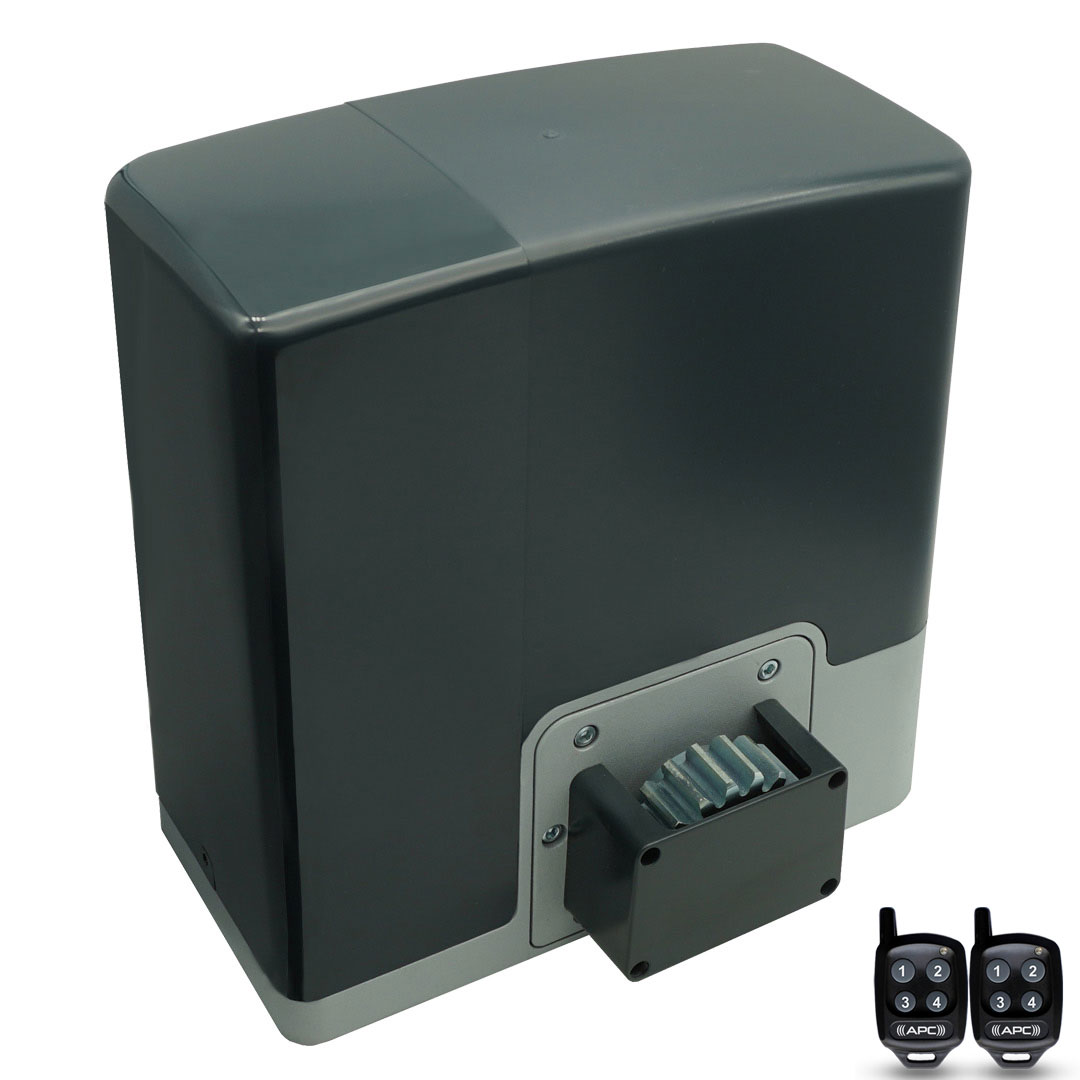

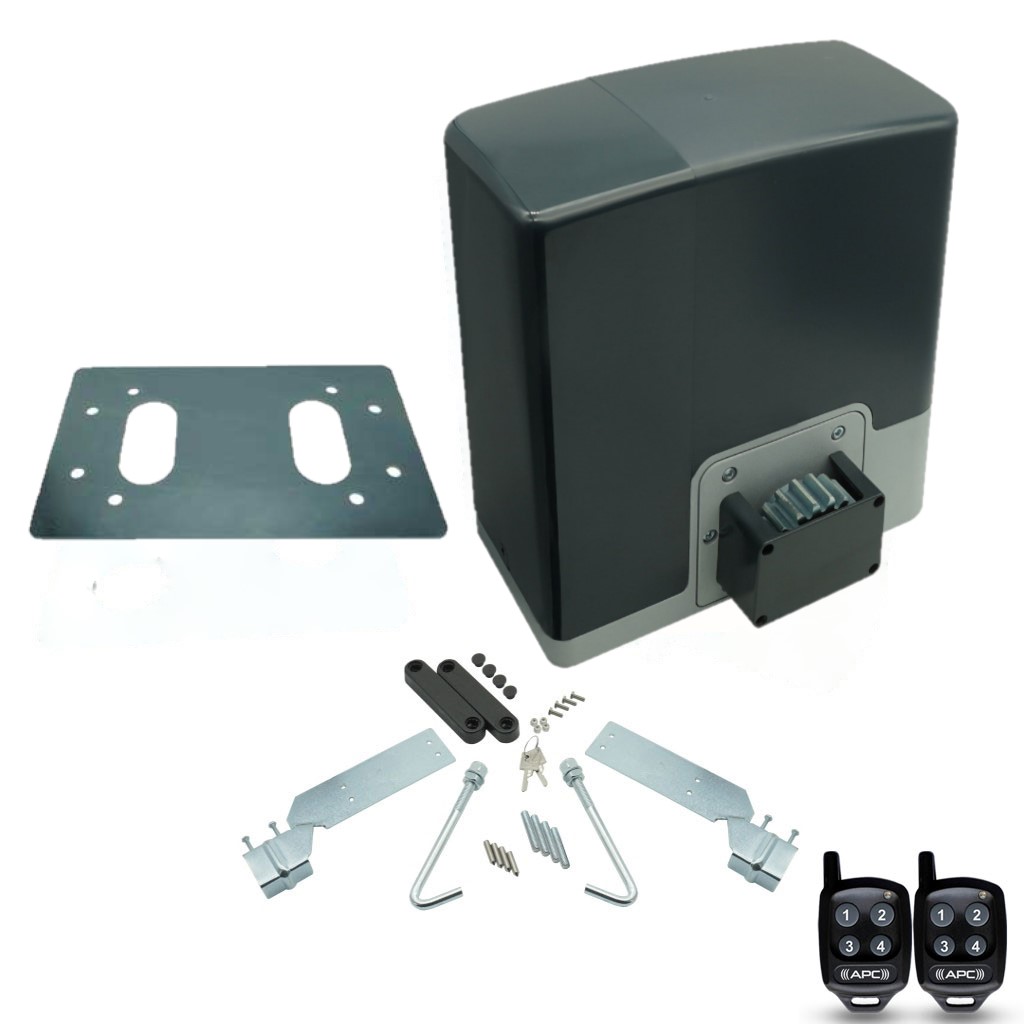

APC Proteous 1000, AC to 24V DC SUPER DUTY 1000kg Sliding Gate Motor with Encoder System and Two Remote Controls Automatic Electric Sliding Gate Motor

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

  • Sliding Gate Motor, Automatic Gate Opener System

APC Proteous 1000, AC to 24V DC SUPER DUTY 1000kg Sliding Gate Motor with Encoder System and Two Remote Controls Automatic Electric Sliding Gate Motor

Product SKU: ML-P1000-DC-S

  • In Stock

Get More Info..
Free Shipping Free Shipping

Kit Price:

$1,450.00

  • Or in 4 payment of $362.50 with afterpay info
  • APC P1000 Super Duty Italian Made Sliding Gate Motor with Two Remote Controls , 1000 KG / 10 Metre Maximum Capacity

  • Kit Includes

    01 Proteous 1000, Italian Made Strong Sliding Gate Motor (QTY: 1)
    02 APC Four Button Keyring Remote (QTY: 2)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Please note this Sliding Gate Motor kit is for replacing an existing one. It will not include a gear rack.

Super Duty Duty Feature Rich 24V Italian Sliding Gate Motor Overview

At a glance

The Proteous 1000 SUPER DUTY system boasts a cutting edge and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system There is no function or feature that this system cannot perform. See the full details below.

System Features

Capacity

60% Duty Cycle
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
1000KG Capacity (1 Tonne)
Ultra long 10 metre gate capacity

Everything and more as standard..

Automatic learning of gate travel limits and automatic introduction of soft start and soft stop points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds are adjustable
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Underside cable entry with grommets
Simple to setup left and right side magnet system
Pre-Wired and ready to plug into a regular 10A power point or can be hardwired if preferred
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
Strong STEEL Pinion Gear
Solid Alloy Housing with FOUR POINT tilt leveling adjustment system (30mm in any or all direction)

Special Features

Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Supports Bi-Parting Sliding Gates using only one set of accessories using the APC SYNCRO module system
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers

Safety Features

Adjustable Over current adjustments
Built in Encoder with adjustable sensitivity
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times

Simple to use LCD interface

Control Board Overview



Accessories Compatibility and Controlling Options

Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)



Remote Features

Dimensions

Four point Tilt Leveling

Specifications

Transformer 24V AC
Rectification In Housing Rectifier
Motor Output Voltage 24v DC
Max Operating Power 550 Watts
Maximum Gate Length 10 Metres
Maximum Gate Weight 1000 KG
Speed 26 cm/s
Working temperature -20° - 50°
RF APC Rolling code 433.92mhz
Motor Duty Cycle 60%
Auxiliary Inputs 0V Momentary Pulse
Accessories Voltage 24V DC
Operator Inbuilt Safety Over current + Encoder Sensitivity

Your Customised Kit Includes:

No Changes.
        • Kit Quantity:
          • 1
        • Your (Kit and Add-On) Price:

          $1,450.00

        Have Questions?Talk to the Experts(03) 9532 0804

        Dispatched in: Within One
        Business Day
