Product SKU: PATRIOT-E

Advanced Access Control System Using Long-Range UHF RFID Reader with Bluetooth | EMX Patriot-E.BLE is an advanced RFID reader offering a superior range

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

Advanced Access Control System Using Long-Range UHF RFID Reader with Bluetooth | EMX Patriot-E.BLE is an advanced RFID reader offering a superior range

Product SKU: PATRIOT-E

  • In Stock

Get More Info..
Free Shipping Free Shipping

Kit Price:

$4,795.00

Add-On Items (Discounted when purchased along with this Kit)

Product Information

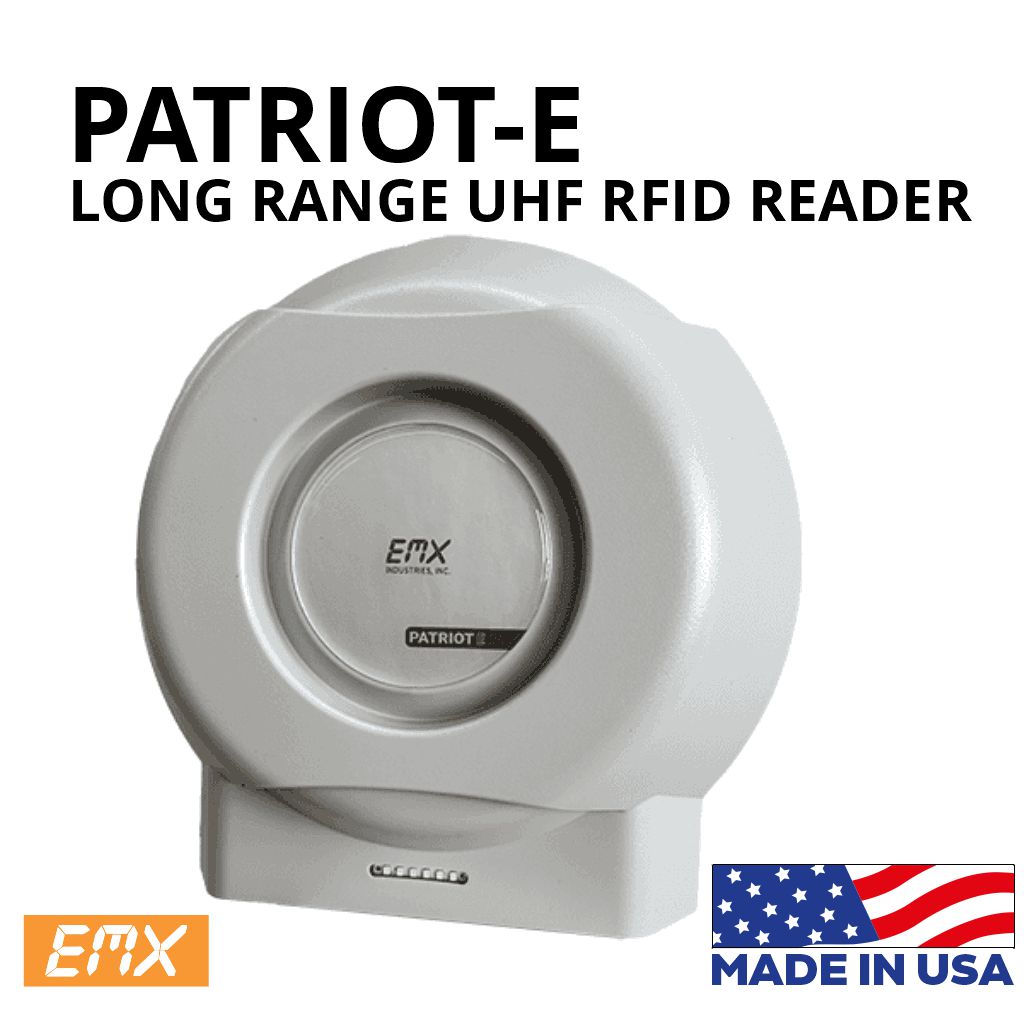

Long-Range UHF RFID Reader with Bluetooth

PATRIOT-E series is an advanced RFID reader offering superior range

Patriot-E.BLE: Circular polarized RFID reader with Bluetooth

  • Circular Polarized 7.5 dBi (Gain)
  • 902-928 MHz
  • Range: 5.4-7.6 m
  • Multiple Wiegand Bit Formats

Features

  • Range: 5.4-7.6 m
  • RS232, RS485, OSDP
  • Supports Multiple Wiegand Bit Formats
  • LED Indicator
  • Variable 12 to 48VDC Input Voltage
  • 902 – 928MHz

Box Content

  • Reader
  • Power Supply
  • Mounting Bracket
  • Test Tag

Software Adjustable Features

  • dBm levels adjustable
  • Controllable LED timing (on/off)
  • Controllable buzzer (on/off)
  • Buffer timing
  • Wiegand timing
  • Controllable relay (on/off)
  • Isolate facility codes

Technical Specs

Model Name Patriot – E
Frequency 902-928 MHz
Max RF Power 30dBm (1 Watt)
Average Read Range (site and tag dependent) 5.4-7.6 m
Antenna Circular Polarized 7.5 dBi (Gain)
LED Indicator Yes
Sounder Indicator Yes
Supply Voltage 9-48VDC
Included Power Supply 110/240AC to 12VDC
Included Mounting Bracket Yes
Max Current 1.82 A max @ 5vDC, 470mA 5vDC in standby (trigger mode)
Adjustable read range Yes
Outputs to Controller Wiegand, RS-232, Relay Contact, RS-485 / OSDP
Communication Options for Reader Configuration RJ45 Ethernet Connector, WiFi
Reader Capab Standard Credential Tags: Window Tag, Hang Tag
Bluetooth Credential Capable Optional
Extra Feature Ability to Store up to 500 Authorized Tag Numbers (5 site codes and 100 tags per site) in the reader for access control without a door controller
Arming Input Capable Yes
FCC Approval Part 15
Operational Temperature -20°C to +70°C
Size 22 x 20 x 6 cm
IP Rated IP65









Your Customised Kit Includes:

No Changes.
        • Kit Quantity:
          • 1
        • Your (Kit and Add-On) Price:

          $4,795.00
