Product SKU: PS-BB-12-Bat-7

Lock and Access Control Power Supply (12V 3A DC) With Battery Backup in Metal Box Cabinet. (indoor use only)

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

  • Lock and Access Control Power Supply (12V 3A DC) With Battery Backup in Metal Box Cabinet. (indoor use only)
  • Lock and Access Control Power Supply (12V 3A DC) With Battery Backup in Metal Box Cabinet. (indoor use only)
  • Lock and Access Control Power Supply (12V 3A DC) With Battery Backup in Metal Box Cabinet. (indoor use only)

Lock and Access Control Power Supply (12V 3A DC) With Battery Backup in Metal Box Cabinet. (indoor use only)

Product SKU: PS-BB-12-Bat-7

  •  Out Of Stock

Get More Info..

Kit Price:

$199.00

  • Or in 4 payment of $49.75 with afterpay info

  • 12VDC 3A Metal Boxed Cabinet Power Supply With 7aH Battery Backup and Battery Charger. (indoor use only)

  • Kit Includes

    01 Lock and Access Control Power Supply (12V 3A DC) With Battery Charger in Metal Box Cabinet and Secure Battery Backup Compartment. (indoor use only) (QTY: 1)
    02 12V 7Ah Backup Battery| The backup battery system allows for continued use of your systems even during a power outage. (QTY: 1)
  • Out Of Stock

Product Information

12VDC 3A Metal Boxed Cabinet Power Supply With 7aH Battery and Battery Charger.

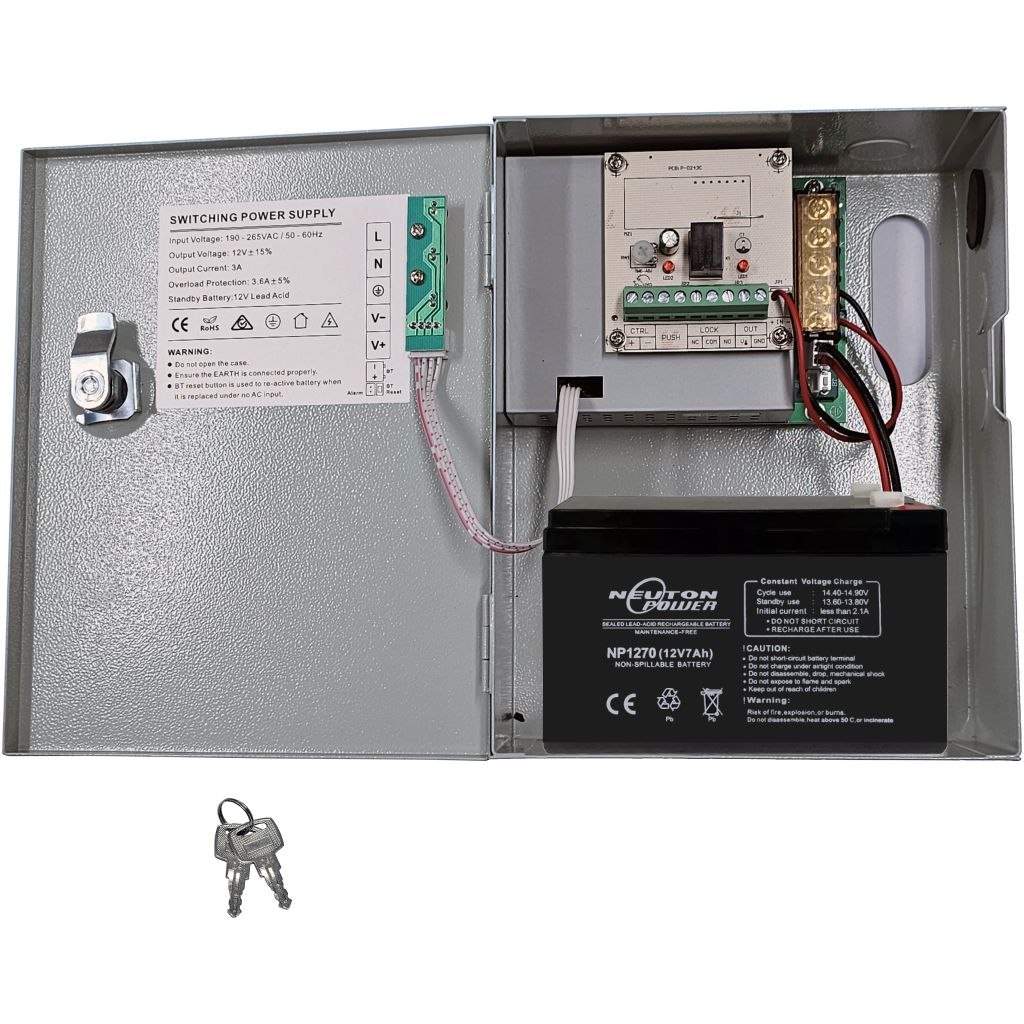

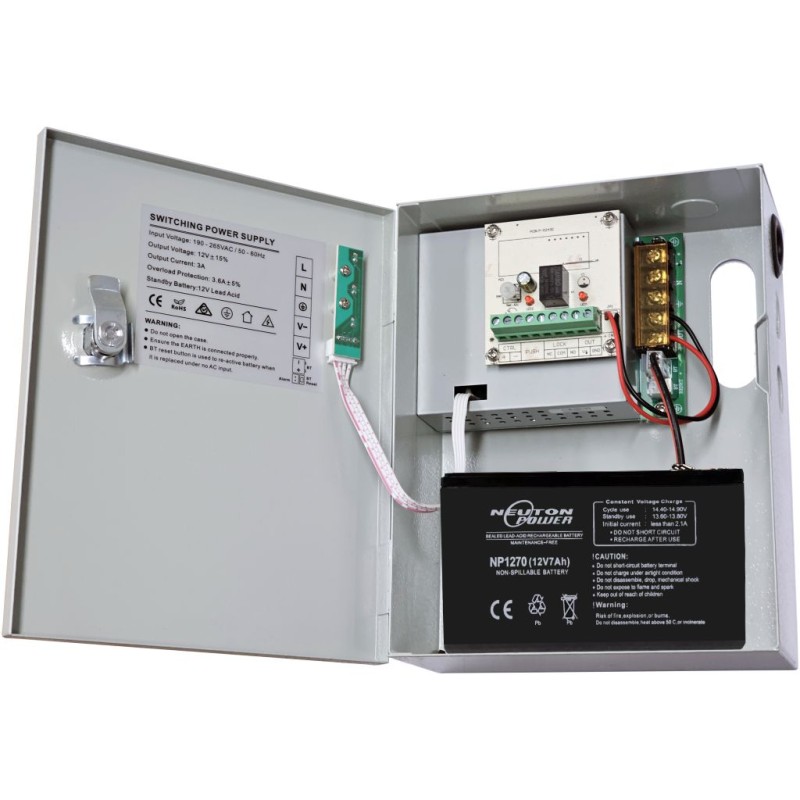

Power Supply With Battery Backup in Secure Metal Cabinet

This access control power supply is designed for indoor use only.





  • Lock and Access Control Power Supply 12V 3A DC

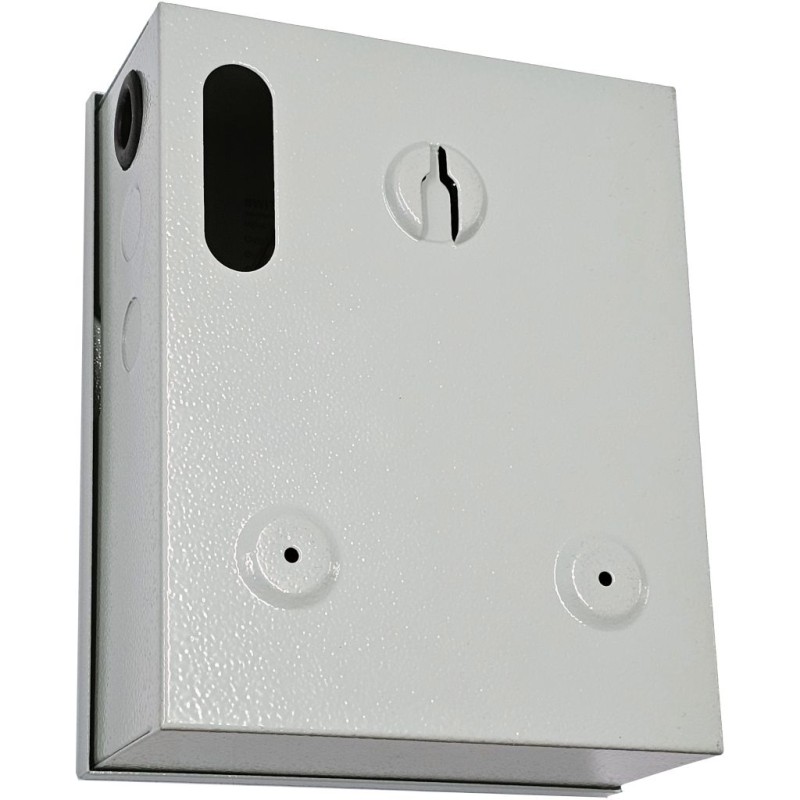

  • Metal Boxed Cabinet | 205x165x75mm

  • Output Switching Power Supply 12V/3A Output

  • Metal Boxed Cabinet With Battery Backup Compartiman Design.

  • Power supply metal cabinets come with secure locks and cabinet keys.

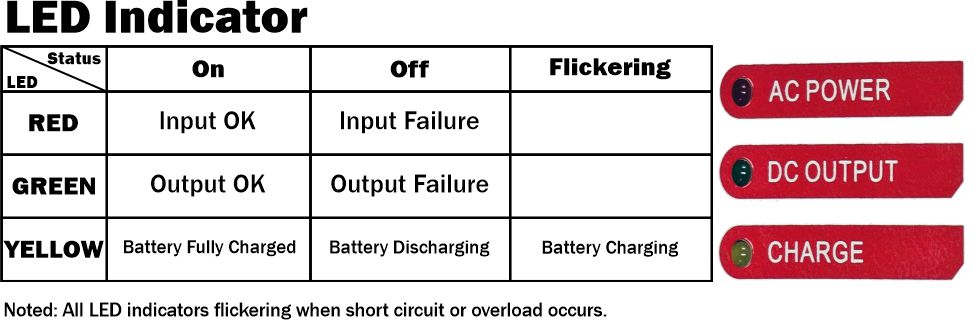

  • The cover has LED Indicators for AC Power, DC output and Battery Charger.

  • Battery Backup: 12V 7aH Sealed Lead-Acid Battery

  • The input range is 190-265VAC, and the output is 12VDC / 3A. Suitable for all 12V devices.

  • The power supply is intended to be used indoors only.







Specification



INPUT   Voltage 190-265VAC
Frequency 50 0r 60Hz
OUTPUT    Voltage (AC Mode) 13.8V ±2%
Voltage (BT Mode) Same as the battery voltage
Rated Current 3A
Rated Power 52.5W (with charging)
 BATTERY    Battery Type 12V lead acid
 Charge Voltage 13.8V ±2%
Charge Current  800mA
PROTECTION     Input Fuse  2A/250VAC
Overload  3.6A ±5%
Over Voltage  16V ±5%
Deep Discharge  10V ±2%
Short Circuit  Hiccup mode
TEMPERATURE Work -20~50°C Storage -30~80°C
HUMIDITY Work 20~80%RH Storage 10~90%RH
METAL BOX 205x165x75mm (indoor use only)
