Product SKU: ACB-KP1-EL-V97

Keypad Access Control Bundle with Front Door OR Pedestrian Gate Electric Lock Italian Made Viro V97 With Push Button, Galvanized and Anthracite Metallic Painted Steel

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

  • Keypad Access Control Bundle with Front Door OR Gate Electric Lock Italian Made Viro V97 With Push Button, Galvanized and Anthracite Metallic Painted Steel

    SALE

Keypad Access Control Bundle with Front Door OR Pedestrian Gate Electric Lock Italian Made Viro V97 With Push Button, Galvanized and Anthracite Metallic Painted Steel

Product SKU: ACB-KP1-EL-V97

  •  In Stock

Get More Info..

Kit Price:

$569.00 $620.00 APC Automotion Plus Sale

  • Or in 4 payment of $142.25 with afterpay info

  • This Keypad and Electric Lock Bundle Kit is suitable for automating doors and single swing gates.

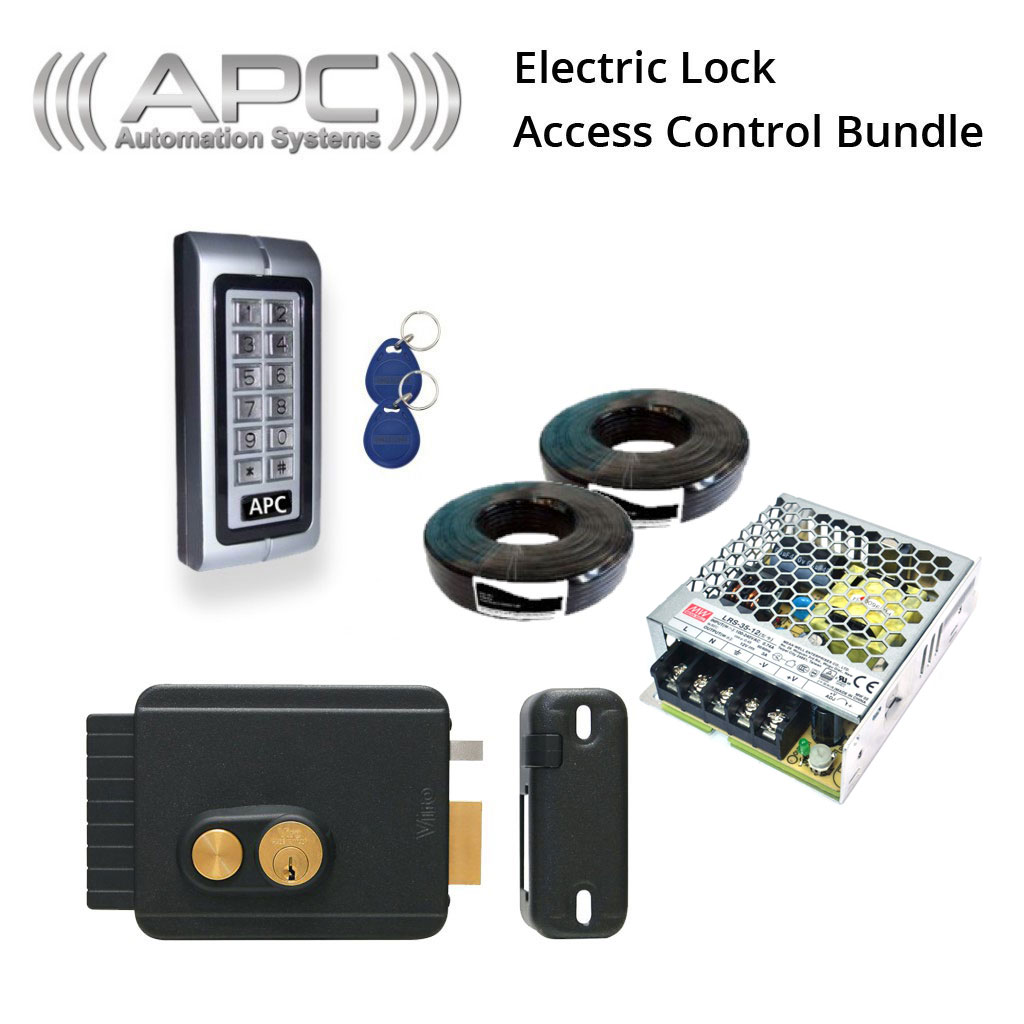

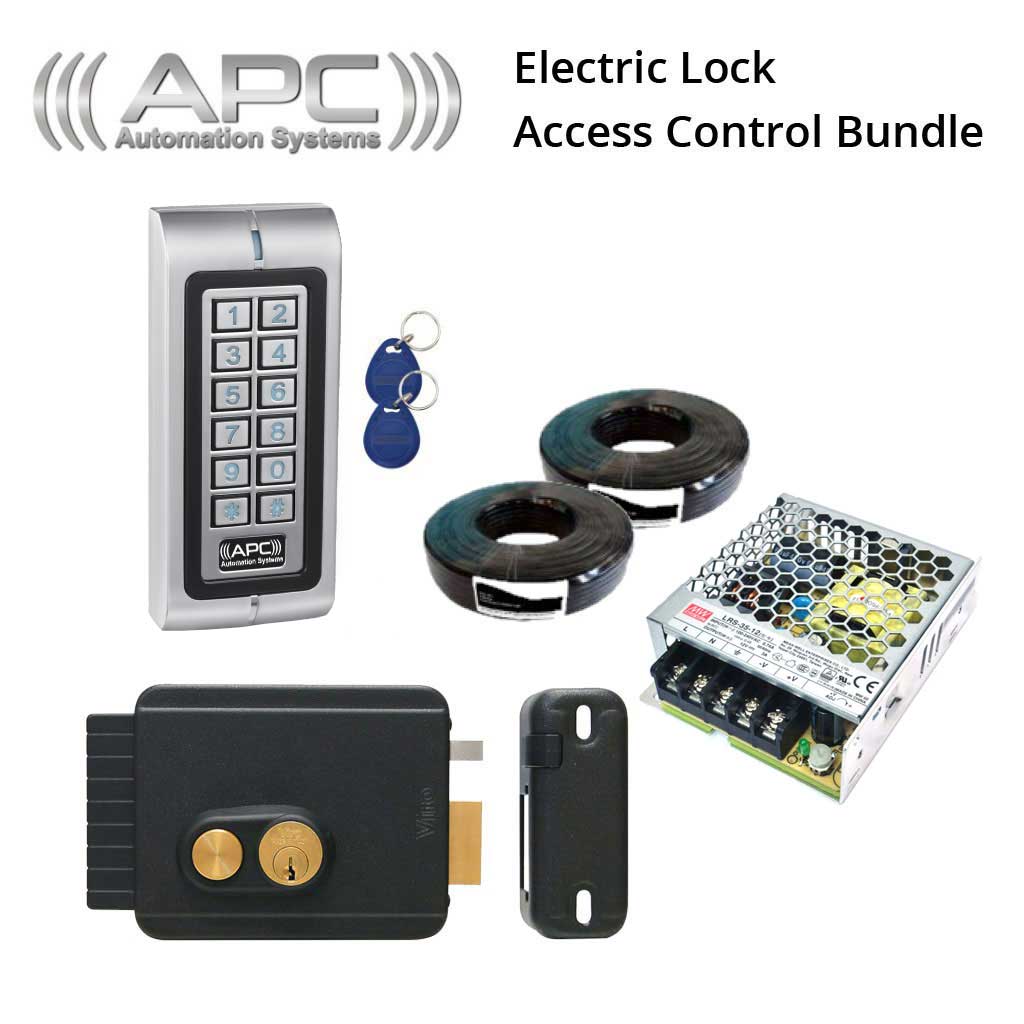

  • Kit Includes

    01 Lock and Access Control Power Supply 12V 3A DC (QTY: 1)
    02 APC Slimline Vandal Resistant Keypad with EM card Reader (QTY: 1)

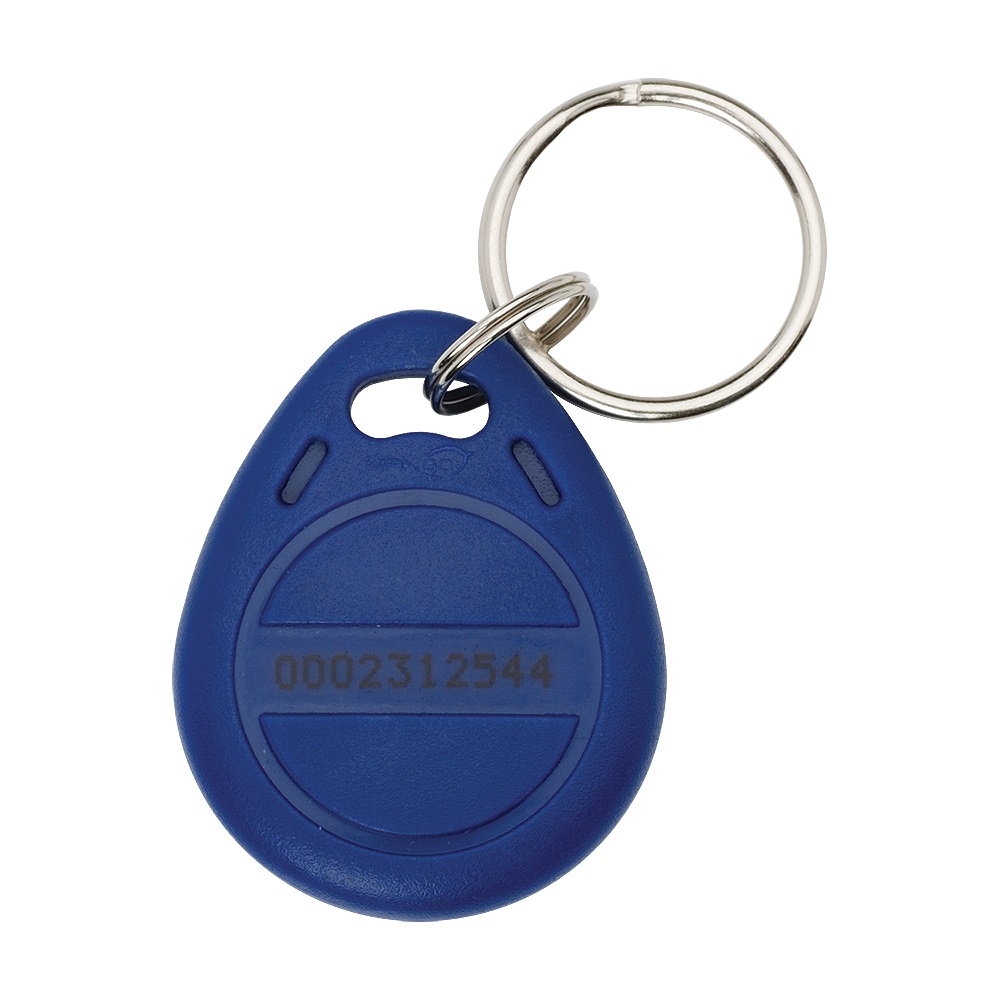

    03 EM Swipe Tag (QTY: 6)
    04 Right Hand Side Lock for Inward Opening Gate / Door - Electric Gate Lock Viro V97 With Push Button - Galvanized and Anthracite Metallic Painted Steel (QTY: 1)
    05 5m 4 Core Non Shielded Cable (QTY: 1)
    06 5m 2 Core Non Shielded Cable (QTY: 1)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

APC-KP1C Wired keypad with built in card reader



The APC-KP1C keypad is a waterproof low voltage keypad which is wired back to the control board using the supplied cable roll. It is of alloy construction and extremly robust. It can be seen day or night thanks to its backlit keys. Two EM swipe cards are also supplied suitable for any temporary or permanent user that need to gain access into the property without a pin code.

Key Features:

  • Built-in EM card reader.
  • Robust cast alloy construction
  • Resin filled for ultimate weatherproofing
  • Blue backlit keys
  • Anti-tamper feature
  • IP65 Waterproof rated and suited for outdoor and indoor environments.
  • Up to 2000 users for pin code and EM card.



Technical Specifications

Dimension

Features  Description
Appearance Metal case, anti-explosion and anti-tamper
Waterproof IP 65
Dimension 135×58×26mm
Input voltage DC: 12-24V AC: 12-18V
Capacity(max) 2000 Users
PIN 4-8 digits.
Not related to the card.
Master card Add/Delete User
As reader Support Wiegand 26bits, PIN Wiegand output, is a virtual number.
Connect external reader Can connect any EM/HID/IC readers with Wiegand 26 output
Connect high-power alarm. External current of the alarm ≥3A

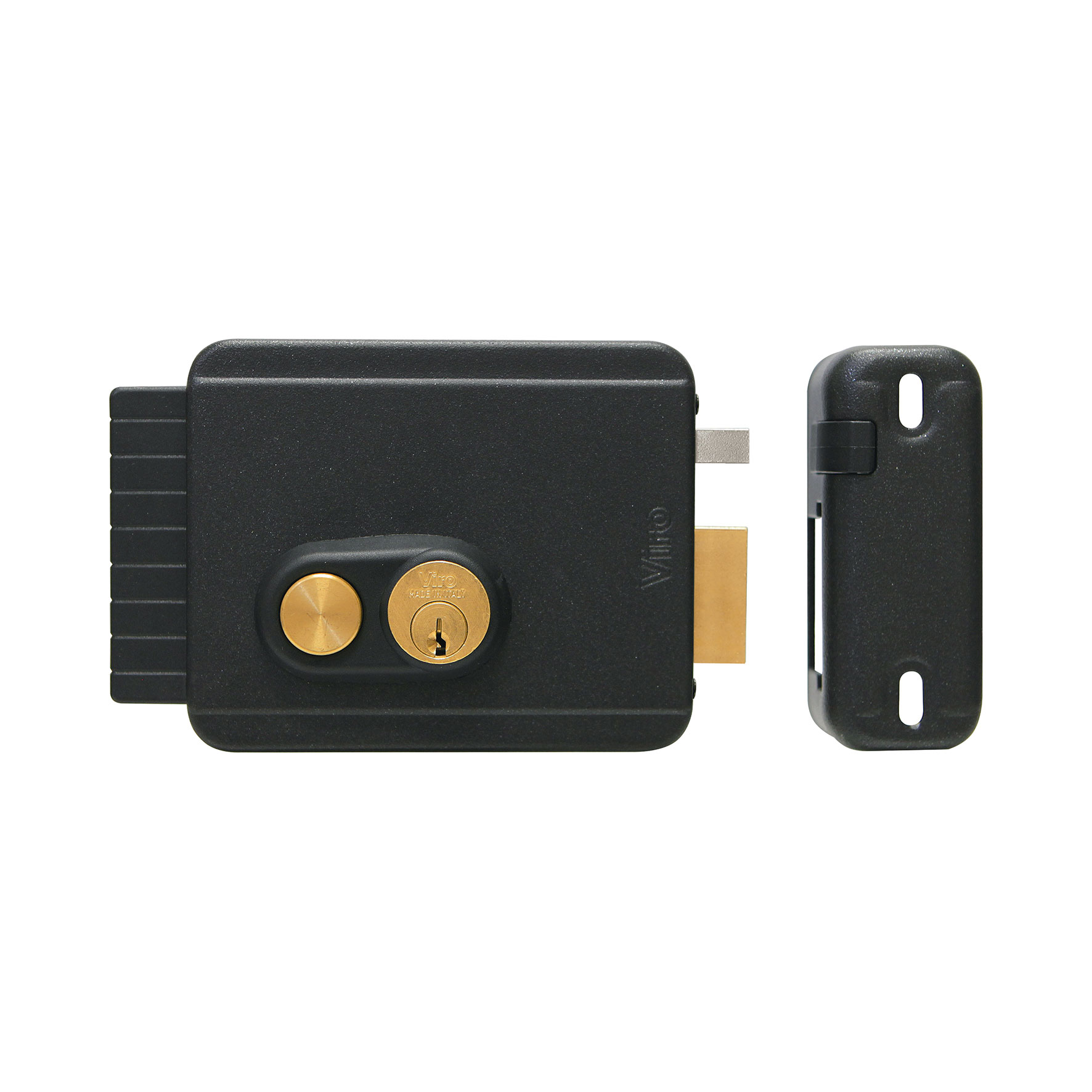

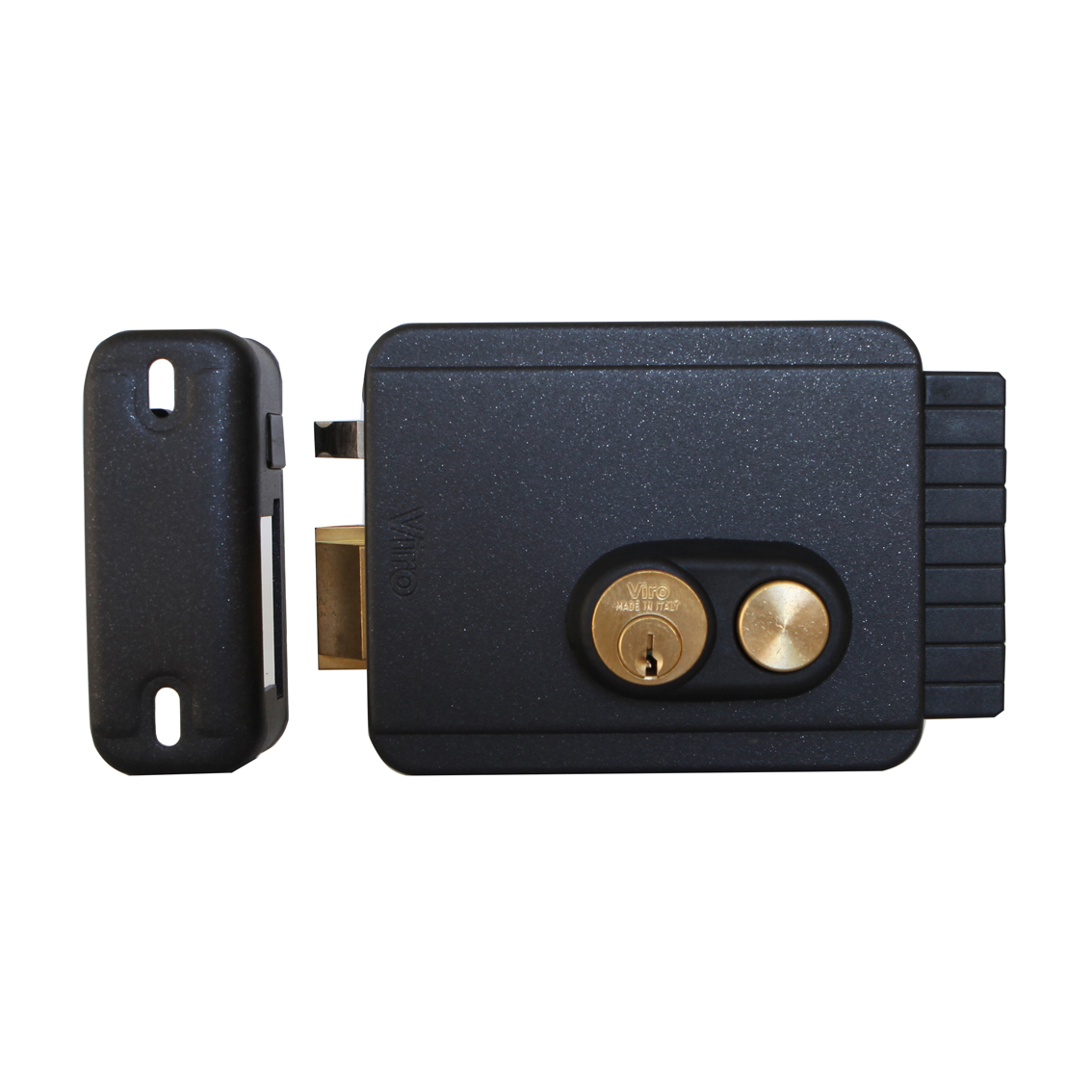

12V Horizontal Automatic Electric Gate Lock (Italian Made Viro V97 Electric Lock) For Right Hand and Inward Opening Swing Gates

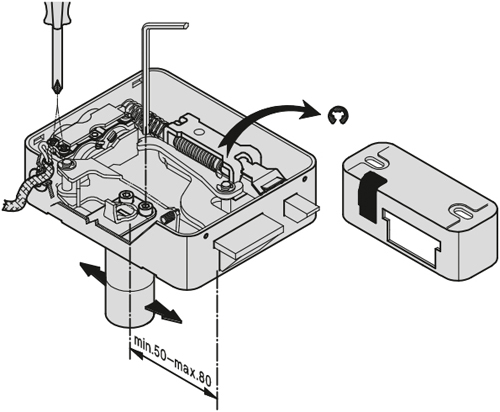

Viro V97 automatic electric gate lock with push-button and adjustable backset from 50 to 80 mm. Suitable for the right hand and inward opening swing gates
The V97 electric lock with push-button is suitable for outside and inside doors and pedestrian gates and is interchangeable with the most common electric locks already installed, often maintaining the old striker. The characteristics and finish make them ideal for metal doors and gates, even in surroundings subject to considerable temperature ranges.






Features:

  • Galvanized and Anthracite Metallic-Painted Steel Case and Cover
  • Operating voltage: 12V DC , 2600mA
  • Push Button
  • The electric lock can be operated in conjunction with most gate openers and access control systems.
  • Specially designed for installation on manual or automatic opening gates and drive-through gates.

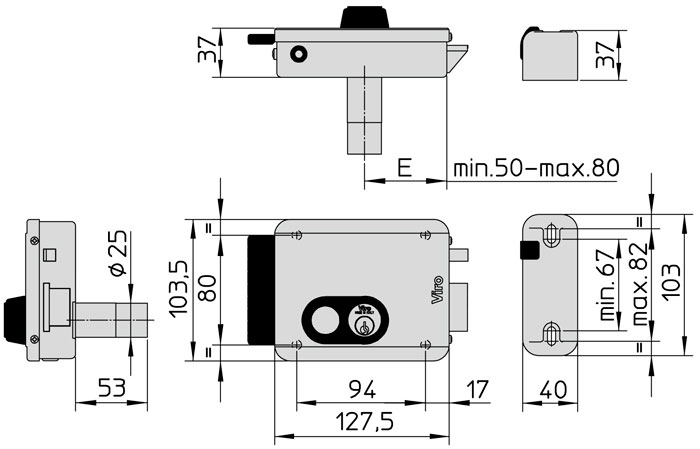

  • Viro V97 Electric Lock Dimensions: 127,5 x 103,5 mm

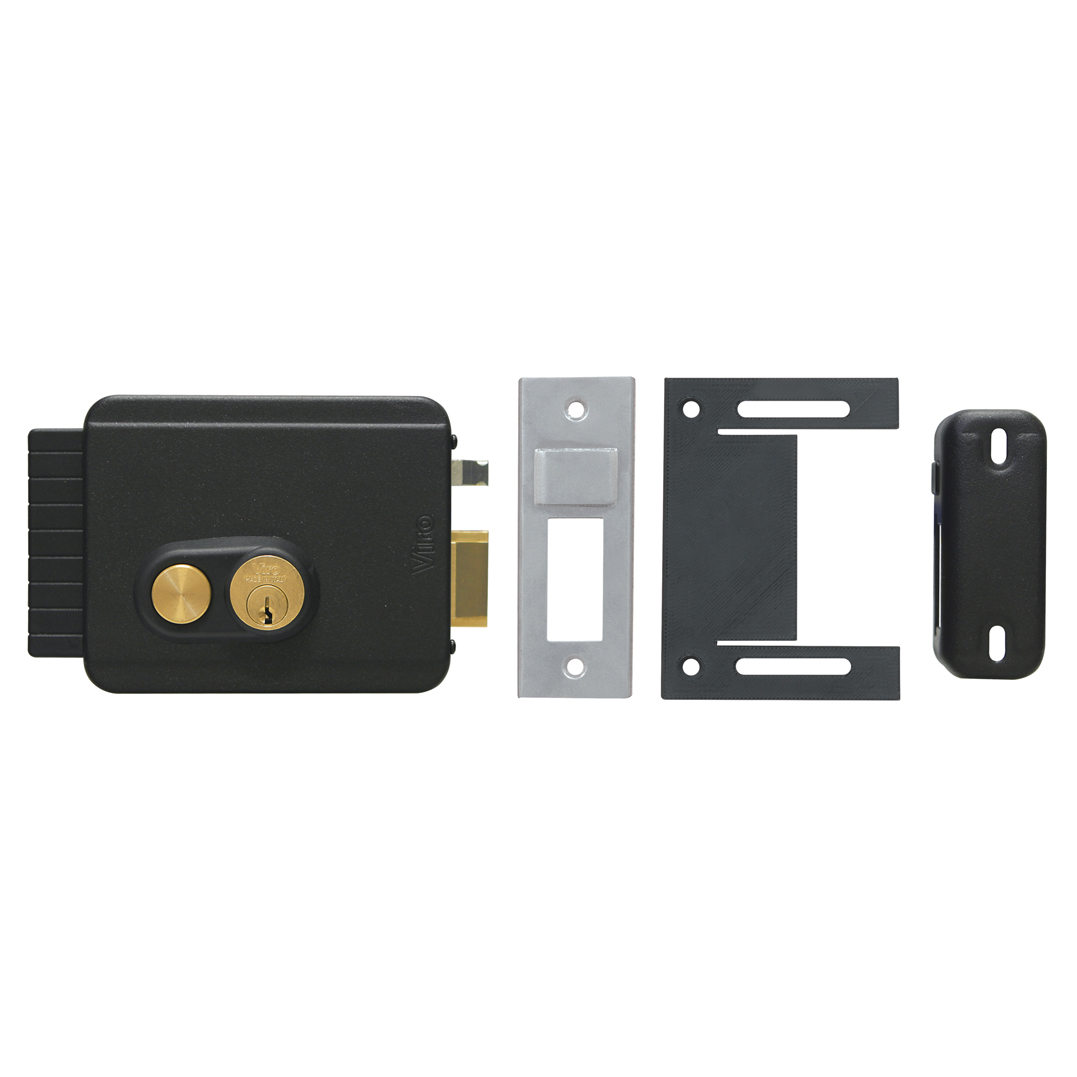

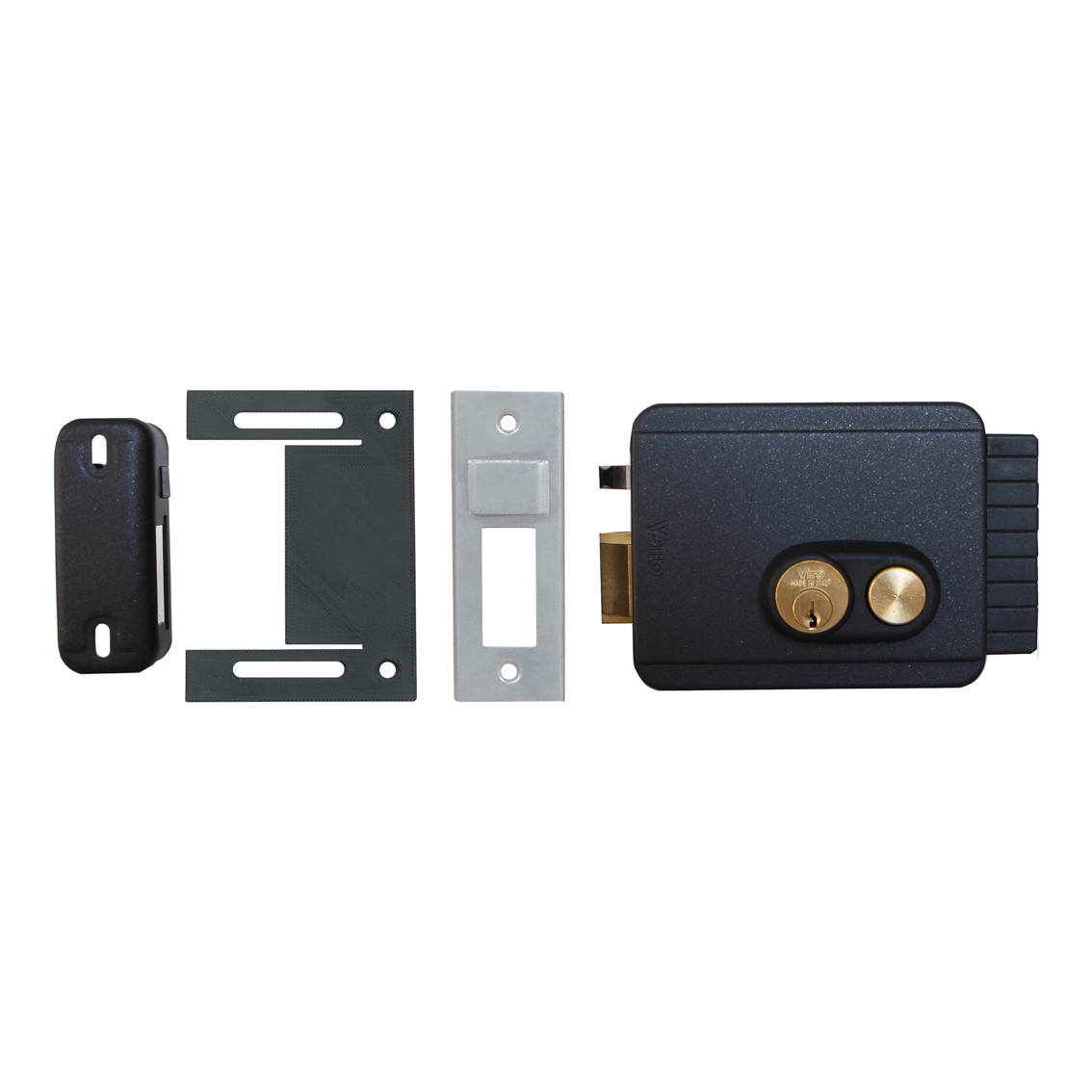

Package Contents:

  • striker,
  • oval brass escutcheon,
  • Allen key for backset adjustment,
  • fixing screws.



Usage:

Driveway Electric Gate Lock
Pedestrian Electric Gate Lock
Garage Swing Door Electric Lock



Suitability:

The V97 electric locks with push-button are suitable for outside and inside doors and pedestrian gates and are interchangeable with the most common electric locks already installed.

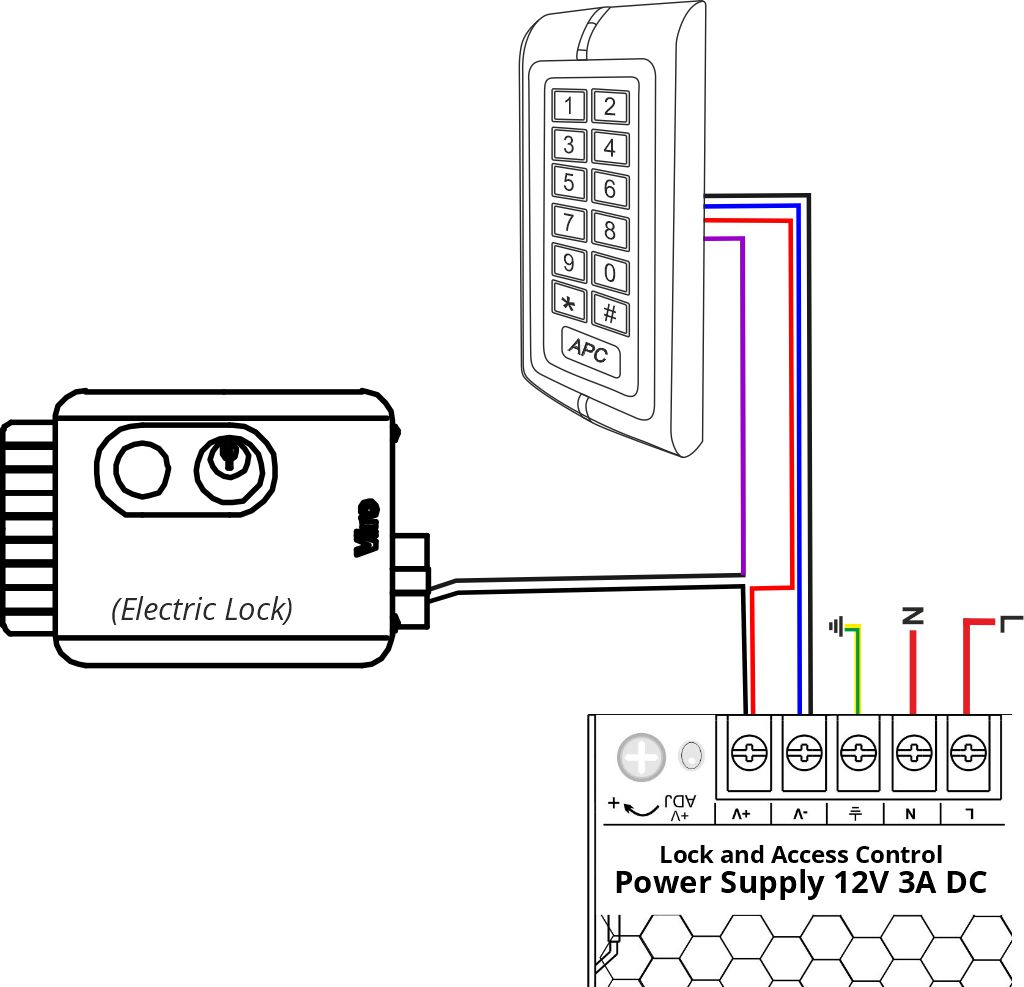

Wiring Diagram

Keypad Access Control Bundle

12V DC Power Supply

Lock and Access Control Power Supply 12V 3A DC

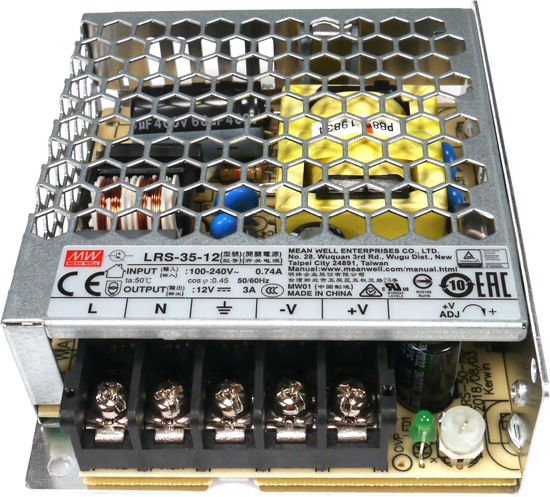

LRS-35-12 Single Output Switching Power Supply 12V/3A Output

A 35W single-output enclosed type power supply with a 30mm low-profile design.

The input range is 85-264VAC, and the output is 12VDC / 3A. Suitable for all 12V devices.

Brand: MEAN WELL
Weight: 350 Gr



SPECIFICATIONS
Input Type Single Phase
Input Voltage 85 ~ 264VAC
Input Current 0.42A / 230VAC
Output Voltage 12V
Output Current 3A
Rated Output Power 36W
Output Type Single
Output Voltage Adjustment 10.2 ~ 13.8V
Prescribed Electrical Item No
SELV Yes
Efficiency 86.00%
Operating Temperature Range '-30 ~ +70ºC (Refer to "Derating Curve" in Data Sheet)
Warranty 1 Year
Approvals CE, CB, RCM
IP Rating / Environmental Protection Less than IP65
Dimensions 99*82*30mm (L*W*H)
Recommended for New Designs Yes
