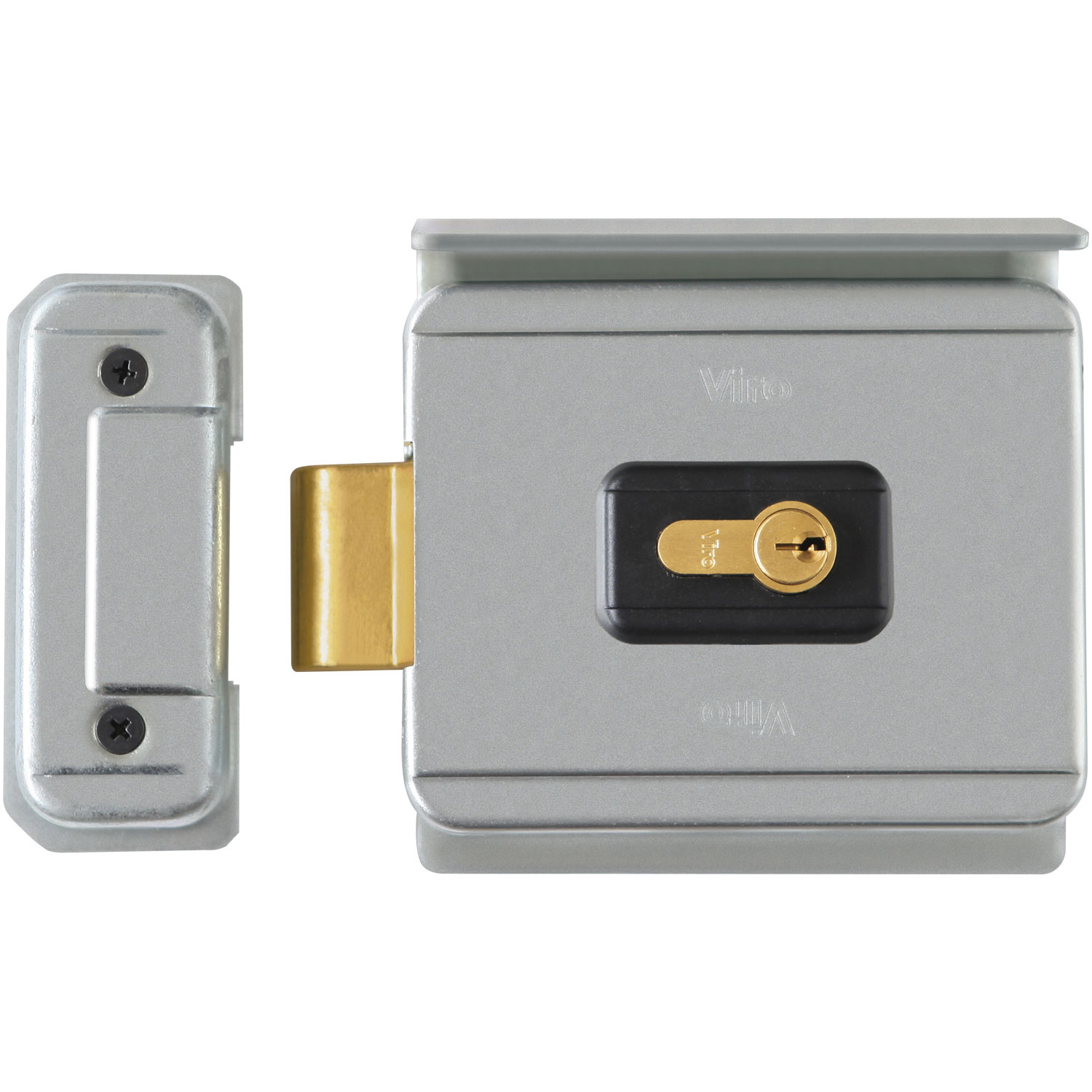

V90 - Rotating dead-bolt - with service function - For outward opening
V90 electric lock was specially designed for installation on manual or automatic outside outward opening doors and drive-through gates. This type of opening is necessary when the door/gate is situated on a slope or when safety regulations foresee an outward-opening escape route in the event of an emergency. Characteristics and finish make it ideal for installation even in surroundings subject to considerable temperature ranges.
Features
- Installation:
Horizontal.
- Backset:
70 mm.
- Service function:
The lock opens with the electric impulse and only resets once the door/gate has been opened and then closed. It is therefore suitable for use with door closers and/or all types of automation systems.
- Double replaceable coil:
Which distributes the load uniformly and ensures a long working life.
- Voltage:
Standard 12V DC
- Case:
One-piece galvanized steel.
- Cover:
Galvanized steel.
- Rotating dead-bolt
Solid brass.
- Cylinder:
Set up for double or half-profile cylinders (not provided).
- Striker:
Galvanized steel, to ensure the correct working of the lock even if there is a vertical adjustment between the lock and the striker (caused by weather changes).
- Supplied with:
- For horizontal installation: striker, galvanized steel roof plate, and striker plate;
