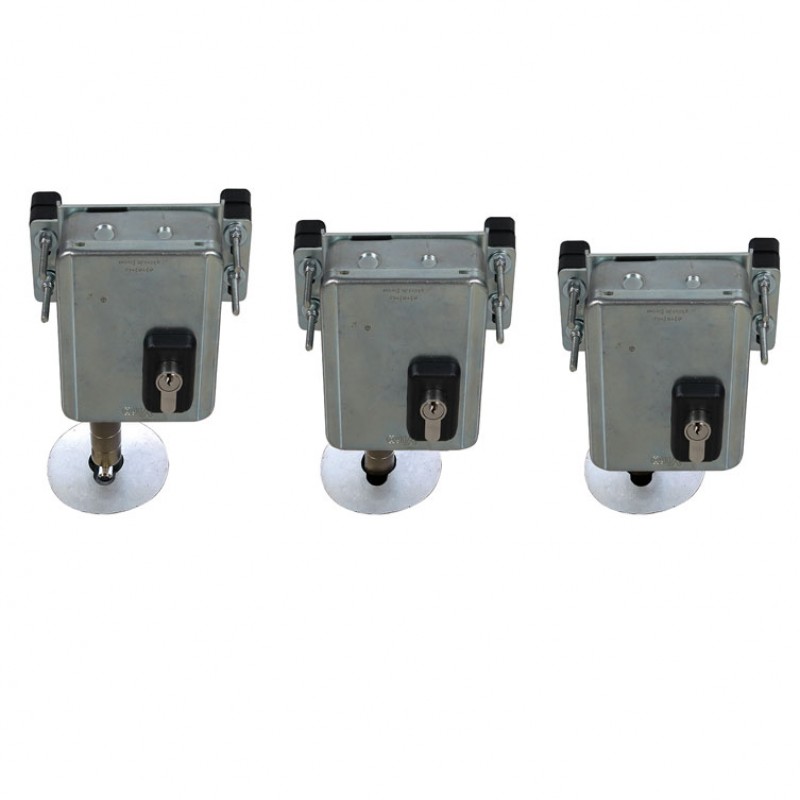

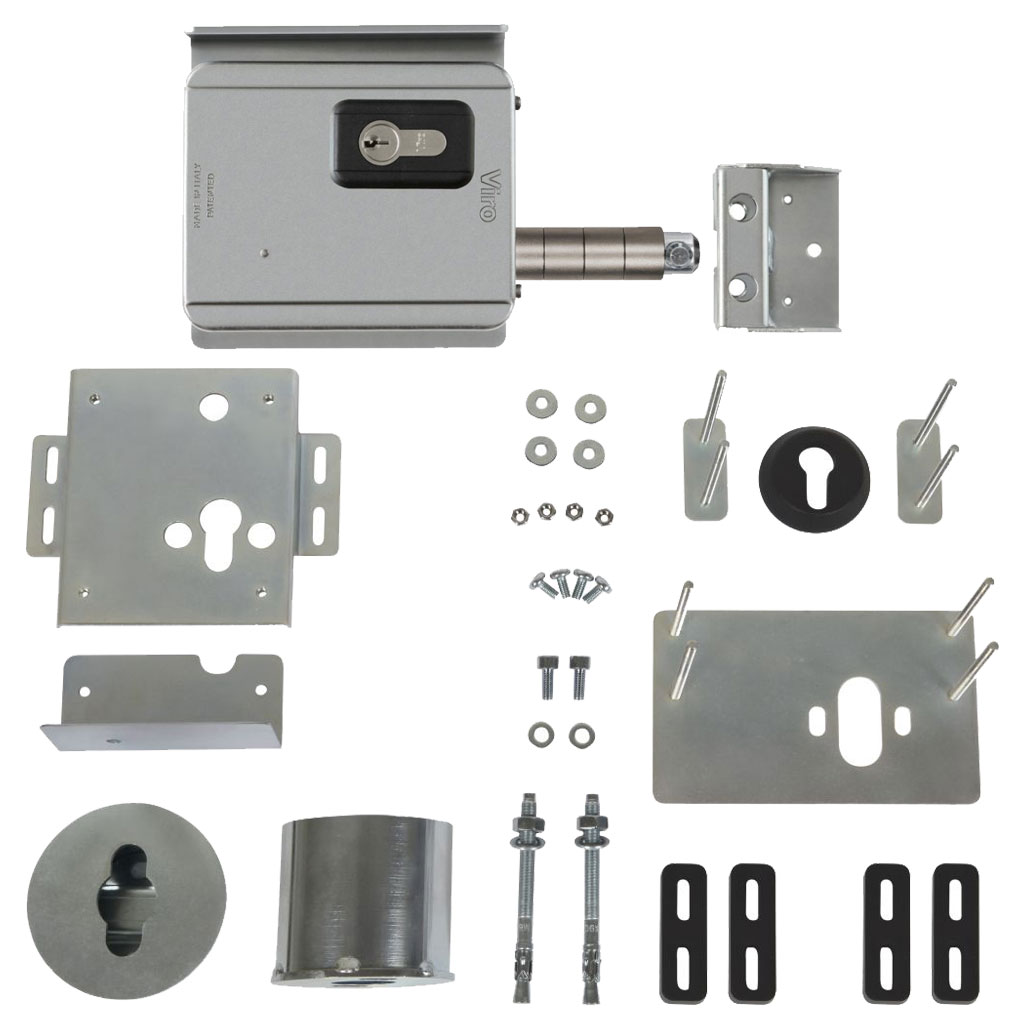

Italian-Made Viro V09 Electric Lock with Installing Accessories for Sectional Doors and Motorized Roller Shutter Garage Doors

Italian Made Sliding Gate Electric Lock (Viro V09) Italian Made Viro V09 - Rotating spike - For sliding gates and, with accessories, for sectional doors and motorized shutters Viro V09 electric lock is the only extremely high-reliability lock specially designed for use on outdoor, manual, or automated sliding gates.

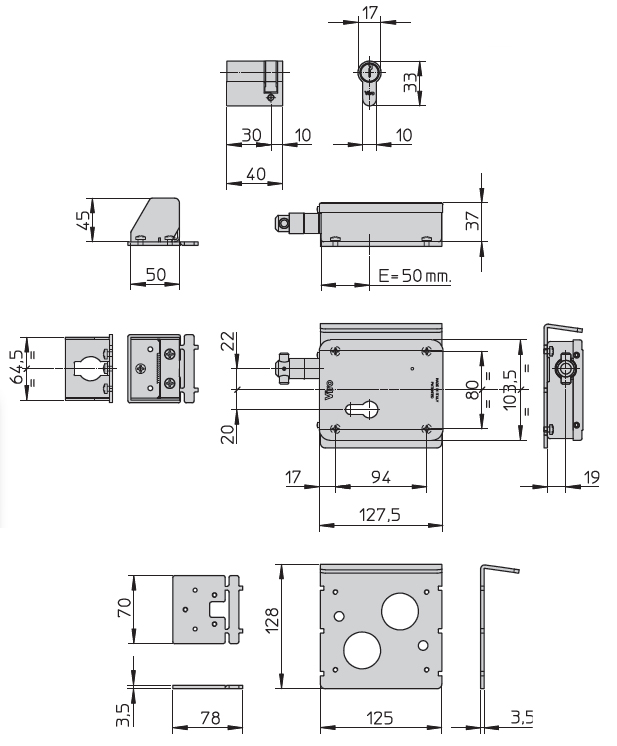

Electric Lock Dimensions
Electric Lock Specifications
• Installation: horizontal on the fixed upright of the sliding gate. • Opening impulse time: controlled by an electronic board, can be interfaced with an automation system for gates. • Replaceable coil. • Voltage: 12 or 24V AC or DC • Case: one-piece galvanized steel, with cable entry on the back (for maximum protection) or on the side (opening a pre-punched hole). • Cover galvanized steel, with an automatic security block when the lock is closed. • Rotating spike deadbolt: highly collision-proof, protected by case-hardened and galvanized steel rotating rings resistant to attack, inserted in steel guides treated with "NIPLOY PROCESS" nickel plating.
Related Links: Electric & Magnetic Locks Access Control Accessories

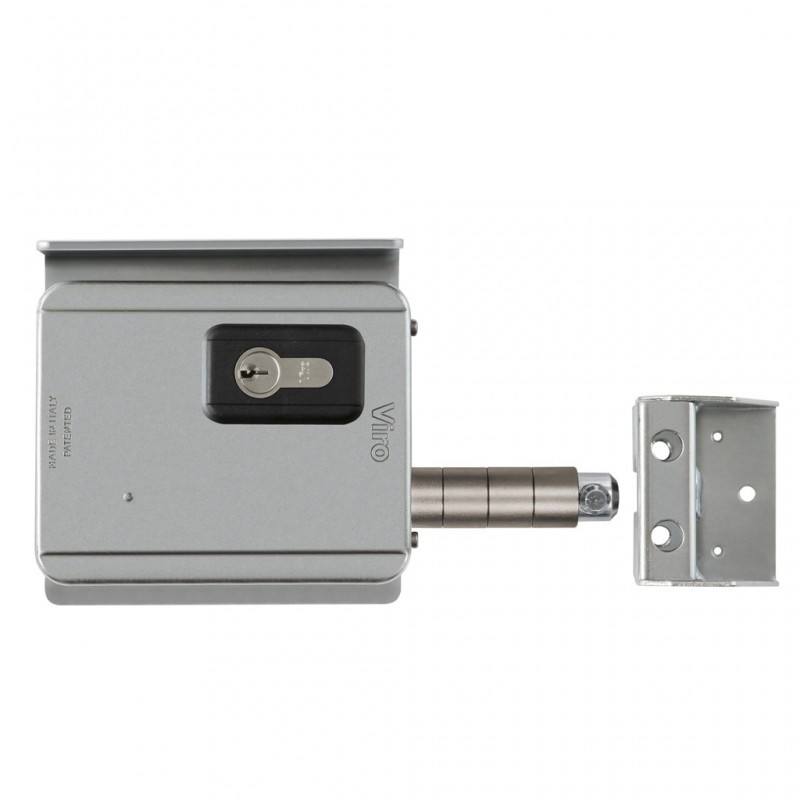

Viro V09 Electric Lock Installation for Sliding Gates

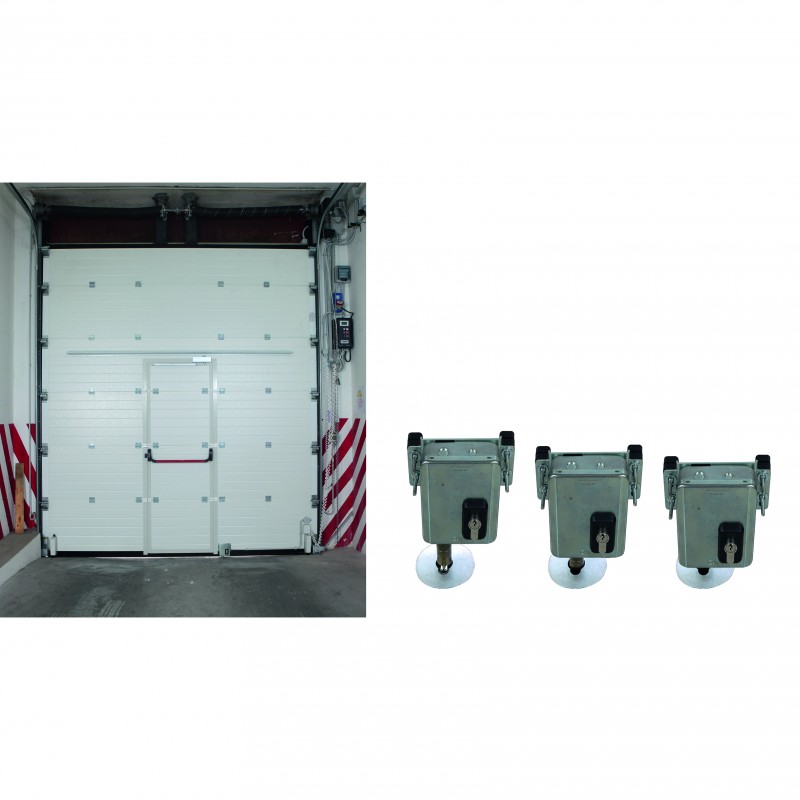

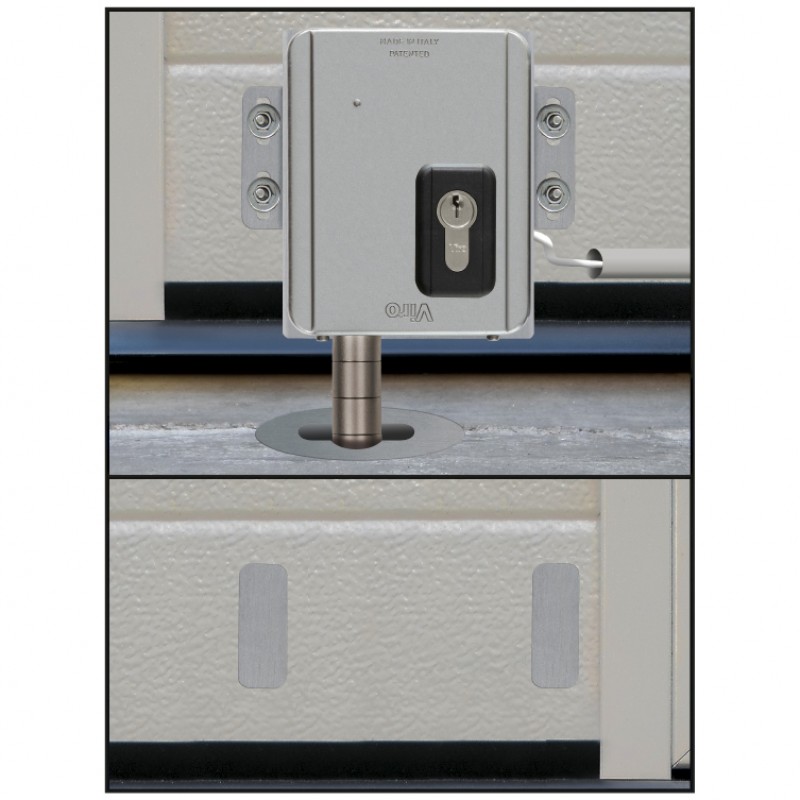

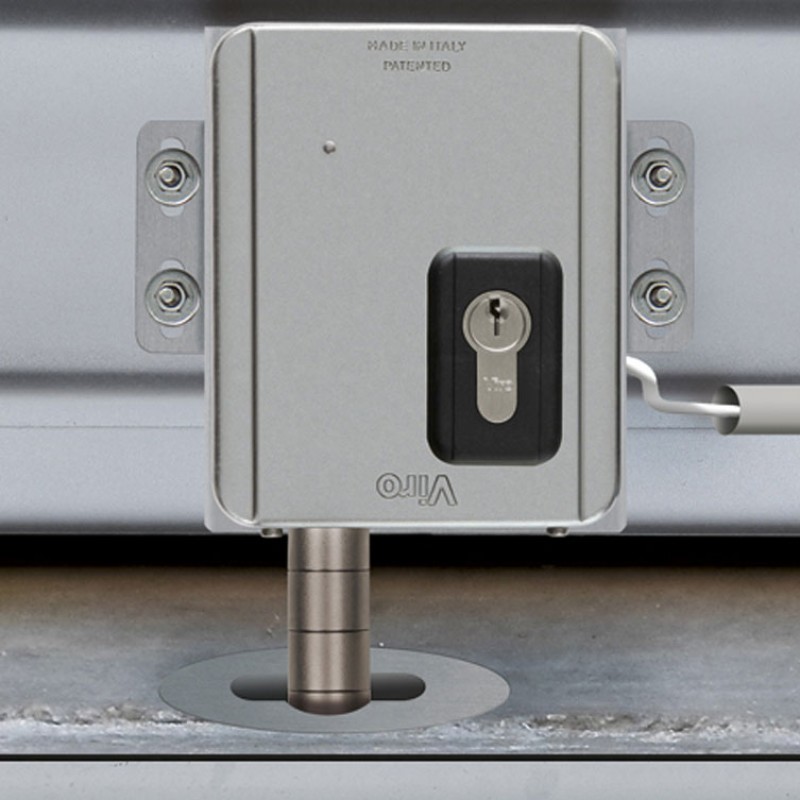

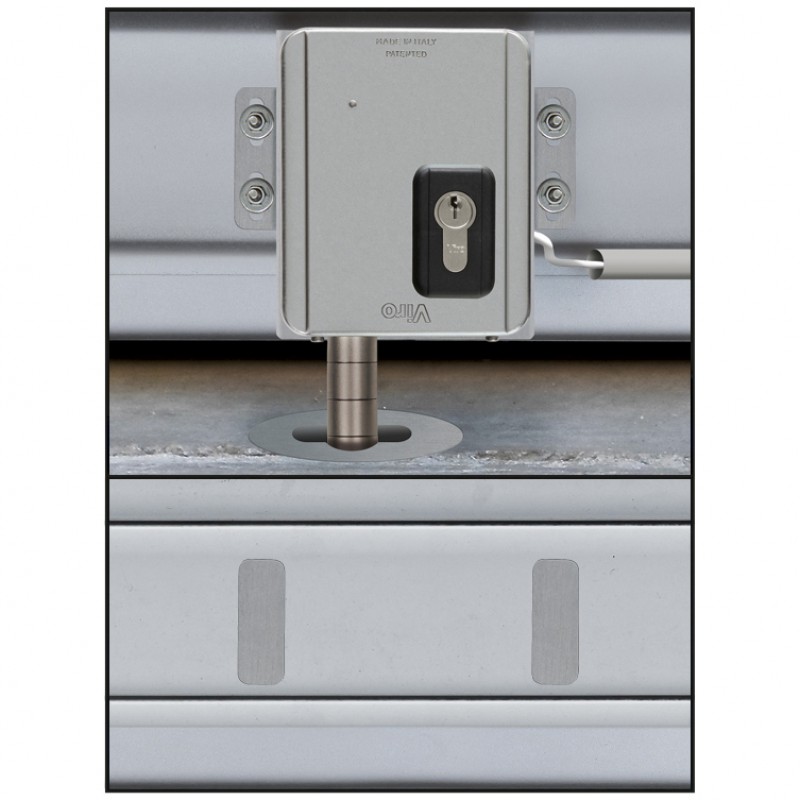

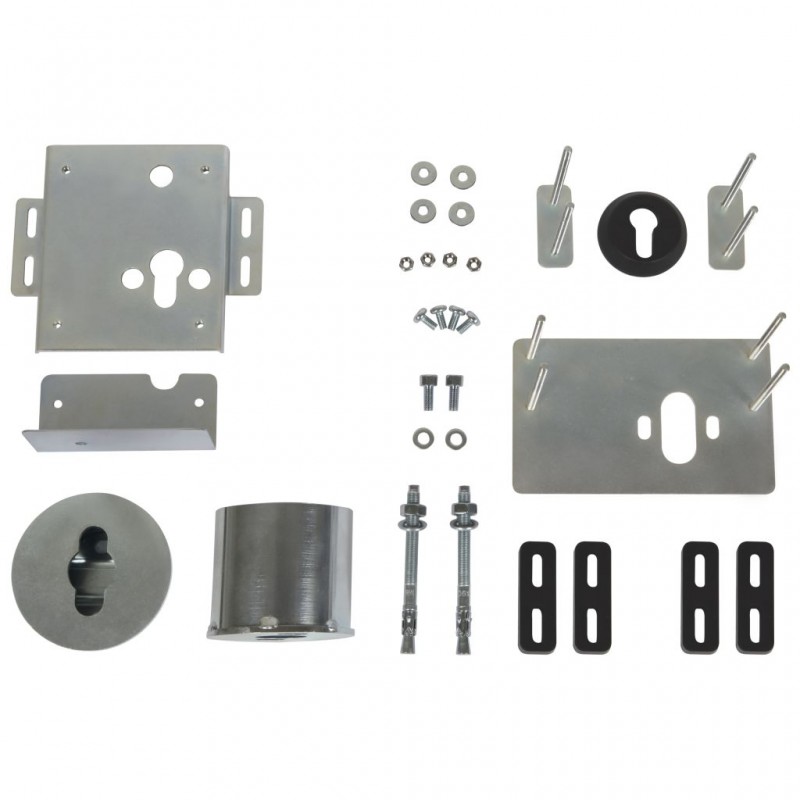

Electric Lock Installing Accessories for Sectional Doors and Motorized Roller Shutter Garage Doors

Features

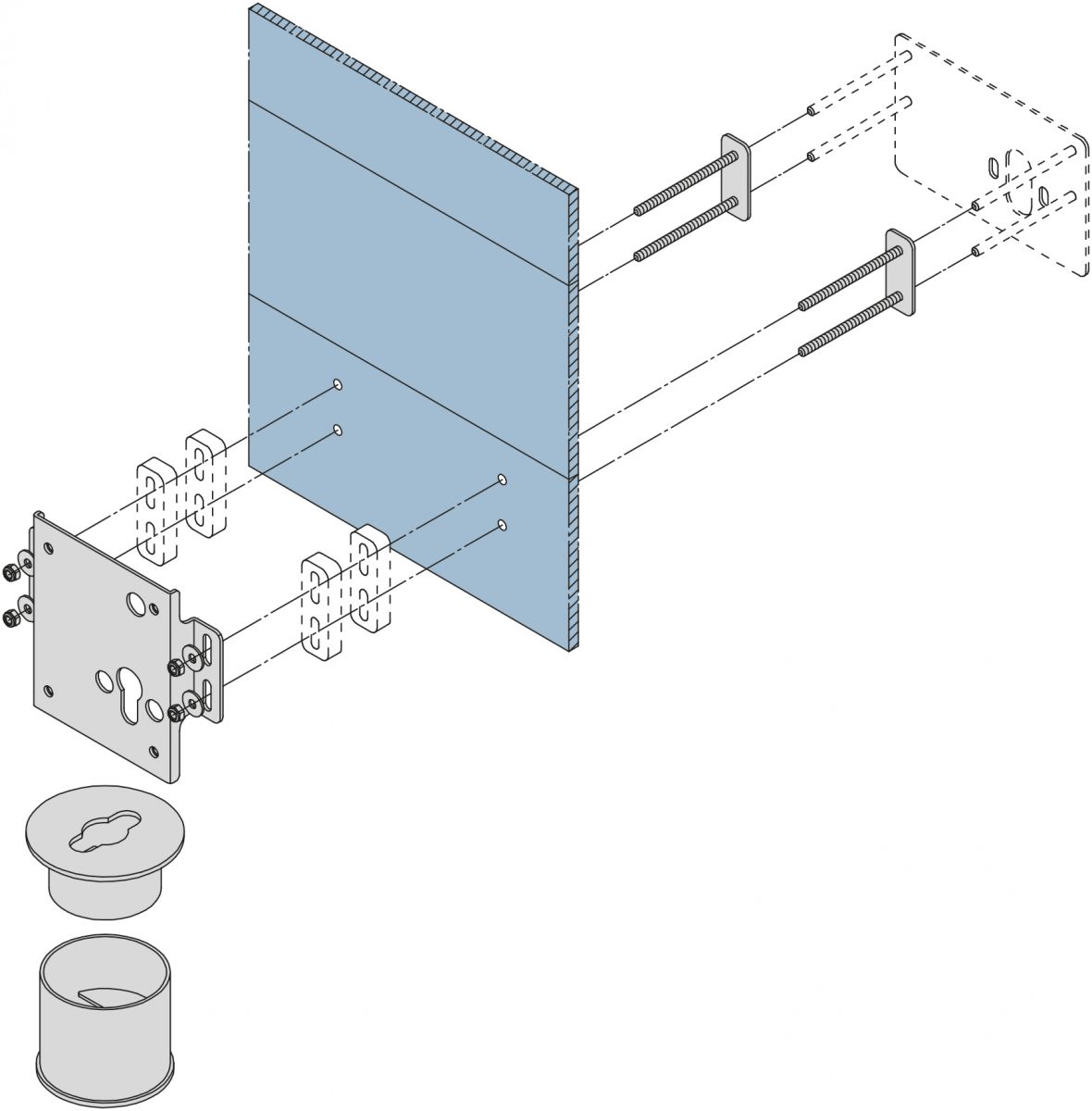

Inner plate:

2 mm thick for fixing the V09 electric lock.

2 outer plates:

2 mm thick (with 3 threaded pins welded on the inner side to allow the fixing points to be invisible from the outside), one of which has a slot for installing a double cylinder for external release of the lock (in the event of a power failure).

4 nylon spacers 10 mm thick and DIN holes on the external plate with a slot for the security escutcheon to protect the cylinder.

Template:

Metal, to ensure the correct positioning of the attack-resistant lock support plates, to be carried out on the floor for walling in the striker plate.

Wall striker:

Composing of a fixed lower part and an upper part that can be detached in order to remove any dirt, leaves, or anything else that can obstruct the deadbolt slot. Rotating spike deadbolt and floor striker make this installation extremely secure.
