Product SKU: EL-6000+EFH
|
|
|

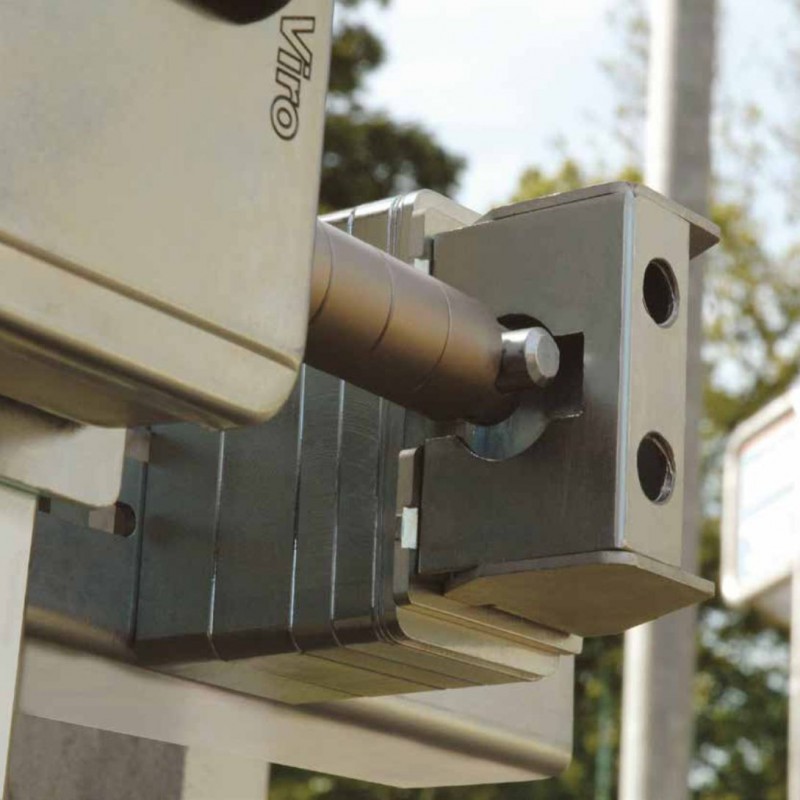

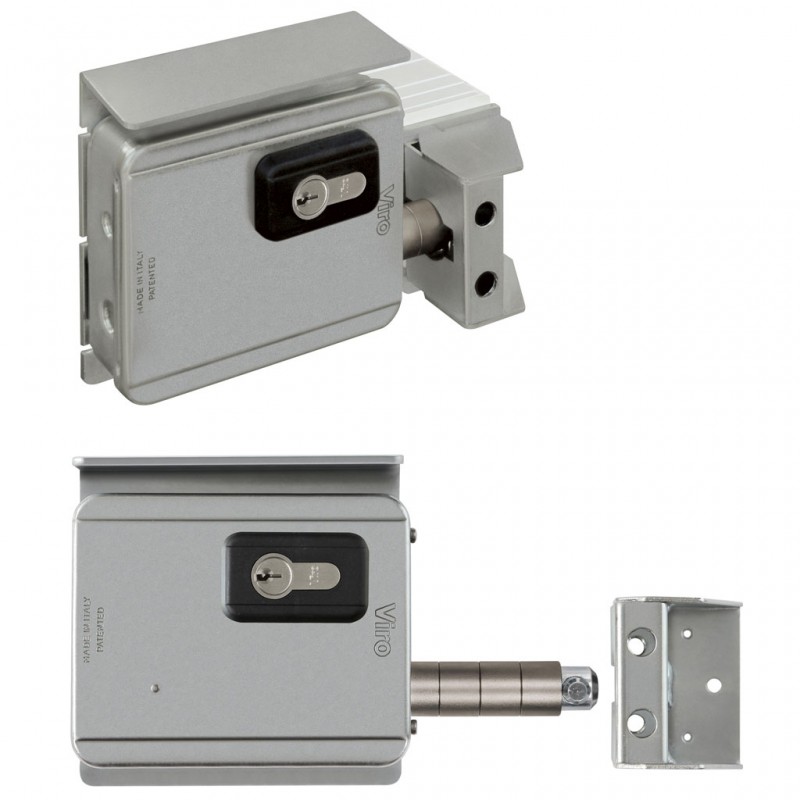

Italian Made Sliding Gate Electric Lock (Viro V09)Italian Made Viro V09 - Rotating spike - For sliding gates and, with accessories, for sectional doors and motorized shutters Viro V09 electric lock is the only extremely high-reliability lock specially designed for use on outdoor, manual, or automated sliding gates. |
|
 |
|
Electric Lock Dimensions |
|
 |
|
Electric Lock Specifications |
|
| • Installation: horizontal on the fixed upright of the sliding gate. • Opening impulse time: controlled by an electronic board, can be interfaced with an automation system for gates. • Replaceable coil. • Voltage: 12 or 24V AC or DC • Case: one-piece galvanized steel, with cable entry on the back (for maximum protection) or on the side (opening a pre-punched hole). • Cover galvanized steel, with an automatic security block when the lock is closed. • Rotating spike deadbolt: highly collision-proof, protected by case-hardened and galvanized steel rotating rings resistant to attack, inserted in steel guides treated with "NIPLOY PROCESS" nickel plating. |
|
| Related Links: | |

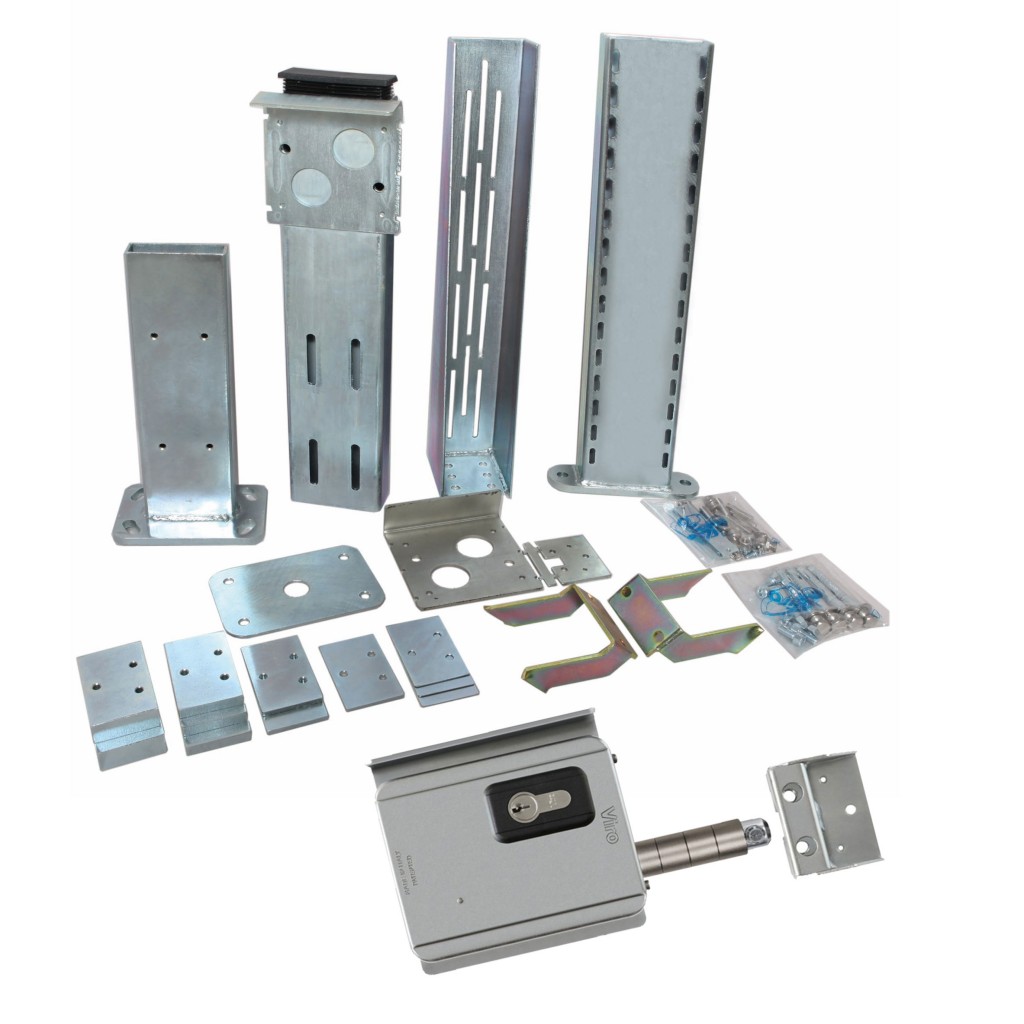

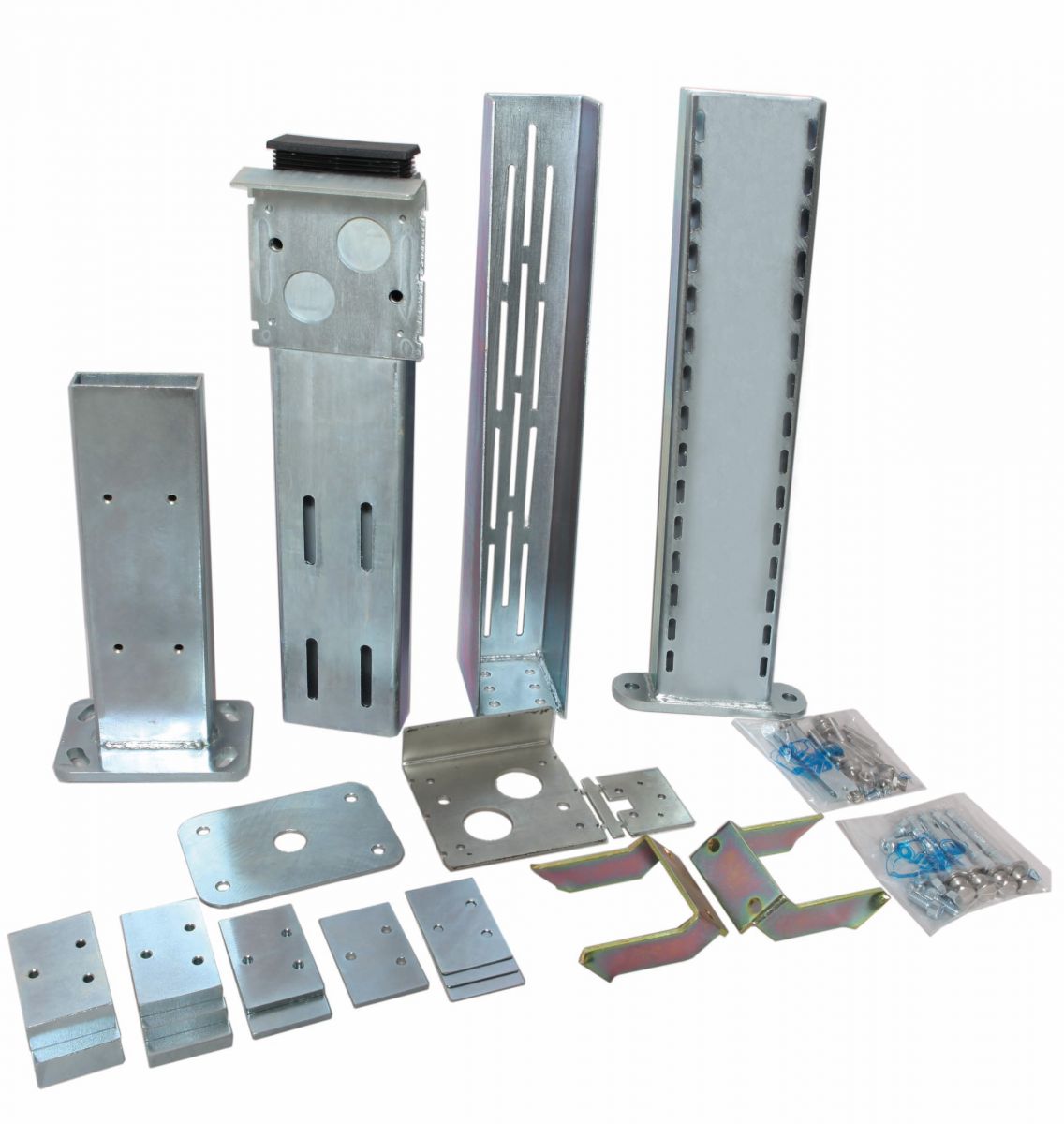

Assembly simplification kit consisting of rail posts, fixing plates, spacers, and security bolts.

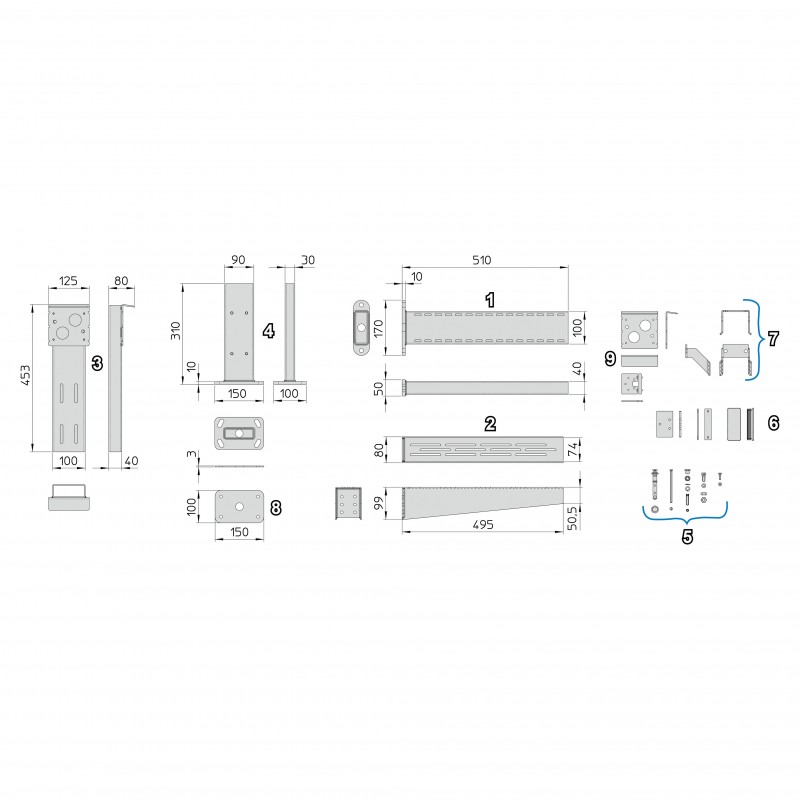

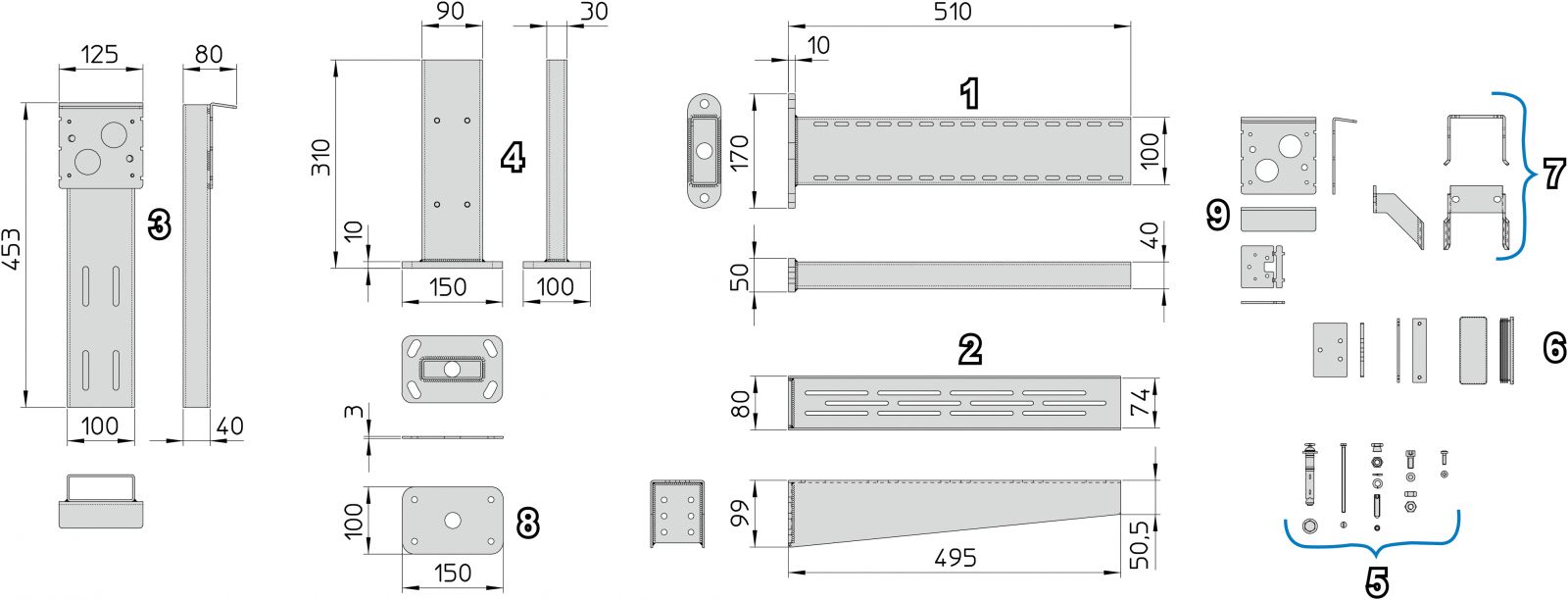

| Item Description | No: |
|---|---|
| Columns, fixing plates, spacers, and security bolts | 1÷9 |
| Columns | 3-4-5-7-8 |
| "T" plate | 1-5-9 |
| Slotted plate for the striker | 2-5-9 |
| Spacers | 6 |
| Screws and plugs | 5 |
| Columns and slotted plate | 2-3-4-5-7-8-9 |
| "T" plate and slotted plate | 1-2-5-9 |

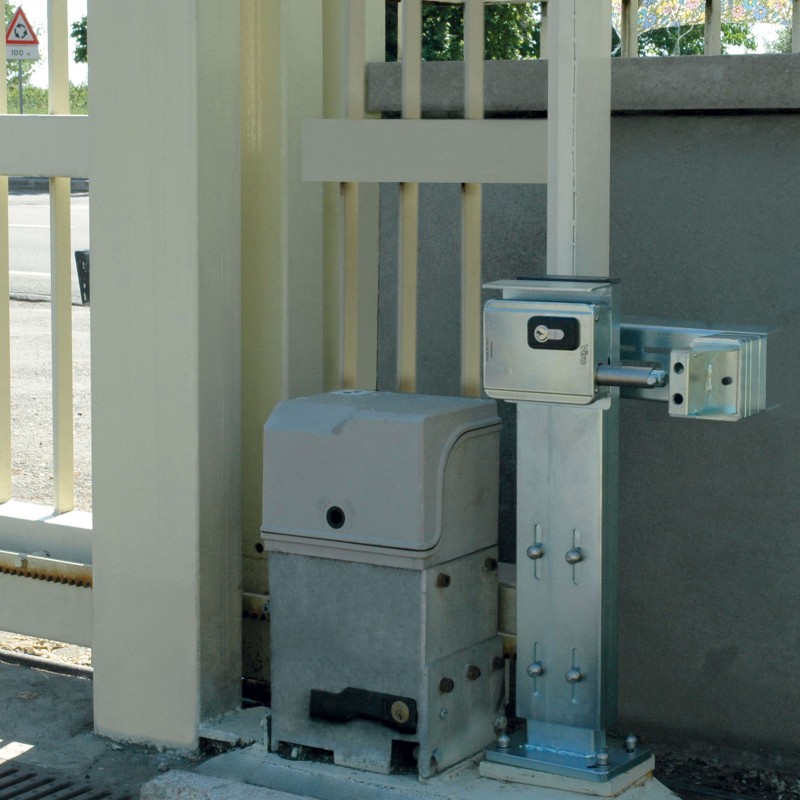

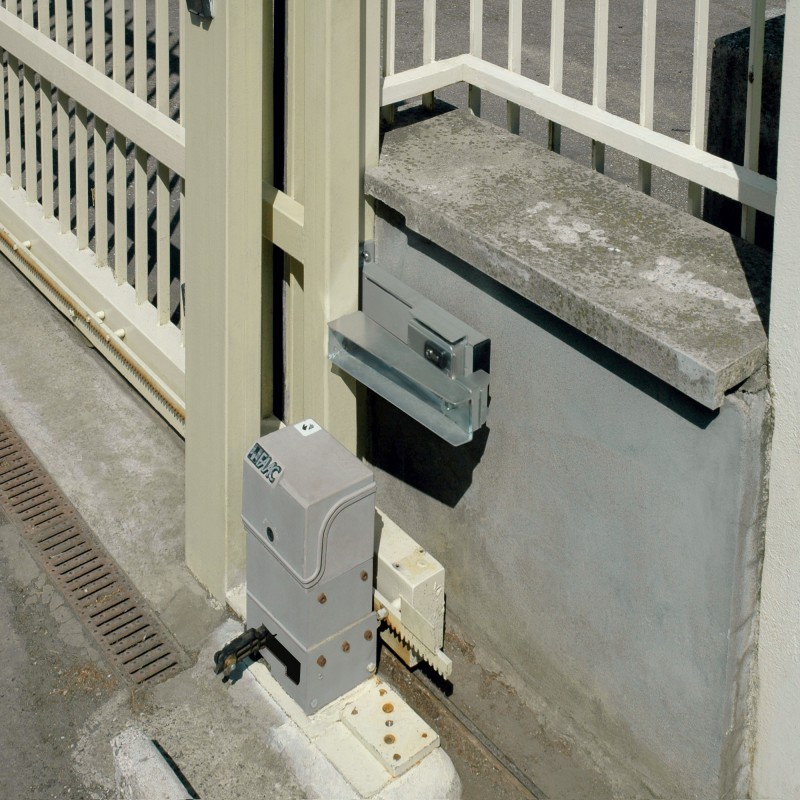

| Application on the motor side using the rail post in the kit. | Application on the “anti-capsize frame” using the “T” fixing plate in the kit. |
 |
 |
