Product SKU: TW90-600-HS-LV-WF

Invisible Sliding Gate Operator with Wi-Fi Smart Access Contro | In-Post Sliding Gate Opener Kit With Weatherproof External 24V Transformer with 20m Low Voltage Cable | Suitable to Install Inside 150mm x 150mm Post, No Limits Required | 100% Italian Made by Roger Technology TW90/600/HS Sliding Gate Automation System with 100% Duty Cycle 600kg In-Post Invisible Turbo Speed Brushless Sliding Gate Motor, Remote Controls, Reflective Safety Sensor and APC MONDO Wi-Fi Keypad Access Control

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

Invisible Sliding Gate Operator with Wi-Fi Smart Access Contro | In-Post Sliding Gate Opener Kit With Weatherproof External 24V Transformer with 20m Low Voltage Cable | Suitable to Install Inside 150mm x 150mm Post, No Limits Required | 100% Italian Made by Roger Technology TW90/600/HS Sliding Gate Automation System with 100% Duty Cycle 600kg In-Post Invisible Turbo Speed Brushless Sliding Gate Motor, Remote Controls, Reflective Safety Sensor and APC MONDO Wi-Fi Keypad Access Control

Product SKU: TW90-600-HS-LV-WF

  • In Stock

  • New
Get More Info..
Free Shipping Free Shipping

Kit Price:

$2,247.00

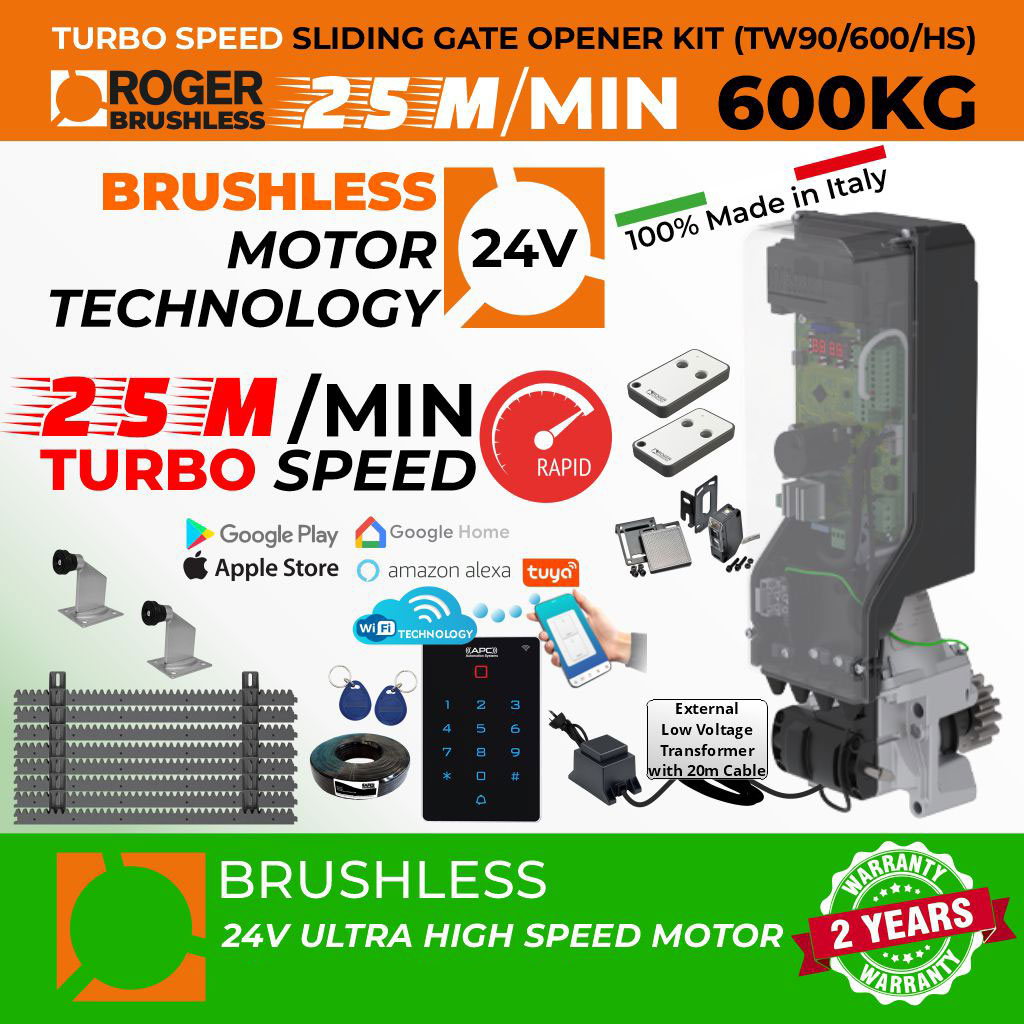

  • Sliding Gate Opener Kit with In-Post Invisible Sliding Gate Operator, Brushless Ultra High-Speed 25 M/MIN, 600 KG

  • Kit Includes

    01 In-Post Invisible Sliding Gate Operator, 24V Brushless Sliding Gate Motor, Ultra High-Speed 25 M/MIN, 600 KG | Made in Italy by Roger Technology (QTY: 1)
    02 Roger Technology Two-Button Remote Control (QTY: 2)
    03 APC Mondo Wi-Fi Keypad with APP Control and Swipe Tag Reader (QTY: 1)
    04 EM Swipe Tag (QTY: 2)
    05 5m 4 Core Non Shielded Cable (QTY: 1)
    06 APC Retro Reflective Safety Sensor - for gate opening system safety Retro Reflective Gate Sensor (QTY: 1)
    07 Gear Rack Nylon Coated With Steel Core, Strong and Quiet - (1m Pack - 2 x 50 CM) Made in Italy by Stagnoli (QTY: 4)
    08 115mm High Bolt Down Galvanized Gate Stop (QTY: 2)
    09 Weatherproof External 24V Transformer with 20m Low Voltage Cable (QTY: 1)
    10 Roger Technology FIVE YEAR Parts Warranty on Stator and Rotor of the Brushless Digital Motor and TWO YEAR Warranty on All Other Parts Including Electronics (Excluding consumables - remotes) (QTY: 1)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

TURBO-SPEED BRUSHLESS Sliding Gate Opener.
100% Italian made TW90/600/HS In-Post Invisible Roger Technology Sliding Gate Motor,
Ultra High Speed (42 cm/s) Sliding Gate Opener.

In-Post* Invisible types of sliding gate motors are mounted on the inside of gate posts so they are not seen from the outside.

*concealed in the gate post

COLUMN DRIVES FOR THE ROGER TECHNOLOGY TW90 In-Post (Invisible sliding gate operator) SERIES

TW90 sliding gate motor column drive systems have that certain something: Sliding gate column motors with animal instinct and digital ultra-speed.

The complete sliding gate motor and control unit are hidden inside the pillar. This makes column drives In-Post Invisible sliding gate operators a major element of any gate system: aesthetic, flexible, individual, reliable, and safe.

ROGER TECHNOLOGY BRUSHLESS TURBO SPEED IN-POST INVISIBLE SLIDING GATE MOTOR

 Animal instinct, digital ultra speed

A FASTER WAY TO WATCH YOUR GATE MOVE!

One of the Best Sliding Gate Motor now on sale in Automotion Plus Melbourne/Australia

How to Choose the Best Sliding Gate Opener (Australia)? | APC Gate Automation (Melbourne/Australia)

The best-sliding gate motors in Australia are often determined by factors such as reliability, durability, speed, access control, and customization options. Some top Automotion Plus Sliding Gate Opener models to consider include:

Roger Technology Brushless TW90 series "In-Post Invisible" sliding gate motor is strong, durable, and high-quality, suitable for residential and commercial sliding gates. It uses 24V brushless motor digital technology. Installed in the gate post(concealed in the gate post), that hides the gate motor to see outside.

One of the best sliding gate motors, the TW90/600/HS turbo speed brushless internal motor, has a 600kg capacity, making it the ideal candidate for most domestic/industrial driveway gate installations.

If you are looking for the best sliding gate motors in Australia, several models should be considered. Some popular options include the Italian-made BG30/HS Sliding Gate Motor 36V DC series and the BM30/HS, TW90(In-Post Invisible) Brushless Sliding Gate Motor 24V DC series. These motors are known for their reliability, smooth operation, ultra-high speed, intensive use, advanced access control, safety features such as safety sensors, WiFi smartphone app integration, and much more. When choosing the best sliding gate motor, it's important to consider factors such as gate size, weight, power options (Grid Power 240V, External Transformer Low Voltage 24V and Solar Off-Grid), speed, intensive use and warranty.

"Roger Technology FIVE YEARS Parts Warranty on the Stator and Rotor of the Brushless Digital Motor and TWO YEARS Warranty on All Other Parts, Including Electronics (*excluding consumables - remotes)"

You can get a free consultation from our help-desk professional to ensure the motor is the best compatible with your specific gate setup and requirements.

Please contact us to find the best sliding gate opener for your needs with the help of our experienced technicians.

Digital Ultra High Speed Sliding Gate Motor Made in Italy by Roger Technology | The Best Sliding Gate Motors in Australia

With the new high-speed line, digital Ultra High Speed, it is possible to open and close your gate at very high speed, with maximum elegance and more than doubling the decrease in waiting times of other operators for gate automation.

This is the ideal solution for all installations requiring speedy manoeuvre times, intensive use, maximum movement elegance, and total safety during the movement and obstacle detection phases.

Faster speeds and shorter waiting times!
The new Ultra High Speed lines let you quickly, powerfully and reliably open a gate. They are 100% faster compared to the traditional speeds for motors with BRUSHLESS Motor technology.

Dynamic accelerations and decelerations!
Thanks to the new digital controllers, it has become fast and straightforward to set different types of accelerations and decelerations during your gate's opening and closing phases. And always guaranteeing maximum elegance and safety.

Digital obstacle detection!
The ultra-powerful Native Encoder onboard the digital technology and the brand new motor power control in sensor technology make it possible to detect any obstacle with maximum safety, setting the speed, motor torque, sensitivity and operator reaction time during the detection phase for possible obstacles.

Total safety from the point you want!
To guarantee maximum safety and maintain high-speed performance, the new digital controller offers the possibility of configuring gate opening and closing from where you want to start deceleration and setting the type of deceleration, its speed and the relative sensitivity you want.



Roger Technology Brushless TW90/600/HS In-Post Invisible Sliding Gate Operator

TW90/600/HS In-Post Invisible sliding gate operator is installed in the gate post. This hides the gate motor, which cannot be seen from outside.

BRUSHLESS 24V TURBO SPEED Sliding Gate Automation Motor | with magnetic limit switch





At a glance | In-Post Invisible Brushless 24V Ultra-High Speed Automatic Sliding Gate Opener / Roller Gate Automation System

In-Post Invisible Brushless 24V Ultra-High Speed Automatic Sliding Gate Opener

The Roger Technology TW90/600/HS Brushless complete kit includes the "In-Post Invisible" roller sliding gate motor, control panel, and receiver.

The TW90/600/HS motor is a low voltage, super intensive use with a native digital magnetic encoder onboard, irreversible ideal for sliding gates up to 600Kg with built-in digital controller B70 series and magnetic limit switch.

Includes:

- TW90/600/HS In-Post Invisible Electromechanical Brushless Sliding Gate Motor
- Built-in B70 24V Digital Control Panel
- Plug-in H93/RX20/I Receiver

See the full details below.



Roller Gate Automation System Features

  • Ideal: For sliding gates up to max. 600 kg.
  • Safe: The encoder management allows precise and safe control of slowdown when opening and closing.
  • Practical: Automatic programming via the learning function of the control unit.
  • Quick: Ease of installation and start-up due to its simple functions and its height and depth adjustments.
  • Strong: Features a sturdy aluminium base treated with anti-corrosive paint and a reliable Roger Brushless motor mounted in dedicated housings and bearings.
  • Equipped with a release lever and an easy-to-operate lock.
  • Convenient: Battery backup available.



Capacity

  • 100% Duty Cycle (opening/closing - 24 hours, no stop)
    Digital brushless motor based on a permanent magnetic field that uses neodymium iron-boron magnets inside the rotor.
  • Multifunction digital display
    4-quadrant digital display with six function keys allows you to go through the various parameters, change their values, check error messages and input statuses and perform all the self-learning phases.
  • 600KG Capacity
  • TURBO Speed (42 cm/s) | Roller Gate Automation System)





BRUSHLESS MOTOR TECHNOLOGY

A digital brushless motor with a permanent magnetic field and digital electronics for the complete management of the automation system control. Designed for super intensive use with the added benefit of super low energy consumption.



DIGITAL BRUSHLESS MOTOR

Innovative, revolutionary Brushless digital motor with permanent magnetic field, 24V/36V energy sinusoidal with a native encoder that permits highly intensive use of the automation with extremely reduced consumption whilst at the same time fully guaranteeing all its safety and management functions.

NEW GENERATION OF ELECTRONICS

The new control unit with onboard Brushless digital controller (24V/36V DC). Without traditional relays and thanks to its revolutionary MOSFET quadrant system and its control technology entirely based on a DSP microcontroller, it represents a new generation of electronic cards created to safely handle every type of automation movement.

ENGINEERING PASSION

All the mechanical components and gears are manufactured in steel, cast iron and bronze. The automation system casings are made from titanium-reinforced die-cast aluminium. All the gears are inspected and assembled on high-quality bearings and inserted on precise seats machined to provide absolute precision between the axes.



Special Features of Brushless Ultra High Speed Automatic Sliding Gate Opener

WHY BRUSHLESS...?

Digital, smart, powerful, elegant, robust and all-Italian.

A technology that offers maximum performance but consumes less power than other motors. The revolutionary digital motor with 12 unique features.

Powerful Digital Brushless Motor

A very powerful sliding gate motor with substantial torque. The motor is compact and neat due to the special concentrated coil windings, it is powered by an energy sinusoidal system.

Digital & Vectorial Automation Controller

The BRUSHLESS digital controller, which operates at low voltage DC, allows 100% control of the automation system in digital mode. Due to its operation entirely based on a DSP microcontroller, the travel and your automation system's movements can be programmed and customised easily, precisely and elegantly.

The Digital Silence Of The Motor

One great impact is the silence or the near absence of noise generated by the BRUSHLESS motor during all its movements.

 Motor For Super-Intensive Use

 The brushless gate motor remains permanently cold even after many days of super-intensive use.

Speed, Acceleration & Deceleration With Extreme Elegance

The automation system with brushless digital technology creates perfect and elegant movements. With a constant force and torque at every point and the option of varying the speed of deceleration and acceleration, the system can be managed with maximum safety.

Extremely Low Energy Consumption

A motor that can operate at low voltage in super-intensive use and operate in environments with highly demanding weather conditions while maintaining very low energy consumption and absorption levels.

Impact, Obstacle Detection & Reversal In Total Safety

Thanks to digital technology, we are able to detect an obstacle and reverse the motor instantly by simply specifying the torque of the motor, the sensitivity, the time and the travel of the reversal, all in full compliance with safety requirements.

Onboard Native Digital Encoder

The BRUSHLESS motor has a highly advanced native digital encoder that controls the management of automation systems in a safe, precise and extremely elegant manner.

No Problem In The Event Of Power Failure

With the help of internal or external batteries and the associated battery charging card, your automation system continues to operate considerably even during prolonged power cuts, ensuring many more operations than traditional technologies.

Motor At Ambient Temperature

The brushless motor was created with the main goal of being a motor for super intensive use and with a 99% efficiency. Regardless of how many operations the engine performs in a day, it always remains cold or, at the most, reaches the outside ambient temperature.

Simple Installation With A Single 3-Wire Cable

And the BRUSHLESS motor can be installed by simply connecting it using a single 3-wire cable! What could be easier? This will provide fully digital management of your automation system thanks to sensorless or sensored technology, depending on the type of automation system.

Advanced Precision Engineering To Obtain Optimal Motor Performance

We have created a mechanism that gives you the opportunity to get the maximum performance out of the motor. A product that combines the quality of the internal production processes, mechanical processing, and high-quality ferrous and non-ferrous materials.



Control Board Overview



Accessories Compatibility and Controlling Options | Roller/Sliding Gate Automation

  • Constant DC Accessories Output
  • Automatic Sliding Gate Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
  • Remote controls
  • Induction Loops
  • Weekly Timers
  • Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
  • Keypads (Wired and Wireless Options Available)
  • Exit/entry sensors
  • Intercom system with dry contact output
  • Automatic switching timer
  • WiFi Control System (APP-Based Control)
  • GSM Control Systems (Mobile Call/SMS-based Control)





Italian-Made Roger Technology TW90/600/HS BRUSHLESS 24V TURBO-SPEED Sliding Gate Electric Motor
| DIMENSIONS |



Italian-Made Roger Technology TW90/600/HS BRUSHLESS 24V TURBO-SPEED
"In-Post Invisible" Sliding Gate Operator
| SPECIFICATIONS |

Max gate weight:    600 kg
Power line supply:    230V AC - 50Hz
Motor power supply:    24V
Power rating:    180W
Frequency of use:    Intensive use
Thrust:    250N
Operating temperature:    -20+55°C
Protection level:    IP44
Reductor Type:    Irreversible
Manoeuvre speed:    25 m/min (0.42 m/s)
Limit switch:    Without limit switches - optional
Onboard control unit:    B70/1T
Encoder:    Digital native encoder + magnetic digital SENSORED, 4096 PPR
Batteries recovery:    Optional 2 external battery 12V 1.2AH
Type exit gear:    Z20/mod 4
Operating cycles per day (opening/closing - 24 hours no stop):    1500
Maximum dimension product in mm (L x W x H):    132 x 138,5 x 470







Remote Control Features

E80/TX52R/2

Fix code transmitter 433,92 Mhz. 2 channels, with radio for copy.

Technical features

Standard power: 3V DC
Absorption: 12mA
Operating temperature: -10+55 °C
The number of channels: 2
Codification: Fix code
Modulation: AM/ASK
Carried frequency: 433.92MHz
The number of combinations: 65536
Radio for a copy: Yes
The maximum distance in the open field: 150m
Battery: Mod "CR2032" 3V
Maximum dimension product in mm
(L x W x H):
38 x 68 x 11









(2 x 50 CM) Nylon Gear Racks 1 Meter Pack | Made in Italy by Stagnoli

Interlocking Gear Racks Made in Italy by Stagnoli

The Keyed Interlocking Modular Nylon Gear Rack is Compatible with All Sliding Gate Automation

Stagnoli, Italy invented the nylon racks and has been manufacturing nylon racks since 1981. The advantage of nylon racks is no lubrication, rust-free and silent. Furthermore, with the nylon rack, there is no need to carry out any welding, which is instead required for iron racks and which involves more machining in the assembly process. GR50 is a quality product and is completely Made in Italy.







Dimensions of Modular Nylon Gear Racks | Sliding Gate Hardware

This gear rack nylon coated with steel core, strong and quiet, is compatible with all sliding gate automation, and is easy DIY install.


Modular gear racks kit includes;

A box with 2 nylon gear racks measuring 50 cm, 4 self-tapping and self-piercing screws, and 4 washers in galvanized steel. (Made in Italy by Stagnoli)





Galvanized Gate Stop






  • Galvanized steel construction for long life outdoor use

  • 115mm Height

  • 40mm Rubber bumper

  • Solid 100x80mm base

  • Pre-punched 10mm fixing holes





External Transformer (Extendable up to 80 metres cable distance)

24V External weatherproof designed to be used in a low voltage cabling application of up to 80 meters, supplied with a pre-connected 20-meter cable this is a perfect solution when running mains power to the gate is not a viable option due to costs, difficulty or just simply to DIY.





Specifications

Mains power supply: 230 Vac +/- 10%, 50-60 Hz

Motor power supply: 24 V DC 280 W and 10 A peak motor

Warning light power supply: 24V max 15W

Gate pilot lamp power supply: 24 Vdc max 10 W

Accessories power supply (photocells &): 24 Vdc max 10 W

Radio receiver frequency: 433.920 MHz

Storable remote controls: 170

Radio antenna input: Rg58

Operating temperature: -20°C / +50°C
