Product SKU: EV-2W-7-D298KP-SM

Eyevision® EasyInstall Two-Wire Video Intercom System With Eyevision Two Wire 7 Inch Touch Screen Intercom Monitor and Surface Mount Video Intercom Door Station, 2.0 Mega Pixel, 170° Super Wide Angle Video Keypad Outdoor Station

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

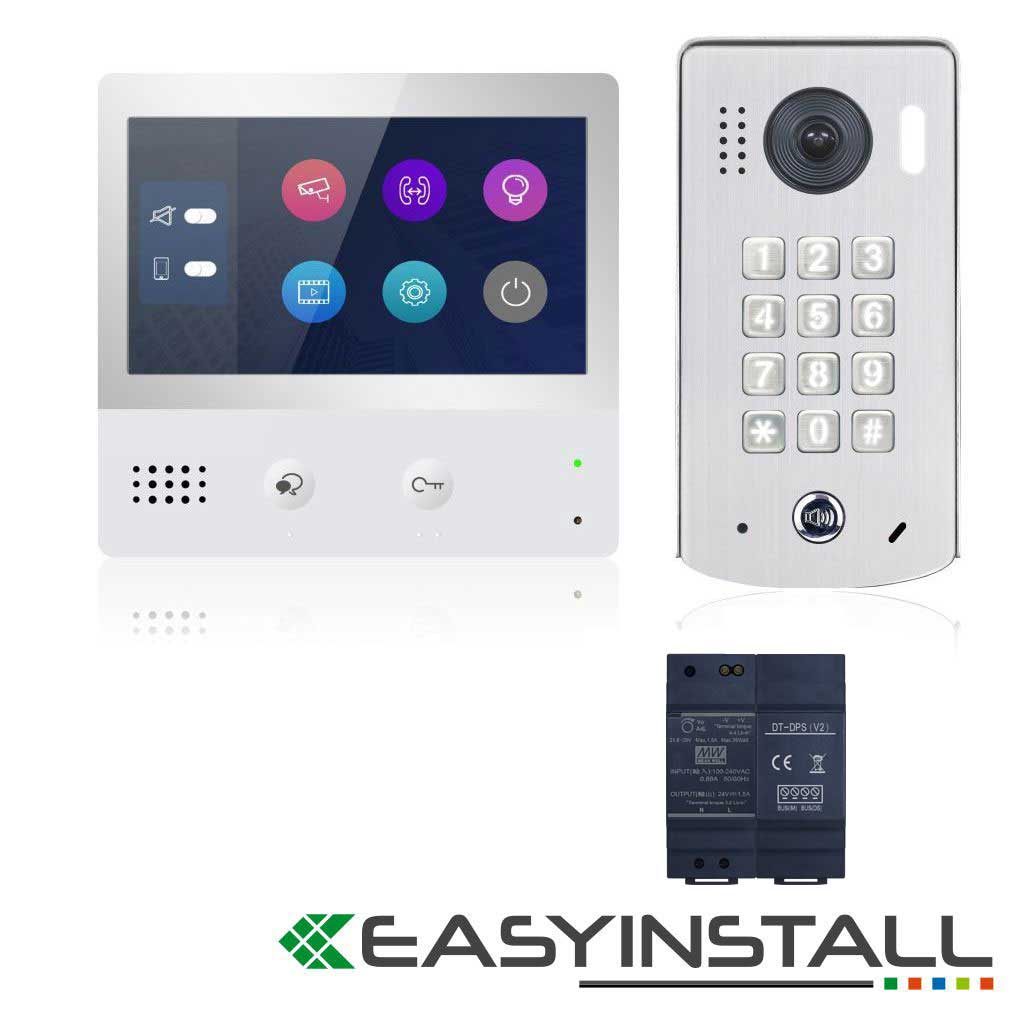

  • Eyevision® EasyInstall Two Wire Video Intercom System, 7 Inch Touch Screen Intercom Monitor With Surface Mount Video Intercom Door Station

    On Sale

Eyevision® EasyInstall Two-Wire Video Intercom System With Eyevision Two Wire 7 Inch Touch Screen Intercom Monitor and Surface Mount Video Intercom Door Station, 2.0 Mega Pixel, 170° Super Wide Angle Video Keypad Outdoor Station

Product SKU: EV-2W-7-D298KP-SM

  • In Stock

Get More Info..

Kit Price:

$592.00 $624.00 APC Automotion Plus Sale

  • Or in 4 payment of $148.00 with afterpay info
  • 2 Wire Video Intercom Surface Mount System, Easy Installation, Simple User Interface, Non Polarity System, 2.0 MP / 170°

  • Kit Includes

    01 Eyevision Two Wire 7 Inch Touch Screen Intercom Monitor (QTY: 1)
    02 Eyevision Two Wire Surface Mount Video Intercom Door Station. 2.0 Mega Pixel, 170° Super Wide Angle Video Keypad Outdoor Station (QTY: 1)
    03 Combo Power Supply and Separator for Eyevision 2 Wire Video Intercom Systems (QTY: 1)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Eyevision Two Wire 7 Inch Touch Screen Intercom Monitor

7 " touch screen monitor, compatible with all the Eyevision 2 wire home or apartment intercom systems

Eyevision Two Wire 7 Inch Touch Screen Intercom Monitor

  • 7 Inch Touch Screen Intercom Monitor
  • Easy to Navigate Menu
  • 12 Different Ring Tones to Choose From
  • Door/Gate Release
  • Additional Light Control or 2nd Lock Control via DT-RLC (Optional Add-On)
  • Don't Disturb Function
  • Automatic Recording Image/Video Function with Eyevision LinkBox (Optional Add-On)





Monitor's Features



2 Wires Video Intercom System with Camera Door Station

2 Wire Technology
The Eyevision® 2 wire systems are very powerful and highly expandable. They will deliver high-quality video and audio functions as well as a sleek graphical user interface.
The 2-wire technology is a non-polarity easy 2-wire connection.

2 Wires Video Intercom System with Camera Door Station

Internal Intercom
Internal intercom between all installed monitors, allowing each monitor connected to be able to call any other monitors, once another monitor answers then there will be hands-free communication between the 2 monitors.

2 Wires Video Intercom System with Camera Door Station

Ringtones
This system has 12 Doorbell melodies to choose from.

2 Wires Video Intercom System with Camera Door Station

Touch screen
7" Colour TFT LCD touchscreen operation with easy-to-use menus.

2 Wires Video Intercom System with Camera Door Station

Additional Monitors Connection
Additional monitors can be connected to the system, allowing full communication throughout all the connected monitors via the use of EV-DBC4A-M which can be found under 2 Wire Accessories.



Additional Monitor Features:

- Ultra thin with a total depth of 22mm.
- True color 7" Digital TFT screen.
- Touch screen operation with easy-to-use menus.
- Touch sensor buttons for quick access.
- Graphic menu display.
- Multi monitors connections with the use of EV-DBC4 distributors

Specification

Power supply: DC 20~28V

Power consumption: Standby 0.25W; Working 5W

Communication: Hands-free

Screen: 7 Inch Digital Colour TFT

Display Resolutions: 800*3(R, G, B) x 480 pixels

Video signal: 1Vp-p, 75Ω, CCIR standard

Wiring: 2 wires, non-polarity

Dimension: 161(H) × 174(W) × 22(D)mm



Eyevision® 2 Wire Surface Mount Intercom Keypad Door Station with 170° Wide Angle Fish Eye 2.0 MP Camera

Keypad door station with built-in 170° Wide Angle Fish Eye Camera, Stunning modern appearance, Surface Mount, Slim design, Weatherproof, Aluminium face plate Door Station With Full SSS Materials Design and two-channel operation (second lock via add-on relay).

When coupled with the Eyevision® 2 Wire monitor, this wide camera angle door station will display the full 170° view only and cannot pan-tilt-zoom however it will automatically zoom in and out when the doorbell is pressed.

When this door station is coupled with the Eyevision® 2 Wire monitor, the user will be able to utilise the full features of the Pan-tilt-zoom function. This function allows the user to navigate up, down, left or right, as well as zoom in, in order to move to the desired position on the monitor.

Eyevision® 2 Wire Wide 170° Camera Angle Fish Eye Intercom Door Station

Features:

  • Stainless Steel Door Station With Full SSS Materials Design
  • 170° Super Wide Angle
  • Fish Eye Lens
  • 2.0 Mega Pixel Camera
  • Colour CMOS
  • Pan-Tilt Zoom Function
  • Auto-sensor LED For Backlight Compensation
  • Waterproof Structure Design With IP55 Protection Rating
  • Anti-tamper Screw Installation Design
  • 3mm Plexiglass Touch Keys
  • Flush or Surface Mount Options Available

Door Station Specifications

Power Supply: DC 24V

Power Consumption: Standby 15mA; Working status 105mA

Camera: Colour CMOS, 2.0 Megapixel
                 1/2.7’’ Fisheye Camera, 170° Super Wide Angle;

Unlocking time: 1~99s

Lock Power supply: 12V dc, 280mA (Internal Power);

Number of relay circuits: 2 (the second lock needs an external device to support)

Mounting: Surface mounting (EV-D298KP-SM)

Working temperature: -15 ºC ~ +55ºC

Dimension: 182(H)×93(W)×44(D)mm (EV-D298KP-SM)



Cable Requirements

Eyevision® 2 wire Cable Requirements



Cabling

  • CAT5 up to 80m between the door station and each apartment.
  • Straight Pair 1mm2 up to 50m between the door station and each apartment.
  • Twisted Pair 1mm2 up to 120m between the door station and each apartment.
  • Twisted Pair 1.5mm2 up to 200m between the door station and each apartment.



Recommendation:

The Eyevision® 2 wire monitors are very powerful and will deliver high-quality video and audio, it is recommended to use the best quality cables that will suit your installation. Use cables with very good-quality copper conductors in order to maximize the clarity of the system.





Combo Power Supply and Power Separator For all Eyevision 2 Wire Home Systems

Combo Power Supply and Power Seperator

The EV-PS-C7 is a combo power supply and power separator for the Eyevision® 2 wire systems. It has a simple Phoneix connection for the BUS line for the door station(s) and monitor(s).

Key Features:
- 24V 1.5A Power Source
- Din Rail Mounting (Supplied)

Compatibility:
All Eyevision® 2 Wire Home Systems.



Diagram of 1 Door Station and 1 Monitor using the EV-PS-C7

Diagram of Multi Door Station and 1 Monitor using the EV-PS-C7

Diagram of 1 Door Station and Multi-Monitor using the EV-PS-C7


With DBC4A Wiring Mode
