Product SKU: W-LD-IG-CPT50

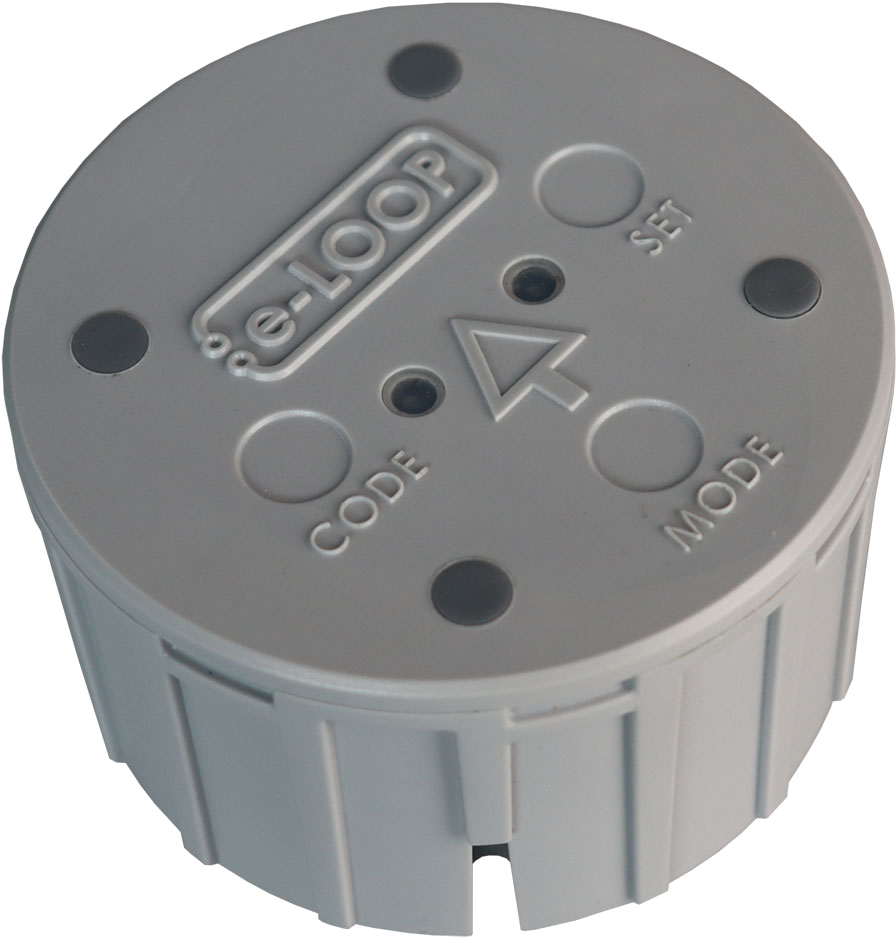

Introducing a new generation of wireless vehicle detection with added radar protection. The inground eLoop replaces traditional wired inductive loops, saving you time and money while increasing reliability and safety.
Commercial Inground eLoop Wireless Vehicle Detection System uses magnetometer sensors to detect the presence of oncoming vehicles. These detections are transmitted to a nearby Microtech transceiver for gate activation. After the vehicle is detected, the e-loop will switch to radar mode. The sensors are installed in the ground(89-92mm hole, 65-70mm deep) of entry or exit passages, contain replaceable batteries, and can withstand almost any vehicle.
Microtech Radar® sensors can detect vehicles that are stopped above the e-loop. The added radar utilises a two-way radio communication protocol for reliable operation. Once the magnetometer sensor detects an oncoming vehicle, the transceiver relay will be latched, and confirmation will be sent back to the e-loop. The radar will check if a vehicle is present if the magnetic field drops below the set threshold. If no vehicle is detected, an unlatch command is sent to the relay, and the transceiver will send a confirmation to the e-loop. Multiple attempts will be made to ensure safe operation if the confirmation is missed. Radar settings can be adjusted using the e-diagnostics remote. Settings that can be changed include Dead zone, sensor distance, sensitivity, magnetic field release level, and confirmation mode.
Functions | Commercial Wireless Vehicle Sensor | Inground eLoop Detector
Lower power consumption
3-axis magnetometer for vehicle detection
Fast and simple installation
Up to 6-year battery life
Reliable radio communications with transceiver

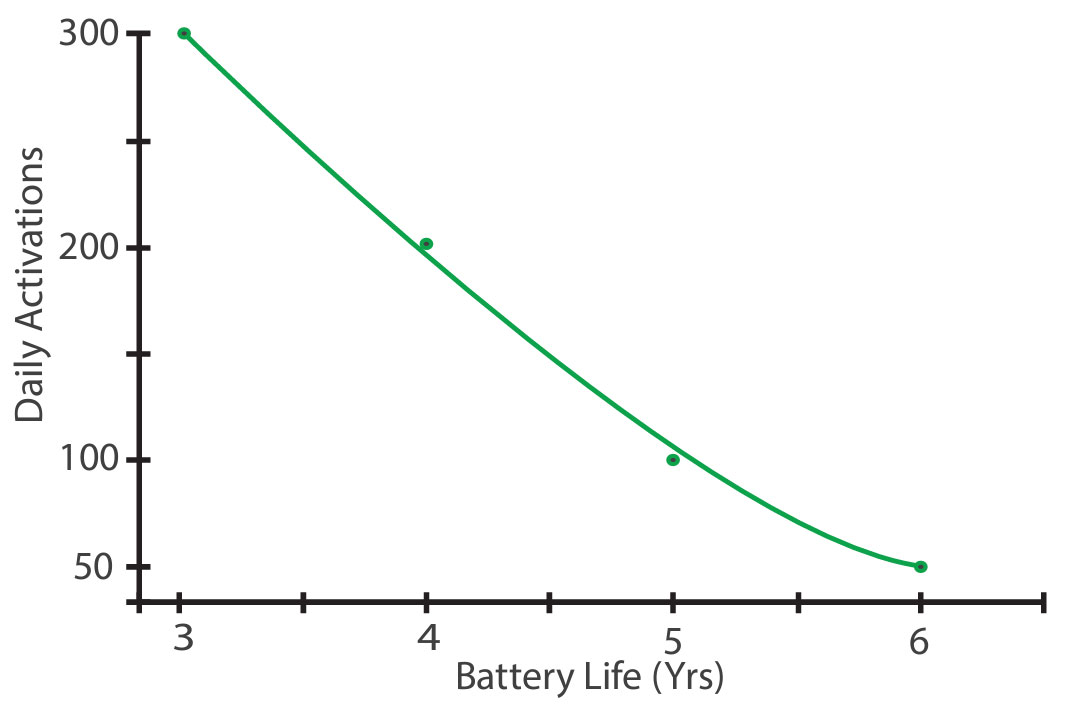

Note: Battery life is dependent on many factors, including daily activations, time used per activation, radar range and external conditions.
The Inground e-Loop commercial is the epitome of perfection regarding wireless vehicle detection systems designed specifically for commercial settings.
With its wireless nature, installation becomes a breeze, eliminating the need for complex wiring systems and minimizing disruption to the existing infrastructure. Moreover, the system's efficient energy consumption and low maintenance needs make it a cost-effective solution that ensures long-term reliability.
Additionally, the Inground e-Loop commercial is available with a convenient presence mode, which intelligently keeps gates and barriers open for an extended duration when longer vehicles are in motion over the detection area. This advanced functionality enhances safety and efficiency by minimizing interruptions and reducing the risk of collisions, further solidifying its suitability for commercial environments.
Power: 1 * 3.6 V 14500ma
Dimensions: 220*220*26mm
Weight: 1000g
Environment: designed for above-ground mounting
Protection: IP68 ingress protection
Operating Temp : -20° to 80° C
Standby Power: 14µA
Activation Power: 50mA

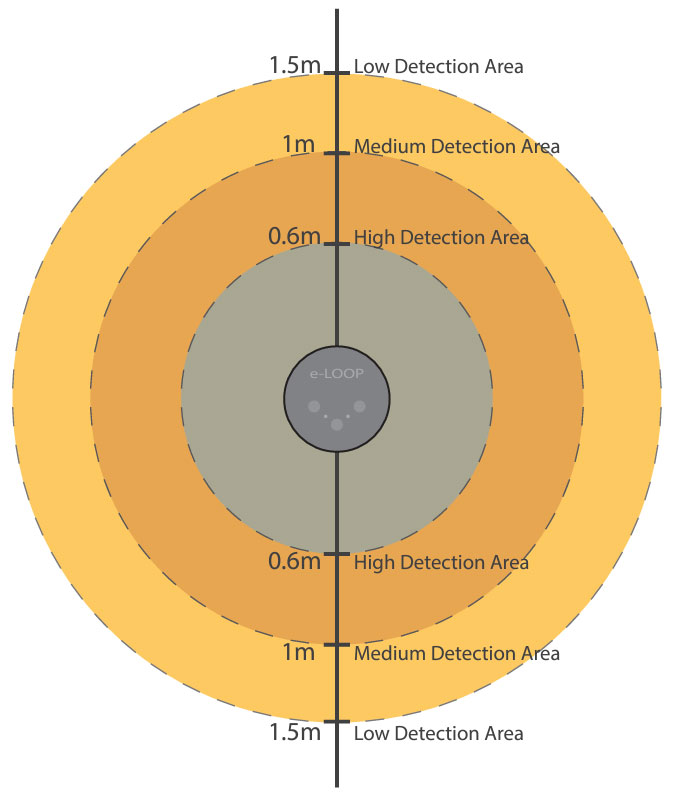

Varying magnetic eld detection zones. The grey area depicts a 0.6m high sensitivity detection area surrounding the e-loop, suitable for the majority of vehicles. The dark colour area depicts a 1m medium sensitivity detection area surrounding the e-loop, suitable for most vehicles. The light colour area depicts a 1.5m low sensitivity detection area surrounding the e-loop, which is only suitable for some vehicles.

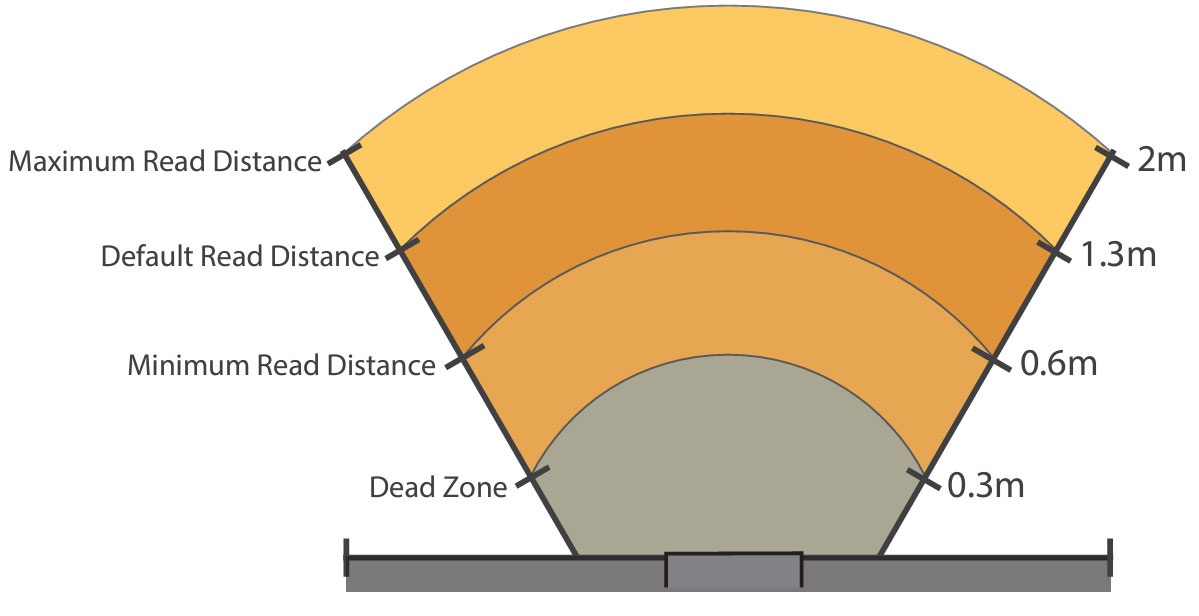

Radar detection range. Spanning from a 60° FOV from the e-loop, these are the range zones. The gray area depicts the dead zone, in which objects cannot be detected. The Minimum read distance is 0.6m. The default read distance is 1.3m, and the Maximum read distance spans up to 2m.
Wireless access control system for gate and door applications.
Featuring a compact design with exceptional range, the e-Trans-50 is designed to manage access control for home and commercial systems.
A long-range wireless transceiver that can work with both gates or automatic doors. The small design allows it to be easily installed without compromising on the exceptional range.
Voltage: 10-36V DC
Current draw standby: 4.5 m/a
Current draw active: 30 m/a
Frequency: 433.39 MHz
Remote storage: 50 remotes, 4 x e-Loops, 4 x keypads, 4 x entry buttons
Relay: 1-amp contact rating, COM and N/O connections x 1 relay
Modes: Pulse, Latch and Hold
Compact design with an exceptional range
SMA connector standard for external long-range antenna connection
Wide Voltage Range: 10-36V DC
Exceptionally low Current draw: standby 4.5 m/a, active 30 m/a
Frequency: 433.39 MHz
Remote storage: 50 remotes, 2 x Keypads, 2 x Entry Buttons
Relay: 1-amp contact rating, COM and N/O connections x 1 relay
Multiple Modes: Pulse, Latch and Hold
