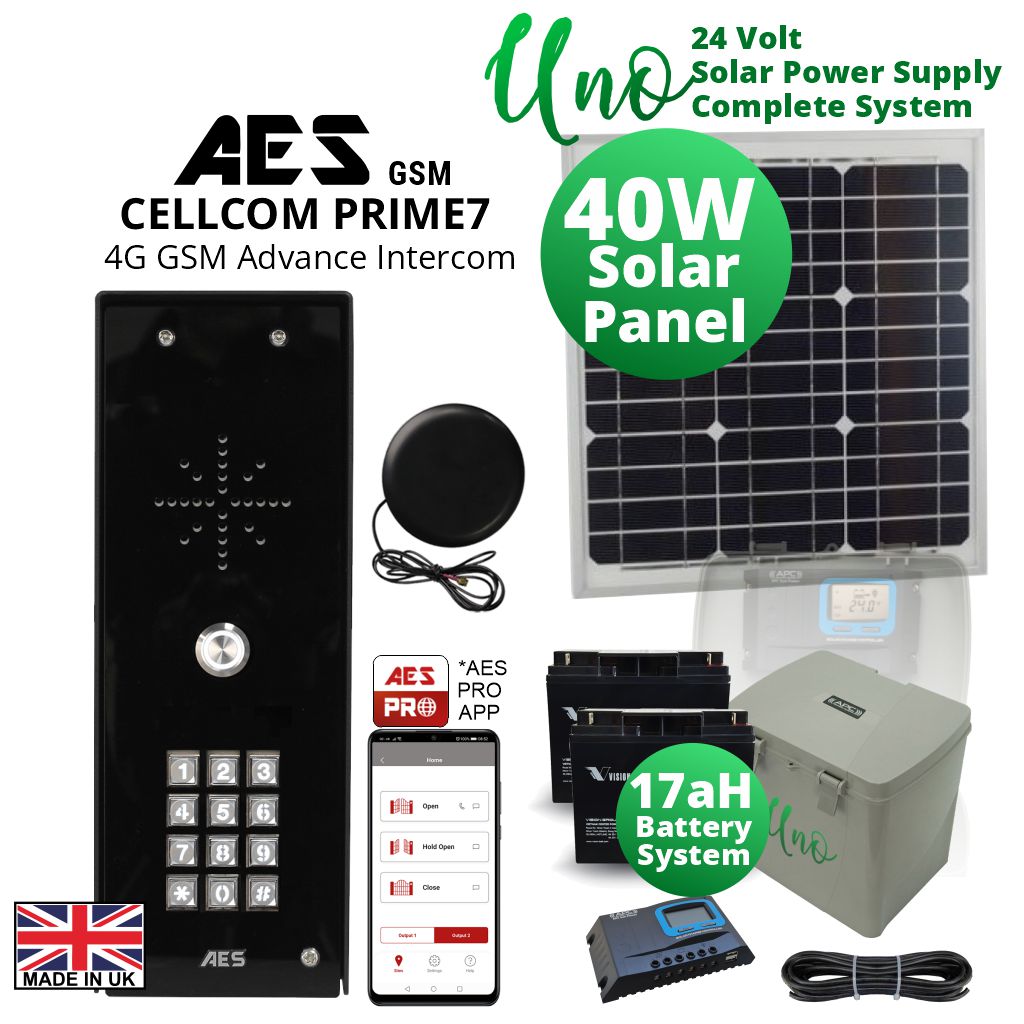

GSM Audio Intercom System With Off-Grid Standalone Solar Power System. | Advanced Wireless GSM Audio Intercom Door Station Secure Smart Access Control System With Call Button, Keypad and Free Smartphone App | 24 Volt Solar Power Supply System with 17aH Battery and 40 Watts Solar Panel Complete Solar Power System.

Cellcom Prime7 | Advanced GSM Audio Intercom With Keypad

7th Generation Prime GSM Intercom

The Cellcom Prime7 is an advanced GSM audio intercom system designed for family homes or businesses. It features one call button and allows for remote management via phone calls and a free smartphone app.

The Cellcom Prime 7 series is an advanced GSM audio intercom system with one call button. It is suitable for one household or business.

This state-of-the-art GSM intercom system dials up to four phone numbers in succession on roll-over whenever a visitor pushes the call button on the intercom.

User-friendly and hassle-free, you can have total remote management over your intercom via phone calls and free Android and iOS smartphone apps for residents and installers anywhere in the world.

It is ideal for installations where excavation is not an option, such as if long cables cannot be run from the property to the gate.

Calls your home phone and mobiles on roll-over when a visitor presses the call button.

• Never miss a visitor with mobile calling.
• Works with any standard contract or Pre-Pay GSM Nano SIM card.
• Free smartphone APP to trigger gates, set up auto opening and closing times, create new access codes, receive notifications on entry, etc.
• Free installer APP (AES PRO) for remote programming and diagnostics.
• Panels with a keypad (Door/Gate Release)

Never miss a caller with a GSM intercom!

Calls your phone/mobile device on roll-over when the visitor presses the call button with updated technical features.

• FOTA - Upgrade firmware via SMS.
• 250 - Keypad codes (permanent and time-restricted).
• You can store up to 4 notification phone numbers to receive an SMS when the relay is triggered, etc. (This can be customised).
• Trigger, latch and unlatch with SMS replies.
• 250 caller ID numbers.
• 2 Relays.

The smartphone app is designed for simple management. The mobile app enables you to store 4G GSM Intercom via the smartphone application, providing the convenience of logging in from any smartphone.

• Manage your GSM Audio Intercom from anywhere in the world.
• Create user accounts and establish app passwords.
• The program has even more features for more complex requirements.

Technical details

Dial Out Numbers: 4
Permanent Codes: 250
Time Restricted Codes: 250
Temporary Codes: 50
Automatic trigger events per Week: 50
Caller ID numbers: 250
Time Restricted Caller ID: 250
Relays: 2
Relay Type: N/C and N/O
Relay Load: 2 amps, 24v ac max
Power Consumption: 300mA on dial out, 2amp peak demand
Modem Models: 4G AUS/NZ
Power Supply: 24v dc (24v dc 2A adaptor included)
Operating Temperatures: -40°C to +55°C
Ingress Protection: IP68
Dimensions: 278 x 100 x 70 (hwd mm)

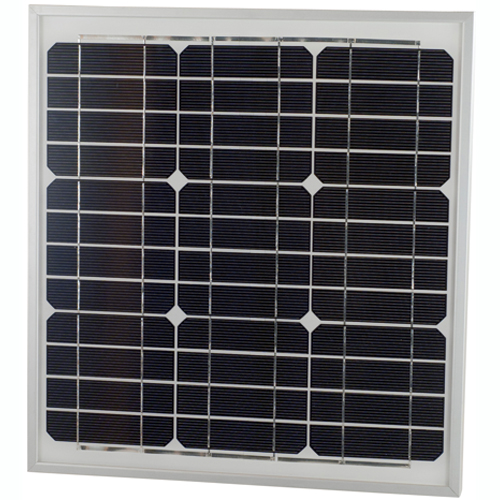

24V 40 Watt Solar Panel

The SP-24V-40 is a 40 Watt, 24 Volt solar panel, and will provide enough power to trickle charge a 24V vehicle or deep cycle battery. Helps run pumps, lights, fans, and small appliances such as stereos, televisions and VCRs in caravans, boats or cabins. A heavy-duty anodized aluminium frame provides strength and convenient mounting access. Cells are laminated between high transmissivity, low-iron, 3mm tempered glass and sheet of tedlar-polyester-tedlar (TPT) material by two sheets of ethylene Vinyl acetate (EVA). This protects against moisture penetrating into the module.
Open Circuit Voltage 42.48V Optimum Operating Voltage 36V Short Circuit Current 1.22A Optimum Operating Current 1.11A Dimensions 535 x 515 x 30MM Cells Mono Crystalline

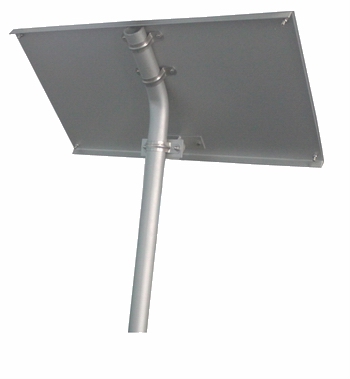

Solar Panel Post & Bracket for APC 40 Watt Solar Panel
This solar panel post & bracket set is suitable for the APC 40 watt solar panels.
Kit Contents
	- Solar Panel Mounting Post - Solar Panel Mounting Plate - Nuts, Bolts and Washers   - Saddle Clamps - Rubber Pads - T Brackets

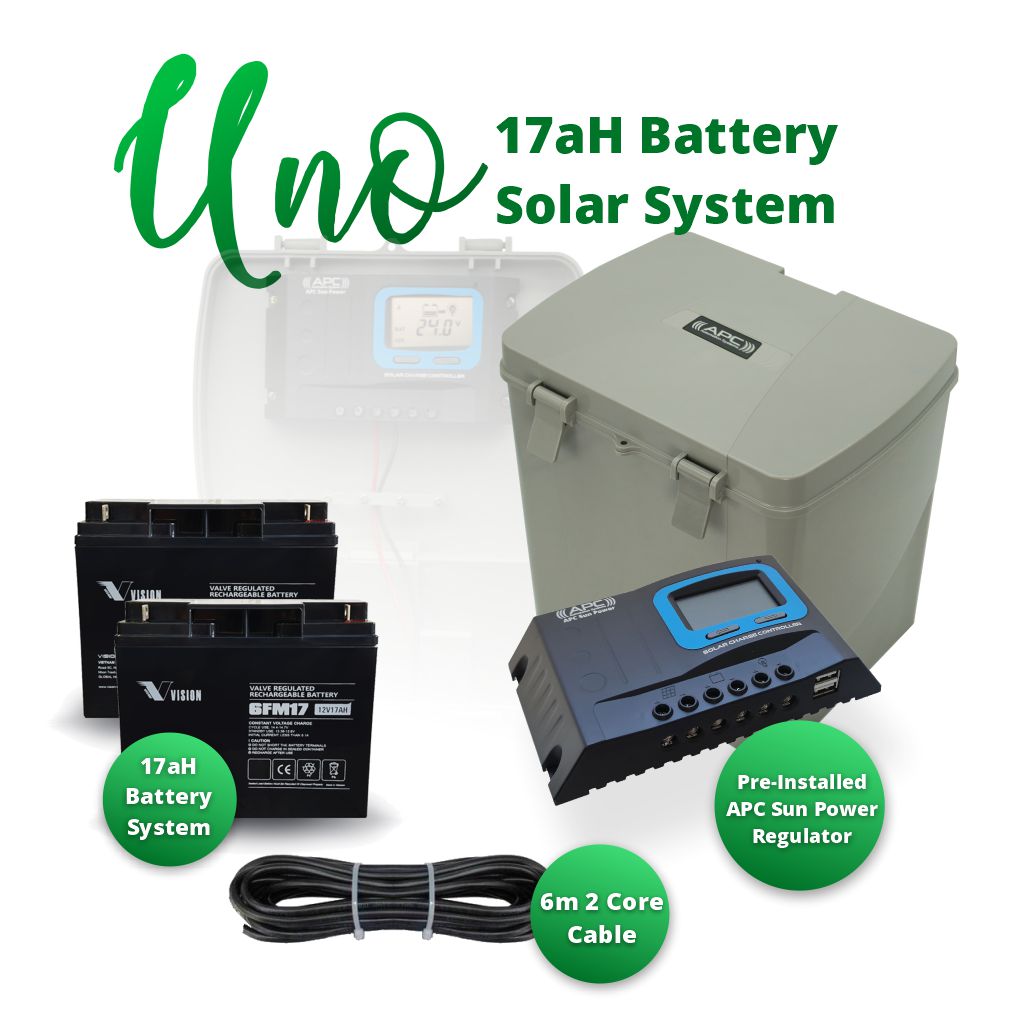

APC UNO Off-Grid Stand-Alone Solar Power System

The APC Uno is an articulate all-in-one design allowing for the clean and secure housing of the APC Sun Power Solar Regulator and multiple batteries. The housing can fit up to 2x 9aH batteries (Uno Box), 2x 17aH batteries(Uno Large Box), and 1x 33aH battery(Uno Large Box). For 33aH batteries, a Master Uno Large Box and Slave Uno Large Box are required; see details below.

Key Features:

• Direct fitting of APC Sun power Regulator (available separately)
• Sleek contoured design
• Cable management entries for a clean installation
• Subtle grey to suit all installation environments
• Heavy duty 5mm galvanized 6-hole mounting plate Supports multiple mounting surfaces (piers, posts, walls etc.)
• Easy to access with the tool-free clip lock system
• It can be secured with a small padlock
• Four output glands allow for completely weatherproof entry/exit of cables up to 9mm OD each.

Dimensions UNO BOX LARGE

Uno Box Large Outer Dimensions

Battery Requirments and Configuration

Typical Configuration

Battery Wiring

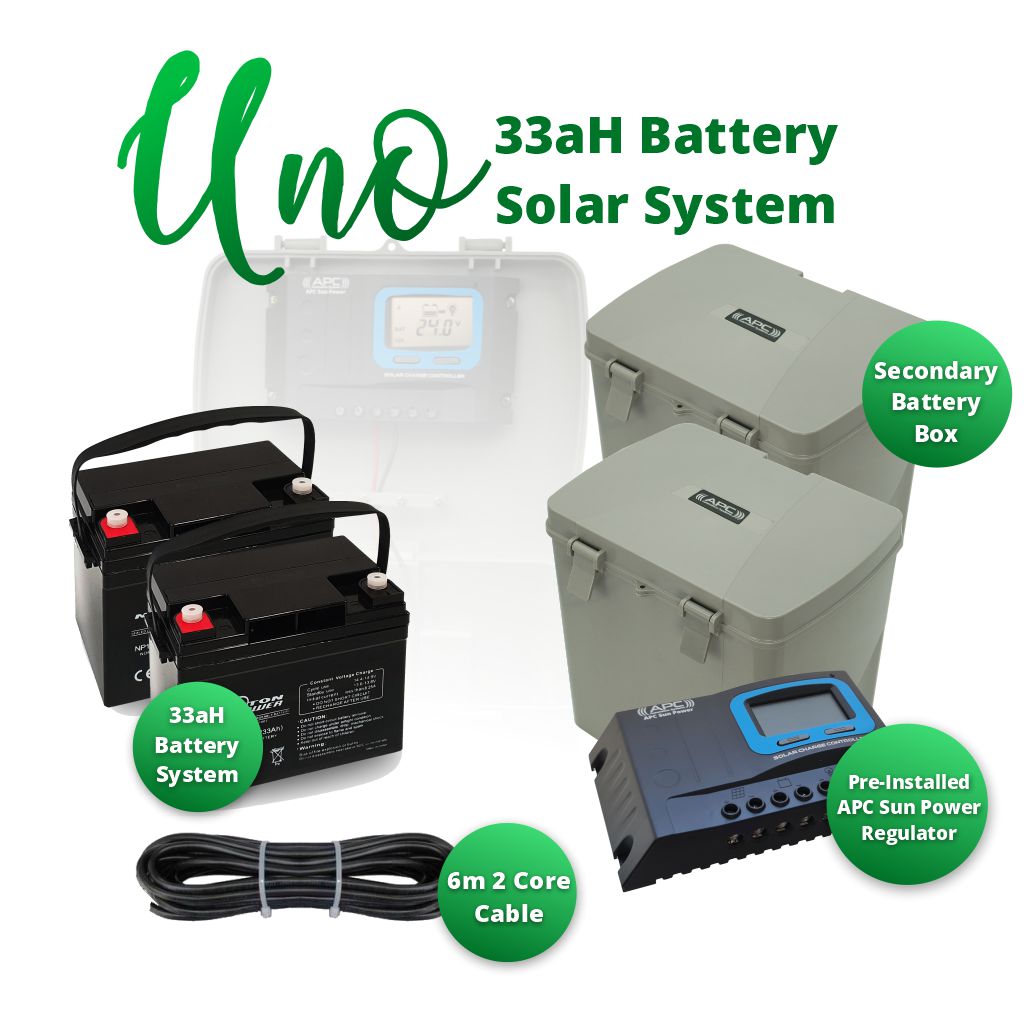

33aH Configuration

At a glance

• 12-24V Compatible
• LITHIUM Battery Compatible
• Easy to use LCD Interface
• Compatible with Most Batteries
• 32 Bit Micro Controller
• Extra Large Wiring Terminals
• 12 Stages of Protection including short circuit, temperature, over and undercharge etc.
• Metal Heat sink
• USB Output

In Depth

Automatic Voltage Selection

The APC Sun Power System can automatically detect the batteries voltage and set itself into the appropriate charging mode of 12V or 24V.

Multiple Battery Modes

The APC Sun Power can be set to to be used with Sealed lead acid, flooded batteries, gel batteries and even Lithium Batteries.

Overcharge and Discharging

The APC Sun Power systems built in temperature sensor will automatically adjust the charging voltage to best suit the environment and as a result a 30% increase in battery lifetime can be expected. Furthermore if the ambient temperature within the enclosure it is installed within exceeds 85° Celsius the Sun Power system will automatically turn off.

Overload and Short Circuit Protection

The APC Sun Power load output will automatically switch off once the load output exceeds 10 Amps (or short circuit) and auto re -try after 30 seconds.

Reverse Polarity Protection

In case of an installation error the Sun Power solar regulator will not be damaged by incorrect polarity on the solar connection or the battery connection.

USB Output Terminals

The Sun Power Series has Two built in USB terminals, each USB terminal is rated to 5V 1A and can be used to operate low current USB devices such as USB powered speakers, tablet and mobile phone charging, warmers, fans etc.

Heavy Duty Design

Built to be last and be used in duty applications the Sun Power System not only offers a powder coated steel heat sink backing plate to keep the controller cool in all charging conditions but also has extra large 10mm wire terminals allowing for use with heavy duty cabling, large bootlace crimps or multiple wires per terminal.

Specifications
