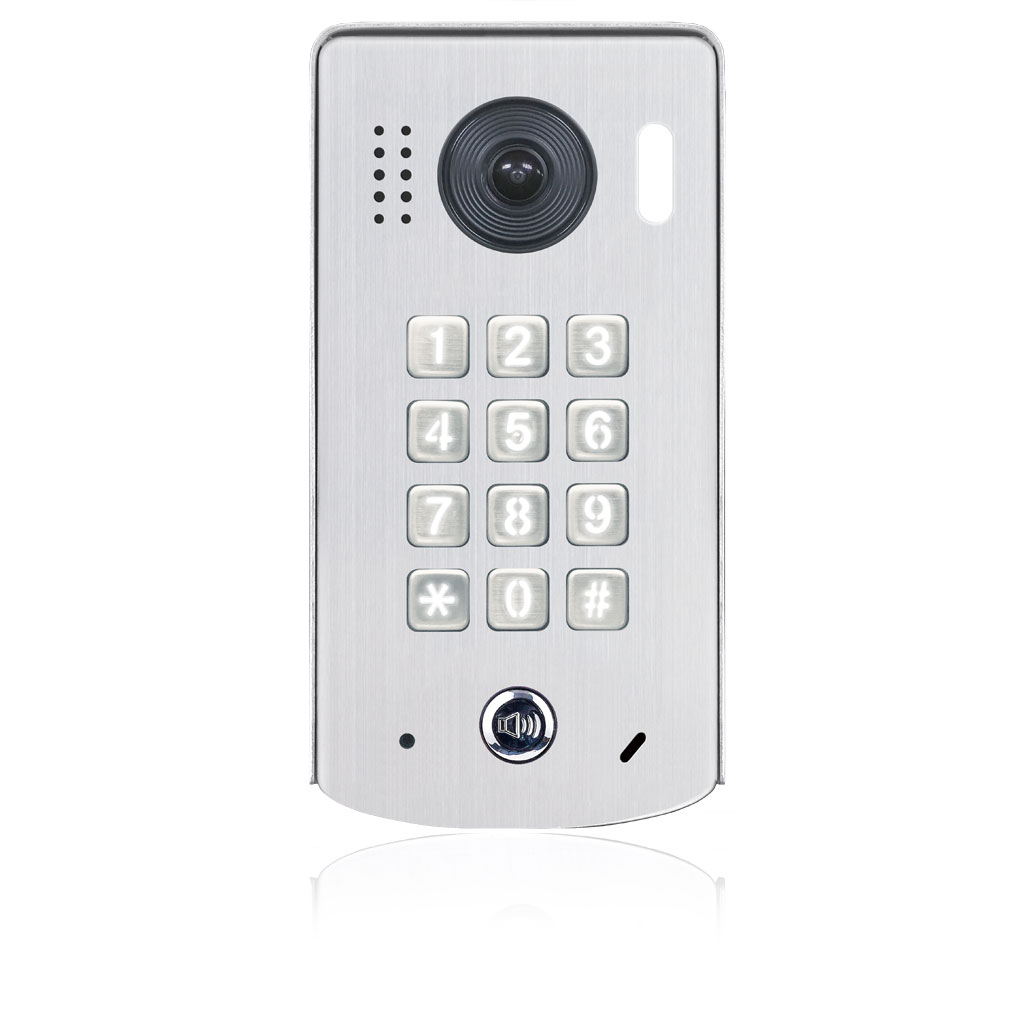

Eyevision Two Wire Surface Mount Video Door Station. 2.0 Mega Pixel, 170° Super Wide Angle Video Keypad Outdoor Station

Eyevision Two Wire Surface Mount Video Intercom Door Station. 2.0 Mega Pixel, 170° Super Wide Angle Video Keypad Outdoor Station

Product SKU: EV-D298KP-SM

  • In Stock

Price :

$295.00

    • 1
  • Add to Cart
  • Buy Now
  • Or in 4 payment of $73.75 with afterpay info
  • 2.0 Mega Pixel, 170° Super Wide Angle Video Keypad Outdoor Station, Compatible with all eyevison 2 Wire Systems

Get More Info.. Get More Info..

Product Information

Eyevision® 2 Wire Surface Mount Intercom Keypad Door Station with 170° Wide Angle Fish Eye 2.0 MP Camera

Keypad door station with built-in 170° Wide Angle Fish Eye Camera, Stunning modern appearance, Surface Mount, Slim design, Weatherproof, Aluminium face plate Door Station With Full SSS Materials Design and two-channel operation (second lock via add-on relay).

When coupled with the Eyevision® 2 Wire monitor, this wide camera angle door station will display the full 170° view only and cannot pan-tilt-zoom however it will automatically zoom in and out when the doorbell is pressed.

When this door station is coupled with the Eyevision® 2 Wire monitor, the user will be able to utilise the full features of the Pan-tilt-zoom function. This function allows the user to navigate up, down, left or right, as well as zoom in, in order to move to the desired position on the monitor.

Eyevision® 2 Wire Wide 170° Camera Angle Fish Eye Intercom Door Station

Features:

  • Stainless Steel Door Station With Full SSS Materials Design
  • 170° Super Wide Angle
  • Fish Eye Lens
  • 2.0 Mega Pixel Camera
  • Colour CMOS
  • Pan-Tilt Zoom Function
  • Auto-sensor LED For Backlight Compensation
  • Waterproof Structure Design With IP55 Protection Rating
  • Anti-tamper Screw Installation Design
  • 3mm Plexiglass Touch Keys
  • Flush or Surface Mount Options Available

Door Station Specifications

Power Supply: DC 24V

Power Consumption: Standby 15mA; Working status 105mA

Camera: Colour CMOS, 2.0 Megapixel
                 1/2.7’’ Fisheye Camera, 170° Super Wide Angle;

Unlocking time: 1~99s

Lock Power supply: 12V dc, 280mA (Internal Power);

Number of relay circuits: 2 (the second lock needs an external device to support)

Mounting: Surface mounting (EV-D298KP-SM)

Working temperature: -15 ºC ~ +55ºC

Dimension: 182(H)×93(W)×44(D)mm (EV-D298KP-SM)



Cable Requirements

Eyevision® 2 wire Cable Requirements



Cabling

  • CAT5 up to 80m between the door station and each apartment.
  • Straight Pair 1mm2 up to 50m between the door station and each apartment.
  • Twisted Pair 1mm2 up to 120m between the door station and each apartment.
  • Twisted Pair 1.5mm2 up to 200m between the door station and each apartment.



Recommendation:

The Eyevision® 2 wire monitors are very powerful and will deliver high-quality video and audio, it is recommended to use the best quality cables that will suit your installation. Use cables with very good-quality copper conductors in order to maximize the clarity of the system.

This is why we provide a free high-quality 20m twisted pair with every monitor. Using this cable will guarantee the best-optimized results in video and audio transmission for up to 200m.

Larger sizes of these twisted pair cables manufactured for this system are available at very competitive prices.
