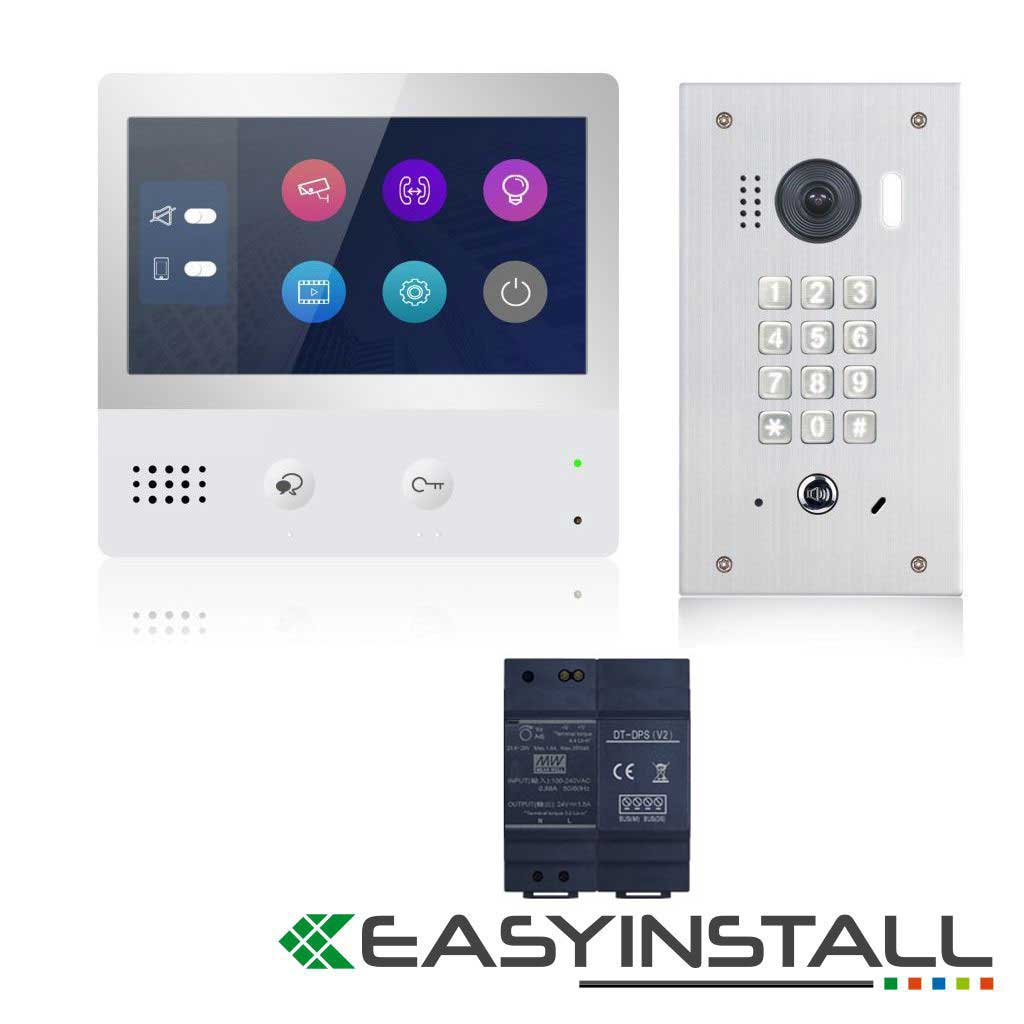

Eyevision® EasyInstall Two-Wire Video Intercom System With Eyevision Two Wire 7 Inch Touch Screen Intercom Monitor and Flush Mount Video Intercom Door Station, 2.0 Mega Pixel, 170° Super Wide Angle Video Keypad Outdoor Station

• 7 Inch Touch Screen Intercom Monitor
• Easy to Navigate Menu
• 12 Different Ring Tones to Choose From
• Door/Gate Release
• Additional Light Control or 2nd Lock Control via DT-RLC (Optional Add-On)
• Don't Disturb Function
• Automatic Recording Image/Video Function with Eyevision LinkBox (Optional Add-On)

2 Wire Technology
The Eyevision® 2 wire systems are very powerful and highly expandable. They will deliver high-quality video and audio functions as well as a sleek graphical user interface.
The 2-wire technology is a non-polarity easy 2-wire connection.

Internal Intercom
Internal intercom between all installed monitors, allowing each monitor connected to be able to call any other monitors, once another monitor answers then there will be hands-free communication between the 2 monitors.

Ringtones
This system has 12 Doorbell melodies to choose from.

Touch screen
7" Colour TFT LCD touchscreen operation with easy-to-use menus.

Additional Monitors Connection
Additional monitors can be connected to the system, allowing full communication throughout all the connected monitors via the use of EV-DBC4A-M which can be found under 2 Wire Accessories.

Eyevision® 2 Wire Flush Mount Intercom Keypad Door Station with 170° Wide Angle Fish Eye 2.0 MP Camera

Keypad door station with built-in 170° Wide Angle Fish Eye Camera, Stunning modern appearance, Flush Mount, Slim design, Weatherproof, Aluminium face plate Door Station With Full SSS Materials Design and two-channel operation (second lock via add-on relay).

When coupled with the Eyevision® 2 Wire monitor, this wide camera angle door station will display the full 170° view only and cannot pan-tilt-zoom however it will automatically zoom in and out when the doorbell is pressed.

When this door station is coupled with the Eyevision® 2 Wire monitor, the user will be able to utilise the full features of the Pan-tilt-zoom function. This function allows the user to navigate up, down, left or right, as well as zoom in, in order to move to the desired position on the monitor.

Features:

• Stainless Steel Door Station With Full SSS Materials Design
• 170° Super Wide Angle
• 2.0 Mega Pixel Camera
• Colour CMOS
• Fish Eye Lens
• Pan-Tilt Zoom Function
• Auto-sensor LED For Backlight Compensation
• Waterproof Structure Design With IP55 Protection Rating
• Anti-tamper Screw Installation Design
• 3mm Plexiglass Touch Keys
• Flush or Surface Mount Options Available

Door Station Specifications

Power Supply: DC 24V

Power Consumption: Standby 15mA; Working status 105mA

Camera: Colour CMOS, 2.0 Megapixel
                 1/2.7’’ Fisheye Camera, 170° Super Wide Angle;

Unlocking time: 1~99s

Lock Power supply: 12V dc, 280mA (Internal Power);

Number of relay circuits: 2 (the second lock needs an external device to support)

Mounting: Flush mounting (EV-D298KP-FM)

Working temperature: -15 ºC ~ +55ºC

Dimension: 220(H)×120(W)×50(D)mm(EV-D298KP-FM)

The EV-PS-C7 is a combo power supply and power separator for the Eyevision® 2 wire systems. It has a simple Phoneix connection for the BUS line for the door station(s) and monitor(s).

Key Features:
- 24V 1.5A Power Source
- Din Rail Mounting (Supplied)

Compatibility:
All Eyevision® 2 Wire Home Systems.

Diagram of 1 Door Station and 1 Monitor using the EV-PS-C7

Diagram of Multi Door Station and 1 Monitor using the EV-PS-C7

Diagram of 1 Door Station and Multi-Monitor using the EV-PS-C7

With DBC4A Wiring Mode
