Product SKU: EV-2W-7WF-D607F-ES-138

Eyevision® EasyInstall Two-Wire Smart WiFi Video Intercom with Electric Striker System. 7 Inch Touch Screen WIFI Monitor, 2MP/170 Degree Super Wide Angle Flush Mount Stainless Steel Outdoor Video Camera Doorbell Station, and Stainless Steel Electric Gate and Door Striker with RFID Swipe Tag Access, WiFi Connection, Smart Phone APP, Simple Line by Line GUI, Easy Installation

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

  • On Sale

Eyevision® EasyInstall Two-Wire Smart WiFi Video Intercom with Electric Striker System. 7 Inch Touch Screen WIFI Monitor, 2MP/170 Degree Super Wide Angle Flush Mount Stainless Steel Outdoor Video Camera Doorbell Station, and Stainless Steel Electric Gate and Door Striker with RFID Swipe Tag Access, WiFi Connection, Smart Phone APP, Simple Line by Line GUI, Easy Installation

Product SKU: EV-2W-7WF-D607F-ES-138

  • In Stock

Get More Info..

Kit Price:

$698.00 $878.00 APC Automotion Plus Sale

  • Or in 4 payment of $174.50 with afterpay info
  • 2MP/170° Super Wide Angle Video Intercom, WiFi Connection, Smart Phone APP, Simple Line by Line GUI, Easy Installation

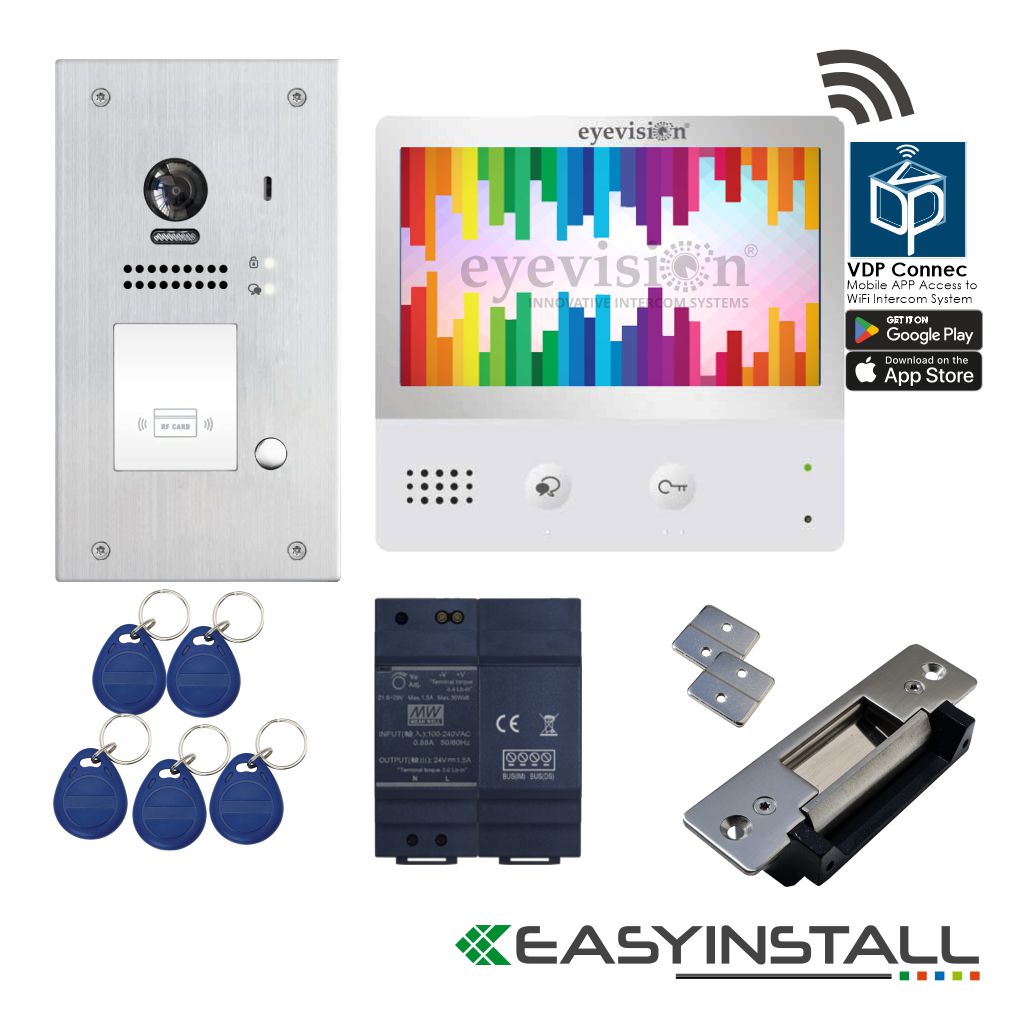

  • Kit Includes

    01 Two-Wire Video Intercom WIFI Monitor. Eyevision® EasyInstall 2Wire 7 Inch, Touch Screen Monitor with Wi-Fi Feature for Smartphone APP (QTY: 1)
    02 170° Stainless Steel Eyevision® 2 Wire Flush Mount Video Intercom Doorbell. EasyInstall 170° Wide Angle Video Outdoor Station, Two-Wire Video Intercom System. (QTY: 1)
    03 EM Swipe Tag (QTY: 5)
    04 Combo Power Supply and Separator for Eyevision 2 Wire Video Intercom Systems (QTY: 1)
    05 Flush Mount Universal Stainless Steel Face Electric Striker (QTY: 1)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Eyevision® Two-Wire 7" Touch Screen WiFi Monitor

7 " touch screen wi-fi monitor, compatible with all the Eyevision 2 wire home or apartment intercom systems

  • 7” touchscreen display
  • Easy to navigate the main menu
  • Surveillance of door station from mobile devices through the VDP Connect App(e-Mail registration is not required)
  • Divert calls to mobile device
  • Select from 22 ringtones
  • Select unique ringtones for each device to easily differentiate the source of the call
  • No disturb mode
  • Door/gate release
  • Record camera video manually while talking to a visitor
  • SD card slot for additional storage





Monitor's Features



2 Wires Video Intercom System with Camera Door Station

2 Wire Technology
The Eyevision® 2 wire systems are very powerful and highly expandable. They will deliver high-quality video and audio functions as well as a sleek graphical user interface.
The 2-wire technology is a non-polarity easy 2-wire connection.

2 Wires Video Intercom System with Camera Door Station

Internal Intercom
Internal intercom between all installed monitors, allowing each monitor connected to be able to call any other monitors, once another monitor answers then there will be hands-free communication between the 2 monitors.

2 Wires Video Intercom System with Camera Door Station

Ringtones
This system has 22 Doorbell melodies to choose from.

2 Wires Video Intercom System with Camera Door Station

Touch screen
7" Colour TFT LCD touchscreen operation with easy-to-use menus.

2 Wires Video Intercom System with Camera Door Station

Additional Monitors Connection
Additional monitors can be connected to the system, allowing full communication throughout all the connected monitors via the use of EV-DBC4 which can be found under 2 Wire Accessories.

Wi-Fi Feature for Smartphone APP
Surveillance of door station from mobile devices through the VDP Connect App (e-Mail registration is not required)



Additional Monitor Features:

- Wi-Fi Feature for Smartphone APP (No e-Mail registration needed)
- Ultra thin with a total depth of 22mm.
- True color 7" Digital TFT screen.
- Touch screen operation with easy-to-use menus.
- Touch sensor buttons for quick access.
- Graphic menu display.
- Multi monitors connections with the use of EV-DBC4 distributors

Specification

Power supply: DC 20~28V

Power consumption: Standby 0.25W; Working 5W

Communication: Hands-free

Screen: 7 Inch Digital Colour TFT

Display Resolutions: 800*3(R, G, B) x 480 pixels

Video signal: 1Vp-p, 75Ω, CCIR standard

Wiring: 2 wires, non-polarity

Dimension: 161(H) × 174(W) × 22(D)mm

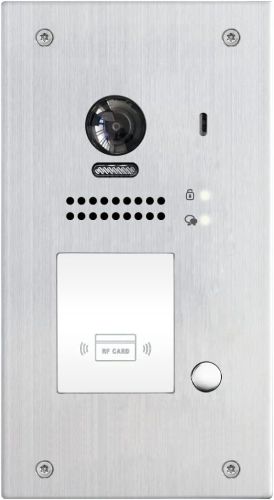

2MP/170° Wide Angle Fisheye Colour Camera Doorbell Intercom Station. Stainless Steel, Recess Mount for Eyevision® EasyInstall Two-Wire Video Intercom Systems

2 Wires EasyInstall Video Intercom Outdoor Unit With
2 MP 170° Wide Angle Fisheye Colour Camera,
Doorbell Button and RFID Tag Reader

Recess Mount door station with built-in 170° camera, stunning modern appearance, slim design, weatherproof, stainless steel face plate, and 2-channel operation (second lock via add-on relay EV-RLC-S).

Features:

* 2 Channels output (second lock via add-on component EV-RLC-S which can be found under 2 wire accessories)
* Supports an exit button connection or RF receiver/transmitter
* Supports up to 4-door station connection
* Weatherproof IP54
* Light illumination
* Recess mount, supplied with a recess box
* Stainless steel face plate
* Colour wide-angle lens 2MP camera

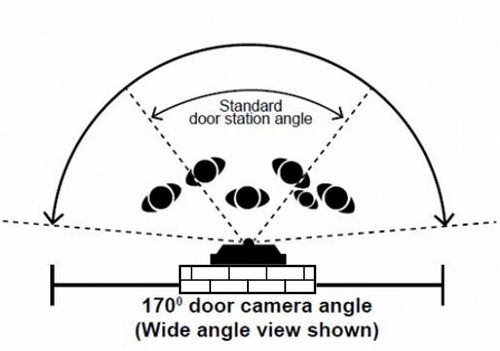

* Camera view 170° fisheye
* Nameplate display with backlight

Specifications:

External video doorbell unit with a 2MP 170° fisheye colour camera and 1 call button. Made of stainless steel. IP54 protection. Built-in RFID reader (125kHz). Surface-mount installation. Power supply 24V.

System

Eyevision®

Communication method

Audio/Video

Connection mode

2 wires (EasyInstall)

Installation

Flush Mounted

Item type

Outdoor Doorbell Intercom Station

Built-in access control

RFID (125kHz)

Capacity

320 RFID tags/cards

Lock operation mode

Voltage (12Vdc)/Relay output

Camera

In color

Sensor

CMOS, Fisheye 170°, 500 TVL

Power supply

24V

Protection

IP54

Operating temperature

-20°C to +55°C

Dimensions

119x220x52mm

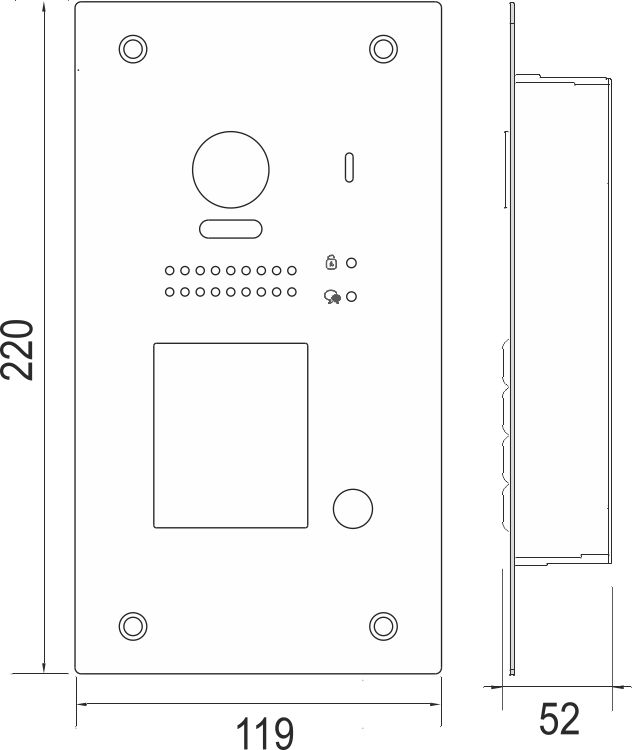

Door Station Dimensions



Cable Requirements

Eyevision® 2 wire Cable Requirements



Cabling

  • CAT5 up to 80m between the door station and each apartment.
  • Straight Pair 1mm2 up to 50m between the door station and each apartment.
  • Twisted Pair 1mm2 up to 120m between the door station and each apartment.
  • Twisted Pair 1.5mm2 up to 200m between the door station and each apartment.



Recommendation:

The Eyevision® 2 wire monitors are very powerful and will deliver high-quality video and audio, it is recommended to use the best quality cables that will suit your installation. Use cables with very good-quality copper conductors in order to maximize the clarity of the system.





Combo Power Supply and Power Separator For all Eyevision 2 Wire Home Systems

Combo Power Supply and Power Seperator

The EV-PS-C7 is a combo power supply and power separator for the Eyevision® 2 wire systems. It has a simple Phoneix connection for the BUS line for the door station(s) and monitor(s).

Key Features:
- 24V 1.5A Power Source
- Din Rail Mounting (Supplied)

Compatibility:
All Eyevision® 2 Wire Home Systems.



Diagram of 1 Door Station and 1 Monitor using the EV-PS-C7

Diagram of Multi Door Station and 1 Monitor using the EV-PS-C7

Diagram of 1 Door Station and Multi-Monitor using the EV-PS-C7


With DBC4A Wiring Mode







ES-138 Electric Striker


  • Stainless steel design
  • 12V DC 250mA Fail Secure
  • Recess Mounted
  • 800Kg Holding Strength
  • Dimensions: 124Lx32Wx33H(mm)

Your Customised Kit Includes:

No Changes.
        • Kit Quantity:
          • 1
        • Your (Kit and Add-On) Price:

          $698.00
