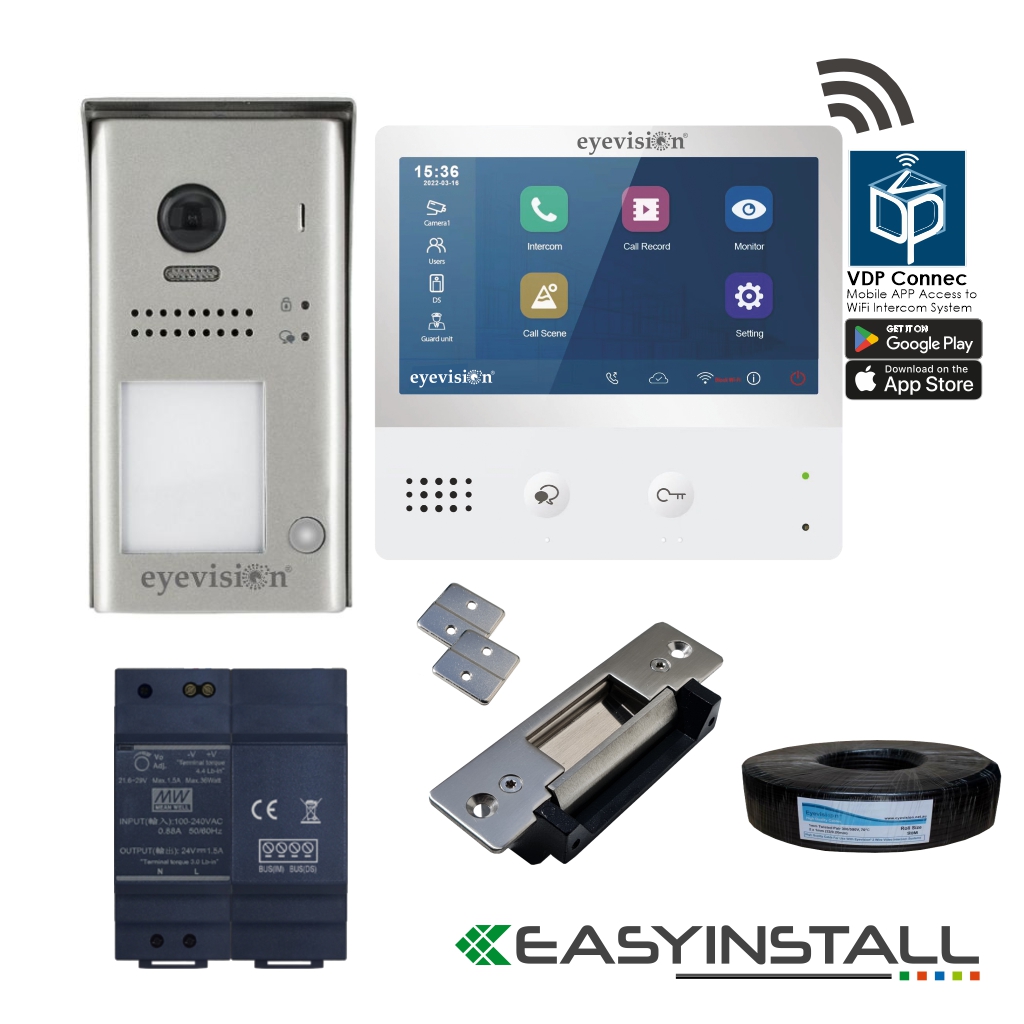

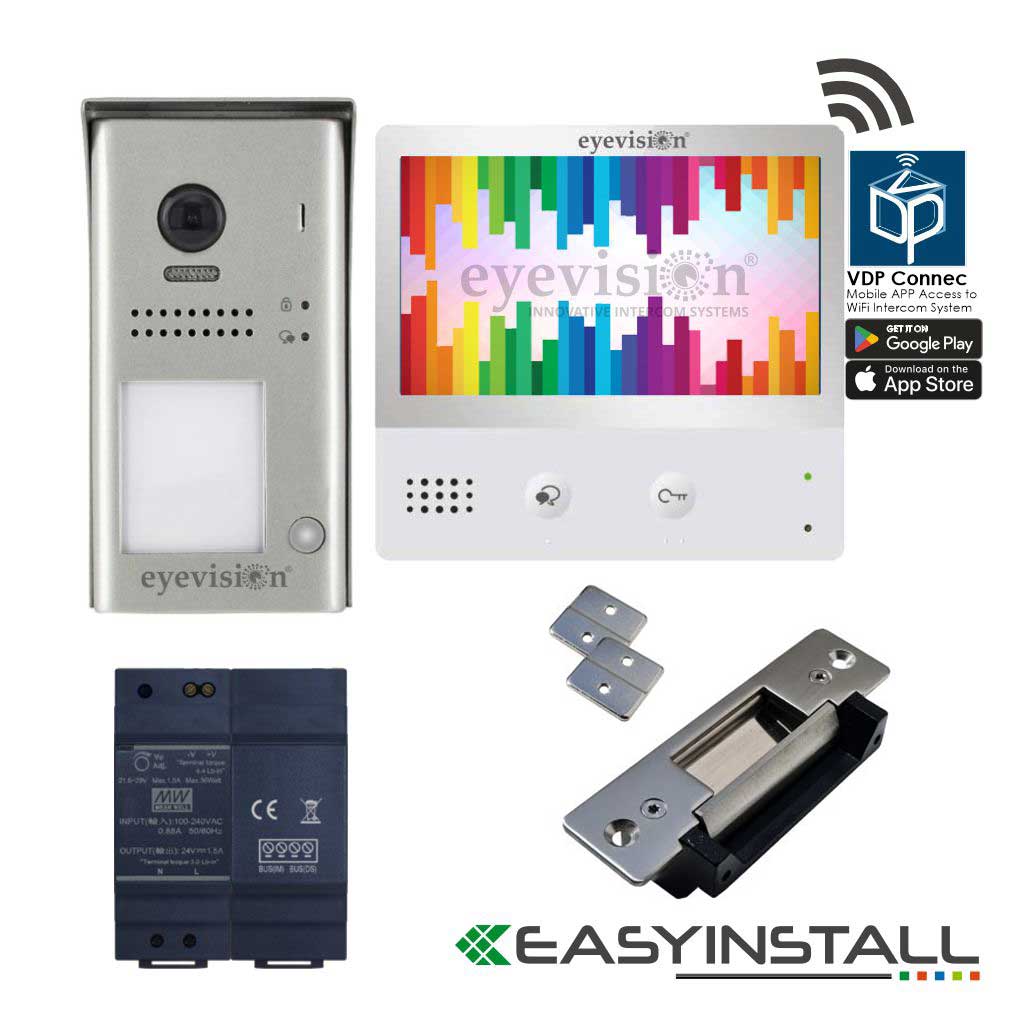

Eyevision® Two-Wire 7" Touch Screen WiFi Monitor
7 " touch screen wi-fi monitor, compatible with all the Eyevision 2 wire home or apartment intercom systems

|
- 7” touchscreen display
- Easy to navigate the main menu
- Surveillance of door station from mobile devices through the VDP Connect App(e-Mail registration is not required)
- Divert calls to mobile device
- Select from 22 ringtones
- Select unique ringtones for each device to easily differentiate the source of the call
- No disturb mode
- Door/gate release
- Record camera video manually while talking to a visitor
- SD card slot for additional storage
|
Monitor's Features

|
2 Wire Technology
The Eyevision® 2 wire systems are very powerful and highly expandable. They will deliver high-quality video and audio functions as well as a sleek graphical user interface.
The 2-wire technology is a non-polarity easy 2-wire connection.
|

|
Internal Intercom
Internal intercom between all installed monitors, allowing each monitor connected to be able to call any other monitors, once another monitor answers then there will be hands-free communication between the 2 monitors.
|

|
Ringtones
This system has 22 Doorbell melodies to choose from.
|

|
Touch screen
7" Colour TFT LCD touchscreen operation with easy-to-use menus.
|

|
Additional Monitors Connection
Additional monitors can be connected to the system, allowing full communication throughout all the connected monitors via the use of EV-DBC4 which can be found under 2 Wire Accessories.
|
 |
Wi-Fi Feature for Smartphone APP
Surveillance of door station from mobile devices through the VDP Connect App (e-Mail registration is not required)
|
Additional Monitor Features:
- Wi-Fi Feature for Smartphone APP (No e-Mail registration needed)
- Ultra thin with a total depth of 22mm.
- True color 7" Digital TFT screen.
- Touch screen operation with easy-to-use menus.
- Touch sensor buttons for quick access.
- Graphic menu display.
- Multi monitors connections with the use of EV-DBC4 distributors
Specification
Power supply: DC 20~28V
Power consumption: Standby 0.25W; Working 5W
Communication: Hands-free
Screen: 7 Inch Digital Colour TFT
Display Resolutions: 800*3(R, G, B) x 480 pixels
Video signal: 1Vp-p, 75Ω, CCIR standard
Wiring: 2 wires, non-polarity
Dimension: 161(H) × 174(W) × 22(D)mm

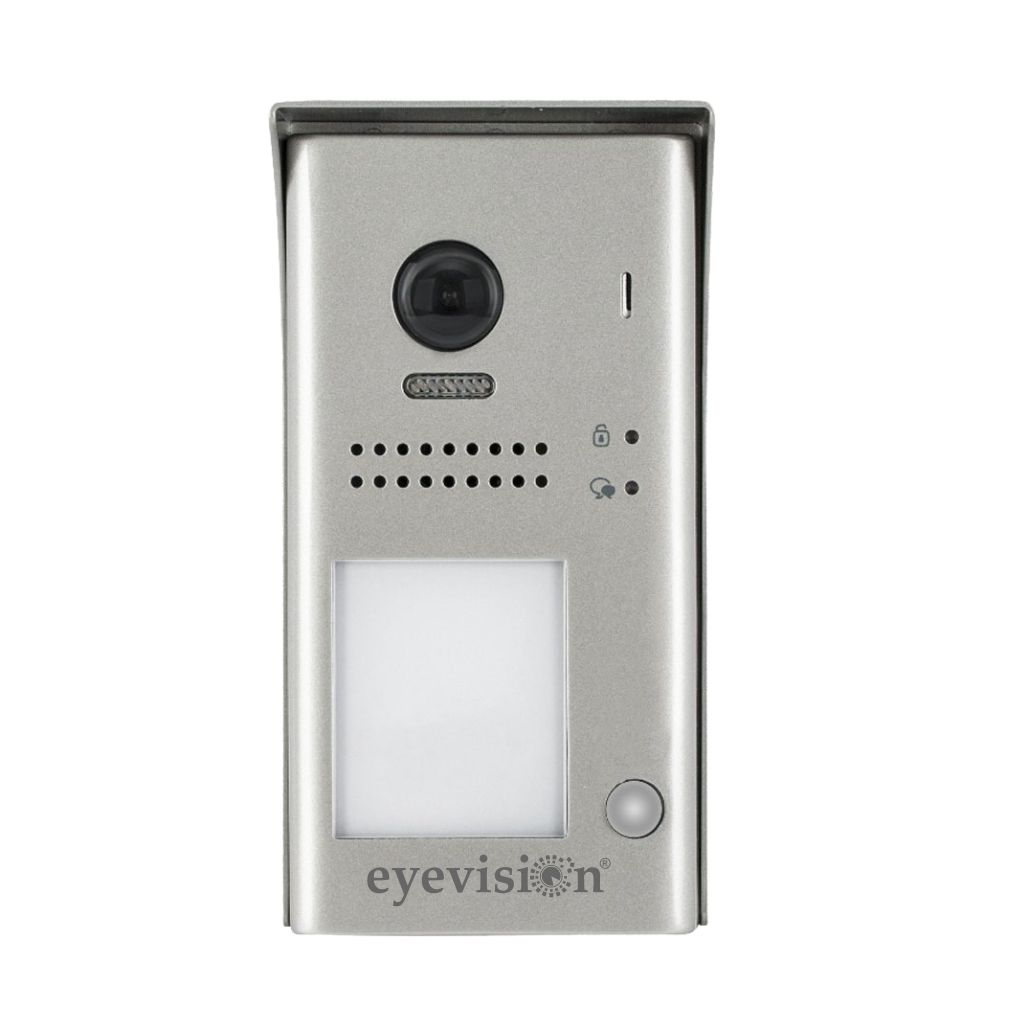

2 Wire Eyevision® Add on Door Station
Suitable for use with any of the Eyevision® Two Wire Intercom Systems
|
Eyevision® 2 Wire Slim Design Surface Mounted Weatherproof Zinc Alloy Panel Door Station, Camera, Door Bell with Rain Cover, with built-in 105° Camera Angle and two-channel operation (1 channel is built into the door station, second lock channel via add-on relay EV-RLC-S which can be found under Eyevision® 2 wire accessories).
When the EV-D301 is coupled with the Eyevision® 2 Wire monitors, this door station will display the highest quality digital picture allowing the user to see who is at the gate or door as well as talk to the visitor and unlock the gate or door.
|
 |
Features:
* Camera View: 105º Camera Angle
* Material: Zinc Alloy Panel
* Camera: CMOS 800TVL
* 2 Channels Output (second lock via add-on component EV-RLC-S which can be found under two wire accessories)
* Weatherproof IP54
* Surface Mount, supplied with a Rain Cover
* Nameplate display with backlight
|
Specifications
|
Power Supply: |
DC 24V |
Power Consumption: |
Standby 0.8W; Working 3W |
Camera lens: |
Color CMOS, 800TVL
1/3’’ camera, 105º wide angle |
Lock Power supply: |
12Vdc, 250mA(Internal Power); |
A number of relay circuits: |
2(the second lock needs external device to support) |
Number of Relays: |
2 (second using an add-on RLC) |
Mounting: |
Surface wall-mount |
Working temperature: |
-20ºC ~ +55ºC |
Protection: |
IP54 |
Material: |
Zinc Alloy Panel |
Wiring: |
2 Wires, Non-Polarity |
Dimension: |
176(H)×90(W)×27(D)mm |
|

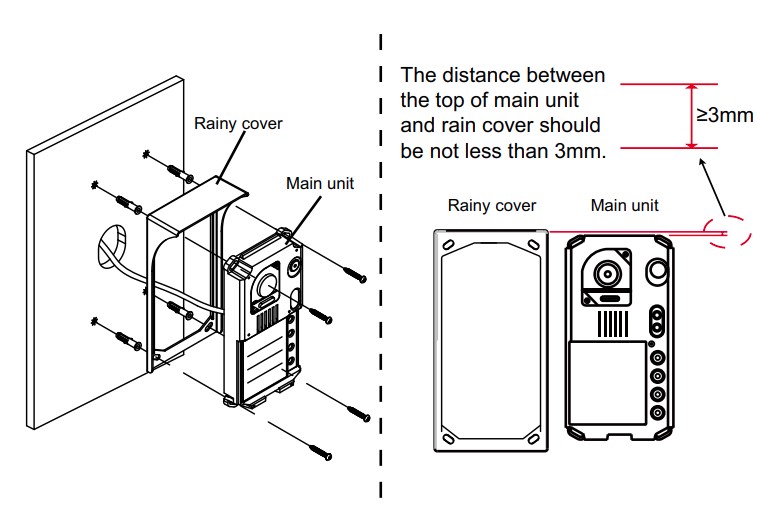

Door Station Installation
|

|
ES-138 Electric Striker
- Stainless steel design
- 12V DC 250mA Fail Secure
- Recess Mounted
- 800Kg Holding Strength
- Dimensions: 124Lx32Wx33H(mm)
Cable Requirements
Cabling
- CAT5 up to 80m between the door station and each apartment.
- Straight Pair 1mm2 up to 50m between the door station and each apartment.
- Twisted Pair 1mm2 up to 120m between the door station and each apartment.
- Twisted Pair 1.5mm2 up to 200m between the door station and each apartment.
Recommendation:
The Eyevision® 2 wire monitors are very powerful and will deliver high-quality video and audio, it is recommended to use the best quality cables that will suit your installation. Use cables with very good-quality copper conductors in order to maximize the clarity of the system.
This is why we provide a free high-quality 20m twisted pair with every monitor. Using this cable will guarantee the best-optimized results in video and audio transmission for up to 200m.
Larger sizes of these twisted pair cables manufactured for this system are available at very competitive prices.
Combo Power Supply and Power Separator For all Eyevision 2 Wire Home Systems
|
The EV-PS-C7 is a combo power supply and power separator for the Eyevision® 2 wire systems. It has a simple Phoneix connection for the BUS line for the door station(s) and monitor(s).
Key Features:
- 24V 1.5A Power Source
- Din Rail Mounting (Supplied)
Compatibility:
All Eyevision® 2 Wire Home Systems.
|
|

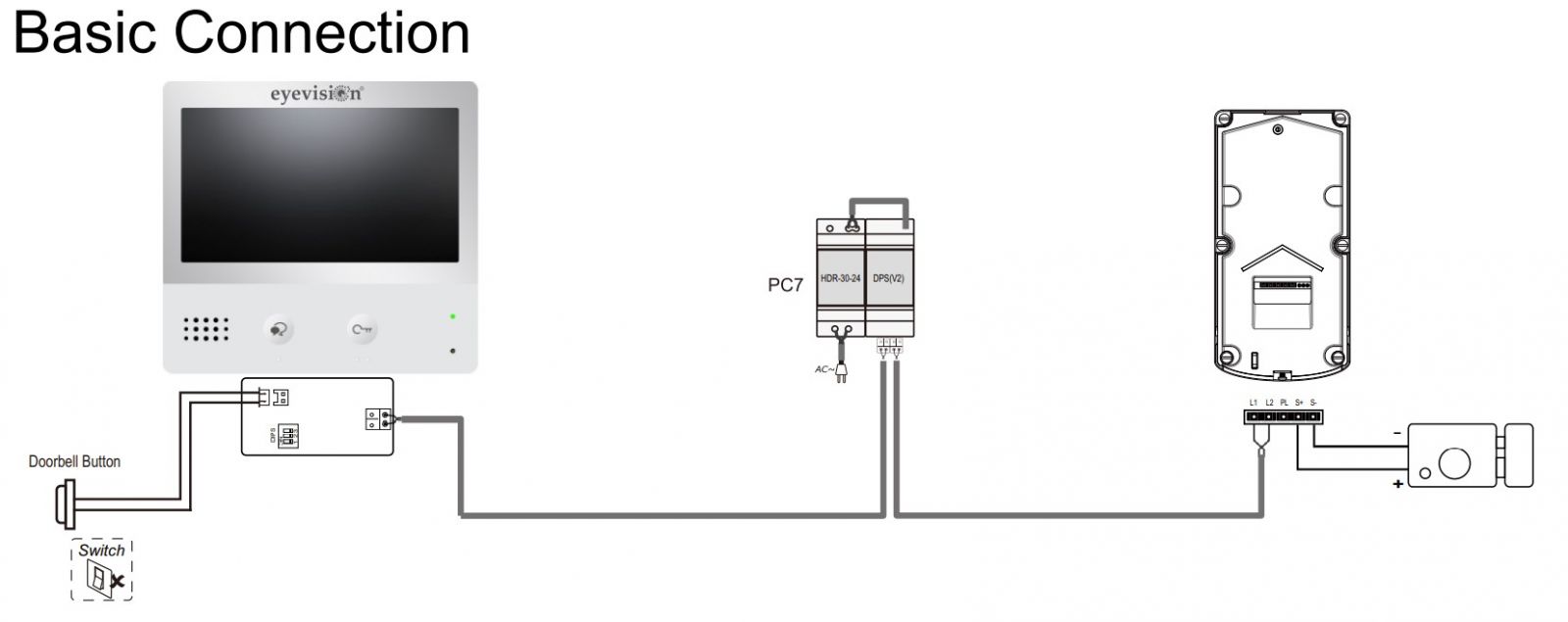

Diagram of 1 Door Station and 1 Monitor using the EV-PS-C7
|

|

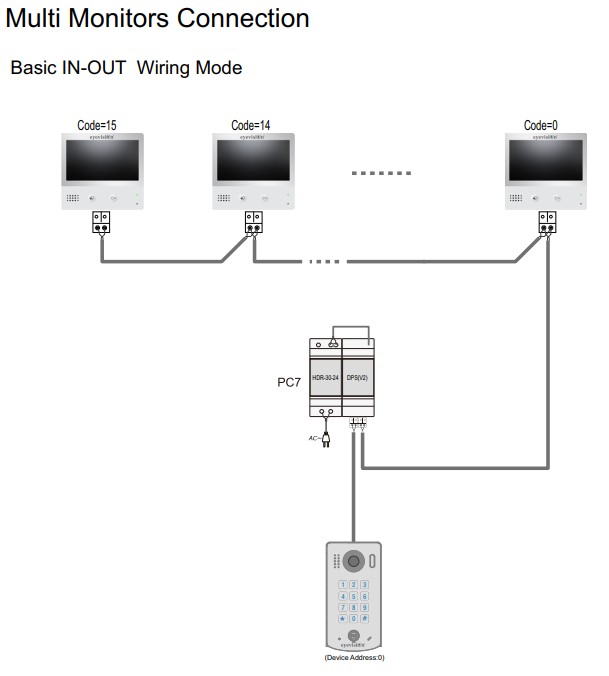

Diagram of Multi Door Station and 1 Monitor using the EV-PS-C7
|

|
Diagram of 1 Door Station and Multi-Monitor using the EV-PS-C7
|

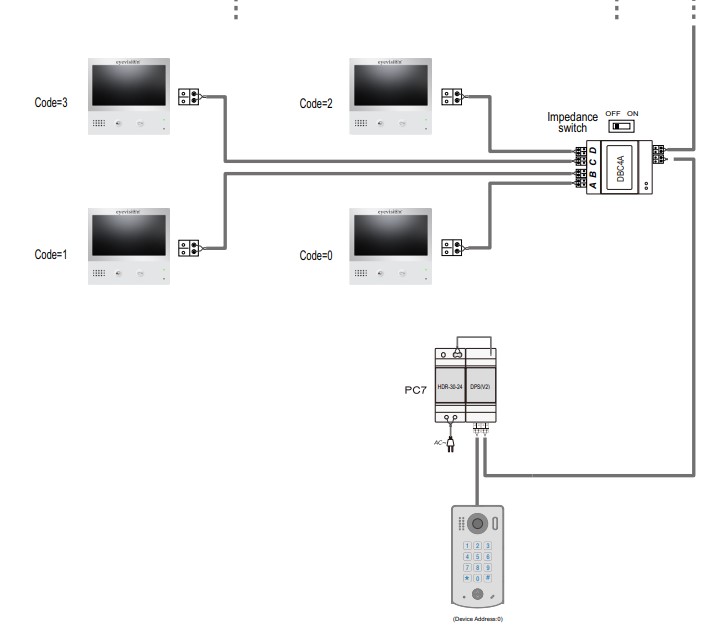

With DBC4A Wiring Mode

|
|
