Eyevision Two Wire 7 Inch Touch Screen Intercom Monitor
7 " touch screen monitor, compatible with all the Eyevision 2 wire home or apartment intercom systems
|
- 7 Inch Touch Screen Intercom Monitor
- Easy to Navigate Menu
- 12 Different Ring Tones to Choose From
- Door/Gate Release
- Additional Light Control or 2nd Lock Control via DT-RLC (Optional Add-On)
- Don't Disturb Function
- Automatic Recording Image/Video Function with Eyevision LinkBox (Optional Add-On)
|
Monitor's Features
|
2 Wire Technology
The Eyevision® 2 wire systems are very powerful and highly expandable. They will deliver high-quality video and audio functions as well as a sleek graphical user interface.
The 2-wire technology is a non-polarity easy 2-wire connection.
|
|
Internal Intercom
Internal intercom between all installed monitors, allowing each monitor connected to be able to call any other monitors, once another monitor answers then there will be hands-free communication between the 2 monitors.
|
|
Ringtones
This system has 12 Doorbell melodies to choose from.
|
|
Touch screen
7" Colour TFT LCD touchscreen operation with easy-to-use menus.
|
|
Additional Monitors Connection
Additional monitors can be connected to the system, allowing full communication throughout all the connected monitors via the use of EV-DBC4A-M which can be found under 2 Wire Accessories.
|
Additional Monitor Features:
- Ultra thin with a total depth of 22mm.
- True color 7" Digital TFT screen.
- Touch screen operation with easy-to-use menus.
- Touch sensor buttons for quick access.
- Graphic menu display.
- Multi monitors connections with the use of EV-DBC4 distributors
Specification
Power supply: DC 20~28V
Power consumption: Standby 0.25W; Working 5W
Communication: Hands-free
Screen: 7 Inch Digital Colour TFT
Display Resolutions: 800*3(R, G, B) x 480 pixels
Video signal: 1Vp-p, 75Ω, CCIR standard
Wiring: 2 wires, non-polarity
Dimension: 161(H) × 174(W) × 22(D)mm

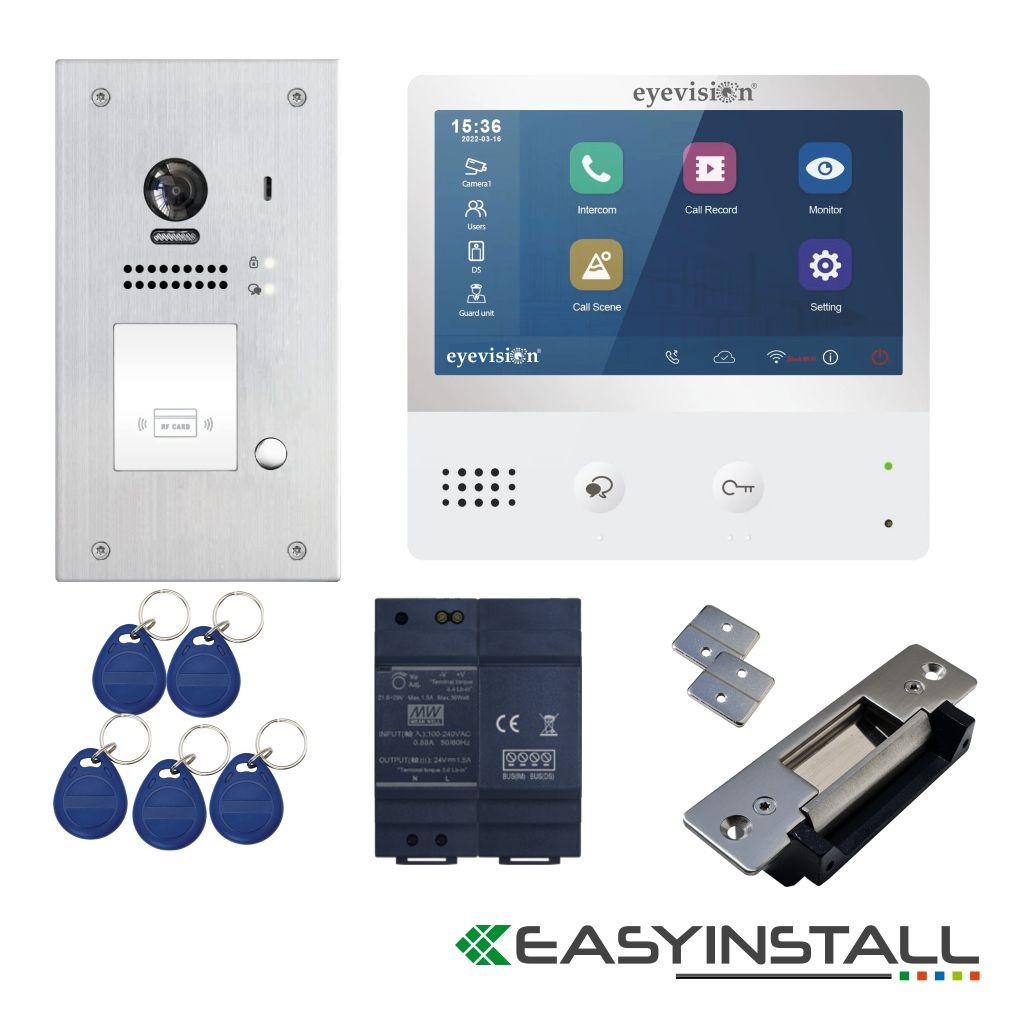

2MP/170° Wide Angle Fisheye Colour Camera Doorbell Intercom Station. Stainless Steel, Recess Mount for Eyevision® EasyInstall Two-Wire Video Intercom Systems
2 Wires EasyInstall Video Intercom Outdoor Unit With
2 MP 170° Wide Angle Fisheye Colour Camera,
Doorbell Button and RFID Tag Reader
Recess Mount door station with built-in 170° camera, stunning modern appearance, slim design, weatherproof, stainless steel face plate, and 2-channel operation (second lock via add-on relay EV-RLC-S).
Features:
* 2 Channels output (second lock via add-on component EV-RLC-S which can be found under 2 wire accessories)
* Supports an exit button connection or RF receiver/transmitter
* Supports up to 4-door station connection
* Weatherproof IP54
* Light illumination
* Recess mount, supplied with a recess box
* Stainless steel face plate
* Colour wide-angle lens 2MP camera
* Camera view 170° fisheye
* Nameplate display with backlight
Specifications:
External video doorbell unit with a 2MP 170° fisheye colour camera and 1 call button. Made of stainless steel. IP54 protection. Built-in RFID reader (125kHz). Surface-mount installation. Power supply 24V.
System |
Eyevision®
|
Communication method |
Audio/Video
|
Connection mode |
2 wires (EasyInstall)
|
Installation |
Flush Mounted
|
Item type |
Outdoor Doorbell Intercom Station
|
Built-in access control |
RFID (125kHz)
|
Capacity |
320 RFID tags/cards
|
Lock operation mode |
Voltage (12Vdc)/Relay output
|
Camera |
In color
|
Sensor |
CMOS, Fisheye 170°, 500 TVL
|
Power supply |
24V
|
Protection |
IP54
|
Operating temperature |
-20°C to +55°C
|
Dimensions |
119x220x52mm
|
Door Station Dimensions
Cable Requirements
Cabling
- CAT5 up to 80m between the door station and each apartment.
- Straight Pair 1mm2 up to 50m between the door station and each apartment.
- Twisted Pair 1mm2 up to 120m between the door station and each apartment.
- Twisted Pair 1.5mm2 up to 200m between the door station and each apartment.
Recommendation:
The Eyevision® 2 wire monitors are very powerful and will deliver high-quality video and audio, it is recommended to use the best quality cables that will suit your installation. Use cables with very good-quality copper conductors in order to maximize the clarity of the system.
This is why we provide a free high-quality 20m twisted pair with every monitor. Using this cable will guarantee the best-optimized results in video and audio transmission for up to 200m.
Larger sizes of these twisted pair cables manufactured for this system are available at very competitive prices.
ES-138 Electric Striker
- Stainless steel design
- 12V DC 250mA Fail Secure
- Recess Mounted
- 800Kg Holding Strength
- Dimensions: 124Lx32Wx33H(mm)
Combo Power Supply and Power Separator For all Eyevision 2 Wire Home Systems
|
The EV-PS-C7 is a combo power supply and power separator for the Eyevision® 2 wire systems. It has a simple Phoneix connection for the BUS line for the door station(s) and monitor(s).
Key Features:
- 24V 1.5A Power Source
- Din Rail Mounting (Supplied)
Compatibility:
All Eyevision® 2 Wire Home Systems.
|
|
Diagram of 1 Door Station and 1 Monitor using the EV-PS-C7
|
|
Diagram of Multi Door Station and 1 Monitor using the EV-PS-C7
|
|
Diagram of 1 Door Station and Multi-Monitor using the EV-PS-C7
|
With DBC4A Wiring Mode
|
|
