Product SKU: EV-2W-7-D301-ES-138

Eyevision® EasyInstall Two-Wire Doorbell Video Intercom with Electric Striker System. 7 Inch Touch Screen Intercom Monitor and Surface Mount Video Door Station 105° Wide Angle Outdoor Video Camera Doorbell, and Stainless Steel Electric Gate and Door Striker

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

  • Eyevision® EasyInstall Two-Wire Doorbell Video Intercom with Electric Striker System. 7 Inch Touch Screen Intercom Monitor and Surface Mount Video Door Station 105° Wide Angle Outdoor Video Camera Doorbell, Stainless Steel Electric Gate and Door Striker

    On Sale

Eyevision® EasyInstall Two-Wire Doorbell Video Intercom with Electric Striker System. 7 Inch Touch Screen Intercom Monitor and Surface Mount Video Door Station 105° Wide Angle Outdoor Video Camera Doorbell, and Stainless Steel Electric Gate and Door Striker

Product SKU: EV-2W-7-D301-ES-138

  • In Stock

Get More Info..

Kit Price:

$677.00 $713.00 APC Automotion Plus Sale

  • Or in 4 payment of $169.25 with afterpay info

  • 2 Wire Video Intercom Surface Mount System, Simple User Interface, Easy Installation, Non Polarity System, /105°

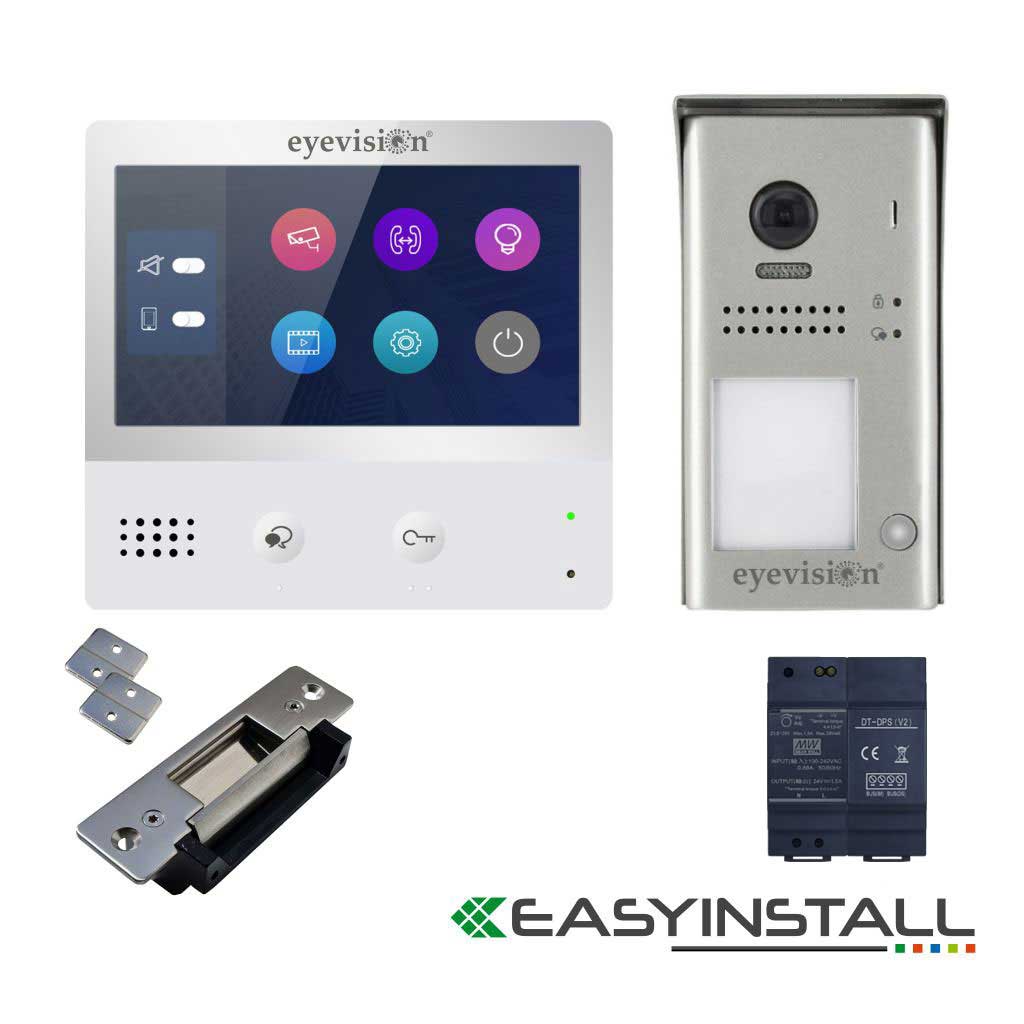

  • Kit Includes

    01 Combo Power Supply and Separator for Eyevision 2 Wire Video Intercom Systems (QTY: 1)
    02 Eyevision Two Wire 7 Inch Touch Screen Intercom Monitor (QTY: 1)
    03 Eyevision Two Wire Surface Mount Video Intercom Door Station. 105° Wide Angle Video Outdoor Station (QTY: 1)
    04 Flush Mount Universal Stainless Steel Face Electric Striker (QTY: 1)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Eyevision Two Wire 7 Inch Touch Screen Intercom Monitor

7 " touch screen monitor, compatible with all the Eyevision 2 wire home or apartment intercom systems

Eyevision Two Wire 7 Inch Touch Screen Intercom Monitor
  • 7 Inch Touch Screen Intercom Monitor
  • Easy to Navigate Menu
  • 12 Different Ring Tones to Choose From
  • Door/Gate Release
  • Additional Light Control or 2nd Lock Control via DT-RLC (Optional Add-On)
  • Don't Disturb Function
  • Automatic Recording Image/Video Function with Eyevision LinkBox (Optional Add-On)





Monitor's Features



2 Wires Video Intercom System with Camera Door Station

2 Wire Technology
The Eyevision® 2 wire systems are very powerful and highly expandable. They will deliver high-quality video and audio functions as well as a sleek graphical user interface.
The 2-wire technology is a non-polarity easy 2-wire connection.

2 Wires Video Intercom System with Camera Door Station

Internal Intercom
Internal intercom between all installed monitors, allowing each monitor connected to be able to call any other monitors, once another monitor answers then there will be hands-free communication between the 2 monitors.

2 Wires Video Intercom System with Camera Door Station

Ringtones
This system has 12 Doorbell melodies to choose from.

2 Wires Video Intercom System with Camera Door Station

Touch screen
7" Colour TFT LCD touchscreen operation with easy-to-use menus.

2 Wires Video Intercom System with Camera Door Station

Additional Monitors Connection
Additional monitors can be connected to the system, allowing full communication throughout all the connected monitors via the use of EV-DBC4A-M which can be found under 2 Wire Accessories.



Additional Monitor Features:

- Ultra thin with a total depth of 22mm.
- True color 7" Digital TFT screen.
- Touch screen operation with easy-to-use menus.
- Touch sensor buttons for quick access.
- Graphic menu display.
- Multi monitors connections with the use of EV-DBC4 distributors

Specification

Power supply: DC 20~28V

Power consumption: Standby 0.25W; Working 5W

Communication: Hands-free

Screen: 7 Inch Digital Colour TFT

Display Resolutions: 800*3(R, G, B) x 480 pixels

Video signal: 1Vp-p, 75Ω, CCIR standard

Wiring: 2 wires, non-polarity

Dimension: 161(H) × 174(W) × 22(D)mm



2 Wire Eyevision® Add on Door Station
Suitable for use with any of the Eyevision® Two Wire Intercom Systems

Eyevision® 2 Wire Slim Design Surface Mounted Weatherproof Zinc Alloy Panel Door Station, Camera, Door Bell with Rain Cover, with built-in 105° Camera Angle and two-channel operation (1 channel is built into the door station, second lock channel via add-on relay EV-RLC-S which can be found under Eyevision® 2 wire accessories).

When the EV-D301 is coupled with the Eyevision® 2 Wire monitors, this door station will display the highest quality digital picture allowing the user to see who is at the gate or door as well as talk to the visitor and unlock the gate or door.

Features:

* Camera View: 105º Camera Angle
* Material: Zinc Alloy Panel
* Camera: CMOS 800TVL
* 2 Channels Output (second lock via add-on component EV-RLC-S which can be found under two wire accessories)
* Weatherproof IP54
* Surface Mount, supplied with a Rain Cover
* Nameplate display with backlight

Specifications
Power Supply: DC 24V
Power Consumption: Standby 0.8W; Working 3W
Camera lens: Color CMOS, 800TVL
1/3’’ camera, 105º wide angle
Lock Power supply: 12Vdc, 250mA(Internal Power);
A number of relay circuits: 2(the second lock needs external device to support)
Number of Relays: 2 (second using an add-on RLC)
Mounting: Surface wall-mount
Working temperature: -20ºC ~ +55ºC
Protection: IP54
Material: Zinc Alloy Panel
Wiring: 2 Wires, Non-Polarity
Dimension:  176(H)×90(W)×27(D)mm

Door Station Installation



ES-138 Electric Striker


  • Stainless steel design
  • 12V DC 250mA Fail Secure
  • Recess Mounted
  • 800Kg Holding Strength
  • Dimensions: 124Lx32Wx33H(mm)

Cable Requirements

Eyevision® 2 wire Cable Requirements



Cabling

  • CAT5 up to 80m between the door station and each apartment.
  • Straight Pair 1mm2 up to 50m between the door station and each apartment.
  • Twisted Pair 1mm2 up to 120m between the door station and each apartment.
  • Twisted Pair 1.5mm2 up to 200m between the door station and each apartment.



Recommendation:

The Eyevision® 2 wire monitors are very powerful and will deliver high-quality video and audio, it is recommended to use the best quality cables that will suit your installation. Use cables with very good-quality copper conductors in order to maximize the clarity of the system.





Combo Power Supply and Power Separator For all Eyevision 2 Wire Home Systems
Combo Power Supply and Power Seperator

The EV-PS-C7 is a combo power supply and power separator for the Eyevision® 2 wire systems. It has a simple Phoneix connection for the BUS line for the door station(s) and monitor(s).

Key Features:
- 24V 1.5A Power Source
- Din Rail Mounting (Supplied)

Compatibility:
All Eyevision® 2 Wire Home Systems.



Diagram of 1 Door Station and 1 Monitor using the EV-PS-C7

Diagram of Multi Door Station and 1 Monitor using the EV-PS-C7

Diagram of 1 Door Station and Multi-Monitor using the EV-PS-C7

With DBC4A Wiring Mode
