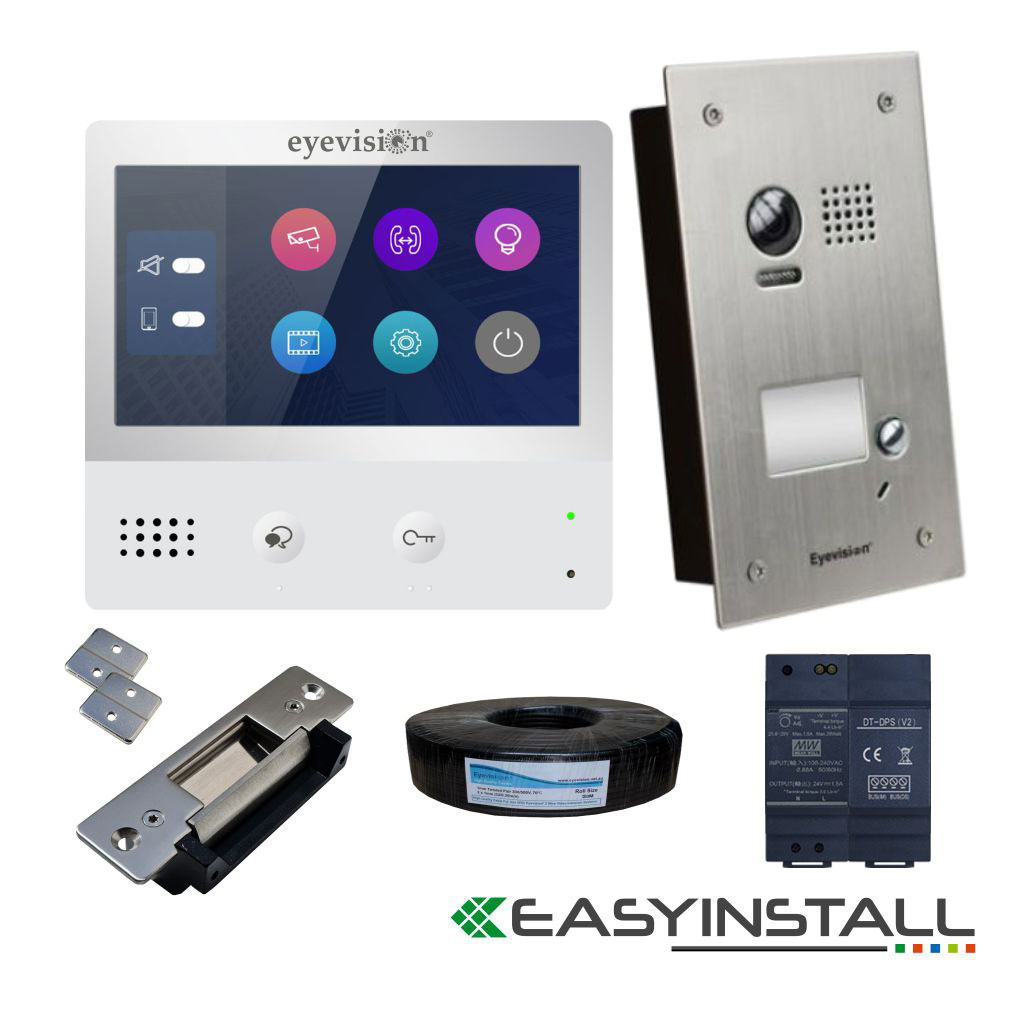

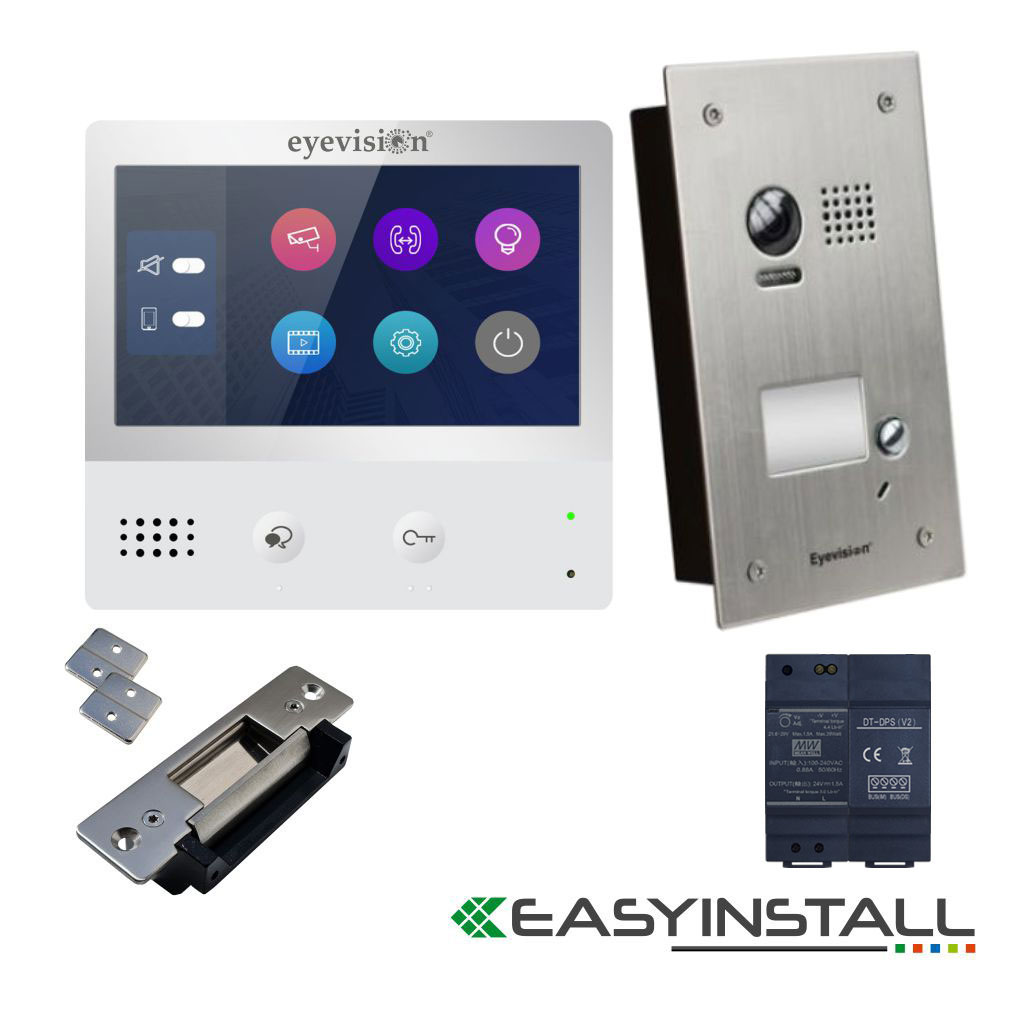

Eyevision® EasyInstall Two-Wire Doorbell Video Intercom and Electric Striker System with 7-Inch Touch Screen Intercom Monitor, 105 Degree Flush Mount Stainless Steel Outdoor Station Video Camera Doorbell, and Stainless Steel Electric Gate and Door Striker

Eyevision Two Wire 7 Inch Touch Screen Intercom Monitor

7 " touch screen monitor, compatible with all the Eyevision 2 wire home or apartment intercom systems

Monitor's Features

Additional Monitor Features:

- Ultra thin with a total depth of 22mm.
- True color 7" Digital TFT screen.
- Touch screen operation with easy-to-use menus.
- Touch sensor buttons for quick access.
- Graphic menu display.
- Multi monitors connections with the use of EV-DBC4 distributors

Specification

Power supply: DC 20~28V

Power consumption: Standby 0.25W; Working 5W

Communication: Hands-free

Screen: 7 Inch Digital Colour TFT

Display Resolutions: 800*3(R, G, B) x 480 pixels

Video signal: 1Vp-p, 75Ω, CCIR standard

Wiring: 2 wires, non-polarity

Dimension: 161(H) × 174(W) × 22(D)mm

Add-On Stainless Steel Recess Mount Door Station for Eyevision 2 wires video intercom systems

Recess Mount door station with built-in 105° camera, stunning modern appearance, slim design, weatherproof, stainless steel face plate, and 2-channel operation (second lock via add-on relay EV-RLC-S).

Please note, the add-on relay component required to operate the second lock output can be found in the 2 wire systems accessories.
This recess mount stainless steel door station is suitable for use with the Eyevision® 2 Wire A-Bus Range of intercom systems.

Features:

* 2 Channels output (second lock via add-on component EV-RLC-S which can be found under 2 wire accessories)
* Supports an exit button connection or RF receiver/transmitter
* Supports up to 4-door stations connection
* Weatherproof IP54
* Light illumination
* Recess mount, supplied with a recess box
* Stainless steel face plate
* Colour CCD Pinhole-lens camera
* Camera view 105 º
* Nameplate display with backlight

Specifications:

Electric striker power output: 300mA from the door station
Number of relays: 2 (second using an add-on RLC)
Number of channels: 2
Working temperature: -15ºC ~ 55 ºC
Power·Consumption: 2 W on standby, 8 W on working

Door Station Dimensions

ES-138 Electric Striker



• Stainless steel design
• 12V DC 250mA Fail Secure
• Recess Mounted
• 800Kg Holding Strength
• Dimensions: 124Lx32Wx33H(mm)

Cable Requirements



Cabling

• CAT5 up to 80m between the door station and each apartment.
• Straight Pair 1mm2 up to 50m between the door station and each apartment.
• Twisted Pair 1mm2 up to 120m between the door station and each apartment.
• Twisted Pair 1.5mm2 up to 200m between the door station and each apartment.



Recommendation:

The Eyevision® 2 wire monitors are very powerful and will deliver high-quality video and audio, it is recommended to use the best quality cables that will suit your installation. Use cables with very good-quality copper conductors in order to maximize the clarity of the system.

This is why we provide a free high-quality 20m twisted pair with every monitor. Using this cable will guarantee the best-optimized results in video and audio transmission for up to 200m.

Larger sizes of these twisted pair cables manufactured for this system are available at very competitive prices.

Combo Power Supply and Power Separator For all Eyevision 2 Wire Home Systems

The EV-PS-C7 is a combo power supply and power separator for the Eyevision® 2 wire systems. It has a simple Phoneix connection for the BUS line for the door station(s) and monitor(s). Key Features: - 24V 1.5A Power Source - Din Rail Mounting (Supplied) Compatibility: All Eyevision® 2 Wire Home Systems.

Diagram of 1 Door Station and 1 Monitor using the EV-PS-C7

Diagram of Multi Door Station and 1 Monitor using the EV-PS-C7

Diagram of 1 Door Station and Multi-Monitor using the EV-PS-C7

With DBC4A Wiring Mode
