Product SKU: APC-T700TL-SOL-WCK

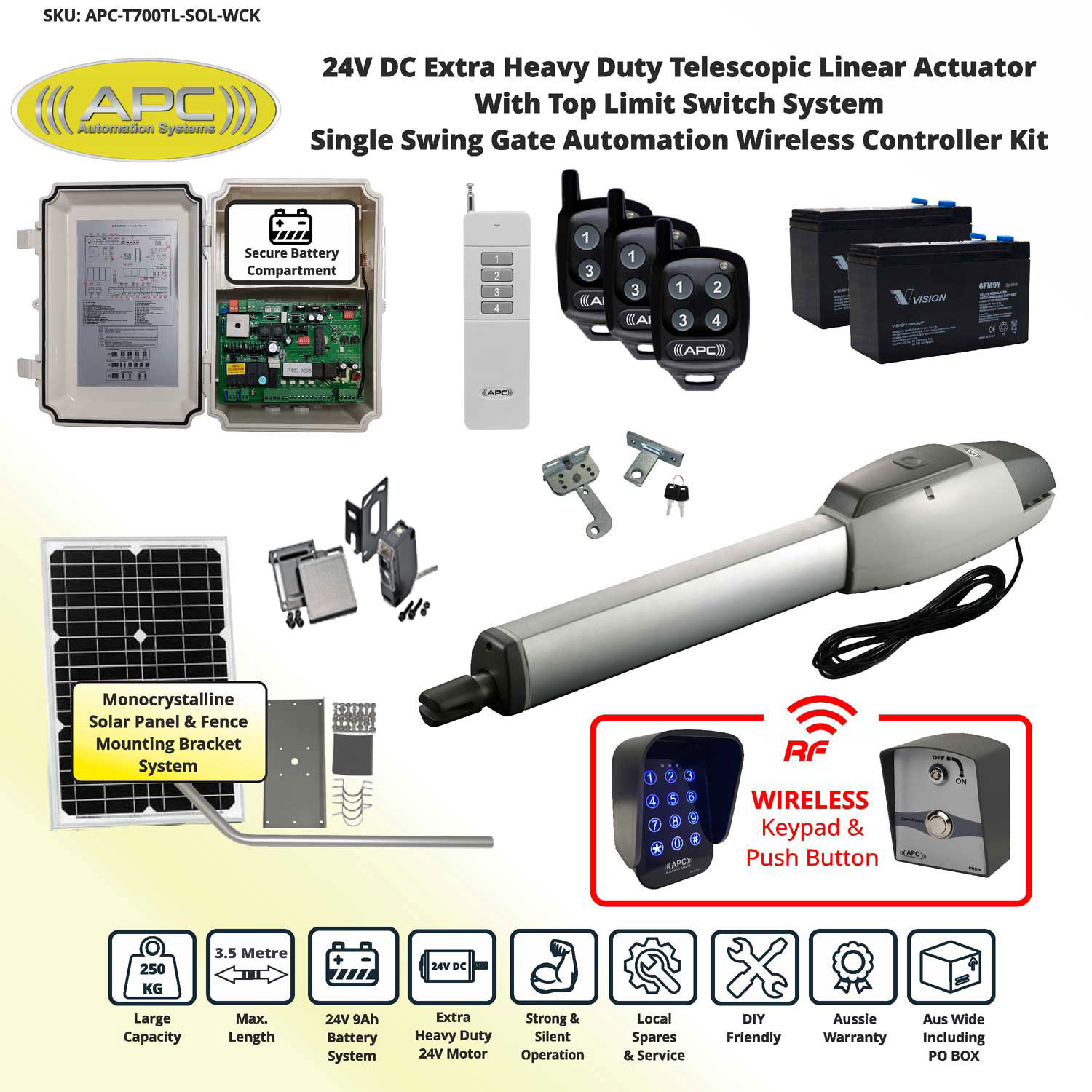

APC Standalone Solar OFF GRID Automatic Single Swing Driveway Gate Opener Extra Heavy Duty Telescopic Linear Actuator 24 Volt Automation Kit with Robust Cast Alloy Casing and Top Limits, Single Swing Solar Powered Gate Opener

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

  • Single Swing Solar Powered Gate Opener
  • APC Standalone Solar OFF GRID Automatic Single Swing Driveway Gate Opener Extra Heavy Duty Telescopic Linear Actuator 24 Volt Automation Kit with Robust Cast Alloy Casing and Top Limits, Single Swing Solar Powered Gate Opener
  • APC Standalone Solar OFF GRID Automatic Single Swing Driveway Gate Opener Extra Heavy Duty Telescopic Linear Actuator 24 Volt Automation Kit with Robust Cast Alloy Casing and Top Limits, Single Swing Solar Powered Gate Opener
  • APC Standalone Solar OFF GRID Automatic Single Swing Driveway Gate Opener Extra Heavy Duty Telescopic Linear Actuator 24 Volt Automation Kit with Robust Cast Alloy Casing and Top Limits, Single Swing Solar Powered Gate Opener
  • APC Standalone Solar OFF GRID Automatic Single Swing Driveway Gate Opener Extra Heavy Duty Telescopic Linear Actuator 24 Volt Automation Kit with Robust Cast Alloy Casing and Top Limits, Single Swing Solar Powered Gate Opener
  • APC Standalone Solar OFF GRID Automatic Single Swing Driveway Gate Opener Extra Heavy Duty Telescopic Linear Actuator 24 Volt Automation Kit with Robust Cast Alloy Casing and Top Limits, Single Swing Solar Powered Gate Opener
  • APC Standalone Solar OFF GRID Automatic Single Swing Driveway Gate Opener Extra Heavy Duty Telescopic Linear Actuator 24 Volt Automation Kit with Robust Cast Alloy Casing and Top Limits, Single Swing Solar Powered Gate Opener
  • APC Standalone Solar OFF GRID Automatic Single Swing Driveway Gate Opener Extra Heavy Duty Telescopic Linear Actuator 24 Volt Automation Kit with Robust Cast Alloy Casing and Top Limits, Single Swing Solar Powered Gate Opener
  • APC Standalone Solar OFF GRID Automatic Single Swing Driveway Gate Opener Extra Heavy Duty Telescopic Linear Actuator 24 Volt Automation Kit with Robust Cast Alloy Casing and Top Limits, Single Swing Solar Powered Gate Opener
  • APC Standalone Solar OFF GRID Automatic Single Swing Driveway Gate Opener Extra Heavy Duty Telescopic Linear Actuator 24 Volt Automation Kit with Robust Cast Alloy Casing and Top Limits, Single Swing Solar Powered Gate Opener
  • APC Standalone Solar OFF GRID Automatic Single Swing Driveway Gate Opener Extra Heavy Duty Telescopic Linear Actuator 24 Volt Automation Kit with Robust Cast Alloy Casing and Top Limits, Single Swing Solar Powered Gate Opener
  • APC Standalone Solar OFF GRID Automatic Single Swing Driveway Gate Opener Extra Heavy Duty Telescopic Linear Actuator 24 Volt Automation Kit with Robust Cast Alloy Casing and Top Limits, Single Swing Solar Powered Gate Opener
  • APC Standalone Solar OFF GRID Automatic Single Swing Driveway Gate Opener Extra Heavy Duty Telescopic Linear Actuator 24 Volt Automation Kit with Robust Cast Alloy Casing and Top Limits, Single Swing Solar Powered Gate Opener

APC Standalone Solar OFF GRID Automatic Single Swing Driveway Gate Opener Extra Heavy Duty Telescopic Linear Actuator 24 Volt Automation Kit with Robust Cast Alloy Casing and Top Limits, Single Swing Solar Powered Gate Opener

Product SKU: APC-T700TL-SOL-WCK

  • In Stock

Get More Info..
Free Shipping Free Shipping

Kit Price:

$1,379.00

  • Or in 4 payment of $344.75 with afterpay info
  • Solar Powered Gate Opener 24V System, 3.5 Meter, 250KG, 350mm Stroke, Top Limit Switches

  • Kit Includes

    01 APC-T700TL Top Limit Actuator Kit (QTY: 1)
    02 APC Weatherproof Control Box with Built in Battery Compartment (QTY: 1)

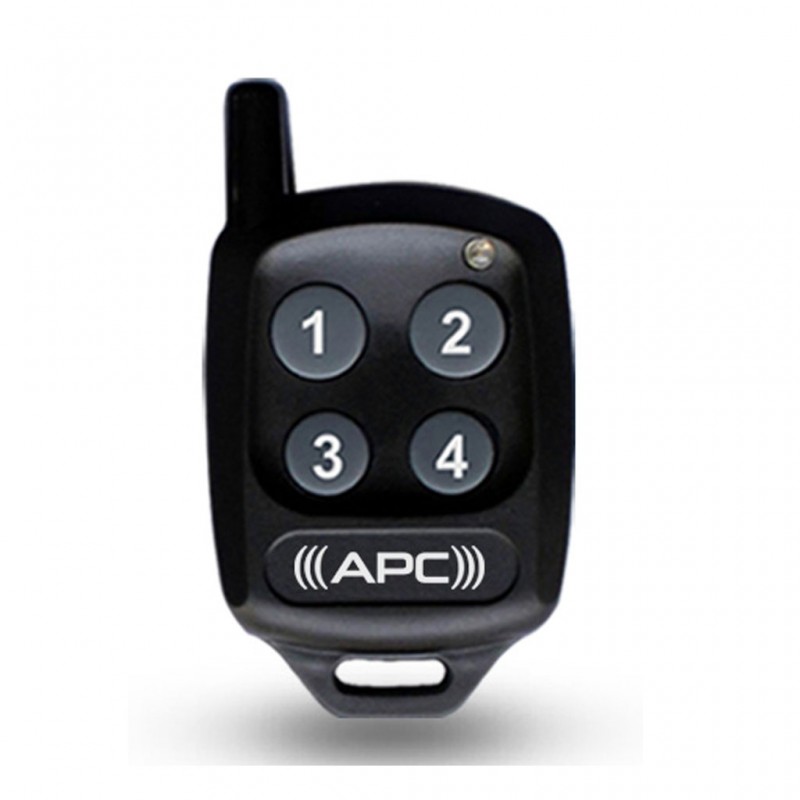

    03 APC Four Button Keyring Remote (QTY: 3)
    04 APC Four Button Long Distance Remote (QTY: 1)
    05 9aH High Capacity Battery (QTY: 2)
    06 APC Two Channel Wireless Keypad (QTY: 1)
    07 APC Wireless Single Push Button Switch with Key Issolation (QTY: 1)

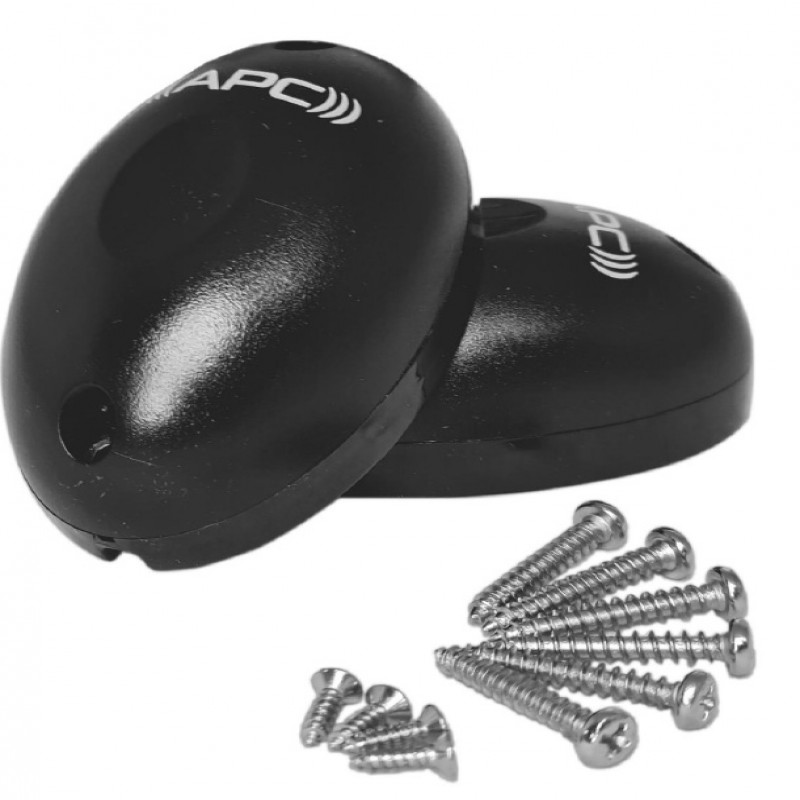

    08 Gate Sensor | APC Photoelectric Gate Safety Sensor - Safety Beam Infrared Photocell Gate Sensor Detector (QTY: 1)
    09 10m 4 Core Non Shielded Cable (QTY: 1)
    10 24v 20 Watts Solar Panel (QTY: 1)
    11 Solar Panel Fence Post & Bracket for APC 20 Watt Solar Panels (QTY: 1)
    12 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order. (QTY: 2)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

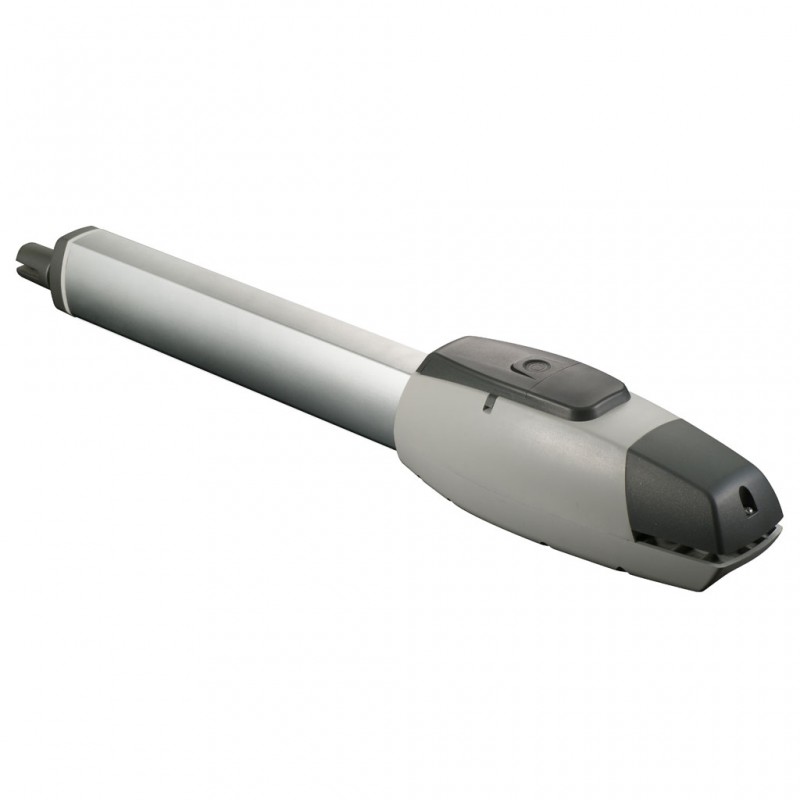

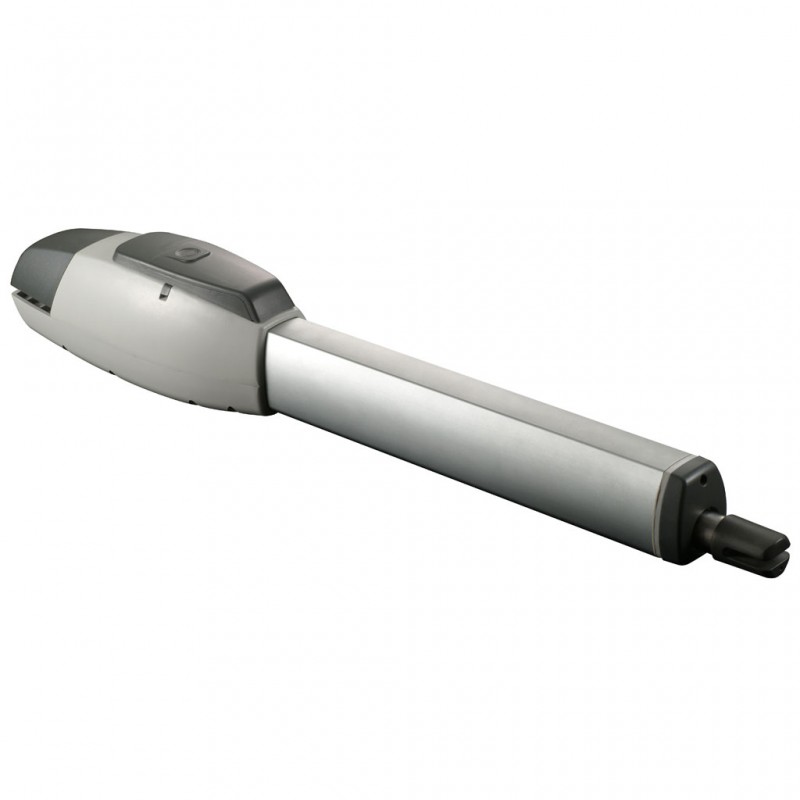

Extra Heavy Duty Telescopic Linear Actuator with Open and Close Limit Switches






Heavy Duty 24V Motor with powerful and quiet operation Sleek European design with a compact and neat appearance Easy to use manual override via the supplied keys in a emergency situation. The system can handle light and heavy gates up to 250kg maximum weight or up to 3.5m maximum length.

Easy to Adjust Top Limit Switches ensure precise setting of the open and closed positions along with a less strenuous life for the actuator.

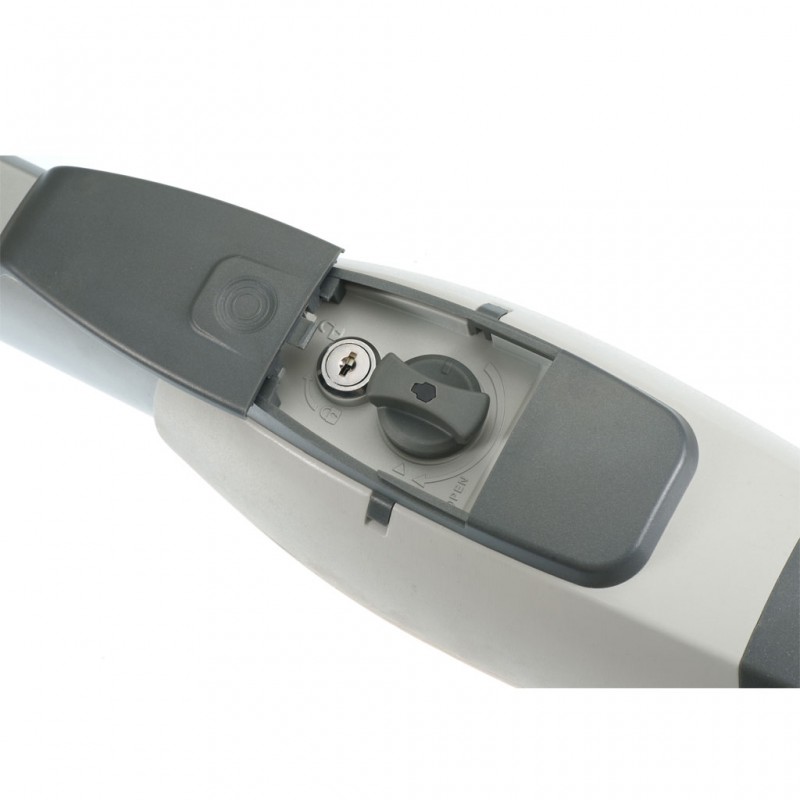

Emergency Override


Simple to use manual override in case of an emergency. Simply insert the supplied key to unlock then turn the override knob.


Actuator Overview



Extra Heavy Duty Single Gate Opener



Installation Geometry



Specifications

Gear Type Metal Lead Screw, Mixed Reduction
Motor Voltage
24v DC
Manual override
Via override keys supplied
Working temperature
-10° - 50°
Duty Cycle
20%
Maximum stroke
350mm (without limit switches)
Gates size
3.5m max
Gate weight
250kg max

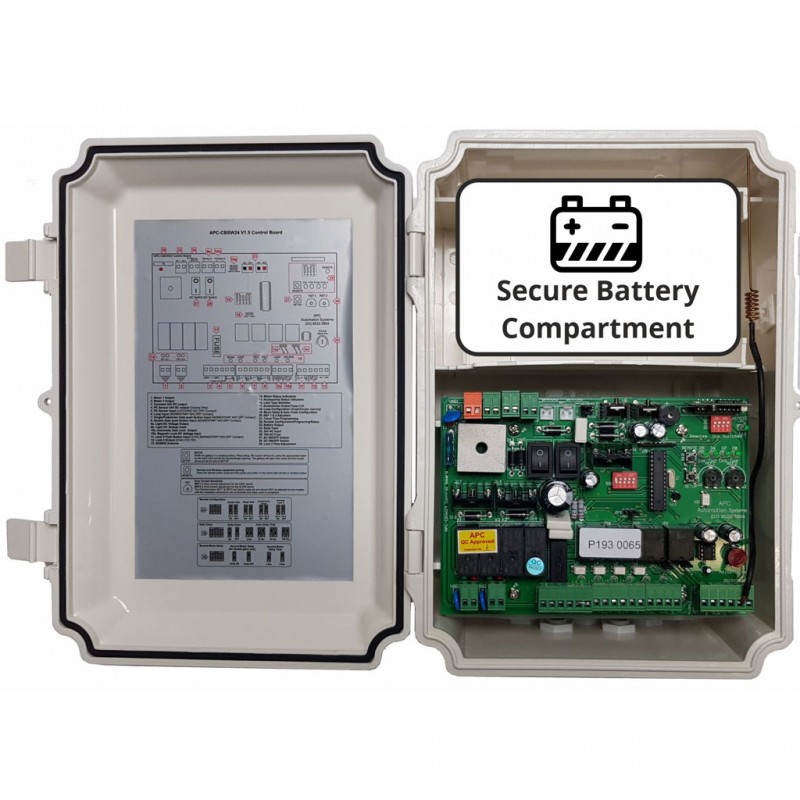

Weatherproof Control Box

The CBSW24 series smart control panel is an easy to connect, simple to setup and feature rich control box vast amount of features as listed below:



Fully weatherproof with a seal
Pre Connected Weatherproof Glands for Wiring Connections
Hinged door with a padlock slot for added security



System Features

Standalone Solar System
High Capacity Battery System
Built In Solar Regulator
Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gates
Automatic Feature Learning will learn all features of the remote with a simple pairing process
Ultra High Security Rolling Code remote system allows for the highest form of security for entry to your property
Adjustable Automatic Close time up to 3 minutes


Safety Features

Adjustable Over current adjustments
Safety Sensor connection input
Automatic Courtesy Light Output





Special Features



Party mode: The automatic closing can be cancelled using button 3 on the remote control buttons when expecting a visitor to arrive, reversing a trailer and numerous other uses.
Service Gate Function (12V 250mA max.). Using the second lock output will allow the user to power and control a second electric striker installed on a pedestrian access gate the second lock is powered from the control panel and controlled using button 4 on the remote. APC Wired and wireless Accessories can also be use to control the Lock 2 function.



Accessories Compatibility

Constant 24V DC Accessories Output
Switched 24V DC Output for closing direction (used for safety devices to conserve power, powered on when required)
Open/Stop/Close Inputs for Gate Operation
Smart Opening & Closing LED indicators: Green LED on during opening and Red LED on during the closing
Automatic Electric Lock Output



Controlling Options

Any or all of the following may be connected to operate the gate

Remote controls
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)

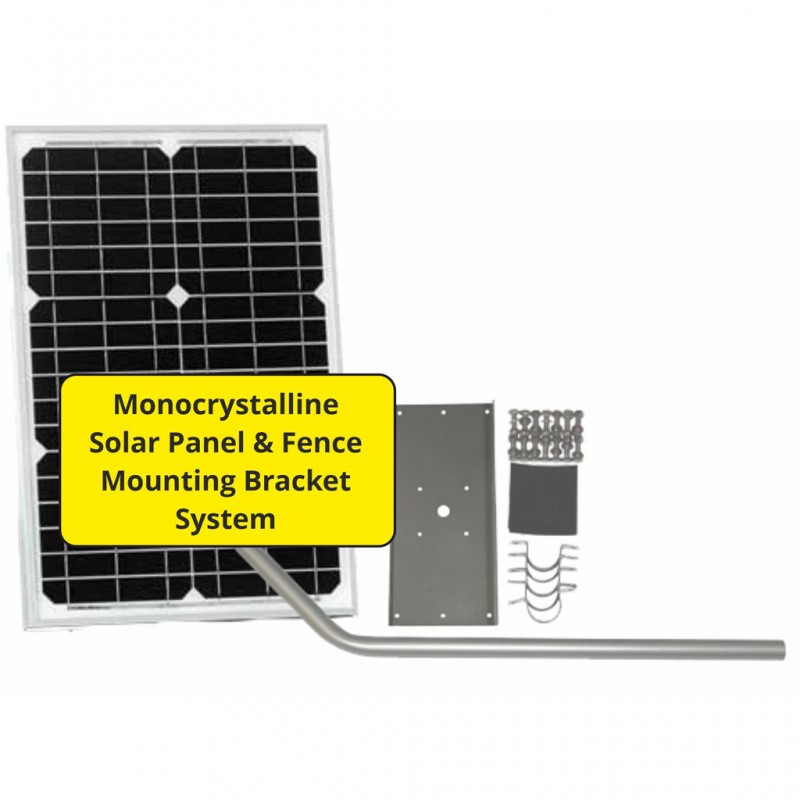

24V 20 Watt Solar Panel (Upgradable to 20 Watt or 60 Watt options)






Mono Crystalline silicon solar cells with 3mm tempered glass and two sheets of tedlar-polyeaster-tedlar (TPT) and ethylene Vinyl acetate (EVA). This protects against moisture penetrating into the module. The solar panel is supplied with a fence mounting bracket system along with a pre-connected 5 metre cable (maximum cable distance is 20 metres), the solar panel is also fitted with a diode to prevent feed back from the batteries.
Specifications
Maximuim Power 20W/40W/60W
Optimum Operational Voltage 36V
Open Circuit Voltage 43.2V
20W Panel Dimensions 640 x 300 x 25mm
40W Upgrade Panel Dimensions 535 x 515 x 30mm
60W Upgrade Panel Dimensions 805 x 535 x 30mm



24V 9aH Battery System




Supplied with the automation kit, the 24V Battery System* (2 x 12V  9Ah Batteries) will allow for continued use of the gate system, whether day or night. The system can operate for up to one week of regular residential use without any charge from the solar panel (winter months/wet season) and will automatically recharge from sunlight. When the system batteries are fully charged, it will continue to float charge to keep the batteries topped up and ready for use. In the case of extended use requirements or higher duty, there are upgrade options to 17aH and 33aH battery systems.

 *Fully charged batteries will provide 27V and Cuts Off the system at 24V to improve AGM battery life

Remote Features

Specifications



Power Input 20W 24V Solar Panel (Upgradable)
Regulator Built In On Board Regulator
Motor Output Voltage 24v DC
Battery System 24V 9aH (Upgradable)
Working temperature -10° - 50°
RF APC Rolling code 433.92mhz
Lock Output (Primary) 24V DC
Lock Output (Secondary) 12V DC
Auxiliary Inputs 0V Momentary Pulse
Accessories Voltage 24V DC
Over current 1A to 5A

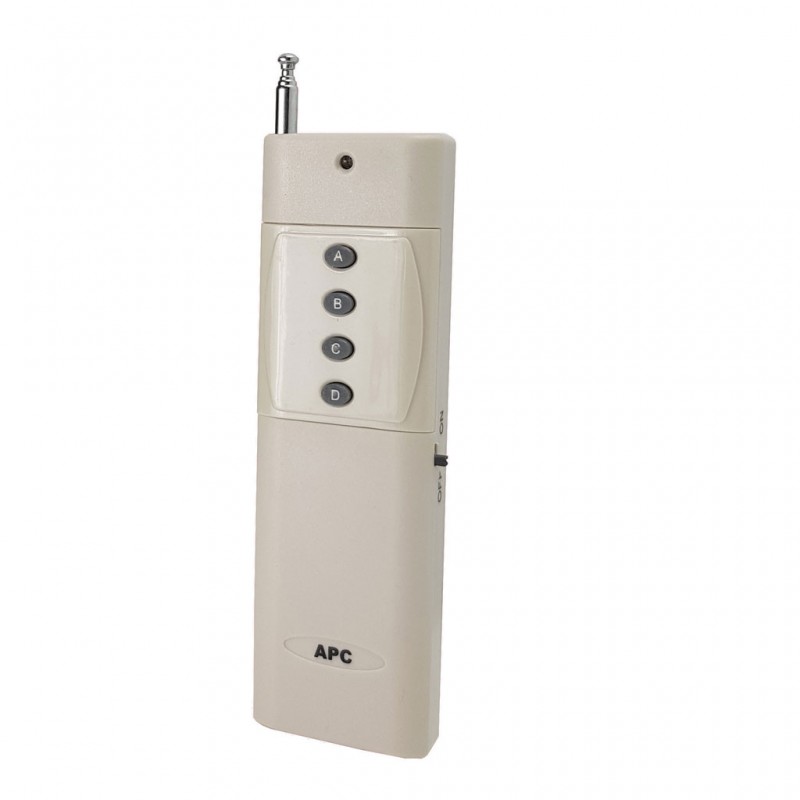

Long Distance Remote







The APC-RC450S Long range remote is capable of achieving operating distances of up to 400 metres, coupled with the add on booster antenna it can reach up to 800 metres. With these distances you can operate the gate system from around the property, at the home or from the workshop. Multiple long range remotes can be used on the one system.

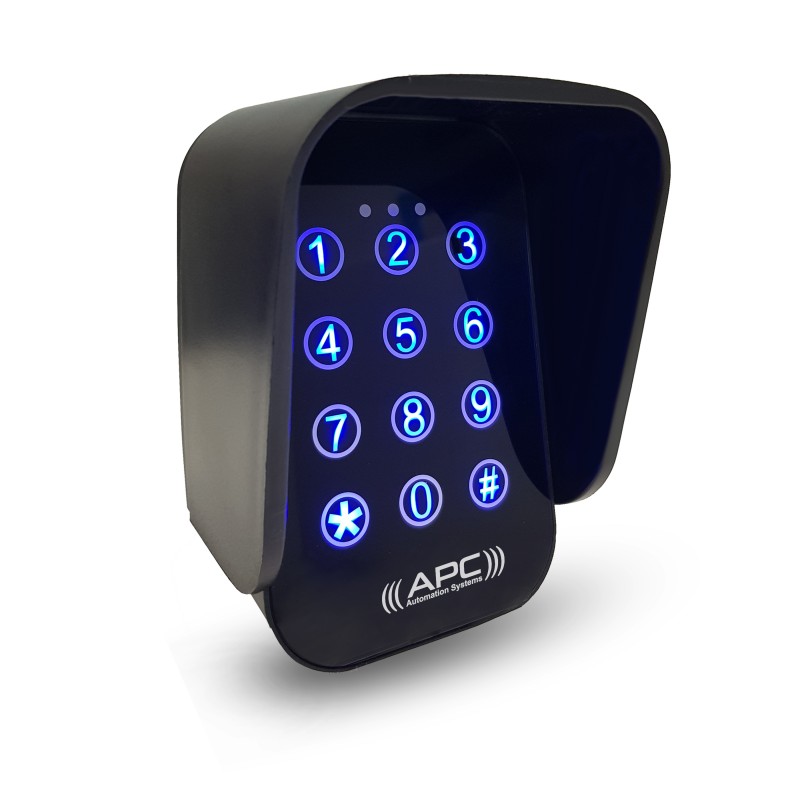

APC-KP2W Wireless Keypad Features



  • Up to 11 pin codes can be programmed

  • Low Power Consumption only 18uA in standby.

  • Easy to replace AA battery-powered system (supplied) with up to two years usage on general use.

  • High strength tempered glass faceplate with an ultra-modern and highly reliable touch-sensitive operation.

  • Blue Backlight illumination upon touch with an automatic timeout to return to standby.

  • Two dedicated LED indicators indicating and accepted pin code (green) and also security lockout (red)

  • IP53 Weatherproof rated and suited for outdoor and indoor environments.

  • Built in Anti Tamper alarm and security lockout to help prevent theft and unauthorized usage.

  • Pin code scramble allowing the user to input a series of random number before the pin code to prevent pin code theft.


  •

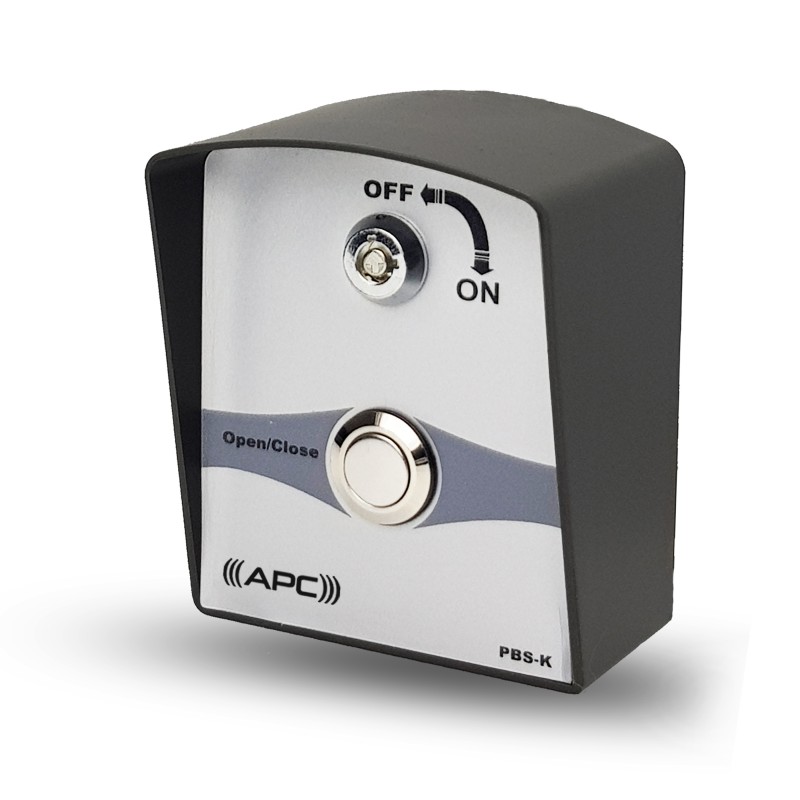

Wireless Push Button with Isolation Key







The wireless push button switch is a simple and easy to use method to operate the gate. It is mounted in the general area of the gate and can be isolated by using the supplied keys without affecting the rest of the system, this is handy if you want to continue using the remotes or any other method of operation but wish to stop use of the push button itself.

The wireless push button communicates with the control board using the same rolling code 433mhz frequency as the remote thus eliminating the need for any extra add ons. If required the wireless push button can be upgraded to a wireless keypad for higher access security using pin number.

The push button can be used for over 50 metres in operating distance.
