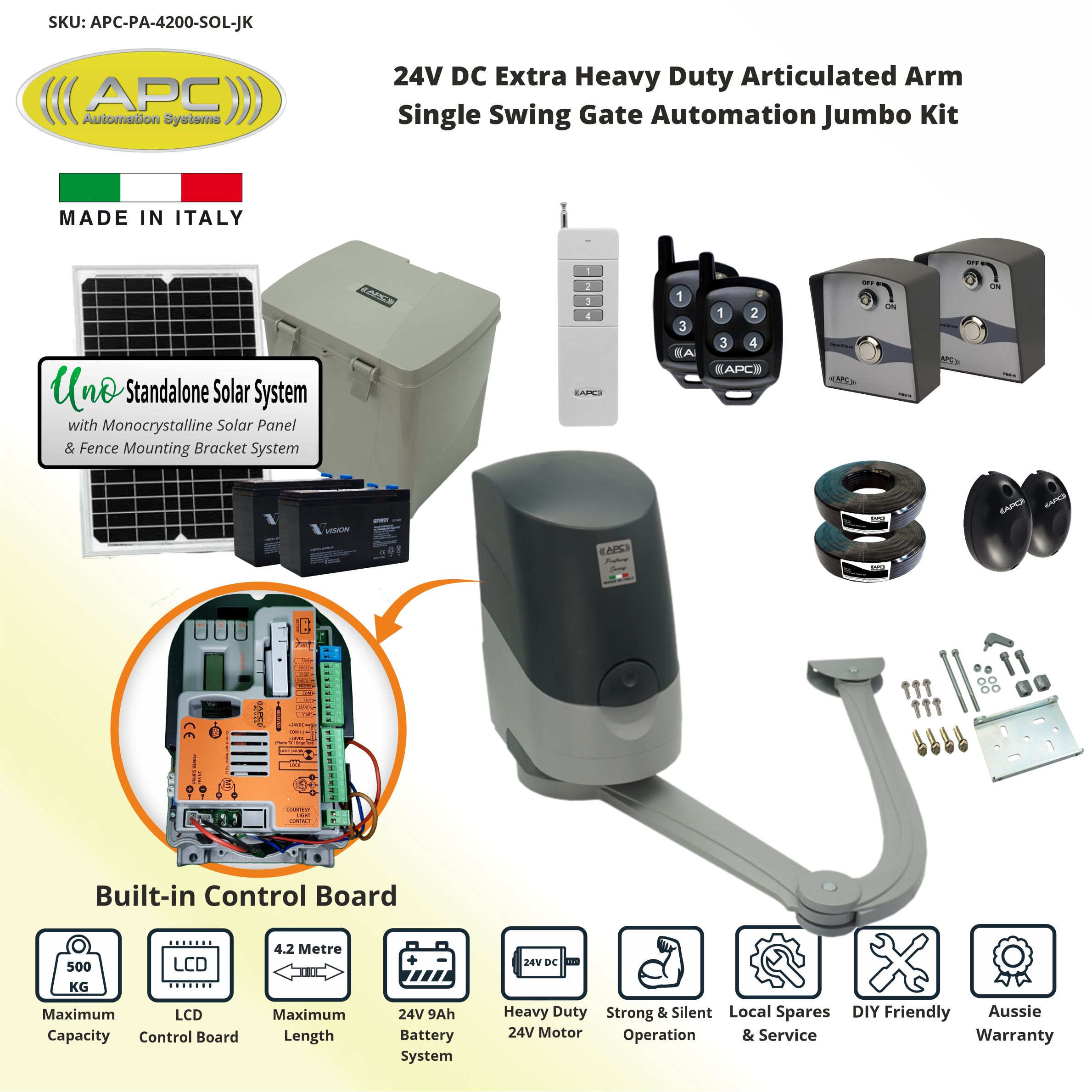

Name: Extra Heavy Duty Italian Made Proteous PA-4200 Articulated Arm Kit, Solar Gate Opener
Brand: Automotionplus
SKU: APC-PA-4200-SOL-JK
Price: 1834.0 AUD
Availability: InStock

Italian Made Extra Heavy Duty Articulated Arm System

Packing a punch the Proteous 4200 system can deliver 760N of thrust to operate gates up to 500kg or 4.2m in length. With a built in adjustable stop for both the open and closed positions making the system is versatile in its stopping arangment.

Adjustable built in stopper

Simple to adjust just install the supplied Open position stopper in the hole at the desired stop point and tighten. Repeat again for the Closed position stopper.

System Capacity

Installation Geometry

Specifications

Thrust	760N
Motor Voltage	24v DC
Manual override	Via override key supplied
Working temperature	-20° - +50°
Duty Cycle	80%
Max. Operating Angle	120°
Gates size	4.2m max
Gate weight	500kg max

Feature Rich and Highly Versatile Control Box

The Proteous PA-4200 Control Unit provides the latest enhanced technology and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advanced features and its high duty cycle system.

There is no function or feature that this system cannot perform. See the full details below.

System Features

80% Duty Cycle (Can operate for up to 48 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
Automatic learning of gate travel limits
Completely adjustable slowdown points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available), and induction loop
Fast and Slow Speeds points are adjustable along with the power
Simple ONE PRESS full feature remote Ultra High-Security Rolling Code learning system (and service-free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Five underside cable entry with glands
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))

Special Features

Energy Saving Mode (5mA Standby Current)
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut-in points
Direct electric lock connection
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers

Safety Features

Adjustable Over current adjustments
Supports encoder motors and limit switch motors
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times

Simple to use LCD interface

Control Board Overview

Accessories Compatibility and Controlling Options

Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App-Based Control)
GSM Control Systems (Mobile Call/SMS-based Control)

Remote Features

24V 20 Watt Solar Panel (Upgradable to 40 Watt or 60 Watt options)

Mono Crystalline silicon solar cells with 3mm tempered glass and two sheets of tedlar-polyeaster-tedlar (TPT) and ethylene Vinyl acetate (EVA). This protects against moisture penetrating into the module. The solar panel is supplied with a fence mounting bracket system along with a pre-connected 5 metre cable (maximum cable distance is 20 metres), the solar panel is also fitted with a diode to prevent feed back from the batteries.

Specifications
Maximum Power	20W/40W/60W
Optimum Operational Voltage	36V
Open Circuit Voltage	43.2V
20W Panel Dimensions	640 x 300 x 25mm
40W Upgrade Panel Dimensions	535 x 515 x 30mm
60W Upgrade Panel Dimensions	805 x 535 x 30mm

APC Uno Standalone Solar System

The APC Uno is an articulate all-in-one design allowing for the clean and secure housing of the APC Sun Power Solar Regulator and multiple batteries.

Key Features:

APC Sun power Regulator Built In
Sleek contoured design
Cable management entries for a clean installation
Subtle grey to suit all installation environments
Heavy duty 5mm galvanized 6-hole mounting plate Supports multiple mounting surfaces (piers, posts, walls etc.)
Easy to access with the tool-free clip lock system
Can be secured with a small padlock
Four output glands allowing for completely weatherproof entry/exit of cables up to 9mm OD each

Dimensions

Extra Heavy Duty Single Gate Opener

24V 9aH Battery System

Supplied with the automation kit the 24V 9aH battery system will allow for continued use of the gate system wether in day or night. The system can operate for up to one week of regular residential use without any charge from the solar panel (winter months/wet season) and will automatically recharge from sun light. When the system batteries are fully charged it will continue to float charge to keep the batteries topped up ready for use. In a case of extended use requirments or higher duty there are upgrade options to 17aH and 33aH battery systems.

Specifications

Power Input	24V (Uno Solar System)
Rectification	In Box Rectifier
Motor Output Voltage	24v DC
Max Operating Power	250 Watts (Accessories + Running Motors)
Max. Accessories Load	7W
Control Board Duty Cycle	80%
Working temperature	-20° - 50°
RF	APC Rolling code 433.92mhz
Auxiliary Inputs	0V Momentary Pulse
Accessories Voltage	24V DC
Operator Inbuilt Safety	Over current + Encoder Sensitivity

Long Distance Remote

The APC-RC450S Long range remote is capable of achieving operating distances of up to 400 metres, coupled with the add on booster antenna it can reach up to 800 metres. With these distances you can operate the gate system from around the property, at the home or from the workshop. Multiple long range remotes can be used on the one system.

APC-PE2000 Photoelectric Safety Sensor Set

The Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

Both sensors (transmitter and receiver) are wired back to the control box of the gate system using the supplied cable roll, alternatively a reflective sensor upgrade is available which will only require wiring from the sensor mounted at the control box.

Up to 15 Metres Infared beam operating distance

Only powers on when the command is given to close the gates

Alignment led to assist in the installation process

Weather sealed with the supplied cover seals

Easy screw down wiring termination

Wired Push Button with Isolation Key

The wired push button switch is a simple and easy to use method to operate the gate. It is mounted in the general area of the gate and can be isolated by using the supplied keys without affecting the rest of the system, this is handy if you want to continue using the remotes or any other method of operation but wish to stop use of the push button itself.

The push button is wired to the control board using the supplied cable roll. If required the wired push button can be upgraded to a wireless version thus eliminating any need for wiring.
