Extra Heavy Duty AC Boom Operator Package (upto 6m Arm Length)

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

Extra Heavy Duty AC Boom Operator Package (upto 6m Arm Length)

Product SKU: BG-AC-UM1

  • In Stock

  • Freight DeliveryFreight Delivery
    This is a large item and will require a freight quote. Please add all items to your cart and continue through the checkout process for a complete freight delivery cost.
Get More Info..

Kit Price:

$2,189.00

  • Decoder Technolgy, High Efficeny, High Duty Cyle

  • Kit Includes

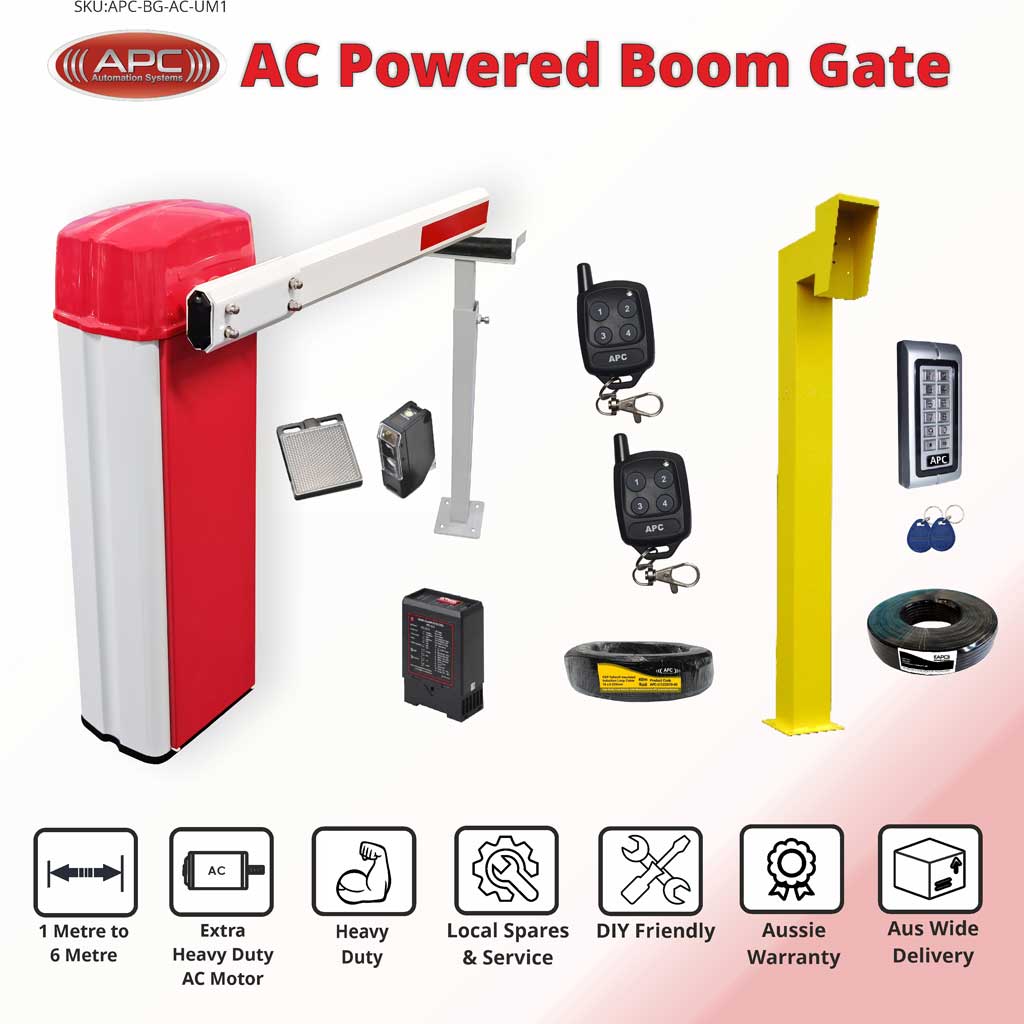

    01 Right Side Operator including Arm (1m to 6m adjustable) & Resting Cradle (QTY: 1)
    02 APC Four Button Keyring Remote (QTY: 2)
    03 APC Retro Reflective Safety Sensor - for gate opening system safety Retro Reflective Gate Sensor (QTY: 1)
    04 APC Slimline Vandal Resistant Keypad with EM card Reader (QTY: 1)
    05 EM Swipe Tag (QTY: 2)
    06 5m 4 Core Non Shielded Cable (QTY: 1)
    07 1150mm High Yellow Gooseneck Pedestal with Bolt Down Base (QTY: 1)
    08 40m Roll of Teflon Insulated Induction Loop Cable (QTY: 1)
    09 Single Channel 24V Induction Loop Detector (QTY: 1)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

High Efficency AC powered Boom Gate








AC Powered Boom Operating System for security and traffic control management designed for entry and exit points at industrial complexes, body corporate managed complexes, factories, schools, car parks, caravan parks and more. The aluminum boom arm is lightweight and adjustable in size from 1m up to 6m in length. It is also supplied with pre installed reflective tape to help for visibility at night time.

The body itself is constructed from robust steel and finished in a smooth red powdercoat. The system is available in two diffrent orientations, a left side and a right side system depending on the best suited for the site and cabling structure.



AC Motor and Over ride System








The 120 Watt AC motor is very quiet and fast on opening and closing (~6 seconds per direction), with precise limit encoder settings to ensure accurate positioning during every cycle.

Incase of a power outtage the system is equiped with a built in overrride to operate the boom gate into either the open and close position.





Balancing Spring System







Included and pre-installed within the operator are TWO tensioning balancing springs to assist in ensuring a smooth jutter free closing movment. Tensions can be increased/decreased by adjusting preload if necessary or removing one of the springs when a shorter length arm is being used.



Control Panel





The internal control panel is fitted with on board push button switches for UP, DOWN and emergency STOP to assist with the installation process.

The control panel is completely pre-wired to the motor with an onboard internal power transformer and is pre-wired to a 10Amp power plug (the control panel is ready to plug into a power point), if required the control panel can also be hadrwired to the mains power via an isolator.







System inputs, Outputs and Features


Automatic Close





  • ON/OFF (Max time. 120s)

Accessories Voltage Output

  • 12V DC

Light Output

  • Relay Supports AC/DC up to 230V light support (N/O and N/C Circuits)

Compatible Safety Devices (N/C Circuit Latching)

  • APC-PE2000 Photocell
  • APC-RR11 Reflective Sensor
  • Induction Loop

Auxillary Inputs for Keypads, Buttons, Induction loops, Intercom integration etc.

  • Open (N/O Circuit Momentary)
  • Stop (N/C Circuit)
  • Close (N/O Circuit)
  • Push OPEN-STOP-CLOSE shared input (N/O Circuit)


Status Relays

  • Open N/O and N/C
  • Open N/O and N/C

Counter Mode When multiple input signals are detected the boom gate will not close until the same amount of signals have passed through.


Please choose one of the installation options based on your cabling structure







Left Side Option





Right Side Option







Resting Cradle



An adjustable resting cradle is supplied with the boom operator to help prevent damage caused by vandalism, the operator can be used without this item however its purpose is to help prevent the arm being pulled down or rested on whilst the operator is in the closed position. It also helps in the installation process as it allows for a simple closeby installation of the reflector from the reflective sensor package (if used).



APC Automation Systems FOUR Button Keyring Remote Control





Four-button remote control transmitter used for:
  • Button 1 will Open the boom gate
  • Button 2 is for the STOP command
  • Button 3 will close the boom gate
  • Button 4 is Vacant and can be used to connect to other systems using the APC Reciever


APC-RR-11 Retro Reflective Sensor



The retro-reflective Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

The sensor ( which is the transmitter and receiver) is wired back to the control box of the gate system using the pre-connected cable. There is no requirement for wiring across the driveway using this type of sensor.

  • Up to 11 Metres Infrared beam operating distance

  • Only powers on when the command is given to close the gates

  • Alignment & Misalignment led to assist in the installation process

  • Resin filled for the ultimate weatherproofing

APC-KP1C Wired keypad with built in card reader



The APC-KP1C keypad is a waterproof low voltage keypad which is wired back to the control board using the supplied cable roll. It is of alloy construction and extremly robust. It can be seen day or night thanks to its backlit keys. Two EM swipe cards are also supplied suitable for any temporary or permanent user that need to gain access into the property without a pin code.

Key Features:

  • Built-in EM card reader.
  • Robust cast alloy construction
  • Resin filled for ultimate weatherproofing
  • Blue backlit keys
  • Anti-tamper feature
  • IP65 Waterproof rated and suited for outdoor and indoor environments.
  • Up to 2000 users for pin code and EM card.



Technical Specifications

Dimension

Features  Description
Appearance Metal case, anti-explosion and anti-tamper
Waterproof IP 65
Dimension 135×58×26mm
Input voltage DC: 12-24V AC: 12-18V
Capacity(max) 2000 Users
PIN 4-8 digits.
Not related to the card.
Master card Add/Delete User
As reader Support Wiegand 26bits, PIN Wiegand output, is a virtual number.
Connect external reader Can connect any EM/HID/IC readers with Wiegand 26 output
Connect high-power alarm. External current of the alarm ≥3A





Heavy Duty Safety Yellow Pedestal for Access Control


Heavy Duty Pedestal, Keypad Stand & Intercom Stand





Dimensions:

  • Height: 1150mm

  • Tube Dimensions: 100mmx100mmx1.6mm

  • Rain Cover: 200mm High x 100mm Wide

  • Base Plate: 150mmx150mmx5mm

Single Channel Loop Detector

loop detector





The loop detector sensor module that is used wherever vehicles need to be detected to automatically trigger the system to operate. The loop detector module is installed within the system and is powered by the system itself.

From the loop detector module the supplied induction loop cable is fed and layered into a cutout in the driveway as per the illustration below. The system is supplied with a 40m roll of teflon insulated cable which can be upgraded to a larger roll if necessary based on the loop size and distance from the module.

Installation Example

loop detector

loop detector

Loop Dimensions

Loop detector measurment size

Approximate Loop Sizes

Driveway Width
Loop Size
3m - 4.5m 1.8m x 1.2m
4.8m - 5.4m 2.4m x 1.2m
5.8m - 6.7m 3m x 1.2m
7m - 7.9m 4.3 x 1.2m


Your Customised Kit Includes:

No Changes.
        • Kit Quantity:
          • 1
        • Your (Kit and Add-On) Price:

          $2,189.00
