Cantilever Sliding Gate Hardware for Four Meter Opening Gate | All In One Pack | Hot Dipped Galvanized German Steel Cantilever Hardware, Made in Europe by CAIS

Product SKU: E-BOX SE 4.0

  • In Stock

  • Freight DeliveryFreight Delivery
    This is a large item and will require a freight quote. Please add all items to your cart and continue through the checkout process for a complete freight delivery cost.
  • New
Get More Info..

Kit Price:

$1,199.00 $1,399.00 APC Automotion Plus Sale

  • Or in 4 payment of $299.75 with afterpay info

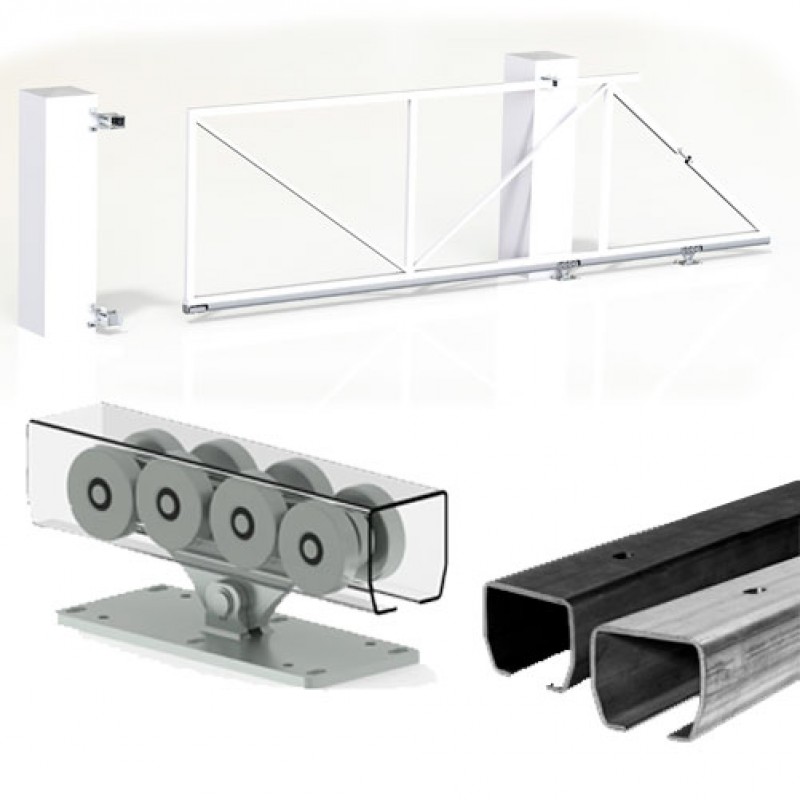

  • 4m Cantilever Sliding Gate Hardware All In One Box DIY Kit

  • Kit Includes

    01 Eight-Wheeled Carriage for Cantilever Gates for Up To 325 kg Max Gate Weight. (CAIS SPEED-SE) (QTY: 2)
    02 2.8m "C" Profile Guide For up to 5m Cantilever Gates, 3.5mm Thickness, Galvanized German Steel (CAIS STAGE SZ 2.8) (QTY: 2)
    03 Bolts and Rivet Nuts for Cantilever Gate Guide Track Easy Assembly (CAIS) (QTY: 15)
    04 55.5mm Guide Support Wheel, Cantilever End Wheel For Cantilever Sliding Gate Systems (CAIS RUN S) (QTY: 1)
    05 Small End Cap for C Guide Track, Cantilever Sliding Gates Hardware. (CAIS PILOT SN) (QTY: 2)
    06 End Stop for Cantilever Sliding Gates 132mm (CAIS LAST S) (QTY: 1)
    07 End Stop Bracket for Small, Medium, and Large Cantilever Sliding Gates (CAIS PARK CSM) (QTY: 1)
    08 51mm Upper Rollers and Bracket Set. CAIS Sliding Gate Guide Roller and Bracket Assembly Kit German Steel Made in EU (QTY: 1)
  • Add-On Items
  • Product Information

Add-On Items (Discounted when purchased along with this Kit)

Product Information

4m Cantilever Sliding Gate Hardware (All In One Box) DIY Kit | German Steel | Made in Europe by CAIS

Cantilever gates aren’t only contemporary and modern in appearance, besides cantilever design automatic sliding gates are the ideal choice for anyone with uneven ground, paving that is organic in shape, and gravel driveways. Cantilever gate designs are frequently used as no track work needs to be installed. This makes cantilever gates an option for surfaces that are inappropriate for track gates.



CANTILEVER GATE SPACE REQUIREMENTS

A cantilever gate needs to be about 35% wider than its span to counterbalance the weight of the suspension posts.

THE INSTALLATION STEPS

The installations do not require complicated steps and materials, and therefore the working time is not too long as well. We invite you to follow the below installation steps of CAIS "ALL IN ONE" cantilever sliding gate hardware.





CANTILEVER CONSTRUCTION SITE PREPARATION



SPACE

Single cantilever gates move in one direction, often directly parallel to an existing fence line. This efficient use of space makes a cantilever gate an ideal choice when designing a property’s perimeter fence and security system.



THE "ALL-IN-ONE" CANTILEVER SLIDING GATE HARDWARE

We have to ensure that all the gate hardware that you need to assemble the cantilever sliding gate is included.

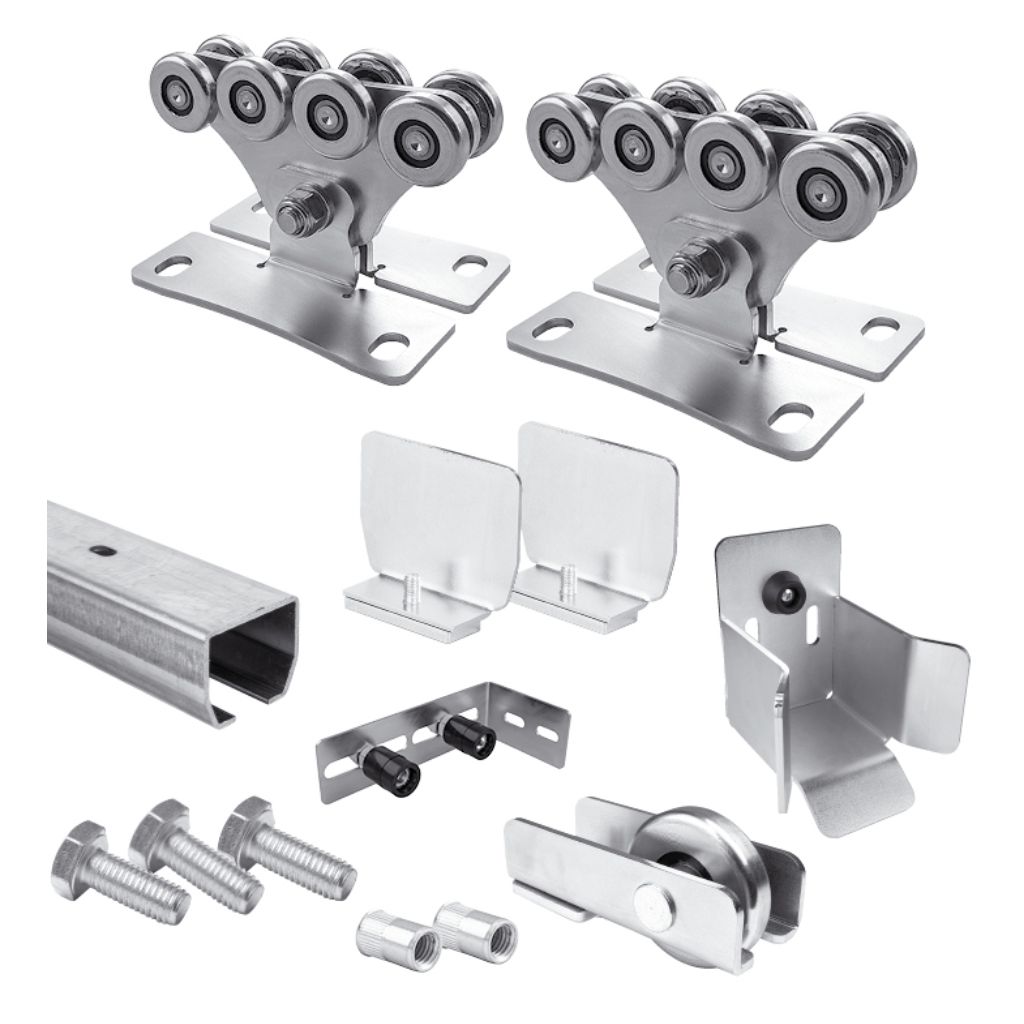

See what the "ALL IN ONE" box includes:

  • Eight Wheel Carriages
  • Heavy Duty C Profile Guide Track (3.5mm German Steel) For Cantilever Gate
  • C Profile Guide End Cap With Screw
  • C Profile Guide Guide Support Wheel for Cantilever Gate System
  • U Guide Stop With Rubber for Cantilever Gate Closing Position
  • U Stop Bracket with Installation Bolts and Screws for Cantilever Gate System
  • Upper Rollers and Bracket Set for Cantilever Sliding Gate
  • Bolts and Rivet Nuts for Cantilever Gate Guide Track Easy Assembly
  • Installation Instructions

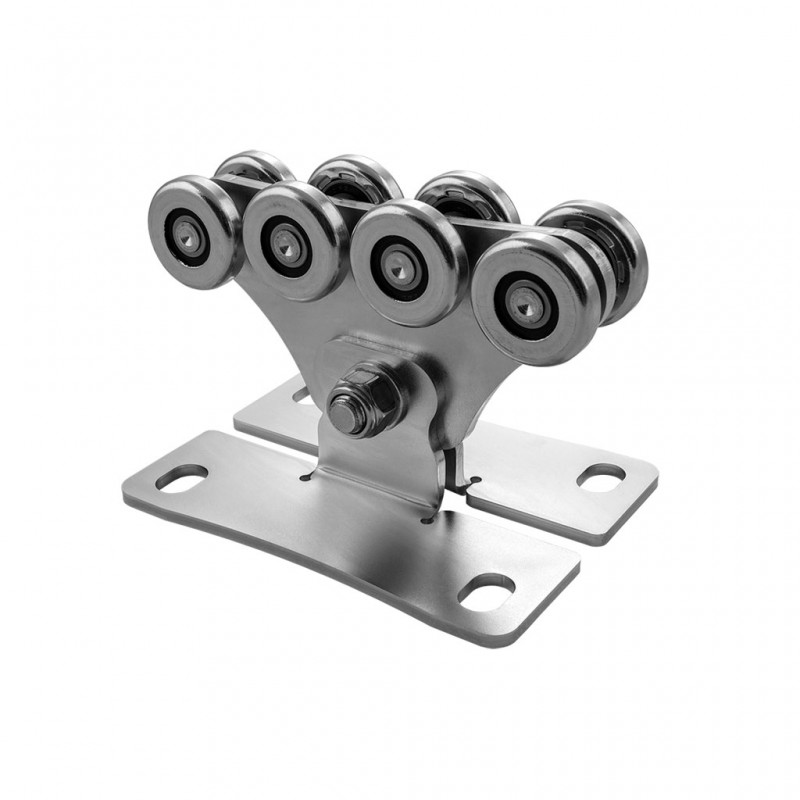

Eight-Wheeled Carriage For Up To 325Kg Cantilever Gate

Cantilever sliding gate system carriage wheel for up to 325 kg max gate weight.

Steel Cantilever Sliding Gate Eight-Wheeled Carriage

Enhanced design and superior products from Europe using high-quality German steel.

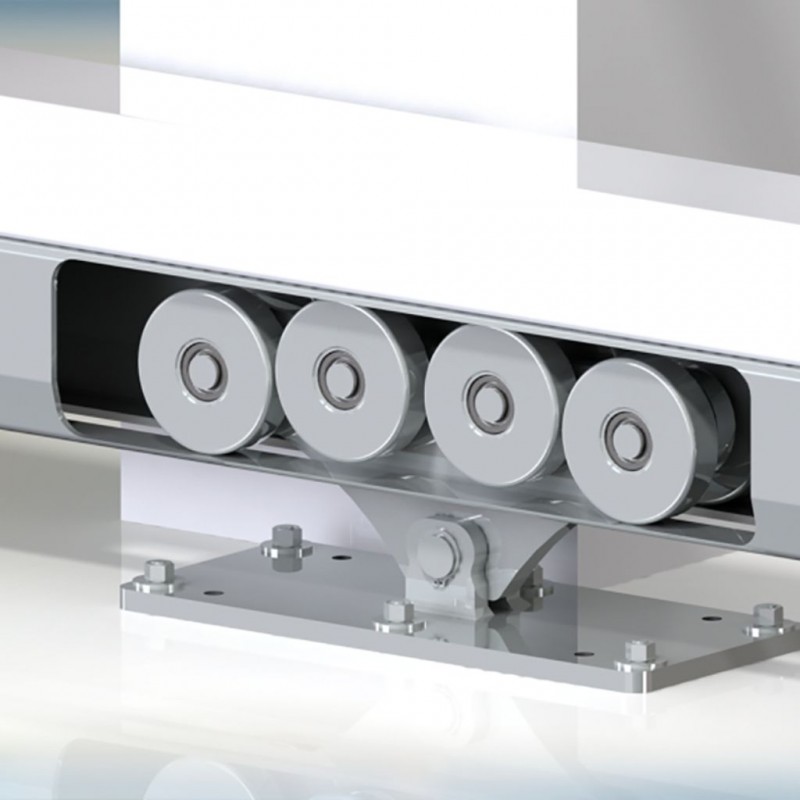

EIGHT-WEEL CARRIAGES FOR THE CANTILEVER GATE

C2 High-Quality Bearings

Carriages Center Holes Milled Not Laser Cut

Multi Riveted Sections

Mono-Block Eight Wheeled Carriage

No Welded Parts

















"C" Profile Guide For Cantilever Gate, 3.5mm Thickness, Hot Deeped Galvanized German Steel

"C" Profile Guide For Cantilever Sliding Gate, 3.5mm Thickness, Hot Deeped Galvanized German Steel, 15 Bolts 15 Rivet Nuts Included

Steel "C" Profile Guide For Cantilever Sliding Gate

Enhanced design and superior products from Europe using high-quality German steel.

Formed from high-quality, heavily galvanized German steel in an 18-stage process with a slow rolling speed to reduce heat build-up and memory

  • Holes at the track's top allow it to be easily bolted to an aluminium gate.
  • The steel is sourced from the leading German company Wumperman. It is galvanized after slitting so that there are no exposed raw steel edges that would otherwise quickly rust.
  • The slow rolling process minimizes the tendency for the track to spring open where it is cut to length.




THE INSTALLATION STEPS



The installations do not require complicated steps and materials, so the working time is not too long. We invite you to follow the below installation steps of CAIS "ALL IN ONE" cantilever sliding gate hardware.





Bolts and Rivet Nuts Pack for "C" Profile Guide Cantilever Sliding Gate

Bolts and Rivet Nuts are Included in each Cantilever "C" Profile Guide

Bolts and Rivet Nuts for Cantilever Sliding Gate Guide Track

  • Slotted Hole Punched Every 400mm in "C" Profile Guide Track
  • Bolts and Rivet Nuts Pack
  • Easy Assembly
  • No Welding Required

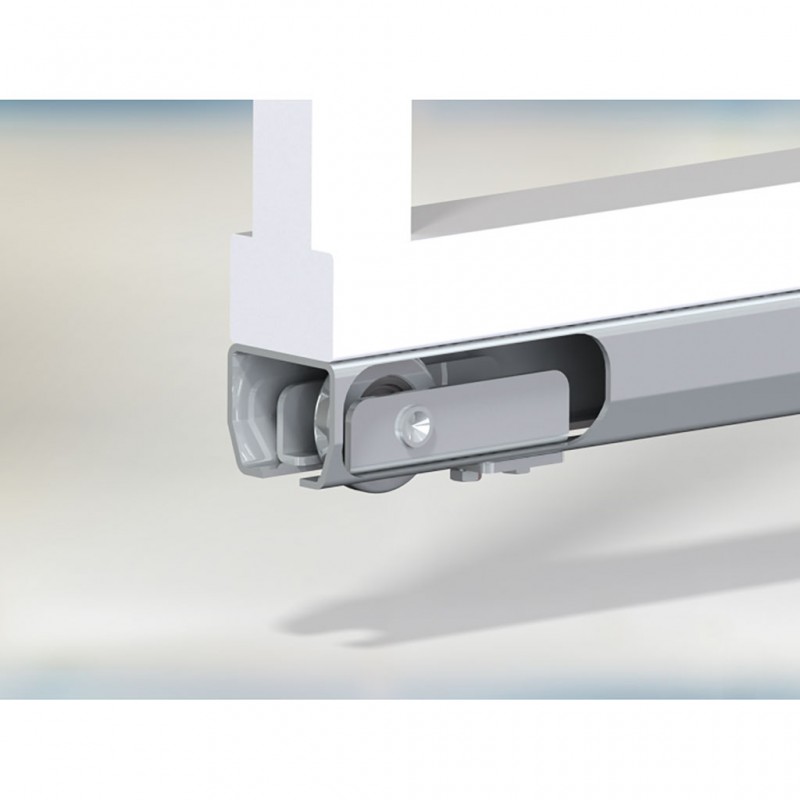

Small Guide Support Wheel For Cantilever Sliding Gates

The end wheel guides the gate up onto the end cup and helps to support the gate while it is resting.

End Wheel For Cantilever Sliding Gate Systems

Cantilever Gate Hardware Small Guide Support Wheel



Small End Cap for Cantilever C Gude Track

The end cap is an addition to the gate to cap off the cantilevered track.

End Cap For Cantilever Sliding Gate

Cantilever Gate Hardware Small End Cap



132mm End Stop for Cantilever Sliding Gates

The end stop supports the gate when it is fully open and fully closed.

End Stop For Cantilever Sliding Gate

Cantilever Gate Hardware Small End Stop

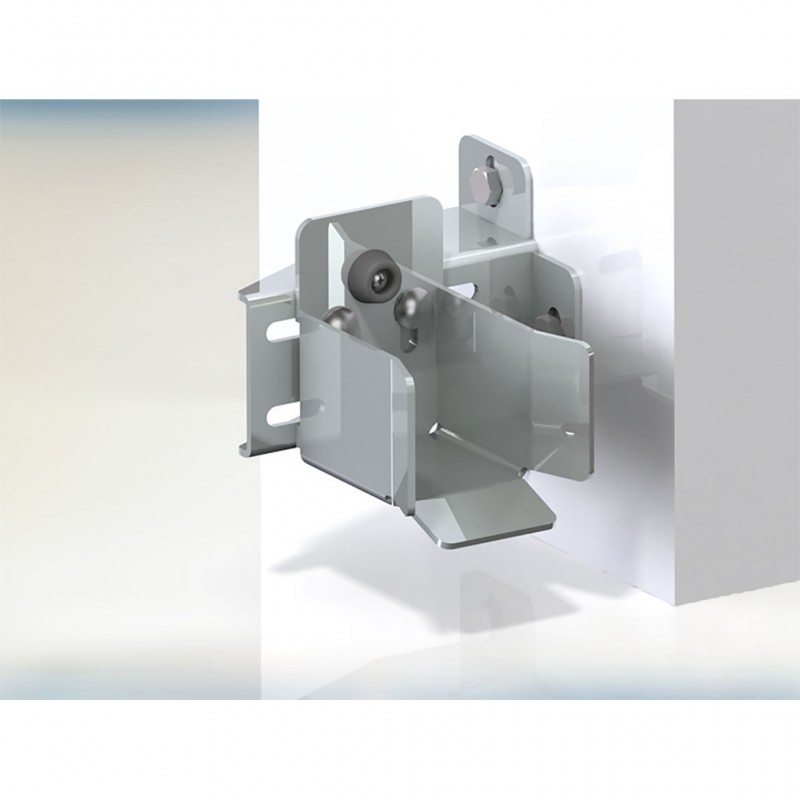

End Stop Bracket for Cantilever Sliding Gates

The end stop bracket supports the gate when it is fully open and fully closed.

End Stop Bracket For Cantilever Sliding Gate

Cantilever Gate Hardware End Stop Bracket

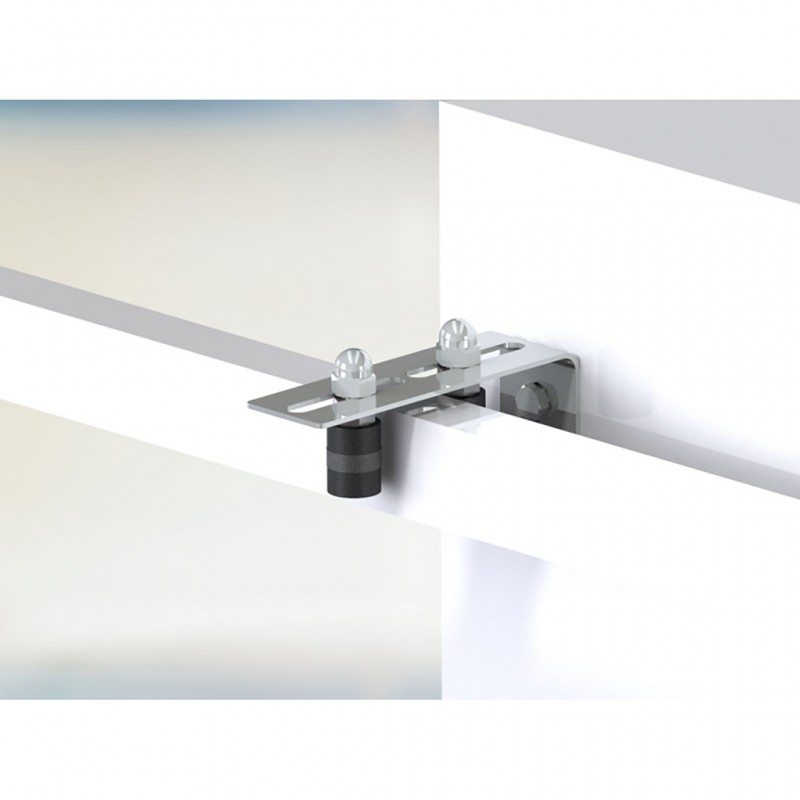

Small Upper Rollers and Bracket Set for Cantilever Sliding Gates

High Qualy Two Roller Guide Plate

Cantilever Sliding Gate Upper Rollers Guide with Bracket

Cantilever Gate Hardware Upper Rollers and Bracket Set

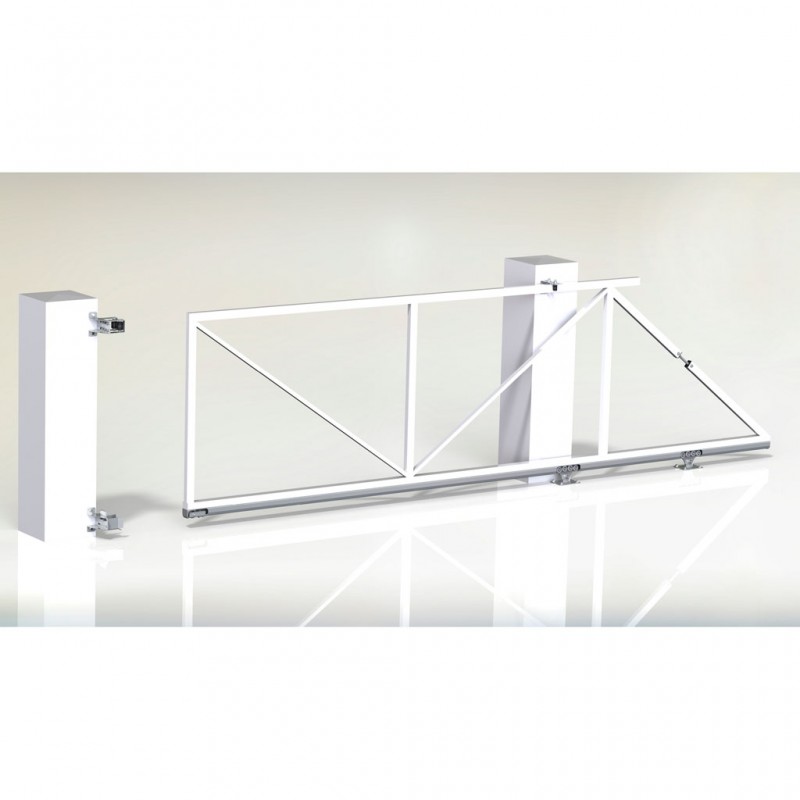

DIFFERENCE BETWEEN A CANTILEVER GATE AND A SLIDING GATE

The obvious benefit of choosing a cantilever sliding gate system is " no need to track"

Unlikly standard sliding gates, the cantilever sliding gate solution doesn't need a perfectly level or concrete flat surface and can deal with dirt or gravel driveway perfectly.

BENEFITS OF CANTILEVER GATES

  • Perfect solution for sloped and/or non-concrete driveways
  • Esthetic design, easy installation, no welding needed
  • Long lasting durable hardware, silent and maintenance-free
  • An effective way to improve security on your property

The Cantilever gate is a unique type of sliding gate, but with distinctive, interesting differences from your typical gate with wheels. One of the primary differences between a cantilever gate and a sliding gate is the location of the wheels that helps the gate move. A cantilever sliding gate rests and rolls on a wheel on the front bottom edge of the gate with a track supporting wheels on the back edge. In contrast, a cantilever gate is held above the ground, moving along rollers running along the top and inside of the fence, with wheels attached to a vertical concrete foundation.



CANTILEVER SLIDING GATE DESIGN and PERFORMANCE

Sliding gates have simpler and smaller operating mechanisms than cantilever gates, and as a result, wheel contact with the ground can make operation coarse and noisier than cantilever gates. Since cantilever gate wheels are off the ground, this style can span a wider range of terrain including gravel, grass, blocks, and uneven, angled, or steeply inclined surfaces. The absence of contact with the ground also allows cantilever gates to function easily in all weather conditions.

The smart appearance, efficient design, and craftsmanship in a cantilever gate are sure to impress owners, visitors, and customers visiting the property.

Cantilever gate designs are frequently used as no track work needs to be installed. This makes cantilever gates an option for surfaces that are inappropriate for track gates.

Cantilever gates have been designed to glide through the air rather than along tracks on the driveway and do not require any ground installation. Cantilever Sliding Gate All-In-One Systems are quicker and easier to install and have longer lifespans as they float through the air.

Cantilever gates aren’t only contemporary and modern in appearance, besides cantilever design automatic sliding gates are the ideal choice for anyone with uneven ground, paving that is organic in shape, and gravel driveways.
