  • Wireless Keypads Combo with Receiver
    On Sale

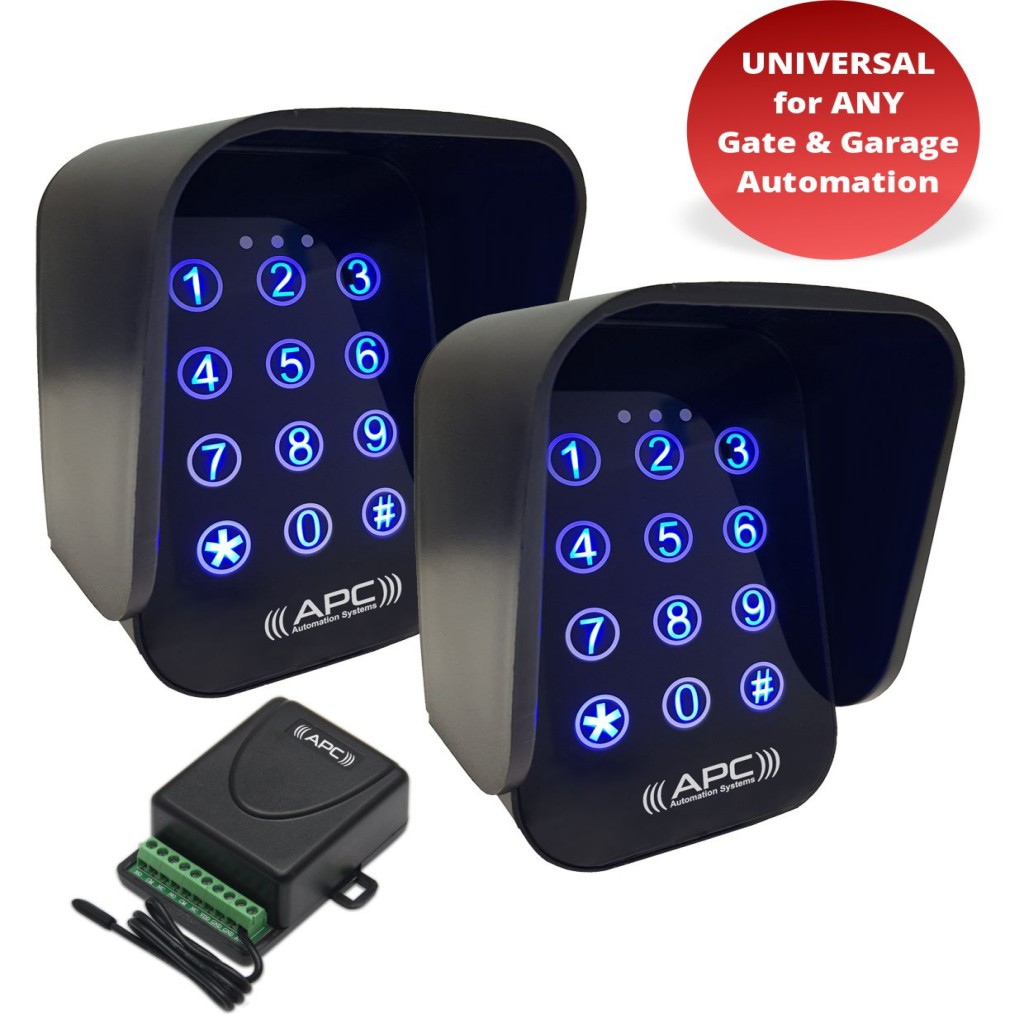

Dual Entry and Exit Wireless Keypads Combo with Receiver

Product SKU: APC-KP2Wx2-RX2

  • In Stock

Get More Info.. Get More Info..

Kit Price:

$395.00 $440.00 APC Automotion Plus Sale

  • Or in 4 payment of $98.75 with afterpay info
  • Suitable for ALL Gate and Garage Automation Systems

  • Kit Includes

    01 APC Two Channel Wireless Keypad(QTY: 2)
    02 APC Two Channel Reciever for all gates, garage doors and other control systems(QTY: 1)
  • Add-On Items
  • Product Information

Add-On Items (Discounted when purchased along with this Kit)

Product Information

APC-KP2W Wireless Keypad Features



  • Low Power Consumption only 18uA in standby.

  • Easy to replace AA battery-powered system (supplied) with up to two years usage on general use.

  • High strength tempered glass faceplate with an ultra-modern and highly reliable touch-sensitive operation.

  • Blue Backlight illumination upon touch with an automatic timeout to return to standby.

  • Two dedicated LED indicators indicating and accepted pin code (green) and also security lockout (red)

  • IP53 Weatherproof rated and suited for outdoor and indoor environments.

  • Built in Anti Tamper alarm and security lockout to help prevent theft and unauthorized usage.

  • Pin code scramble allowing the user to input a series of random number before the pin code to prevent pin code theft.

  • Two-Channel operation allowing the user to control two different items or functions using separate pin codes.


  •
Channel 1 supports up to 8 Pin Numbers (Full Gate Feature)

Channel 2 supports up to 3 Pin Numbers (Pedestrian Gate Feature)





APC RX2 Two Channel Receiver


The APC two-channel receiver can be used on gates, garage doors regardless of the brand to allow for the entire APC wireless family of equipment such as remotes, wireless keypads, wireless push buttons, etc to operate the connected device.


Prerequisites

open/close, open/stop/close, OSC, PUSH, or any other input on the integrating system 12-24V AC/DC power (power adapter available for cases where this is not accessible.

There is no longer a need to carry multiple remotes as this simple solution would integrate all connected systems onto the one APC control system. The prerequisite of the system to accept the receiver is that it has a functional open/close terminal on its control card. Some systems will be labeled (open/close whereas others are labeled PUSH or OSC). In such a situation the button of your choosing on the remote would open and close the connected system based on its current position.

If the system has an input exclusively for the open command and another exclusively for the close command the receiver can still be used as it has two separate relay outputs and each output could connect to the exclusive command, this would mean that one button on the example remote would be for the open movement and another button on the remote would be for the close movement. In cases of side by side double garage doors, you can use the two outputs of the receiver to control each of the systems separately.



Other uses

The APC Smart two-channel receiver has a further feature of setting an output for latching circuit, this could be used to control systems to ON/OFF per button press such as lights, pumps, safety devices inputs, alarms, etc.



Package options

The receiver can be purchase in multiple package options such as

  • Receiver only

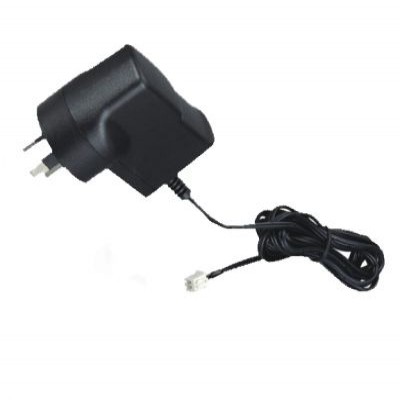

  • Receiver with a low voltage power adapter (in case power is not available for the device)
  • Receiver and a two remote combo
  • Receiver, power adapter and a two remote combo
  • Receiver, wireless two feature entry keypad, wireless single feature exit button three remote combo
  • Receiver, wireless two feature entry keypad, wireless two feature exit button three remote combo
  • or any package can be made using any of the APC compatible devices



Compatible devices

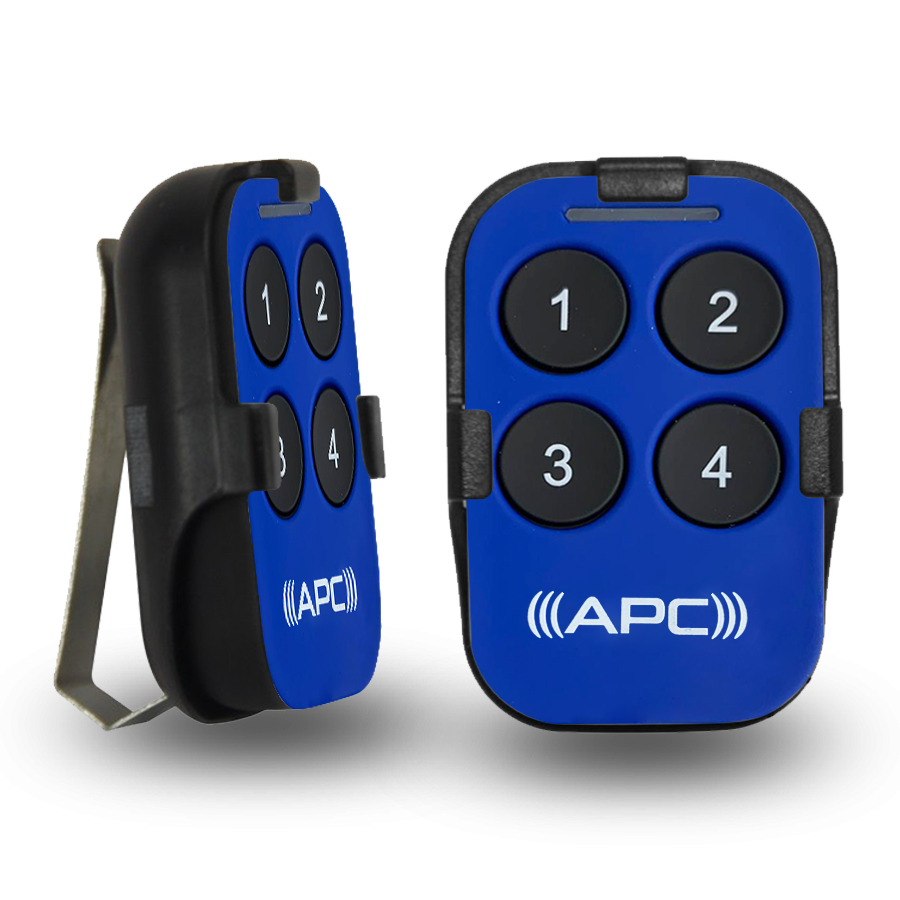

  • APC-RC4S Four Button Keyring remote
  • APC-RC4-SV Four Button Sun Visor Remote (six colour choices)
  • APC-RC450S Long Distance Remote
  • APC-KP2W Two Channel Wireless Keypad APC-KP2W
  • APC-PBS-KW Single Wireless Button with Isolation Key
  • APC-PBD-KW Double Wireless Button with Isolation Key
  • ANT-1 External Boosted Antenna



Specifications

  • 433.92Mhz High-Security Rolling Code compatible with APC devices
  • Dual Mode Receiver with momentary and latching modes
  • Normally Open and Normally Closed circuits
  • Supports 12-24V AC/DC
  • Single Remote Delete or Full Format
  • Max switching load 24VDC/2A

Your Customised Kit Includes:

No Changes.
