Product SKU: BE20-8000-DC-BK

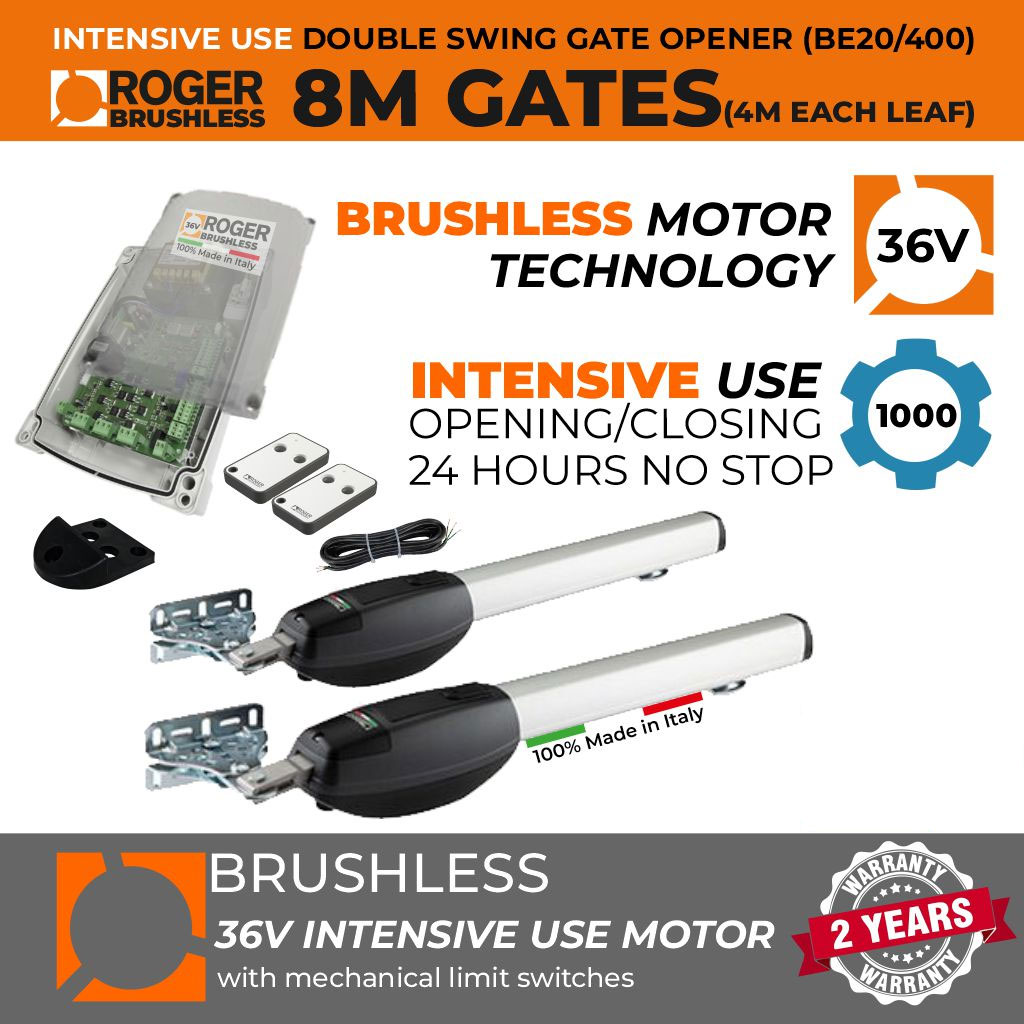

36V Brushless Double Swing Gate Opener Kit |100% Italian Made by Roger Technology BE20/400 for Swing Gate Automation System. 100% Duty Cycle Brushless Engine With Mechanical Stopper in Opening and Closing Limits | Max. 8m Opening (4M or 400KG Each Leaf) | Super Intensive Use

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

  • Italian-Made Roger Technology 36V Brushless Swing Gate Automotion System | Max. 8m Opening (4M or 400KG Each Leaf) | Super Intensive Use

36V Brushless Double Swing Gate Opener Kit |100% Italian Made by Roger Technology BE20/400 for Swing Gate Automation System. 100% Duty Cycle Brushless Engine With Mechanical Stopper in Opening and Closing Limits | Max. 8m Opening (4M or 400KG Each Leaf) | Super Intensive Use

Product SKU: BE20-8000-DC-BK

  • In Stock

  • New
Get More Info..
Free Shipping Free Shipping

Kit Price:

$2,395.00

  • Roger Technology Brushless Swing Gate Automotion System | Max. 8m Opening (4M or 400KG Each Leaf) | Super Intensive Use

  • Kit Includes

    01 BRUSHLESS 36V Swing Gate Opener Motor|100% Italian Made by Roger Technology BE20/400 for Swing Gate Automation System. (QTY: 2)
    02 Roger Technology 36V Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box. | 100% Italian Made | (QTY: 1)
    03 Pack of 3 Core 2mm Non-Shielded Cables (3m and 11m) (QTY: 1)
    04 Roger Technology Two-Button Remote Control (QTY: 2)
    05 Roger Technology FIVE YEAR Parts Warranty on Stator and Rotor of the Brushless Digital Motor and TWO YEAR Warranty on All Other Parts Including Electronics (Excluding consumables - remotes, batteries etc) (QTY: 1)
    06 FREE WiFi Switch [Link 2] with Selected Gate Opener Kits - DUAL Relay Wifi Remote Smart Switch - IOS and Android APP Control (QTY: 1)
    07 65mm High Centre Driveway Rubber Gate Stop with Steel Base (QTY: 1)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

BRUSHLESS Swing Gate Opener Motor
100% Italian Made by Roger Technology BE20/400 for Swing Gate Automation System.

Italian-Made Roger Technology Brushless Swing Gate Motor
| Max. 4M or 400KG Each Leaf | Super Intensive Use |

High-Speed 100% Duty Cycle Brushless Engine With Mechanical Stopper in Opening and Closing Limits

Electromechanical actuator BRUSHLESS, low voltage, super intensive use, with native encoder onboard, irreversible, ideal for swing gates with leaf up to 4m length, with mechanical stopper in opening and closing.



Adjustable built-in stopper


Simple to adjust, just loosen off and slide to the desired stop point and re-tighten. Also supplied with a second stopper to allow the system to stop in the close position without a physical stop required. This is ideal in Push to Open Outwards scenarios or even Pull to Open scenarios where the gate is high off the ground.



Actuator Overview

Extra Heavy Duty Single Gate Opener



Dimensions and System Capacity



Installation Geometry



Technical Specifications

Power line supply: 230V AC - 50Hz
Motor power supply: 36V
Power rating: 200W
Frequency of use: Intensive use
Thrust: 100 - 2800N
Operating temperature: -20 C° +55 C°
Protection level: IP44
Reductor Type: Irreversible
Stroke: 550 mm
Limit switch: Mechanical stopper in opening and closing
Encoder: Digital native encoder SENSORLESS 48 PPR
Operating cycles per day (opening/closing - 24 hours no stop): 1000
Maximum dimension product in mm (L x W x H): 1019 x 105 x 155
Product weight packed (Kg): 8,8









Roger Technology 36V Swing Gate Digital Control Board
for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made | EDGE1/BOX |

The Roger Technology 36V EDGE1/BOX Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made |

The 36 V EDGE1 control unit controls 1 or 2 ROGER brushless motors in the sensorless mode for applications on large-sized or heavy gate wings.

The control board is protected with a cover to avoid insect damage (the most significant cause of control board failure in Australia).



Technical Features

Power line supply: 230V AC - 50 Hz
Operating temperature: -10+55 C°
Protection level: IP54
N. motors activated: 2 Brushless Motor
Max power per motor: 250W
Max courtesy light charge: 100W 230V AC - 40W 24V AC/DC
Max power gate open light: 3W (24V DC)
Max voltage accessories output: 20W (24V DC)
Electrical-Lock max power: 15W (12V DC)
Flashlight voltage: 24V DC
Max flashing light charge: 25W
Battery: Optional
Maximum dimension product in mm (L x W x H): 330 x 230 x 115



Control Board Overview



Accessories Compatibility and Controlling Options

  • Constant DC Accessories Output
  • Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
  • Remote controls
  • Induction Loops
  • Weekly Timers
  • Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
  • Keypads (Wired and Wireless Options Available)
  • Exit/entry sensors
  • Intercom system with dry contact output
  • Automatic switching timer
  • WiFi Control System (App-Based Control)
  • GSM Control Systems (Mobile Call/SMS-based Control)





Remote Control Features

E80/TX52R/2

Fix code transmitter 433,92 Mhz. 2 channels, with radio for copy.

Technical features

Standard power: 3V DC
Absorption: 12mA
Operating temperature: -10+55 °C
The number of channels: 2
Codification: Fix code
Modulation: AM/ASK
Carried frequency: 433.92MHz
The number of combinations: 65536
Radio for a copy: Yes
The maximum distance in the open field: 150m
Battery: Mod "CR2032" 3V
Maximum dimension product in mm
(L x W x H):
38 x 68 x 11









WiFi Control Switch
















  • 7-32V AC & DC Compatible
  • Operatable ANYWHERE in the world using Apple devices (iOS) and Android Devices using Tuya APP
  • Works with Amazon Alexa, Google Assistant, Smart Things
  • One Master User (Administrator) and unlimited regular users
  • Allows for manual operation and/or scheduled operation of the system
  • Ultra Low power consumption of 20mA
  • Requires good WiFi connection at its installed location
