DEA 24v Two-Channel External Receiver. It can be used on gates and garage doors. It lets you operate any automation via DEA remote and wireless accessories.

The external receiver is to be connected by wires to a control unit.

Suitable for connection to each controller with a current output of 24v AC/DC.

Receiver only for the DEA System remote control, and wireless keypad models with 433,92 MHz.

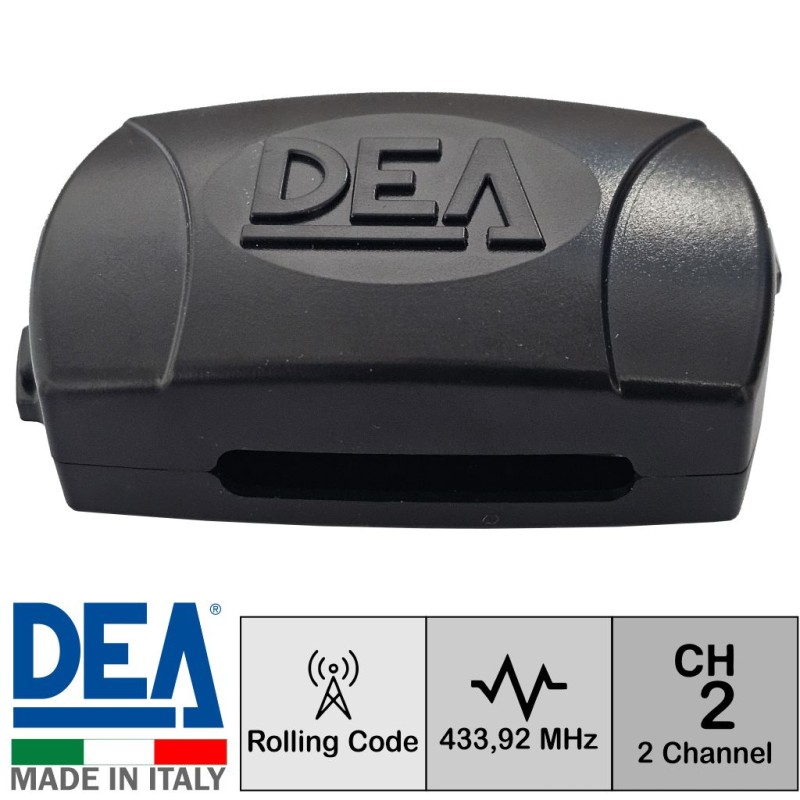

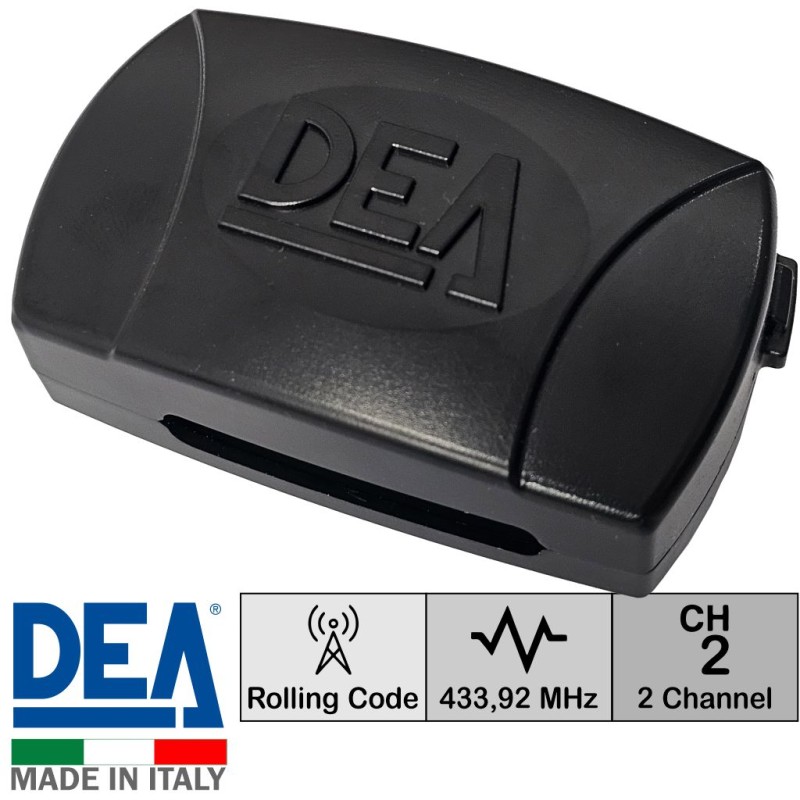

DEA 24v External Receiver.

It lets you operate any automation in and around a home via DEA wireless accessories, as long as your primary gate automation is DEA.

Syncs older gate operators to new remote controls.

One receiver with two channels allows one accessory to be connected to the remote control via the receiver.

You would need two receivers if you required two garage doors to be operated on the remote.

Hard wiring is needed from the garage door to the receiver, and then the receiver wirelessly syncs to the gate motor.

You can sync a non-DEA garage door with a DEA gate motor and a DEA receiver.

281/2 DEA 24v External Receiver

Power supply : 24V ~/±5%

Max absorbed current: 150 mA

Frequency: 433,92 MHz

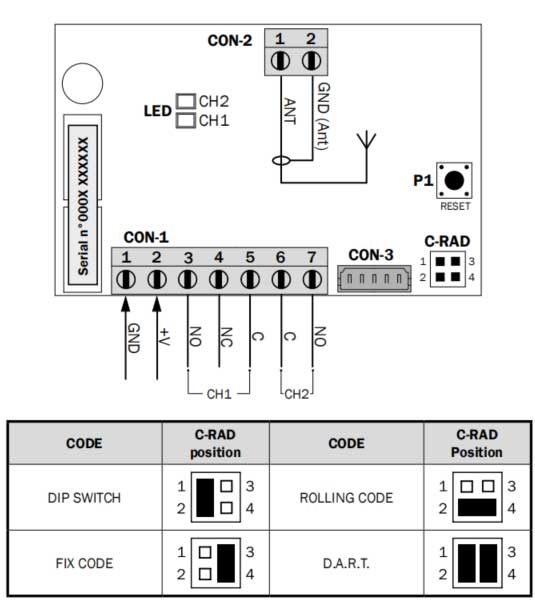

Type of compatible codes: Dip Switch, Fix Code, Rolling Code

Number of channels: 2

Switch capacity: 0.5a / 30v

Storable radio controls: 1000

Operating temperature: -20°C / +50°C
