Product SKU: UNO-17-12V-20-PHONIC4 V

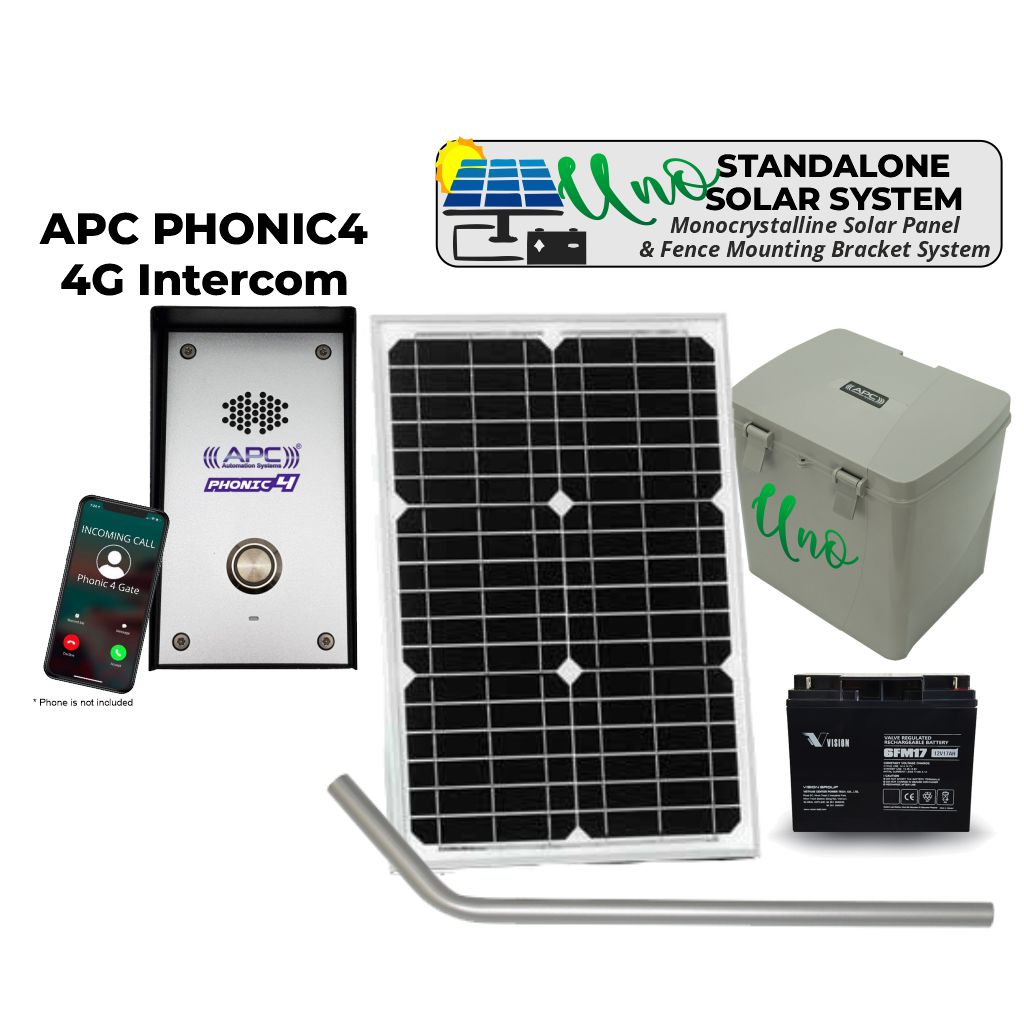

Complete Standalone Solar Powered Off-Grid Access Control Solution with APC PHONIC4 | 4G Intercom - GSM Audio Intercom Doorbell and Switch for Driveway Gate Automation Remotely Opening/Closing Systems Included 12 Volt Solar Power Supply with 17aH Battery and 12V 20 Watts Solar Panel.

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

  • On Sale

Complete Standalone Solar Powered Off-Grid Access Control Solution with APC PHONIC4 | 4G Intercom - GSM Audio Intercom Doorbell and Switch for Driveway Gate Automation Remotely Opening/Closing Systems Included 12 Volt Solar Power Supply with 17aH Battery and 12V 20 Watts Solar Panel.

Product SKU: UNO-17-12V-20-PHONIC4 V

  • Out Of Stock

Get More Info..

Kit Price:

$975.00 $1,055.00 APC Automotion Plus Sale

  • Or in 4 payment of $243.75 with afterpay info
  • Complete Standalone Off-Grid Solar Powered APC PHONIC4, 4G Intercom for Driveway Gate Opener Access Control

  • Kit Includes

    01 12v 30 Watts Solar Panel With Solar Panel Post & Bracket (QTY: 1)
    02 APC Uno Multipurpose Battery Box (QTY: 1)
    03 APC Sun Power Series 12V/24V 10A PWM Solar Regulator (QTY: 1)
    04 17aH High Capacity Battery (QTY: 1)
    05 2m 2 Core 2mm Non-Shielded Cable (QTY: 1)
    06 APC PHONIC4 V| 4G/VoLTE Compatible Intercom - GSM Audio Intercom Doorbell and Switch, GSM Wireless Audio Intercom with remotely Gate Opening Capability (SIM Card Not Supplied. Customer to Source Own SIM Card) (QTY: 1)
  • Out Of Stock

Product Information

APC PHONIC4 V GSM Intercom and Doorbell
GSM Audio Intercom Door Bell and Switch, 4G mobile communications system

The APC Phonic 4 V is a powerful remote controller with an intercom that can be used for controlling gates, authorized door access, switching on/off remote equipment, etc. This device can be used remotely with 4G mobile communications system, which allows for two-way interaction and faster unlocking with a call or text message from your mobile phone.



Features

  • 4G Access Control Device, which is VoLTE-capable
  • Can be operated from anywhere with no limits on distance.
  • Supports two-way interaction.
  • Can be used for multiple applications such as gates, access doors, shutters, etc
  • The most secure system as it has caller ID identification and allows for two-way interaction between residents and visitors.
  • No need to provide keys or remote controls to different users.
  • All settings are performed by SMS commands.
  • Up to 3 authorized phone numbers for providing access control/call can be stored on the device.
  • SMS confirmation is provided to the owner or authorized users regarding the status of the commands given.
  • Can add or remove users by SMS commands.
  • The unlock time, mic volume, and speaker volume are programmable.



Specifications

Working Voltage

12-15VDC

Working Current

~130mA

Standby Current

~45mA

Working Temperature

-20~-65°C

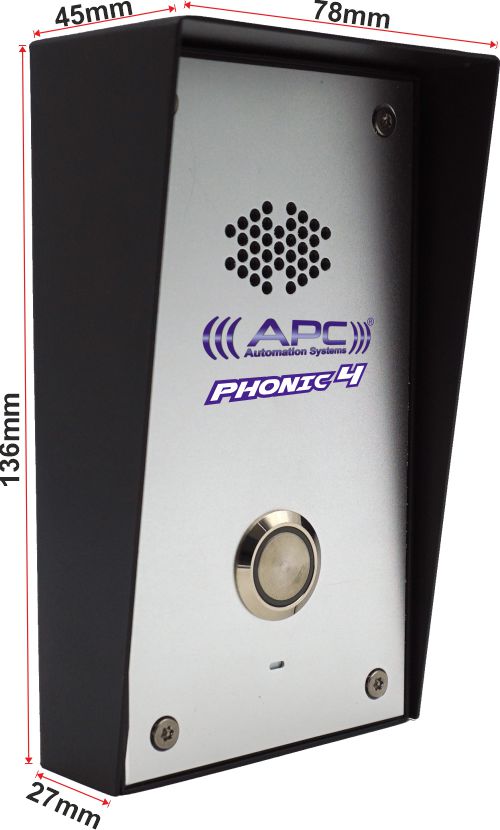

Dimensions

L13.6cm*B7.8cm*H4.5cm



Dimensions



Typical Wiring Connections

Gate Automation Systems

Note: Power supply voltage must be 12-15V DC. Gate system accessories output can power the device in most situations with/without a power converter (24v to 12v power convertor available from Automotion Plus).

Electric Striker

Note: Power supply voltage must be 12-15V DC. Gate system accessories output can power the device in most situations with/without a power converter.











12V 20 Watt Solar Panel

The SP-12V-20 is a 20 Watt, 12 Volt solar panel, and will provide enough power to trickle charge a 12V vehicle or deep cycle battery. Help run pumps, lights, fans, and small appliances such as stereos, televisions and VCRs in caravans, boats or cabins.

A heavy-duty anodized aluminium frame provides strength and convenient mounting access. Cells are laminated between high transmissivity, low-iron, 3mm tempered glass and sheet of Tedlar-Polyester-Tedlar (TPT) material by two sheets of ethylene Vinyl acetate (EVA). This protects against moisture penetrating into the module.

24V 20 Watt Solar Panel

VOC 21.6V
ISC 1.3A
VMP 17.2V
IMP (A) 1.17A
Dimensions 640 x 300 x 25MM
Cells Mono-Crystalline




Solar Panel Post & Bracket for APC 20 Watt Solar Panel


This solar panel post & bracket set is suitable for the APC 10 watt and 20-watt solar panels.



24V 20 Watt Solar Panel

Kit Contents

24V 20 Watt Solar Panel
- Solar Panel Mounting Post
- Solar Panel Mounting Plate
- Nuts, Bolts and Washers
- Saddle Clamps
- Rubber Pad









The APC Uno is an articulate all in one design allowing for clean and secure housing the APC Sun Power Solar Regulator and multiple batteries.

Key Features:

  • APC Sun power Regulator Built In
  • Sleek contoured design
  • Cable management entries for a clean installation
  • Subtle grey to suit all installation environments
  • Heavy duty 5mm galvanized 6 hole mounting plate Supports multiple mounting surfaces (piers, posts, walls etc.)
  • Easy to access with the tool free clip lock system
  • Can be secured with a small padlock
  • Four output glands allowing for completely weatherproof entry/exit of cables up to 9mm OD each

Dimensions

Extra Heavy Duty Single Gate Opener

Outer Dimensions

Height 281mm (Including cable glands) 255mm Without
Width 263mm
Depth 230mm Including Mounting bracket, 189mm without

Clear Inner Dimensions

Height 195mm
Width 225mm
Depth 170mm

Typical Configration

Extra Heavy Duty Single Gate Opener

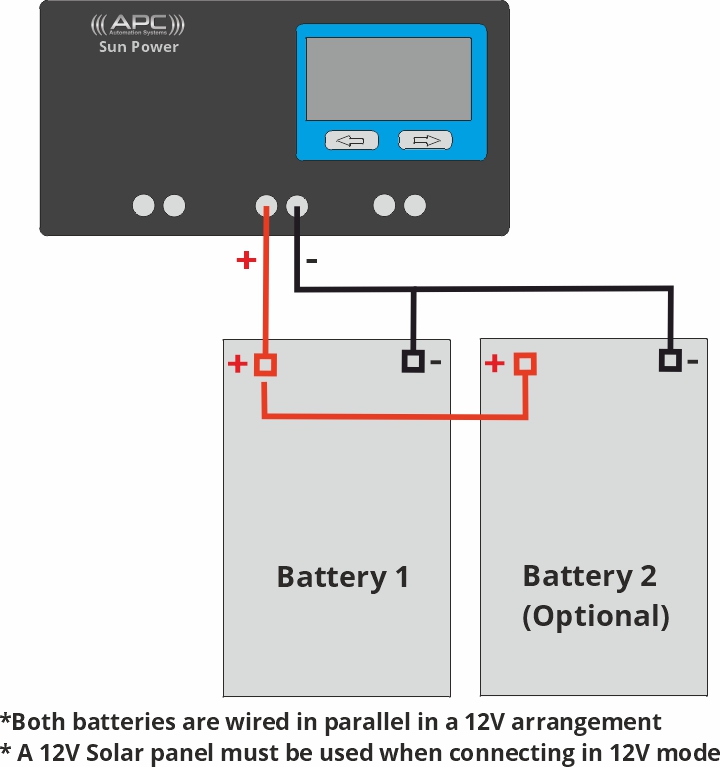

Battery Wiring



At a glance

  • 12-24V Compatible
  • LITHIUM Battery Compatible
  • Easy to use LCD Interface
  • Compatible with Most Batteries
  • 32 Bit Micro Controller
  • Extra Large Wiring Terminals
  • 12 Stages of Protection including short circuit, temperature, over and undercharge etc.
  • Metal Heat sink
  • USB Output



In Depth



apc sun power

apc sun power

Automatic Voltage Selection

The APC Sun Power System can automatically detect the batteries voltage and set itself into the appropriate charging mode of 12V or 24V.

Multiple Battery Modes

The APC Sun Power can be set to to be used with Sealed lead acid, flooded batteries, gel batteries and even Lithium Batteries.

Overcharge and Discharging

The APC Sun Power systems built in temperature sensor will automatically adjust the charging voltage to best suit the environment and as a result a 30% increase in battery lifetime can be expected. Furthermore if the ambient temperature within the enclosure it is installed within exceeds 85° Celsius the Sun Power system will automatically turn off.

Overload and Short Circuit Protection

The APC Sun Power load output will automatically switch off once the load output exceeds 10 Amps (or short circuit) and auto re -try after 30 seconds.

Reverse Polarity Protection

In case of an installation error the Sun Power solar regulator will not be damaged by incorrect polarity on the solar connection or the battery connection.

USB Output Terminals

The Sun Power Series has Two built in USB terminals, each USB terminal is rated to 5V 1A and can be used to operate low current USB devices such as USB powered speakers, tablet and mobile phone charging, warmers, fans etc.

Heavy Duty Design

Built to be last and be used in duty applications the Sun Power System not only offers a powder coated steel heat sink backing plate to keep the controller cool in all charging conditions but also has extra large 10mm wire terminals allowing for use with heavy duty cabling, large bootlace crimps or multiple wires per terminal.

Specifications

System Voltage 12V/24V DC auto
PV Max Input Voltage 55V
Self-consumption 10mA
Max Charging current 10A
Max Discharging current 10A
Battery type Sealed(Default)/Gel/Flood/Lithium
LVD 11.0V ADJ 9V...12V ; x2/24V
LVR 12.6V ADJ 11V...13.5V ;x2/24V
Float Voltage 13.8V ADJ 13V... 15V ; x2/24V
Boost Voltage 14.4V ADJ 13V...17V ;x2/24
battery voltage less than 12.6v auto boost 2hours
Battery Over Voltage 16.5V ; x2/24V
Reverse Connection Protection Yes
Load Over Current Protection Yes, each 30s auto restart again
Controller Over Temperature Yes
USB Output 5VDC/1A 2PCS
Charging Type PWM
Charge circuit voltage drop <=0.25V
Discharge circuit voltage drop <=0.1V
Temperature Consumption#  For 12V system:-24mV /°C ; x2/24V
Relative humidity ≤95%, N.C.
Working Temperature -20°C~+55deg;C(Product can work continuously at full load)
LCD temperature range -20°C~+70°C
Waterproof grade IP32
Mounting hole size Φ5mm
Terminals 10mm²/8AWG
Weight 245g
Overall dimension(mm) 190×108×41.5
