The APC two-channel receiver can be used on gates, garage doors regardless of the brand to allow for the entire APC wireless family of equipment such as remotes, wireless keypads, wireless push buttons, etc to operate the connected device.
Prerequisites
open/close, open/stop/close, OSC, PUSH, or any other input on the integrating system 12-24V AC/DC power (power adapter available for cases where this is not accessible.
There is no longer a need to carry multiple remotes as this simple solution would integrate all connected systems onto the one APC control system. The prerequisite of the system to accept the receiver is that it has a functional open/close terminal on its control card. Some systems will be labeled (open/close whereas others are labeled PUSH or OSC). In such a situation the button of your choosing on the remote would open and close the connected system based on its current position.
If the system has an input exclusively for the open command and another exclusively for the close command the receiver can still be used as it has two separate relay outputs and each output could connect to the exclusive command, this would mean that one button on the example remote would be for the open movement and another button on the remote would be for the close movement. In cases of side by side double garage doors, you can use the two outputs of the receiver to control each of the systems separately.
Other uses
The APC Smart two-channel receiver has a further feature of setting an output for latching circuit, this could be used to control systems to ON/OFF per button press such as lights, pumps, safety devices inputs, alarms, etc.
Package options
The receiver can be purchase in multiple package options such as
Receiver only
Receiver with a low voltage power adapter (in case power is not available for the device)
Receiver and a two remote combo
Receiver, power adapter and a two remote combo

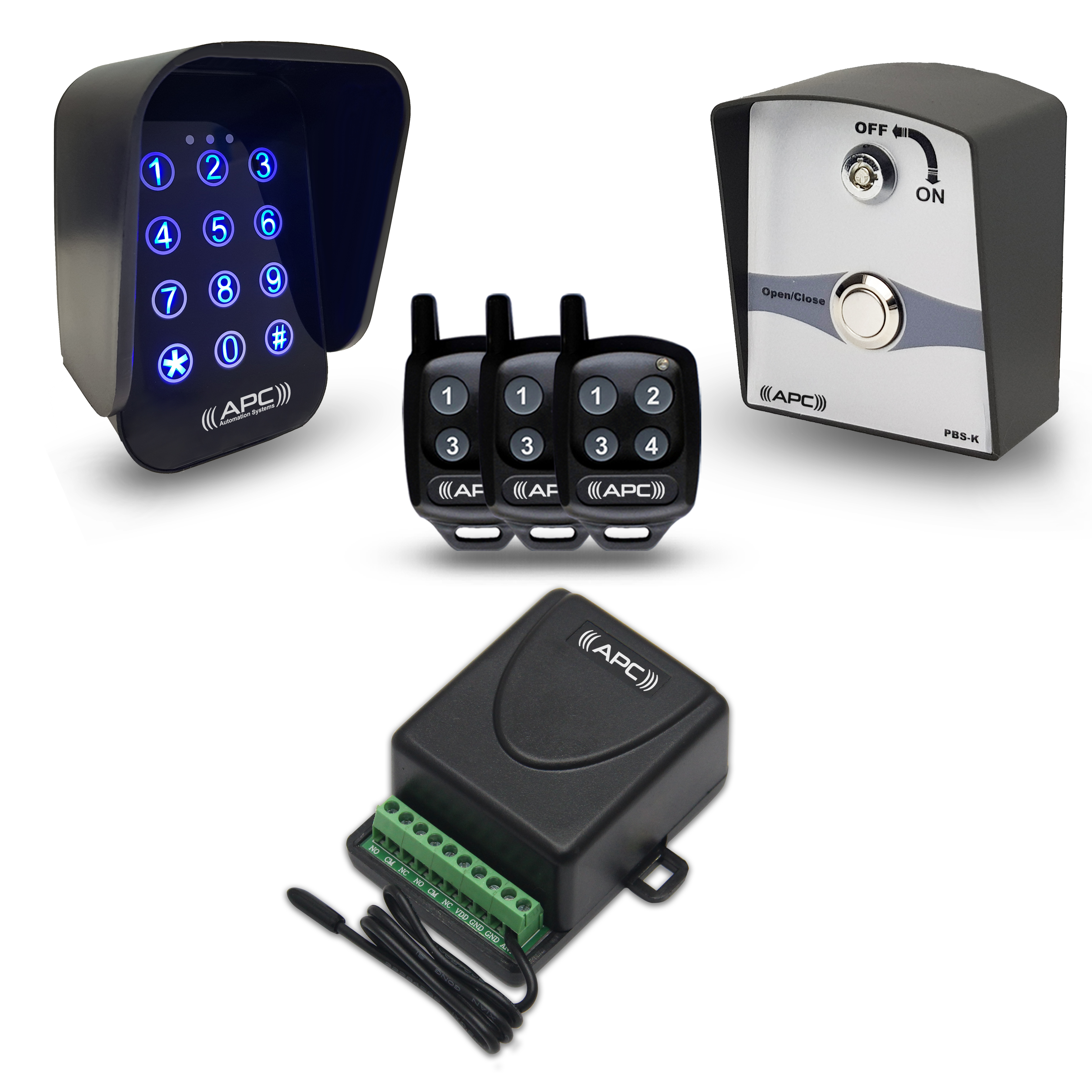

Receiver, wireless two feature entry keypad, wireless single feature exit button three remote combo
Receiver, wireless two feature entry keypad, wireless two feature exit button three remote combo
or any package can be made using any of the APC compatible devices
Compatible devices
APC-RC4S Four Button Keyring remote
APC-RC4-SV Four Button Sun Visor Remote (six colour choices)
APC-RC450S Long Distance Remote
APC-KP2W Two Channel Wireless Keypad APC-KP2W
APC-PBS-KW Single Wireless Button with Isolation Key
APC-PBD-KW Double Wireless Button with Isolation Key
ANT-1 External Boosted Antenna
Specifications
433.92Mhz High-Security Rolling Code compatible with APC devices
Dual Mode Receiver with momentary and latching modes
Normally Open and Normally Closed circuits
Supports 12-24V AC/DC
Single Remote Delete or Full Format
Max switching load 24VDC/2A
APC-KP2W Wireless Keypad Features
Up to 11 pin codes can be programmed
Low Power Consumption only 18uA in standby.
Easy to replace AA battery-powered system (supplied) with up to two years usage on general use.
High strength tempered glass faceplate with an ultra-modern and highly reliable touch-sensitive operation.
Blue Backlight illumination upon touch with an automatic timeout to return to standby.
Two dedicated LED indicators indicating and accepted pin code (green) and also security lockout (red)
IP53 Weatherproof rated and suited for outdoor and indoor environments.
Built in Anti Tamper alarm and security lockout to help prevent theft and unauthorized usage.
Pin code scramble allowing the user to input a series of random number before the pin code to prevent pin code theft.
Wireless Push Button with Isolation Key
The wireless push button switch is a simple and easy to use method to operate the gate. It is mounted in the general area of the gate and can be isolated by using the supplied keys without affecting the rest of the system, this is handy if you want to continue using the remotes or any other method of operation but wish to stop use of the push button itself.
The wireless push button communicates with the control board using the same rolling code 433mhz frequency as the remote thus eliminating the need for any extra add ons. If required the wireless push button can be upgraded to a wireless keypad for higher access security using pin number.
The push button can be used for over 50 metres in operating distance.
APC Automation Systems FOUR Button Keyring Remote Control
Four-button remote control transmitter used for:
APC Swing Gate Systems
APC Sliding Gate Systems
APC Boom Gate Operating Systems
APC receivers
Features
Featuring High Security rolling codes transmitting a unique code chosen at random
Slim design
Keyring Clip-on System
Completely Backwards Compatible with all legacy APC control boards
Compatible Equipment
APC Swing Gate Systems:
APC-CB-12
APC-CB12-4CH
APC-CBSW-12 (ALL)
APC-CB24-4CH
APC-CBSW-24 (ALL)
APC Sliding Gate Systems:
APC-CBSG12-4CH
APC-SGH-12
APC-SGX-12
APC-CBSG-12 (ALL)
APC-SGH-24
APC-SGX-24
APC-CBSG-24 (ALL)
APC-CBSG240AC (ALL)
APC Boom Gate Systems:
APC-BG18
APC-BG-AC
APC-BG-DC
APC-BG-SOL
APC Remote Receivers:
APC-RX2-MC-NONC
Ready to clip onto your keyring
Pairing Videos
Sliding Gate Pairing
Single Swing Gate Pairing
Double Swing Gate Pairing
WARNING: Please note this product is for use with the APC gate automation systems and will not work with other brands.
