Product SKU: BM30-400H-CAIS-GTR45

COMPLETE 4.5m Ring Top Gate, ULTRA High Speed 100% Duty Cycle 400kg Roger Technology Brushless Gate Opener and European Made CAIS Sliding Gate Hardware Combo

Upload Images (Max. 5 images can be uploaded)

no file chosen

COMPLETE 4.5m Ring Top Gate, ULTRA High Speed 100% Duty Cycle 400kg Roger Technology Brushless Gate Opener and European Made CAIS Sliding Gate Hardware Combo

Product SKU: BM30-400H-CAIS-GTR45

  • In Stock

  • Freight DeliveryFreight Delivery
    This is a large item and will require a freight quote. Please add all items to your cart and continue through the checkout process for a complete freight delivery cost.
Get More Info..

Kit Price:

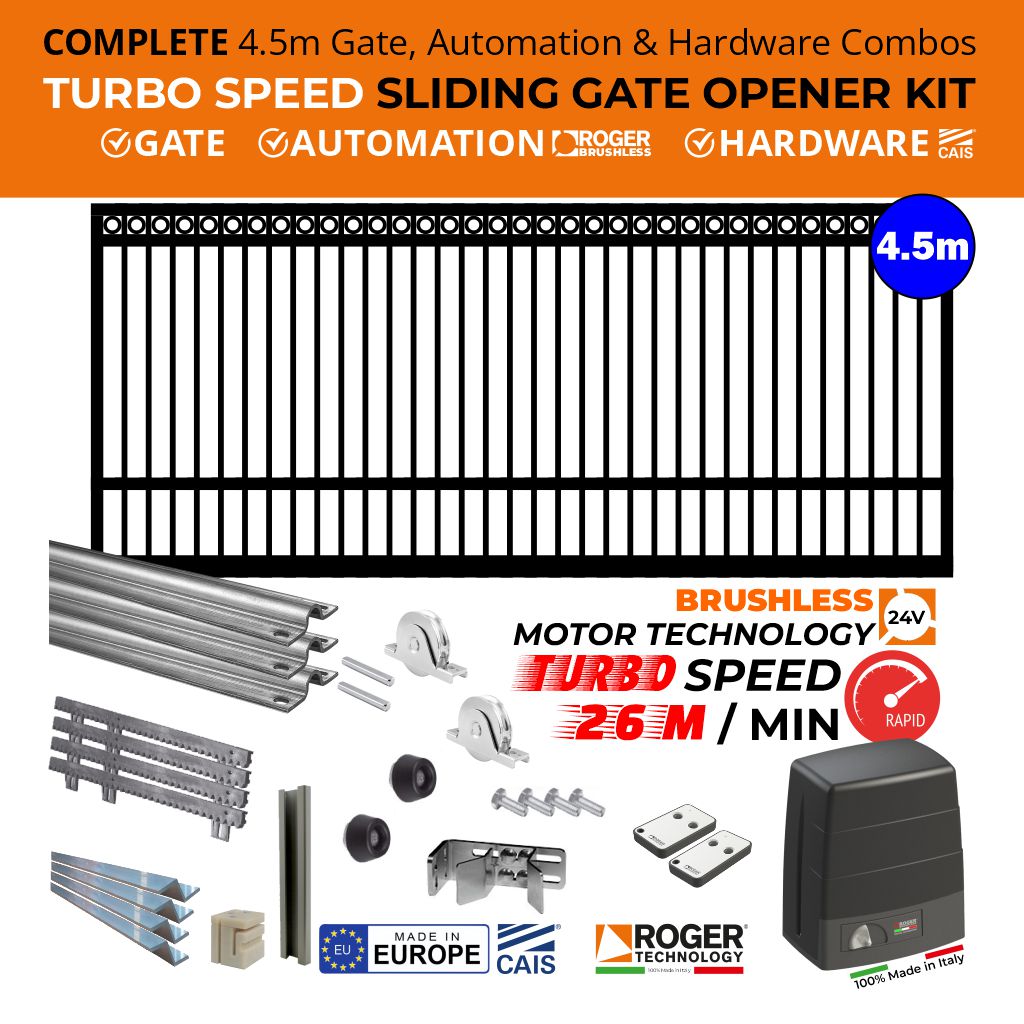

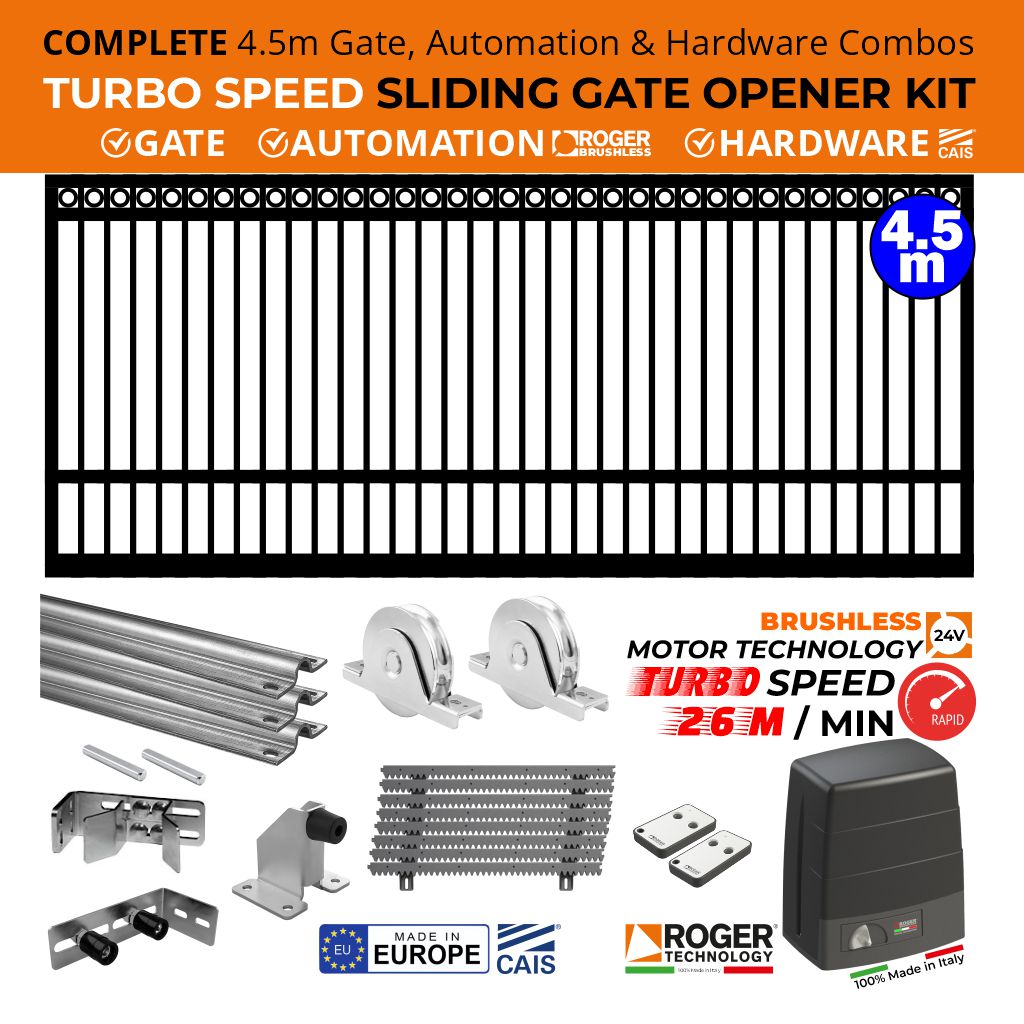

  • COMPLETE 4.5m Sliding Gate Combo with Ring Top Gate, TURBO Speed RT 400kg Brushless Gate Opener and CAIS Gate Hardware

  • Kit Includes

    01 4.5m Ring Top Gate (QTY: 1)
    02 TURBO-SPEED BRUSHLESS Sliding Gate Opener Motor (44 cm/s) , 400 KG | Italian-Made Roger Technology BM30/HS Ultra High-Speed Brushless Electromechanical Engine for Roller Gates (QTY: 1)
    03 Standard AC/DC Powered (Upgrade Option Below for 24V LV External Transformer) (QTY: 1)
    04 Roger Technology Two-Button Remote Control (QTY: 2)
    05 Concrete In Fixing Plate with Stay Bolts and Screws for Roger Technology Sliding Gate Motor M30 series. (QTY: 1)
    06 Roger Technology Safety Sign Board (QTY: 1)
    07 Roger Technology FIVE YEAR Parts Warranty on Stator and Rotor of the Brushless Digital Motor and TWO YEAR Warranty on All Other Parts Including Electronics (Excluding consumables - remotes, batteries etc) (QTY: 1)
    08 European Made 1m Hot Dipped Galvanized Sliding Gate Ground Track Suitable for "U" Groove Wheels and Rollers (Required Double the Width of Gate) (QTY: 9)
    09 Pack of Fixing Pin For Sliding Gate Ground Track Guide for Wheels and Rollers "U" Groove (CAIS PIN ROAD) (QTY: 1)
    10 Pack Of Hammer in Anchor Nails for Sliding Gate Track (QTY: 1)
    11 Singular 88mm Recess Mount European Made Double Bearing Sliding Gate Wheel. CAIS WSO 924 B2 High Quality German Steel, Rebate Gate Wheel (QTY: 2)
    12 Adjustable End Stop Bracket Set for Sliding Gate | Adjustable Sliding Gate Catcher / U Guide (CAIS DOCKER 0) German Steel Made in EU (QTY: 1)
    13 51mm Upper Rollers and Bracket Set. CAIS Sliding Gate Guide Roller and Bracket Assembly Kit German Steel Made in EU (QTY: 1)
    14 110mm High Bolt Down Gate Stop, End Stop, Fixed, For Sliding and Swing Gates Made in EU by CAIS (QTY: 1)
    15 Gear Rack Nylon Coated With Steel Core, Strong and Quiet - (1m Pack - 2 x 50 CM) Made in Italy by Stagnoli (QTY: 5)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Classic Ring Design Gate with 19mm Pickets and an additional Horizontal Support Rail

Key Features
  • Classic Ring Design
  • 1500mm Height
  • 19mm Pickets
  • Robust Satin Black Powdercoating
  • 40x40mm Steel for Top & Sides
  • 40x40mm Vertical & Horizontal Support Rails
  • 80x40mm Bottom Rail
  • Completely Welded Throughout

  • Sliding Gate Applications
  • Swing Gate Applications
  • Residential Use
  • Commercial Use

CAIS Recess Mount Sliding Gate Wheels


CAIS WSO Double Bearing for Sliding Gates Wheels Road & Vector, Sliding Gates Wheels

CAIS rebate gate wheels are made from high-quality steel and bearings. Low-profile rebate wheels mean your gate is shallow to the ground. Best double-bearing gate wheels for gates and driveways...

CAIS WSO Double Bearing for Sliding Gates Wheels

- Sliding Gates & Driveway Gates

Weight Capacity and Suitability:
- The wheels are suitable for sliding gate tracks with dome shape rise measuring 21mm in width (see the below dimensions and weight capacity)

Galvanized Sliding Gate Track

This 1m gate track is heavy-duty and 3mm thick. It is ideally suited to 20mm "U" gate wheels.


Bolt down "U" Profile Ground Track Rail 1000mm long. Galvanised Finish

Fixing Pin For Sliding Gate Ground Track Guide, CAIS Sliding Gate Hardware






Installation With Pin-Road


CAIS DOCKER O - Adjustable End Stop Bracket Set U Guide Gate Catcher for Sliding Gate (CAIS DOCKER 0)

Material Steel
Surface Finish Hot Dipped Galvanized
Use Gate Catcher / U Guide
Manufacturer CAIS


The upper ramp with bracket and adjustable width serves as the upper stop of the gate and, at the same time, prevents the gate from tilting to the side.

  • CAIS DOCKER O - top riser with console

Technical details:

  • For profile width: 0 - 120 mm
  • Material: Steel
  • Surface Treatment: Heavily Galvanize
  • Dimensions:



Small Upper Rollers and Bracket Set for Cantilever Sliding Gates

High Qualy Two Roller Guide Plate

Cantilever Sliding Gate Upper Rollers Guide with Bracket

Cantilever Gate Hardware Upper Rollers and Bracket Set

(2 x 50 CM) Nylon Gear Racks 1 Meter Pack | Made in Italy by Stagnoli

Interlocking Gear Racks Made in Italy by Stagnoli

The Keyed Interlocking Modular Nylon Gear Rack is Compatible with All Sliding Gate Automation

Stagnoli, Italy invented the nylon racks and has been manufacturing nylon racks since 1981. The advantage of nylon racks is no lubrication, rust-free and silent. Furthermore, with the nylon rack, there is no need to carry out any welding, which is instead required for iron racks and which involves more machining in the assembly process. GR50 is a quality product and is completely Made in Italy.




Dimensions of Modular Nylon Gear Racks | Sliding Gate Hardware

This gear rack nylon coated with steel core, strong and quiet, is compatible with all sliding gate automation, and is easy DIY install.

Modular gear racks kit includes;

A box with 2 nylon gear racks measuring 50 cm, 4 self-tapping and self-piercing screws, and 4 washers in galvanized steel. (Made in Italy by Stagnoli)



Italian Made BRUSHLESS Gate Motor, TURBO-SPEED (44 cm/s) Sliding Gate Opener.


 Animal instinct, digital ultra speed



With the new high-speed line, digital ULTRA HIGH SPEED, it is possible to open and close your gate at very high speed, with maximum elegance and more than doubling the decrease in waiting times of other operators for gate automation.

The ideal solution for all installations requiring speedy manoeuvre times, intensive use, maximum movement elegance and total safety during the movement and obstacle detection phases.

Faster speeds and shorter waiting times!
The new TURBO-SPEED lines let you quickly, powerfully and reliably open a gate. They are 100% faster compared to the traditional speeds for motors with BRUSHLESS 24V DC Moror technology.

Dynamic accelerations and decelerations!
Thanks to the new 24V or 36V digital controllers, it has become fast and straightforward to set different types of accelerations and decelerations during your gate's opening and closing phases. And always guaranteeing maximum elegance and safety.

Digital obstacle detection!
The ultra-powerful Native Encoder onboard the digital technology and the brand new motor power control in sensored technology make it possible to detect any obstacle with maximum safety, setting the speed, motor torque, sensitivity and operator reaction time during the detection phase for possible obstacles.

Total safety from the point you want!
To guarantee maximum safety and maintain high-speed performance, the new digital controller offers the possibility of configuring gate opening and closing from where you want to start deceleration and setting the type of deceleration, its speed and the relative sensitivity you want.


Roger Technology Brushless BM30/HS Sliding Gate Motor

BRUSHLESS 24V TURBO-SPEED Sliding Gate Automation Motor | with magnetic limit switch


At a glance | Brushless 24v Ultra High-Speed Automatic Sliding Gate Opener

The Roger Technology BM30/HS Brushless complete kit includes the sliding gate motor, control panel, and receiver.

The BM30/HS motor is a low voltage, super intensive use with native encoder onboard, irreversible ideal for sliding gates up to 400Kg with built-in digital controller B70 series, magnetic limit switch.


- BG30/HS Electromechanical Brushless Sliding Gate Motor
- Built-in B70 24v Digital Control Panel
- Plug-in H93/RX20/I Receiver
- Magnetic Limit Switch

See the full details below.


Gate Automation System Features

  • Ideal: For sliding gates up to max. 400 kg.
  • Safe: The encoder management allows precise and safe control of slowdown when opening and closing.
  • Practical: Automatic programming via the learning function of the control unit.
  • Quick: Ease of installation and start-up due to its simple functions and its height and depth adjustments.
  • Strong: Features a sturdy aluminium base treated with anti-corrosive paint and a reliable Roger Brushless motor mounted in dedicated housings and bearings.
  • Equipped with a release lever and an easy-to-operate lock.
  • Convenient: Battery backup available.



  • 100% Duty Cycle (opening/closing - 24 hours, no stop)
    Digital brushless motor based on a permanent magnetic field that uses neodymium iron-boron magnets inside the rotor.
  • Multifunction digital display
    4-quadrant digital display with six function keys allow you to go through the various parameters, change their values, check error messages and input statuses and perform all the self-learning phases.
  • 400KG Capacity
  • TURBO Speed (44 cm/s)





A digital brushless motor with a permanent magnetic field and digital electronics for the complete management of the automation system control. Designed for super intensive use with the added benefit of super low energy consumption.



Innovative, revolutionary Brushless digital motor with permanent magnetic field, 24V/36V energy sinusoidal with a native encoder that permits highly intensive use of the automation with extremely reduced consumption whilst at the same time fully guaranteeing all its safety and management functions.


The new control unit with onboard Brushless digital controller (24V/36V DC). Without traditional relays and thanks to its revolutionary MOSFET quadrant system and its control technology entirely based on a DSP microcontroller, it represents a new generation of electronic cards created to safely handle every type of automation movement.


All the mechanical components and gears are manufactured in steel, cast iron and bronze. The automation system casings are made from titanium-reinforced die-cast aluminium. All the gears are inspected and assembled on high-quality bearings and inserted on precise seats machined to provide absolute precision between the axes.


Special Features of Brushless 24v Ultra High-Speed Automatic Sliding Gate Opener


Digital, smart, powerful, elegant, robust and all-Italian.

A technology that offers maximum performance but consumes less power than other motors. The revolutionary digital motor with 12 unique features.

Powerful Digital Brushless Motor

A very powerful sliding gate motor with substantial torque. The motor is compact and neat due to the special concentrated coil windings, it is powered by an energy sinusoidal system.

Digital & Vectorial Automation Controller

The BRUSHLESS digital controller, which operates at low voltage DC, allows 100% control of the automation system in digital mode. Due to its operation entirely based on a DSP microcontroller, the travel and your automation system's movements can be programmed and customised easily, precisely and elegantly.

The Digital Silence Of The Motor

One great impact is the silence or the near absence of noise generated by the BRUSHLESS motor during all its movements.

Motor For Super-Intensive Use

The brushless gate motor remains permanently cold even after many days of super-intensive use.

Speed, Acceleration & Deceleration With Extreme Elegance

The automation system with brushless digital technology creates perfect and elegant movements. With a constant force and torque at every point and the option of varying the speed of deceleration and acceleration, the system can be managed with maximum safety.

Extremely Low Energy Consumption

A motor that can operate at low voltage in super-intensive use and operate in environments with highly demanding weather conditions while maintaining very low energy consumption and absorption levels.

Impact, Obstacle Detection & Reversal In Total Safety

Thanks to digital technology, we are able to detect an obstacle and reverse the motor instantly by simply specifying the torque of the motor, the sensitivity, the time and the travel of the reversal, all in full compliance with safety requirements.

Onboard Native Digital Encoder

The BRUSHLESS motor has a highly advanced native digital encoder that controls the management of automation systems in a safe, precise and extremely elegant manner.

No Problem In The Event Of Power Failure

With the help of internal or external batteries and the associated battery charging card, your automation system continues to operate considerably even during prolonged power cuts, ensuring many more operations than traditional technologies.

Motor At Ambient Temperature

The brushless motor was created with the main goal of being a motor for super intensive use and with a 99% efficiency. Regardless of how many operations the engine performs in a day, it always remains cold or, at the most, reaches the outside ambient temperature.

Simple Installation With A Single 3-Wire Cable

And the BRUSHLESS motor can be installed by simply connecting it using a single 3-wire cable! What could be easier? This will provide fully digital management of your automation system thanks to sensorless or sensored technology, depending on the type of automation system.

Advanced Precision Engineering To Obtain Optimal Motor Performance

We have created a mechanism that gives you the opportunity to get the maximum performance out of the motor. A product that combines the quality of the internal production processes, mechanical processing, and high-quality ferrous and non-ferrous materials.


Control Board Overview


Accessories Compatibility and Controlling Options | Sliding Gate Automation

  • Constant DC Accessories Output
  • Automatic Sliding Gate Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
  • Remote controls
  • Induction Loops
  • Weekly Timers
  • Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
  • Keypads (Wired and Wireless Options Available)
  • Exit/entry sensors
  • Intercom system with dry contact output
  • Automatic switching timer
  • WiFi Control System (APP-Based Control)
  • GSM Control Systems (Mobile Call/SMS-based Control)


Remote Control Features


Fix code transmitter 433,92 Mhz. 2 channels, with radio for copy.

Technical features

Standard power: 3V DC
Absorption: 12mA
Operating temperature: -10+55 °C
Number of channels: 2
Codification: Fix code
Modulation: AM/ASK
Carried frequency: 433.92MHz
Number of combinations: 65536
Radio for copy: Yes
Maximum distance in open field: 150m
Battery: Mod "CR2032" 3V
Maximum dimension product in mm
(L x W x H):
38 x 68 x 11
Product weight packed (Kg): 0,03



Italian-Made Roger Technology BM30/HS BRUSHLESS 24V TURBO-SPEED Sliding Gate Electric Motor


Italian-Made Roger Technology BM30/HS
BRUSHLESS 24V TURBO-SPEED Roller/Sliding Gate Electric Motor

Max gate weight:    400 kg
Power line supply:    230V AC - 50Hz
Motor power supply:    24V
Power rating:    125W
Frequency of use:    Intensive use
Thrust:    50 - 350N
Operating temperature:    -20+55°C
Protection level:    IP44
Reductor Type:    Irreversible
Manoeuvre speed:    26 m/min (0.44 m/s)
Limit switch:    Magnetic
Onboard control unit:    B70/1DC
Encoder:    Digital native encoder + magnetic digital sensored, 4096 PPR
Type exit gear:    Z15/mod 4
Operating cycles per day
(opening/closing - 24 hours, no stop):
Maximum dimension product in mm
(L x W x H):
250 x 165 x 290
Product weight packed (Kg):    10,8

Standard Accessories


Fixing plate with stay bolts and screws M30 series.


Kit magnetic limit switch for the control units H70/103AC, H70/104AC, B70/1DC, and B70/1DCHP.

Optional Add-On Raised Fixing Plate


Raised fixing plate for M30 series (+3 cm).
