Clydsdale 500 Telescopic Gate System (4.5m Each Gate/500Kg)

Product SKU: APC-T500

  • In Stock

Price :

$250.00 $370.00
APC Automotion Plus Sale

    • 1
  • Add to Cart
  • Buy Now
  • Or in 4 payment of $62.50 with afterpay info
  • Complete Telescopic Gate System incl. Pulley Carriers, brackets and Stainless Steel Cables

Get More Info.. Get More Info..

Product Information

This is a complete telescopic sliding gate installation kit with all the parts required for a telescopic sliding gate opening up to 8.5m.

This kit does not include the hardware required to make each of the gates slide individually but they are available separately and also in a bundle.

Consisting of Galvanized steel pulley carriers with sealed bearings this kit allows the final tensioning of the system to be performed from either (or both) ends of the gate rather than between the gates like conventional kits.

The Anchor bracket can be assembled in a raised setup (for bolt-on wheels) and a lowered setup (for recess mount wheels) to eliminate awkward and incorrect cable directions, this will improve the short term and long reliability of the cable and the system and help prevent cable fray.

The Trailing bracket is adjustable in depth to cater for varying distances between the two installed gates and has elongated fixing holes to allow for fine adjustment during the installation process prior to final fixing.



What is a Telescopic Gate:

A telescopic gate is a gate designed in two halves with a leading and a trailing gate. The leading gate will be the gate closest to the inside of the property whereas the trailing gate is the gate that is closest to the street.

Typically a sliding gate would require the width of the driveway + the tail of the gate (350mm) as the minimum clear area required however the telescopic gate system  only requires half the driveway width + the tail of gate (350mm). This makes a telescopic gate superior in clearance space required and beneficial for townhouses, blocks of units and any other installation with limited space.

Using the information above if the driveway width is 4000mm then each gate would be manufactured to 2350mm thus making 2350mm the required clearance space. Ideally an additional 150mm would be ideal for a ground stop installation making the preferred clearance space 2500mm

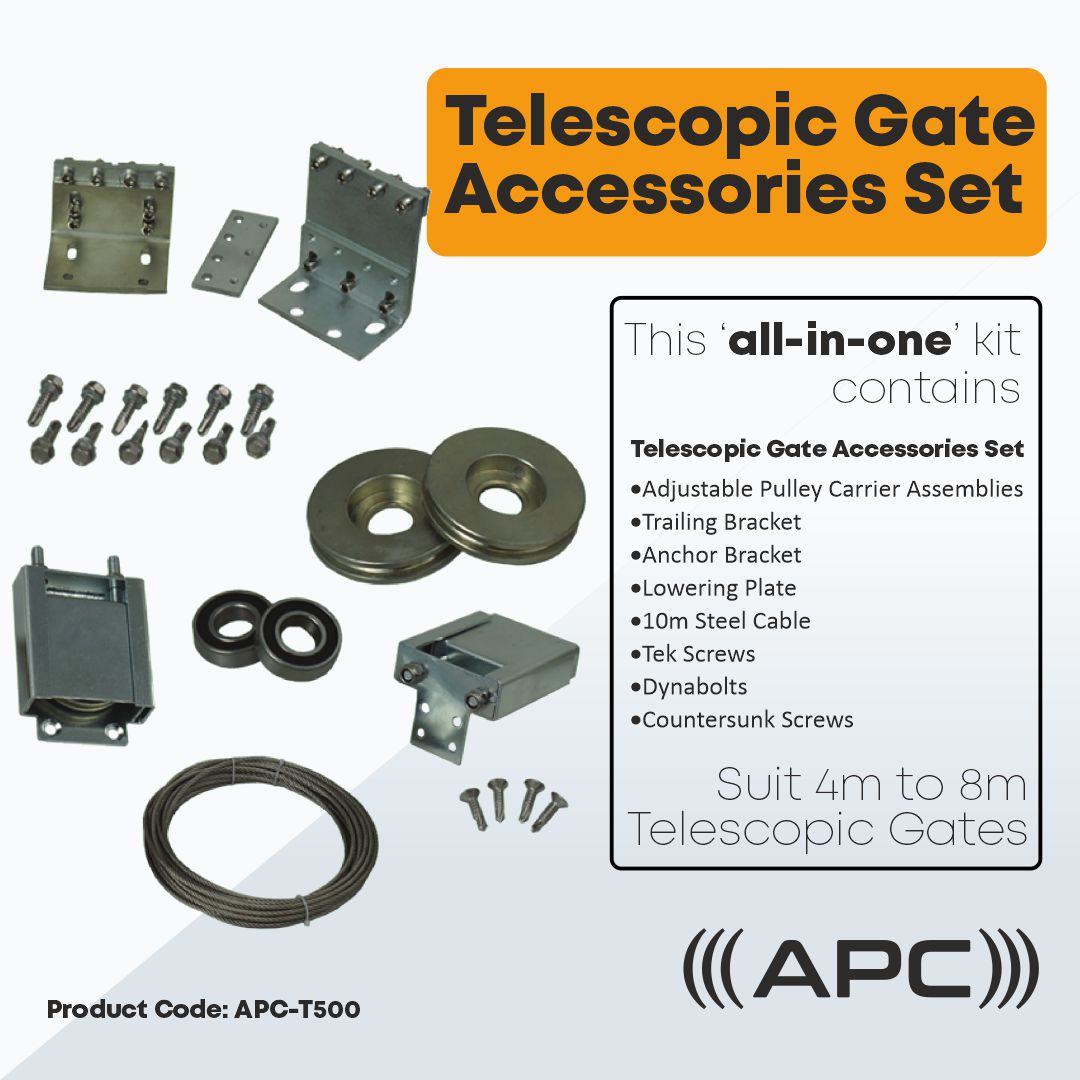

Clydsdale 500 Kit Contents

2 x Adjustable Pulley Carrier (Pre-Assembled with Sealed Bearing)

1 x Gate to Cable Bracket (Trailing Bracket)

1 x Anchor Bracket for Bolt-On Wheel Type

1 x Lowering Bracket for Recess Wheel Type

1x 10m Stainless Steel Cable (4mm)

12x Self Drilling Tek Screws (M6)

4 x Countersunk Self  Drilling Screws (M6)

4x Dynabolts (M8)

1x Comprehensive Installation Guide
APC Clydsdale 500 Telescopic Gate System

Key Features of Telescopic Gate:

  • Face Mounted System (when using flat mount or recess mount wheels) but can be under mounted below gate (using flat-mount wheels)
  • Sealed bearings not bushings
  • Three cable tensioning points to allow an easier installation (other designs only have one tension point between the gates)
  • Adjustable brackets provided for the use of recess mount or flat mounted wheels
  • Low profile system (does not protrude above bottom section of the gate using 80x40 or greater)
  • All hard parts are galvanized.
  • All assembly screws are galvanized
  • Telescopic cable is stainless steel and is provided in a 10m length



F.A.Q

Q: Can the telescopic system be under mounted?
A: Yes, Due to the design of the pulley carriers 4 Lug rear side fixing the carrier can be installed to the bottom of the gate without any need to remove the gate during the installation process.

Q:What size tubing will the system fit to?
A: The carrier system can be installed onto a large variety of different size tubing's such as to 40x40, 80x40, 50x50, 75x50 and 100x50.

Q: What is the maximum size PER gate?
A: The maximum size of each gate can be up to 4600mm including the 350mm overlap.

Q: What should each gate width be?
A: Divide the width of your driveway in half and add 350mm to the measurement. This is the final width of each gate.

Q: Will the system be visible from the street?
A:Initially when face installed the cable will be visible, it is highly recommended to have one of the following methods applied to cover the cable for safety and aesthetics.
- Enclosure on the gate face during fabrication process ready to fit after complete installation.
- Flashing folded to size ready to install after complete installation.

Q: Will i receive instructions?
A: Yes you will receive a comprehensive clear english manual which will give clear instructions about the design of the gate all the way through to installation and parts placement.



Telescopic Gate System Hardware

Pulley Carrier

  • 2mm Folded Galvanized Steel

  • Sealed Bearing (Replaceable)

  • 64mm Pulley

  • 25mm Adjustable Cable Tension

  • 6 Fixing Points (Screws Supplied)

  • Pre-Assembled
APC Clydsdale 500 Telescopic Gate System

Trailing Bracket

  • 4mm Folded Galvanized Steel

  • Adjustable Depth

  • Cable Sandwich System

  • Stainless Steel Assembly Hardware

  • 4 Fixing Points (Screws Supplied)
APC Clydsdale 500 Telescopic Gate System
Anchor Bracket
  • 4mm Folded Galvanized Steel

  • Adjustable Height (Supplied with Lowering Plate)

  • Cable Sandwich System

  • Stainless Steel Assembly Hardware

  • 4 Fixing Points (Dynabolts Supplied)
APC Clydsdale 500 Telescopic Gate System
