Product SKU: CAIS-CG-10.5m

10.5 Meter EXTRA LARGE COMMERCIAL Cantilever Sliding Gate Hardware Kit | Commercial Cantilever 10.5m Opening Gate | Hot-Dipped Galvanised German Steel | Made in Europe by CAIS

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

  • YEAR END SALE

    TOP DEALS

10.5 Meter EXTRA LARGE COMMERCIAL Cantilever Sliding Gate Hardware Kit | Commercial Cantilever 10.5m Opening Gate | Hot-Dipped Galvanised German Steel | Made in Europe by CAIS

Product SKU: CAIS-CG-10.5m

  • In Stock

  • Freight DeliveryFreight Delivery
    This is a large item and will require a freight quote. Please add all items to your cart and continue through the checkout process for a complete freight delivery cost.
  • New
Get More Info..

Kit Price:

$5,995.00 $8,995.00 APC Automotion Plus Sale

  • 10.5m EXTRA LARGE Cantilever Sliding Gate Hardware DIY Kit for Cantilever Driveway Gates

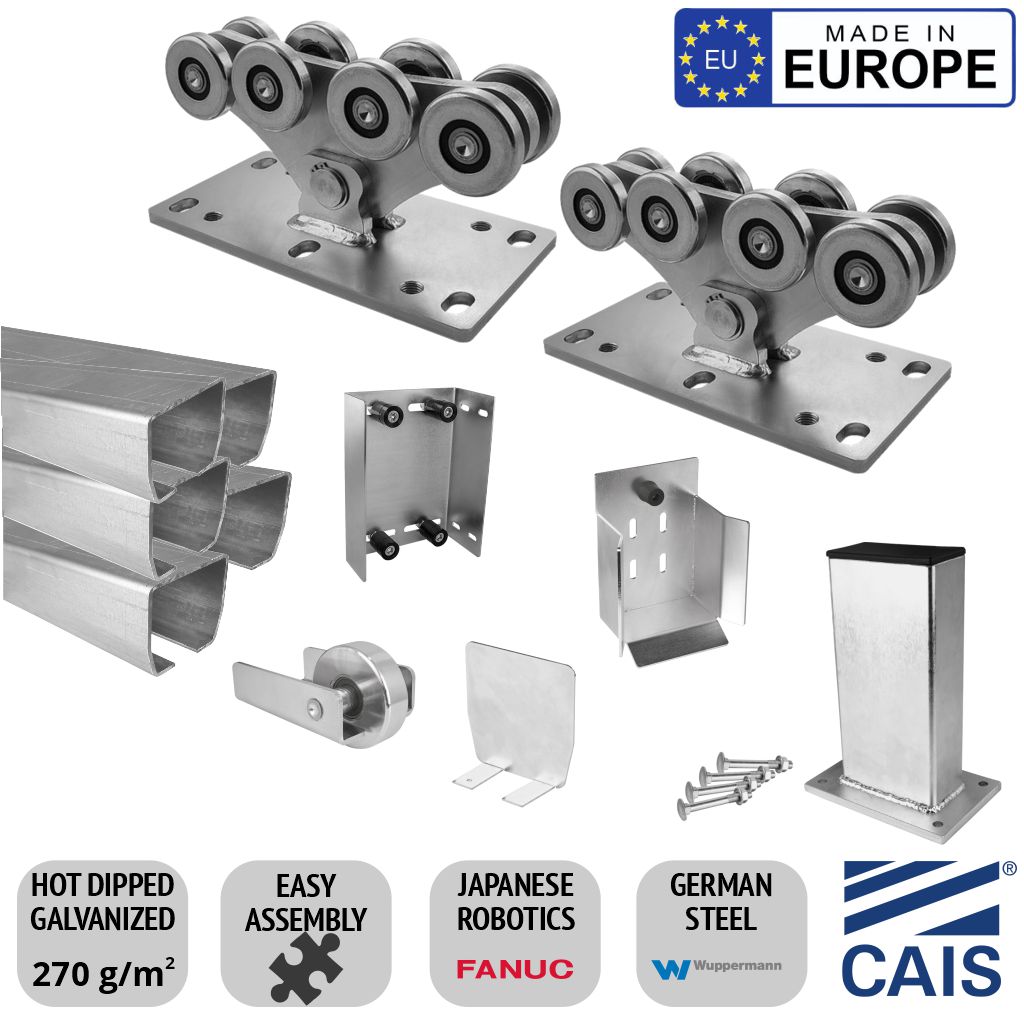

  • Kit Includes

    01 Eight Wheeled Large Carriage For Cantilever Gate for up to 13.5 metres clear opening & 1200 kg max gate weight(CAIS SPEED L) (QTY: 2)
    02 Cantilever Gate Extra Large 3m "C" Profile Guide" 141mm x 141m, 6mm Thickness, Hot Dipped Galvanized German Steel (CAIS STAGE LZ 3) (QTY: 5)
    03 110mm Large Guide Support Wheel, Cantilever End Wheel For Cantilever Sliding Gate Systems (CAIS RUN L) (QTY: 1)
    04 Large End Cap for C Guide Track, Without Screw, Dependent on Support Whee!, Cantilever Sliding Gates Hardware. (CAIS PILOT L) (QTY: 1)
    05 209mm Large End Stop for Cantilever Sliding Gates (CAIS LAST L) (QTY: 1)
    06 Large End Stop Bracket For Cantilever Sliding Gate Systems (CAIS PARK L) (QTY: 1)
    07 Four Upper Rollers and U Shape Bracket Set. CAIS Sliding Gate Guide 4 Roller and U Shape Bracket Assembly Kit (QTY: 1)
    08 Large End Stop For Cantilever Sliding Gate Systems (CAIS PADDOCK L) (QTY: 1)
  • Product Information

Product Information

Eight-Wheeled Carriage For Cantilever Gate

Carriage for cantilever gates with up to 13.5 meters clear opening & 1200 kg max gate weight.

Heavy Duty Steel Cantilever Sliding Gate Eight-Wheeled Carriage

Enhanced design and superior products from Europe using high-quality German steel.

Formed from high-quality, heavily galvanized German steel in an 18-stage process with a slow rolling speed to reduce heat build-up and memory.

  • The steel is sourced from the leading German company Wumperman. It is galvanized after slitting so that there are no exposed raw steel edges that would otherwise quickly rust.
  • The slow rolling process minimizes the tendency for the track to spring open where it is cut to length.



















"C" Profile Guide For Cantilever Gate, 6mm Special Thickness, Galvanized German Steel

"C" Profile Guide For Cantilever Sliding Gate, 6mm Special Thickness, Hot Dipped Galvanized German Steel,

Steel "C" Profile Guide For Cantilever Sliding Gate

Enhanced design and superior products from Europe using high-quality German steel.

Formed from high-quality, heavily galvanized German steel in an 18-stage process with a slow rolling speed to reduce heat build-up and memory

  • Holes at the track's top allow it to be easily bolted to an aluminium gate.
  • The steel is sourced from the leading German company, Wumperman. It is galvanized after slitting so that there are no exposed raw steel edges that would otherwise quickly rust.
  • The slow rolling process minimizes the tendency for the track to spring open where it is cut to length.








CANTILEVER GATE SPACE REQUIREMENTS

A cantilever gate needs to be about 35% wider than its span to counterbalance the weight of the suspension posts.

CANTILEVER L | Gate Size From 8m to 13.5m












Large Guide Support Wheel For Cantilever Sliding Gates

The end wheel guides the gate onto the end cup and helps support the gate while it rests.

End Wheel For Cantilever Sliding Gate Systems (CAIS)

Cantilever Gate Hardware Large Guide Support Wheel (CAIS | RUN L)



Large End Cap for Cantilever C Gude Track

The end cap is an addition to the gate to cap off the cantilevered track.

End Cap For Cantilever Sliding Gate (CAIS PILOT L / PILOT LN)

Cantilever Gate Hardware Large End Cap



209mm Large End Stop for Cantilever Sliding Gates

The end stop supports the gate when open and closed.

End Stop For Cantilever Sliding Gate (CAIS LAST L)

Cantilever Gate Hardware Large End Stop



End Stop Bracket for Cantilever Sliding Gates

The end stop bracket supports the gate when it is fully open and fully closed.

End Stop Bracket For Cantilever Sliding Gate

Cantilever Gate Hardware End Stop Bracket

CAIS Sliding Gate 4 Roller Guide Assembly

Two Roller or Four Roller over-head guide brackets and roller assemblies for Gates of up to 160mm wide.

Four Rollers & Bracket. Suitable as a guiding system for manual or automatic sliding gates. The bracket supplied can be mounted on walls, pillars, posts, and other supports to withstand the load.

Rollers: 67mm x 40mm FOUR Rollers

Bracket: U shape mounting bracket



DIFFERENCE BETWEEN A CANTILEVER GATE AND A SLIDING GATE

The obvious benefit of choosing a cantilever sliding gate system is " no need to track"

Unlikly standard sliding gates, the cantilever sliding gate solution doesn't need a perfectly level or concrete flat surface and can deal with dirt or gravel driveway perfectly.

BENEFITS OF CANTILEVER GATES

  • Perfect solution for sloped and/or non-concrete driveways
  • Esthetic design, easy installation, no welding needed
  • Long lasting durable hardware, silent and maintenance-free
  • An effective way to improve security on your property

The Cantilever gate is a unique type of sliding gate, but with distinctive, interesting differences from your typical gate with wheels. One of the primary differences between a cantilever gate and a sliding gate is the location of the wheels that helps the gate move. A cantilever sliding gate rests and rolls on a wheel on the front bottom edge of the gate with a track supporting wheels on the back edge. In contrast, a cantilever gate is held above the ground, moving along rollers running along the top and inside of the fence, with wheels attached to a vertical concrete foundation.



CANTILEVER SLIDING GATE DESIGN and PERFORMANCE

Sliding gates have simpler and smaller operating mechanisms than cantilever gates, and as a result, wheel contact with the ground can make operation coarse and noisier than cantilever gates. Since cantilever gate wheels are off the ground, this style can span a wider range of terrain including gravel, grass, blocks, and uneven, angled, or steeply inclined surfaces. The absence of contact with the ground also allows cantilever gates to function easily in all weather conditions.

The smart appearance, efficient design, and craftsmanship in a cantilever gate are sure to impress owners, visitors, and customers visiting the property.

Cantilever gate designs are frequently used as no track work needs to be installed. This makes cantilever gates an option for surfaces that are inappropriate for track gates.

Cantilever gates have been designed to glide through the air rather than along tracks on the driveway and do not require any ground installation. Cantilever Sliding Gate All-In-One Systems are quicker and easier to install and have longer lifespans as they float through the air.

Cantilever gates aren’t only contemporary and modern in appearance, besides cantilever design automatic sliding gates are the ideal choice for anyone with uneven ground, paving that is organic in shape, and gravel driveways.



Your Customised Kit Includes:

No Changes.
        • Kit Quantity:
          • 1
        • Your (Kit and Add-On) Price:

          $5,995.00
