Product SKU: STAGE LZ 3

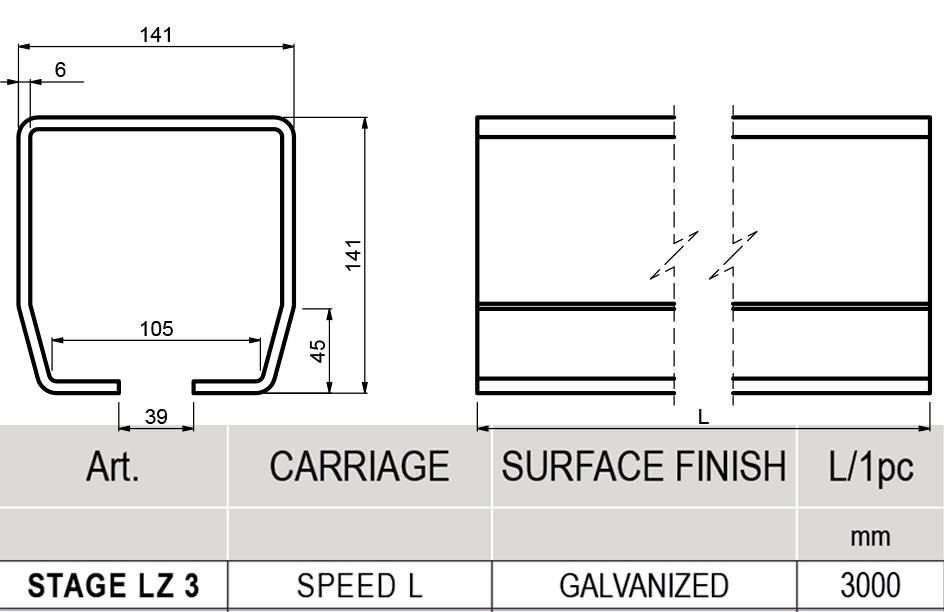

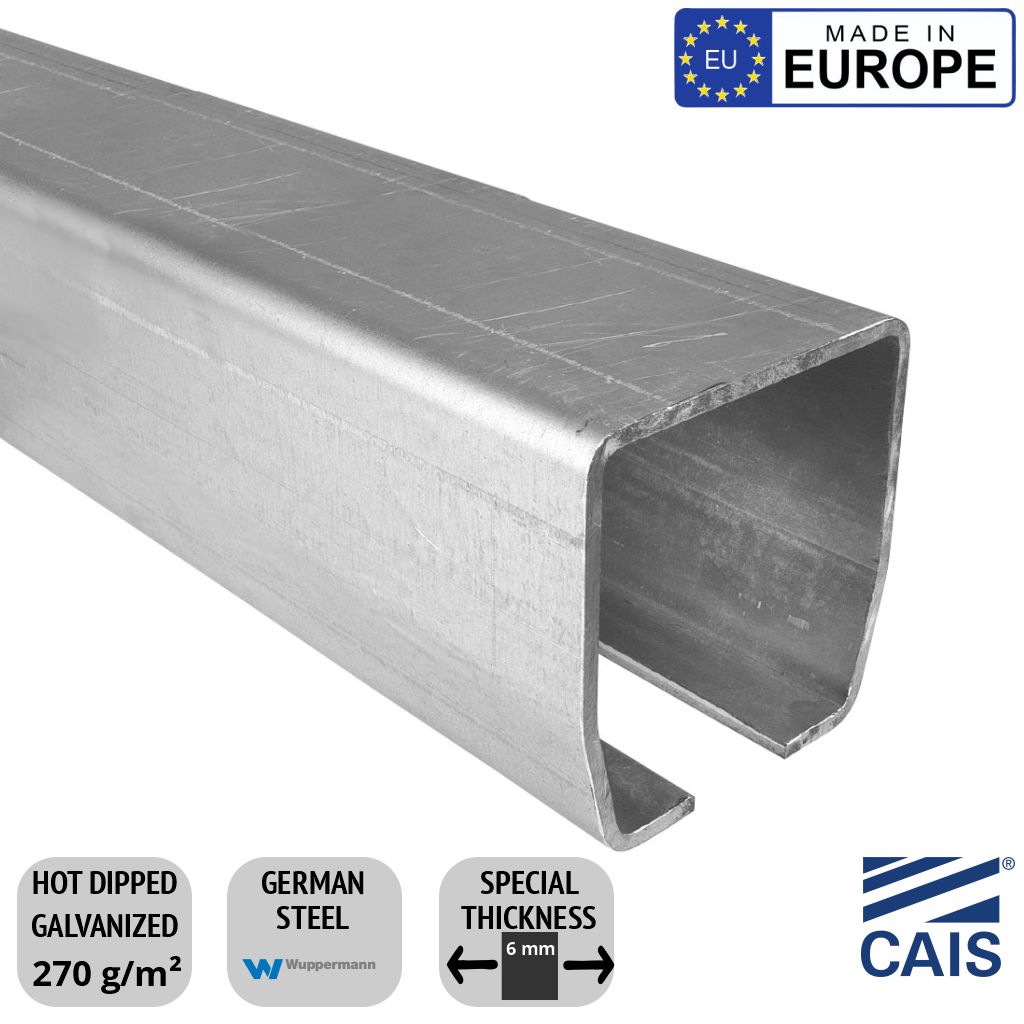

Cantilever Gate Extra Large 3m "C" Profile Guide" 141mm x 141m, 6mm Thickness, Hot Dipped Galvanized German Steel (CAIS STAGE LZ 3)

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

  • On Sale

Cantilever Gate Extra Large 3m "C" Profile Guide" 141mm x 141m, 6mm Thickness, Hot Dipped Galvanized German Steel (CAIS STAGE LZ 3)

Product SKU: STAGE LZ 3

  • In Stock

  • New
  • Freight DeliveryFreight Delivery
    This is a large item and will require a freight quote. Please add all items to your cart and continue through the checkout process for a complete freight delivery cost.

    • Price :

    $1,295.00 $1,356.00 APC Automotion Plus Sale

      • 1
    • Add to Cart
    • Buy Now
    • Or in 4 payment of $323.75 with afterpay info

    • Cantilever Gate Extra Large 3m Track | 141 x 141mm | 6 mm Special Thickness | Galvanized German Steel |

    Get More Info..

    Product Information

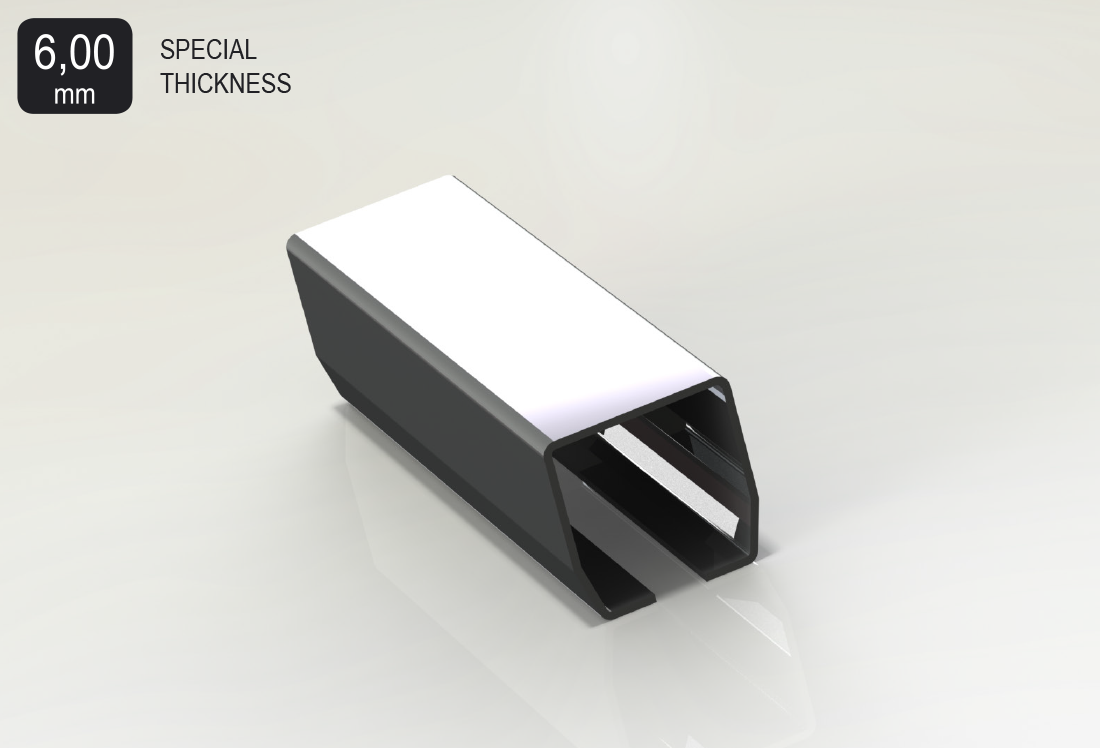

    "C" Profile Guide For Cantilever Gate, 6mm Special Thickness, Galvanized German Steel

    "C" Profile Guide For Cantilever Sliding Gate, 6mm Special Thickness, Hot Dipped Galvanized German Steel,

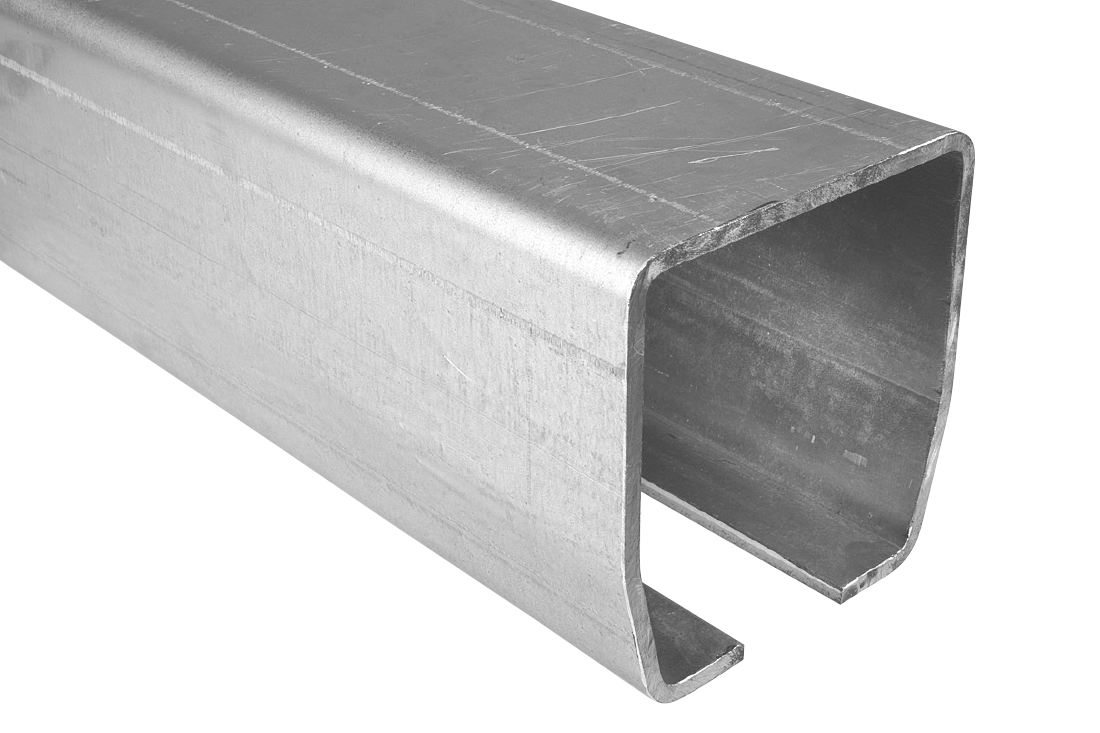

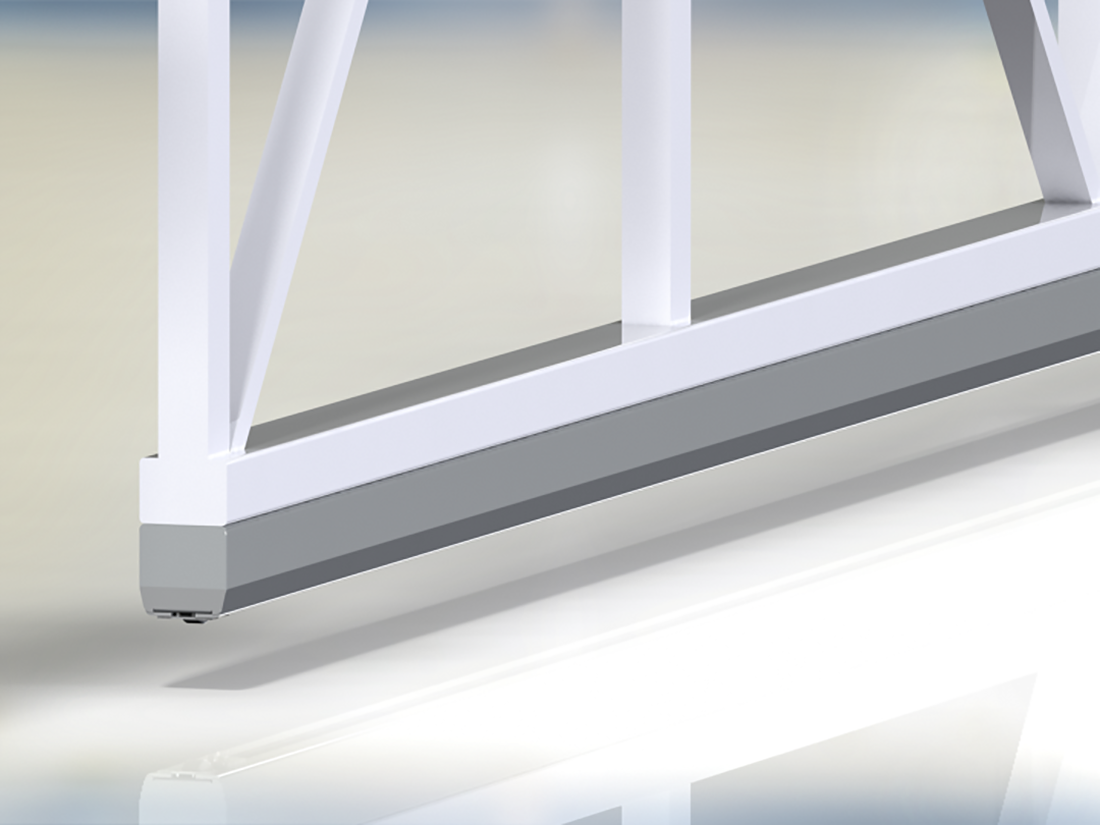

    Steel "C" Profile Guide For Cantilever Sliding Gate

    Enhanced design and superior products from Europe using high-quality German steel.

    Formed from high-quality, heavily galvanized German steel in an 18-stage process with a slow rolling speed to reduce heat build-up and memory

    • Holes at the track's top allow it to be easily bolted to an aluminium gate.
    • The steel is sourced from the leading German company, Wumperman. It is galvanized after slitting so that there are no exposed raw steel edges that would otherwise quickly rust.
    • The slow rolling process minimizes the tendency for the track to spring open where it is cut to length.

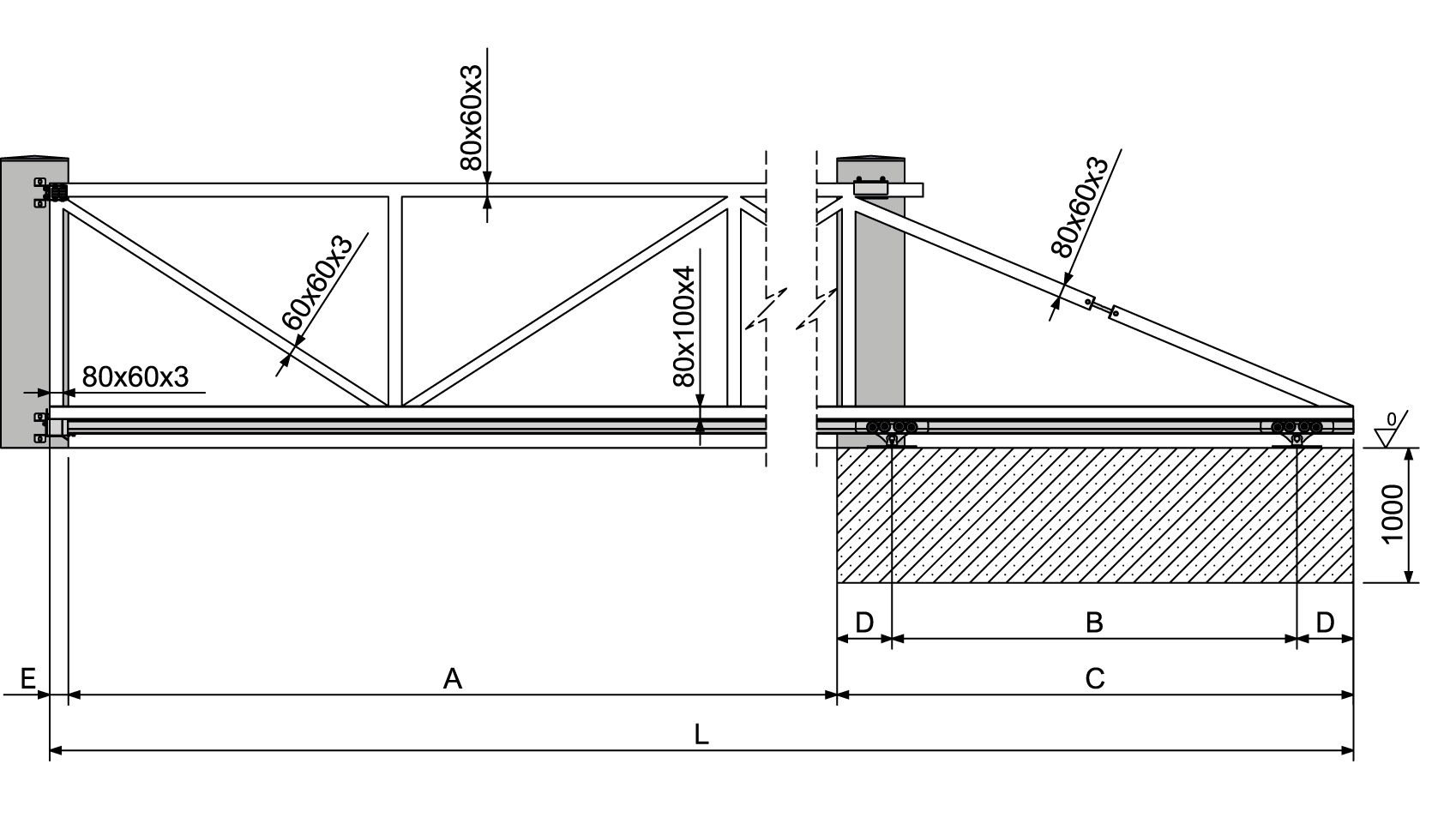

    CANTILEVER GATE SPACE REQUIREMENTS

    A cantilever gate needs to be about 35% wider than its span to counterbalance the weight of the suspension posts.

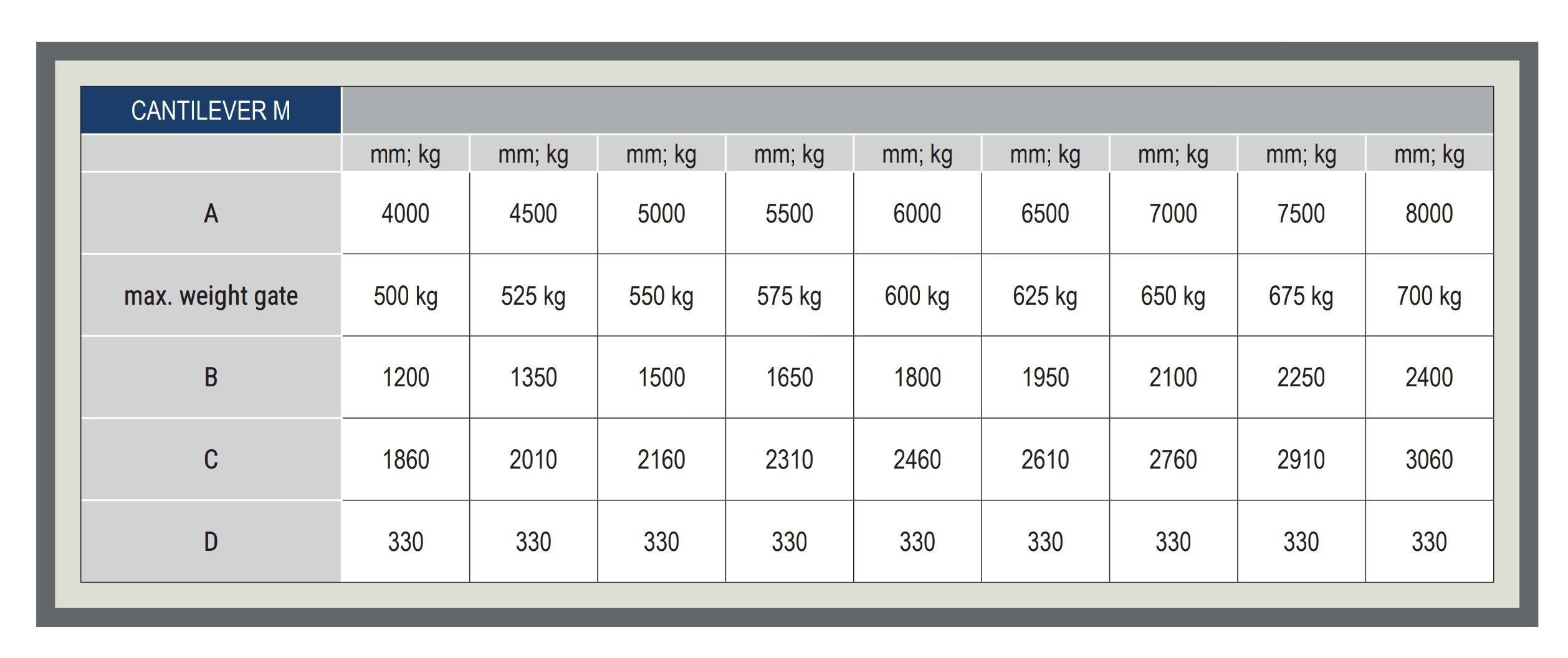

    CANTILEVER M | Gate Size From 4m to 8m

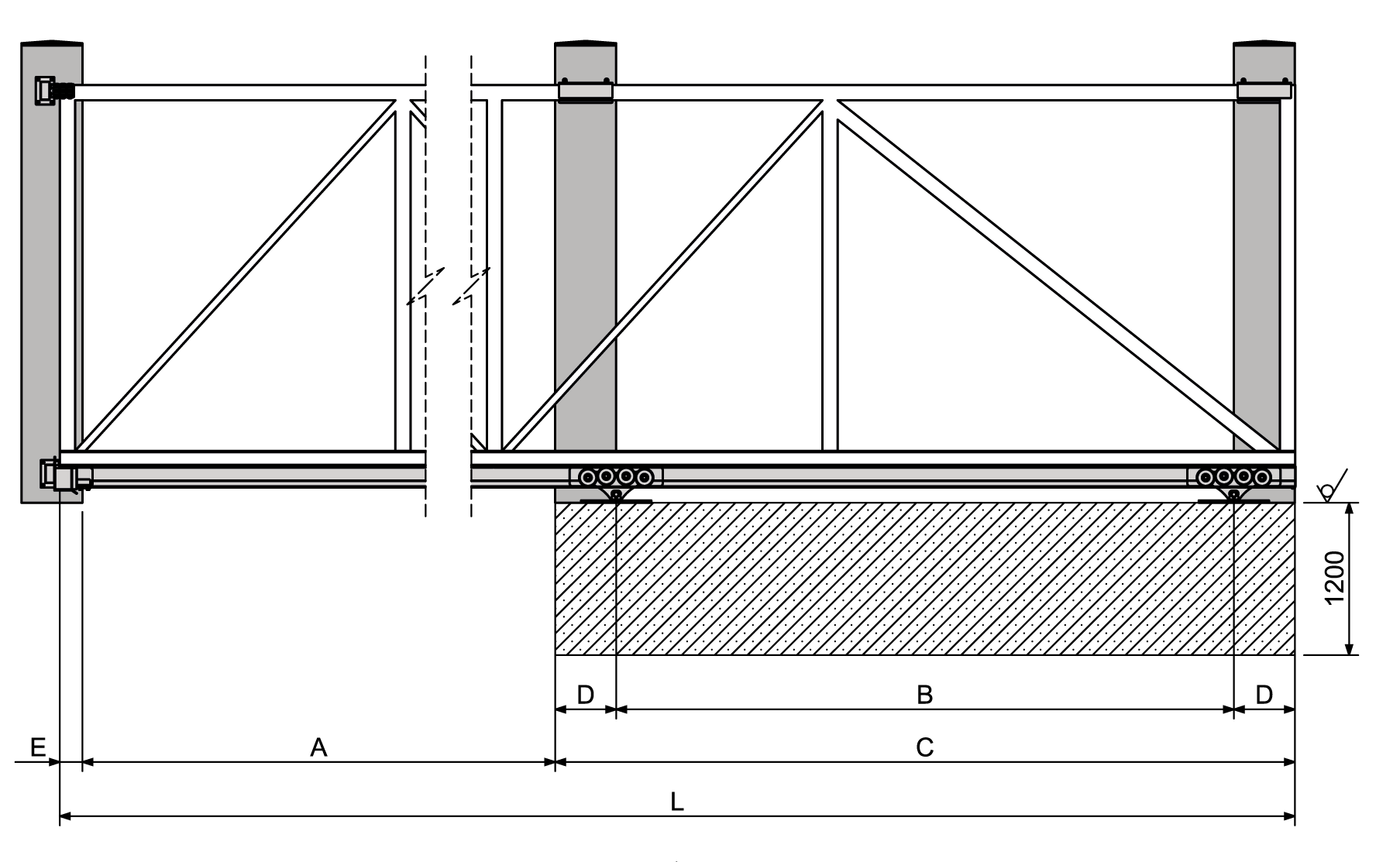

    CANTILEVER GATE SPACE REQUIREMENTS

    A cantilever gate needs to be about 35% wider than its span to counterbalance the weight of the suspension posts.

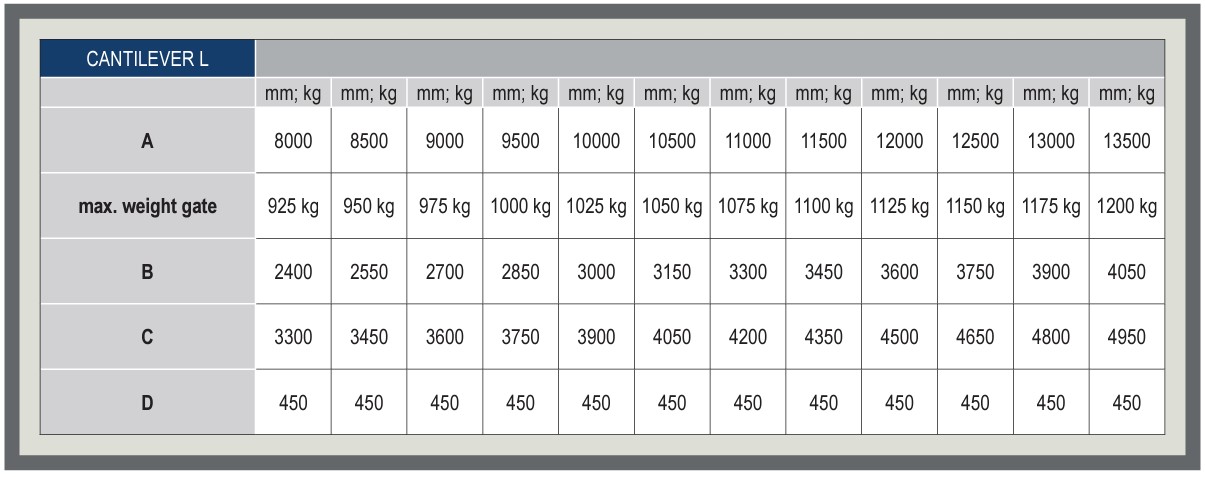

    CANTILEVER L | Gate Size From 8m to 13.5m
