Build Your Own Sliding Gate Hardware Kit

  • In Stock

Get More Info.. Get More Info..

Kit Price:

$0.00

  • Or in 4 payment of $0.00 with img info

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Build your own hardware kit for standard sliding gates

Please note this is a build your own kit, please choose from the list of parts above to create your kit.
if you have a cladded gate click here for the relevant kit.

Important notes:

  • When adding your floor track quantity the amount of track required is gate length x2
  • You can choose from two options of wheel

Recess mount wheels which will sit internally into your gate (requires a min. tube height of 75mm or greater)and will raise the gate by 40mm when installed onto the floor track
Flat mount wheels which will sit external to your gate and will raise the gate by 90mm when installed onto the floor track



78mm Recess Wheels






  • R10 profile to suit the entire range of APC Galvanized profile tracks

  • Dual bearing system for the capacity of 250KG per wheel (500kg per pair)

  • Fits into 75mm height tubing wit a cut out size to fit the wheel of 80x35mm

  • Raises the gate by 40mm when installed with the floor track

  • Easy installation with pre-punched fixings, just drops into place after cut out and screws to the tubing from the flanged sides


  •



78mm Flat Mount Wheels



  • R10 profile to suit the entire range of APC Galvanized profile tracks

  • Dual bearing system for the capacity of 250KG per wheel (500kg per pair)

  • Fits straight to the bottom, no cut out required

  • Raises the gate by 92mm when installed with the floor track

  • Easy installation with pre-punched fixings, screws to the tubing from each side


  •





60mm Nylon Roller and Bracket Set





  • 165mm Long Galvanized steel construction for long life outdoor use

  • 60mm Nylon rollers with completly adjustable positions

  • 75mm internal clearance between rollers at full span, allowing for 25mm ajustment for the gate a gate thickness not exceeding 50mm is ideal (see 200mm long bracket to allow 85mm gate thickness)

  • Pre-punched fixing holes ideal for adjustments prior to final fixing

100mm Roller and Bracket Set




  • 165mm Long Galvanized steel construction for long life outdoor use

  • 100mm nylon rollers with completly adjustable positions

  • 75mm internal clearance between rollers at full span, allowing for 25mm ajustment for the gate a gate thickness not exceeding 50mm is ideal (see 200mm long bracket to allow 85mm gate thickness)

  • Pre-punched fixing holes ideal for adjustments prior to final fixing



Bolt Down Galvanized Floor Track






  • R10 profile to suit the entire range of APC recess and flat mount wheels

  • Rounded profile provides the least resistance for sliding gate movment over the alternative "V groove"

  • High strength 3mm steel, Galvanized for complete long life outdoor use

  • Pre-punched fixing holes ready for anchor nails (Supplied)

  • Easy to install, bolts down to concrete! No need to set in during concreting


  •

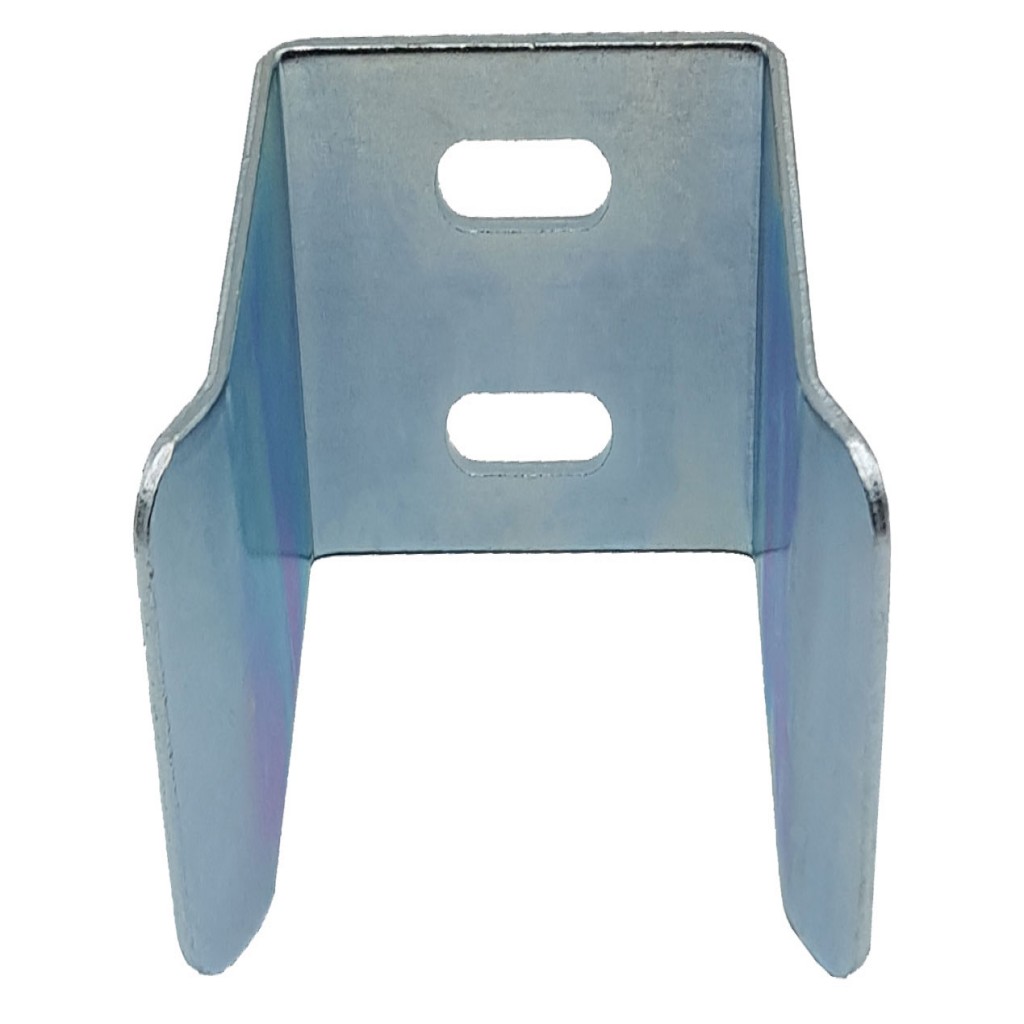

75mm U Guide






  • Galvanized steel construction for long life outdoor use

  • Flared entry to guide gate into the reciever in case of wind loads pushing the gate

  • 75mm internal clearance ideal for standard steel or aluminum gates gates that are offset from the closing post or clad gates no greater than 70mm thickness

  • Pre-punched fixing holes ideal for adjustments prior to final fixing


  •



Galvanized Gate Stop






  • Galvanized steel construction for long life outdoor use

  • 115mm Height

  • 40mm Rubber bumper

  • Solid 100x80mm base

  • Pre-punched 10mm fixing holes



Your Customised Kit Includes:

No Changes.
