Build Your Own Large Cantilever Gate Hardware Kit - Suitable for Up to 10m Opening / 900kg Gate | European Made | Highly Galvanised | German Steel

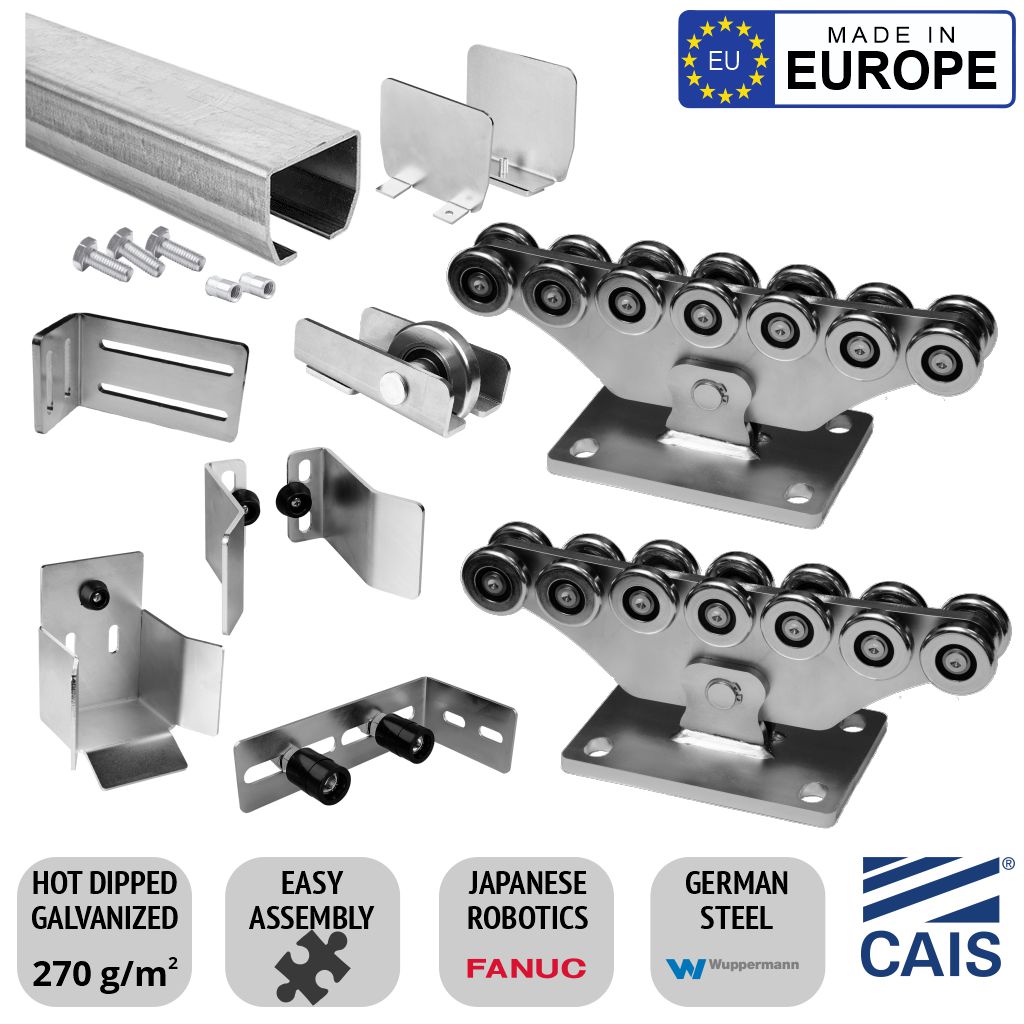

Build your own cantilever Hardware Kit

Please note this is a build your own kit, please choose from the list of parts above to create your kit.

SPEED MAX 14 Wheeled Carriage For Cantilever Gate

The SPEED MAX 14 is a wheeled carriage designed for cantilever gates. It features 14 wheels for smooth operation and is a sturdy and reliable component for sliding gates.

SPEED M_MAX Cantilever carriage with 14 bearings

• for gates up to 10m passage
• for gates weighing up to 900 kg
• for guide profile STAGE MZ - MAX 420 STRONG Material: Steel/Hot Dipped Galvanized

Heavy Duty Steel Cantilever Sliding Gate Fourteen-Wheeled Carriage

Enhanced design and superior products from Europe using high-quality German steel.

Formed from high-quality, heavily galvanized German steel in an 18-stage process with a slow rolling speed to reduce heat build-up and memory.

• The steel is sourced from the leading German company, Wumperman. It is galvanized after slitting so that there are no exposed raw steel edges that would otherwise quickly rust.
• The slow rolling process minimizes the tendency for the track to spring open where it is cut to length.

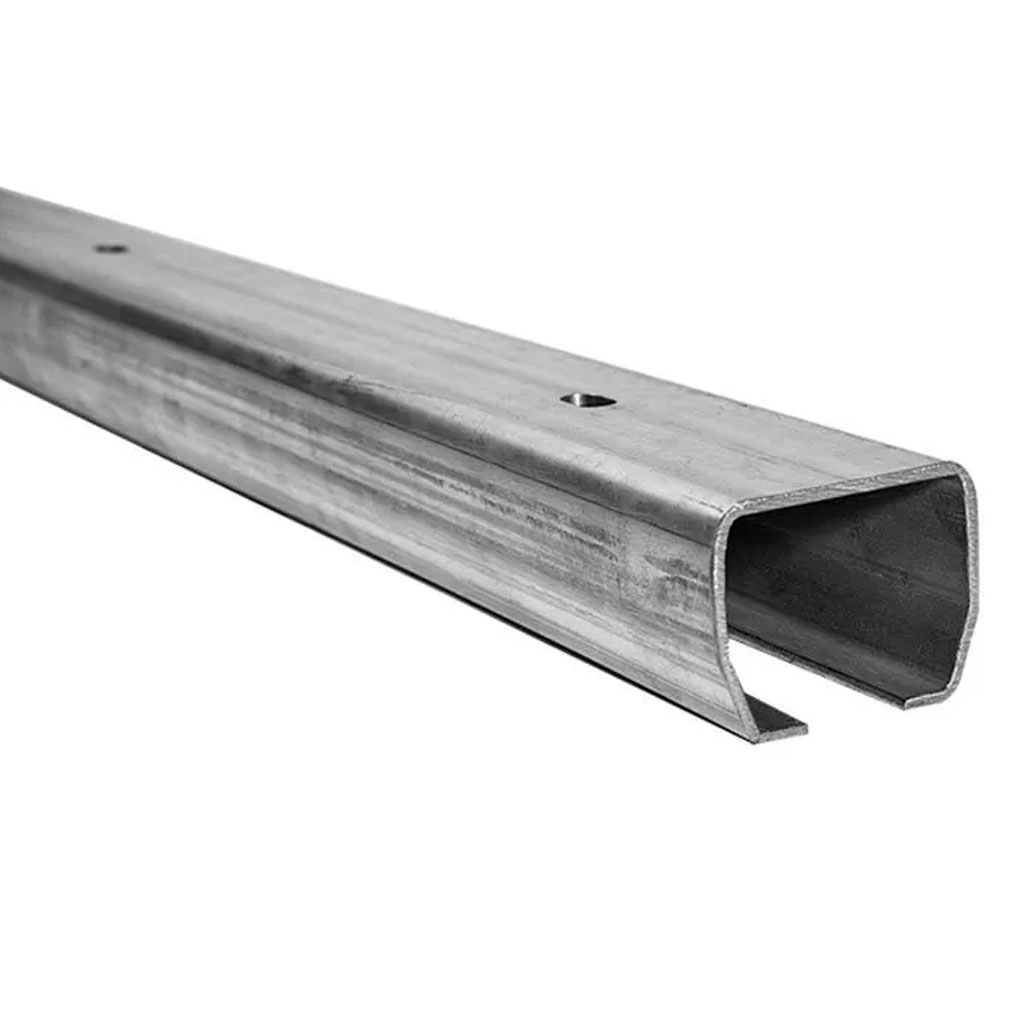

"C" Profile Guide For Cantilever Gate, 5mm Thickness, Hot Deeped Galvanized German Steel

"C" Profile Guide For Cantilever Sliding Gate, 5mm Hot Deepped Thickness, Galvanized German Steel

Steel "C" Profile Guide For Cantilever Sliding Gate

Enhanced design and superior products from Europe using high-quality German steel.

Formed from high-quality, heavily galvanized German steel in an 18-stage process with a slow rolling speed to reduce heat build-up and memory

• Holes at the track's top allow it to be easily bolted to an aluminium gate.
• The steel is sourced from the leading German company, Wumperman. It is galvanized after slitting so that there are no exposed raw steel edges that would otherwise quickly rust.
• The slow rolling process minimizes the tendency for the track to spring open where it is cut to length.

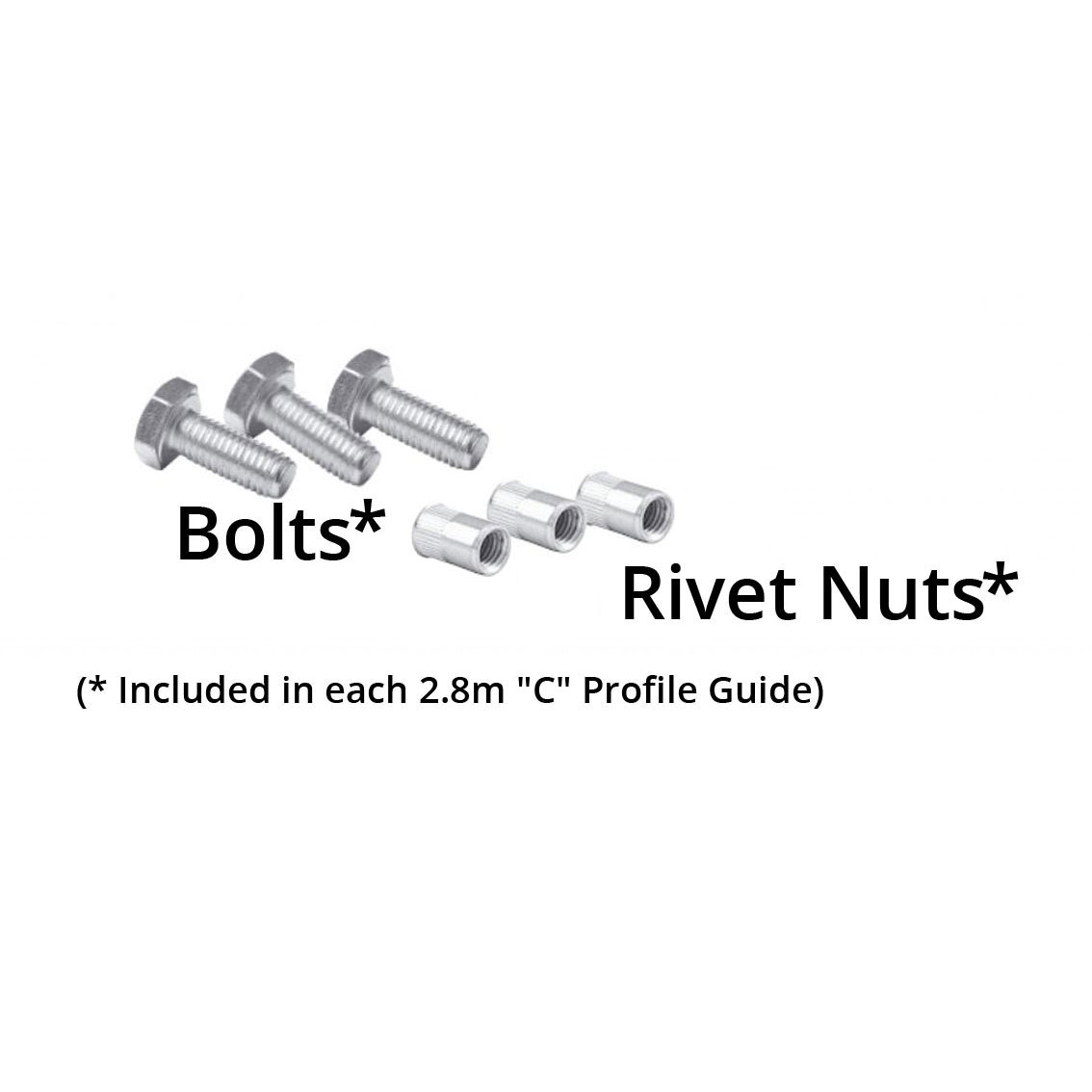

Bolts and Rivet Nuts Pack for "C" Profile Guide Cantilever Sliding Gate

Bolts and Rivet Nuts are Included in each Cantilever "C" Profile Guide

Bolts and Rivet Nuts for Cantilever Sliding Gate Guide Track

• Slotted Hole Punched Every 400mm in "C" Profile Guide Track
• Bolts and Rivet Nuts Pack
• Easy Assembly
• No Welding Required

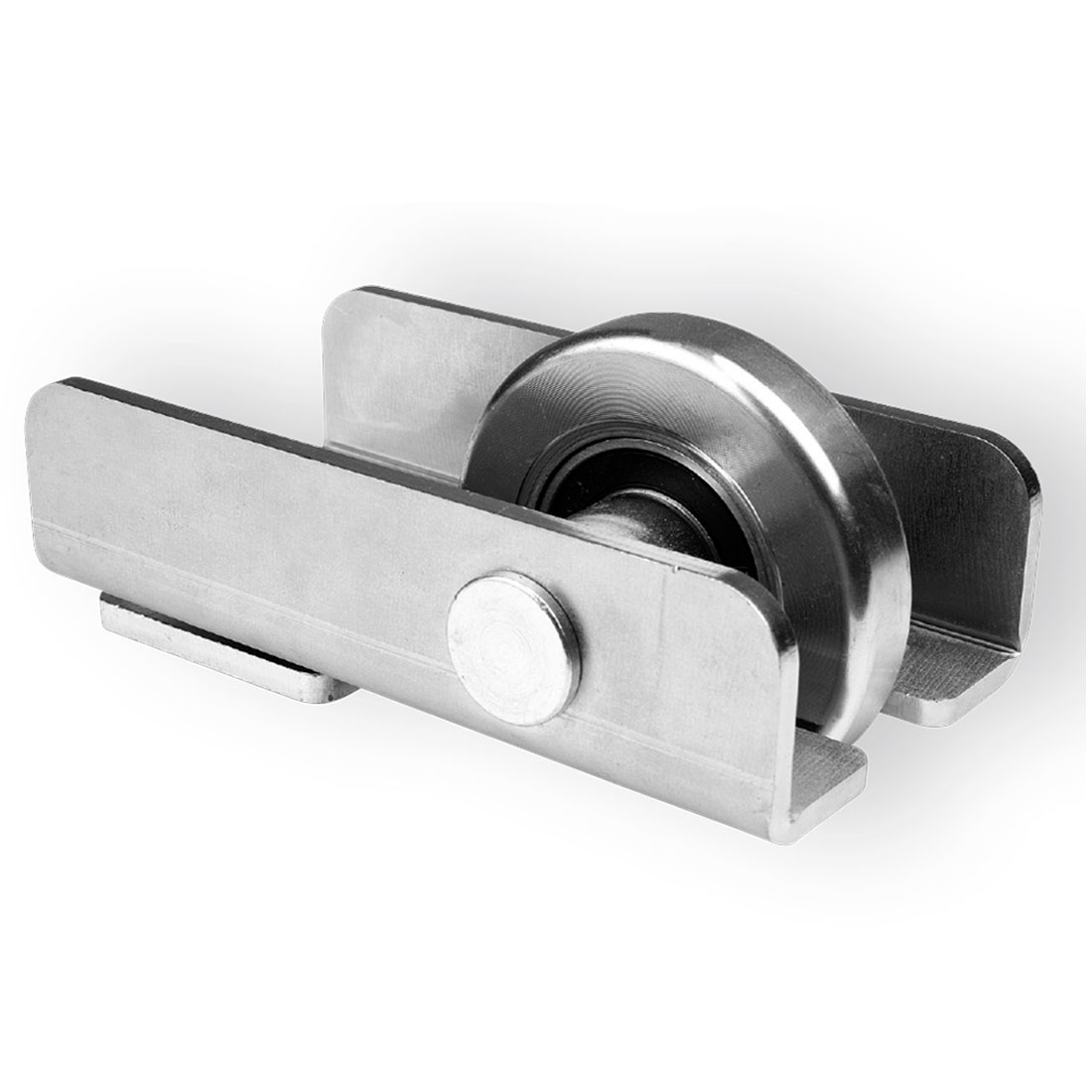

Medium Guide Support Wheel For Cantilever Sliding Gates

The end wheel guides the gate onto the end cup and helps support the gate while it rests.

End Wheel For Cantilever Sliding Gate Systems

Cantilever Gate Hardware Medium Guide Support Wheel

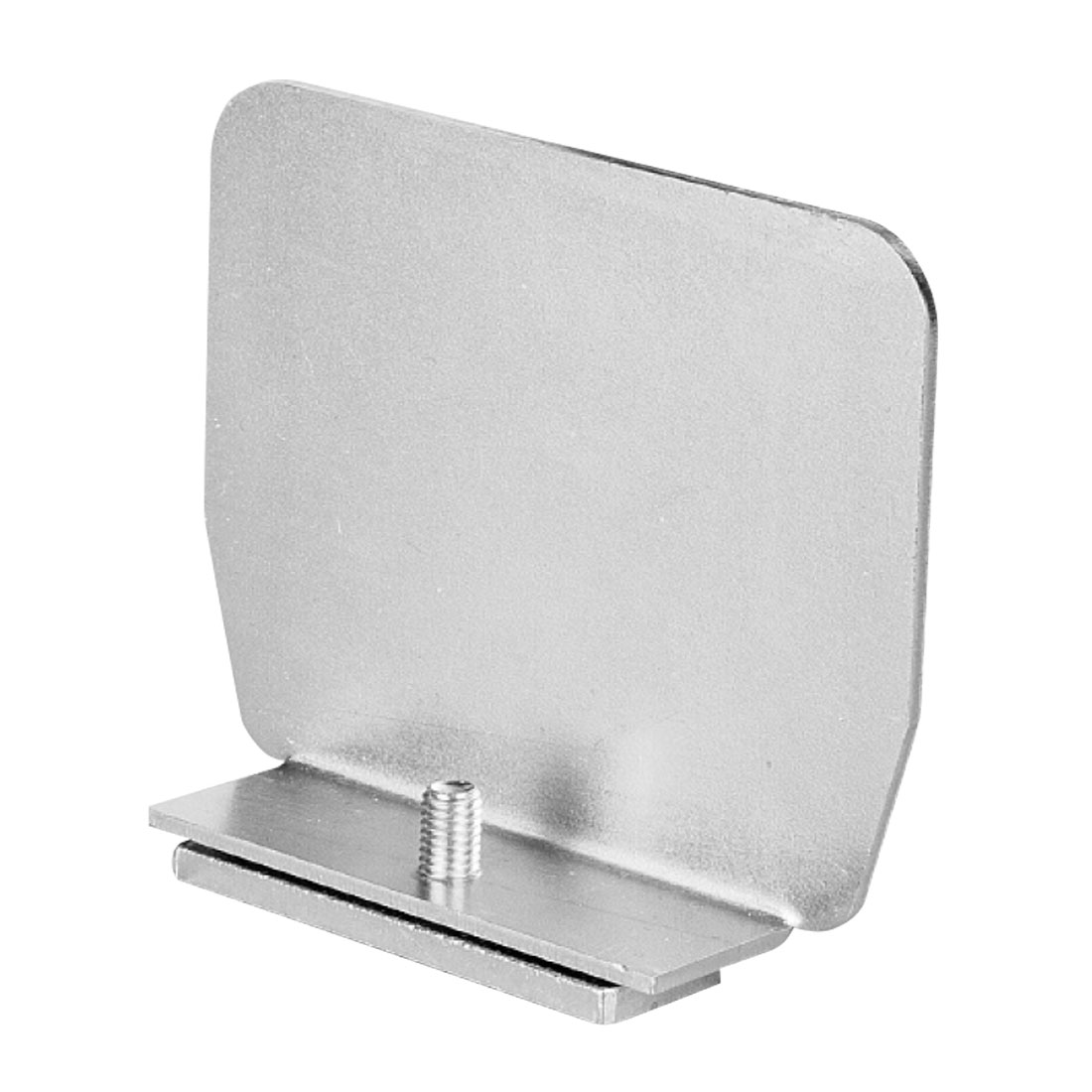

CAIS PILOT MN | End Cap for Cantilever C Gude Track

The end cap is an addition to the gate to cap off the cantilevered track.

End Cap For Cantilever Sliding Gate

Cantilever Gate Hardware Medium End Cap

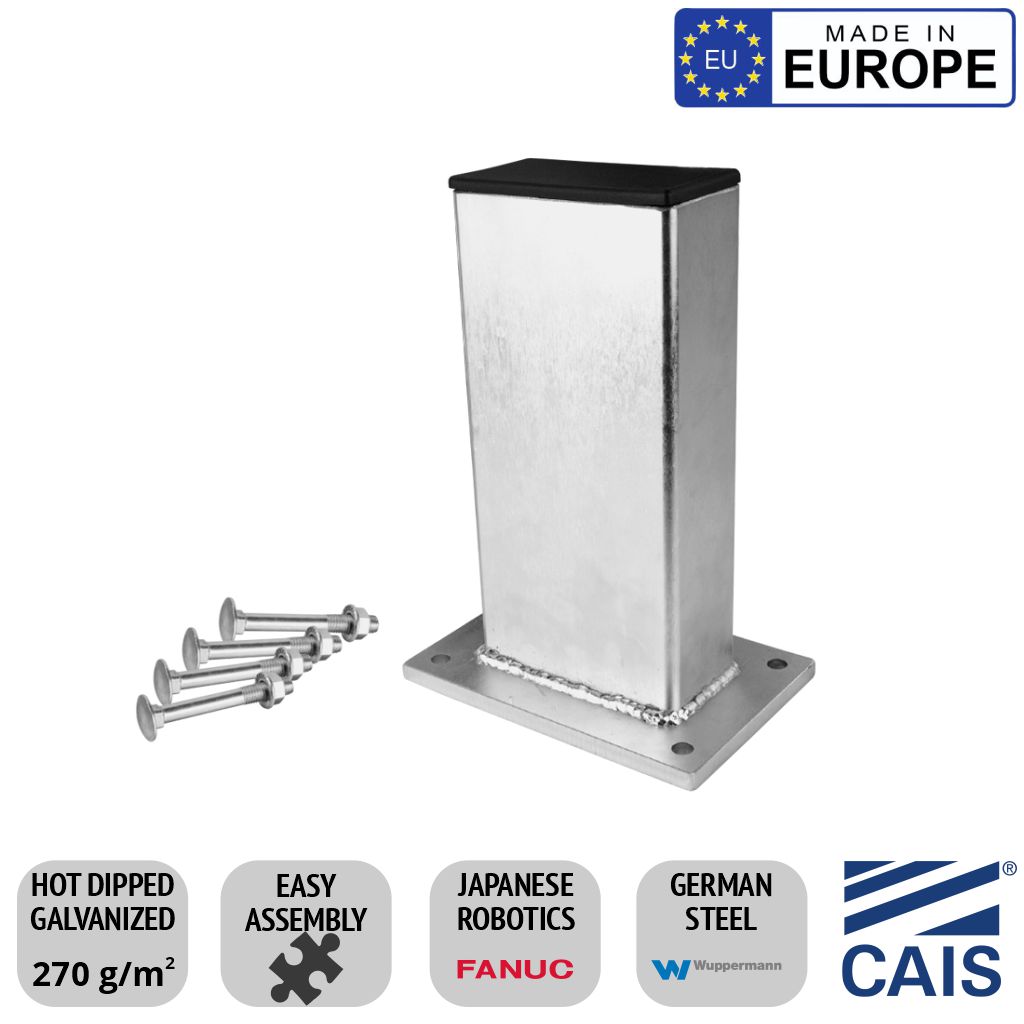

157mm End Stop for Cantilever Sliding Gates

The end stop supports the gate when fully open and closed.

End Stop For Cantilever Sliding Gate

Cantilever Gate Hardware Medium End Stop

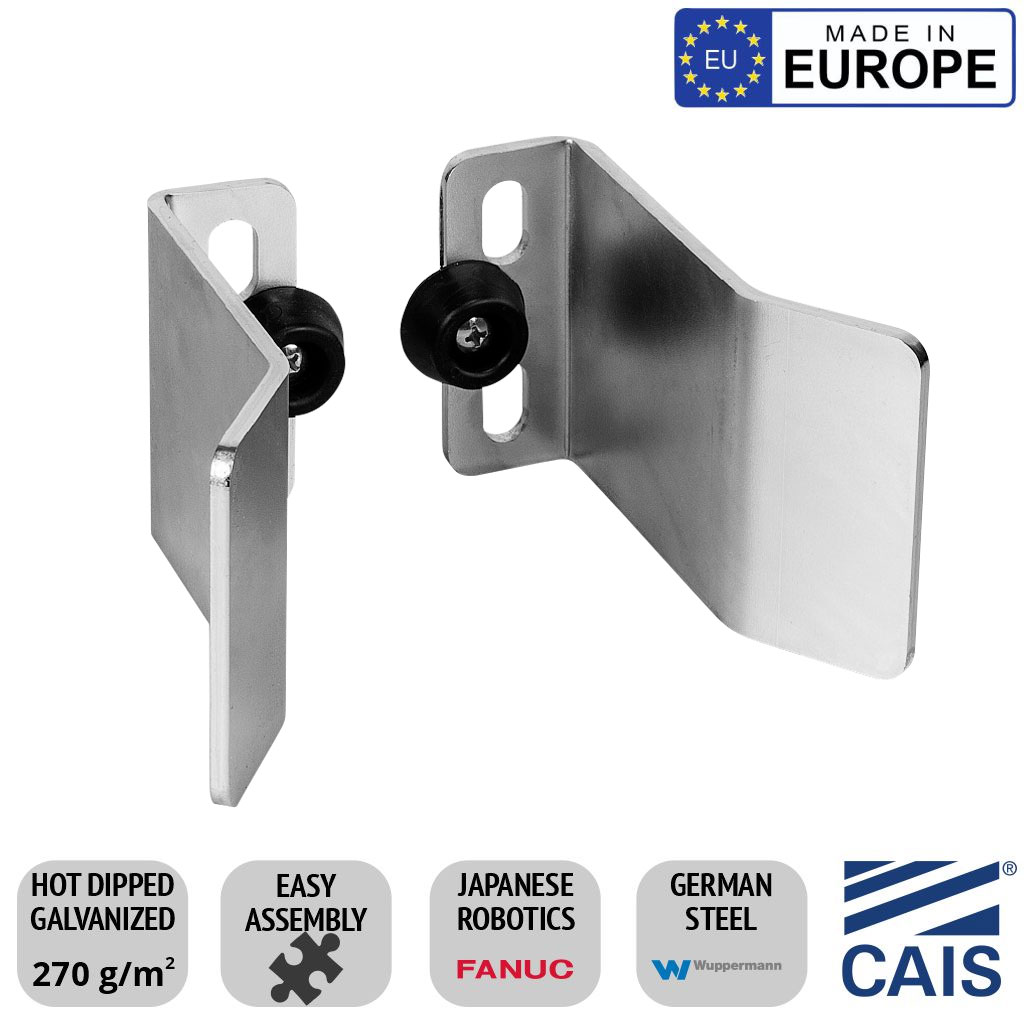

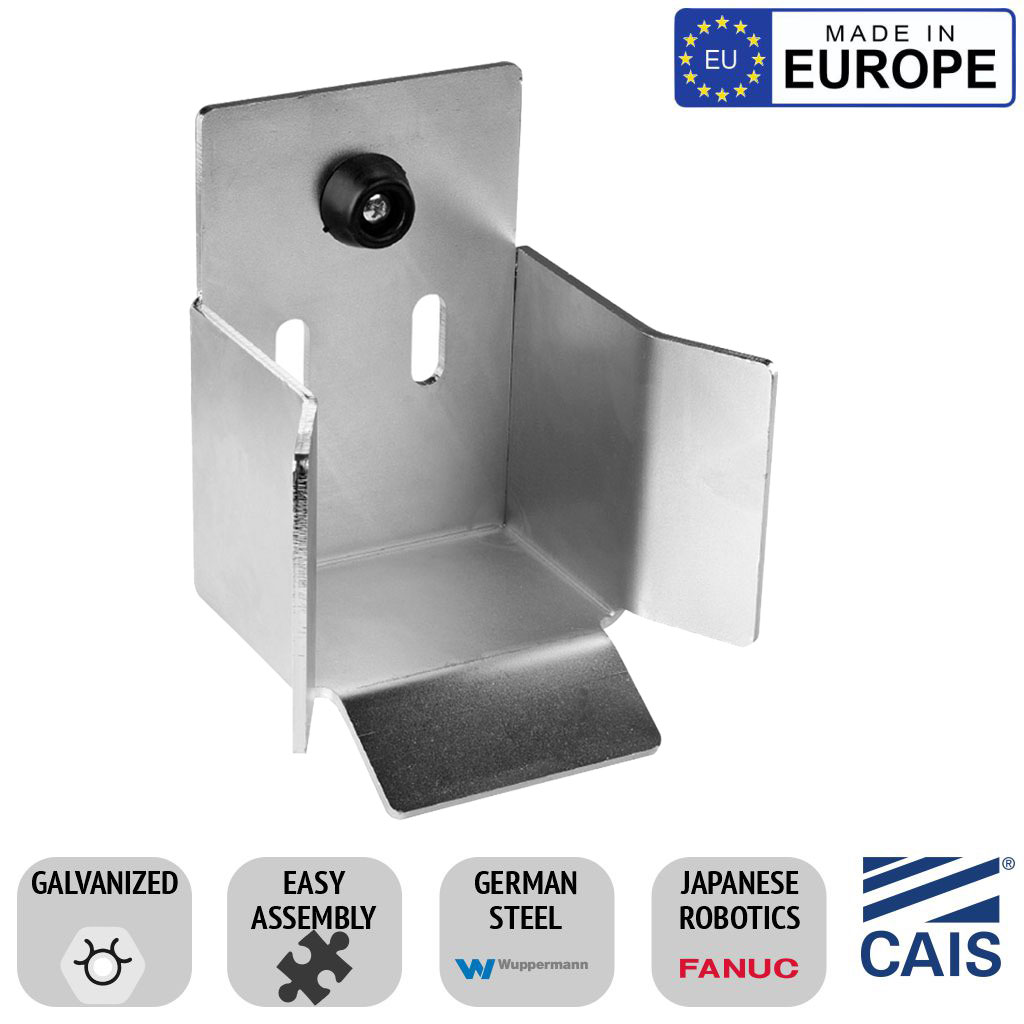

End Stop "CAIS PADDOCK SM" for Cantilever Gates

Galvanized steel end stop for cantilever gate.

"PADDOCK SM" Provides vertical stability to a cantilever gate in the closed position.

Material Body - S 235 JR, Bolt M 5x8 - DIN 7985, Rubber - TPE SANTOPRENE

Surface finish  ISO 19598 - Fe//Zn12//Cn//T2nL

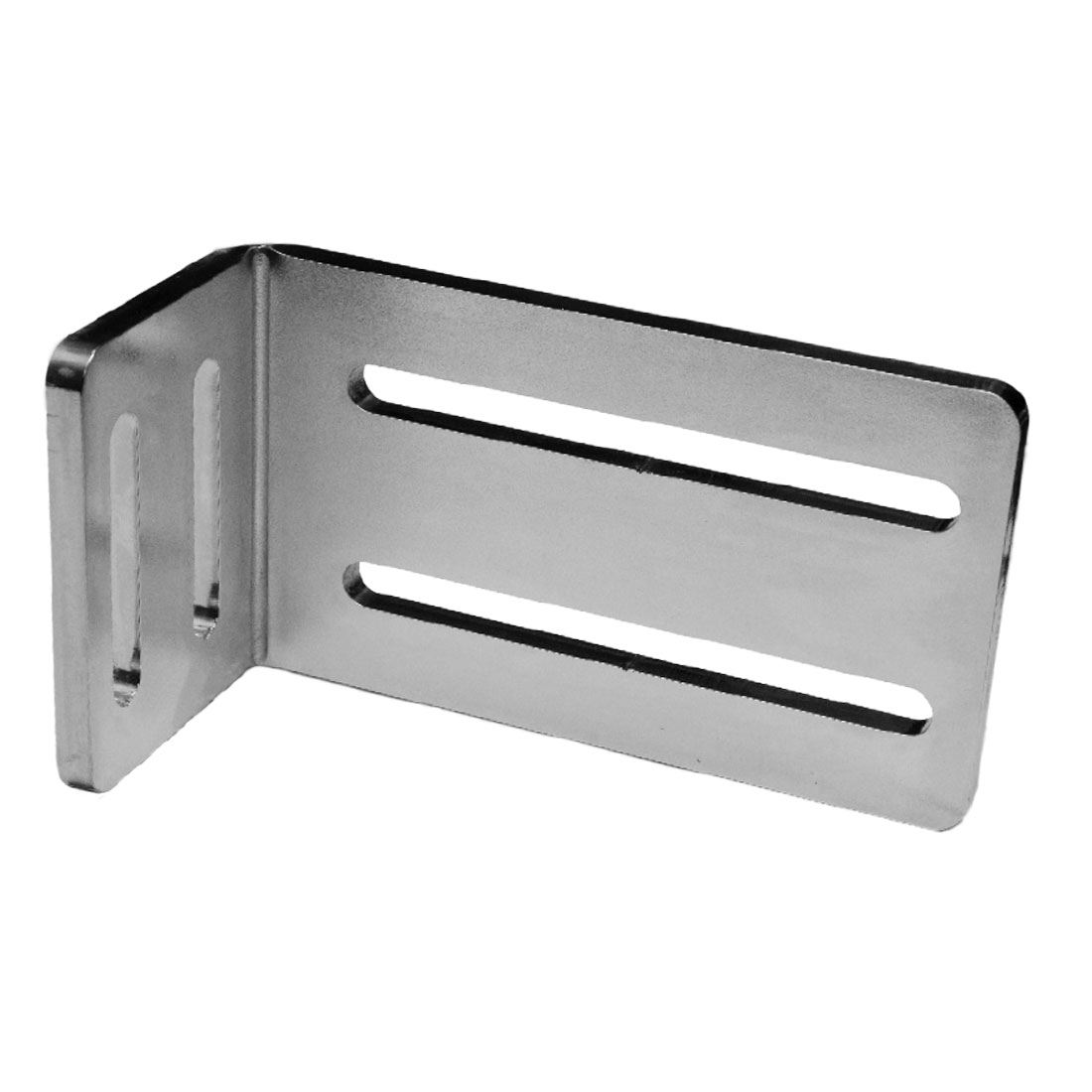

End Stop Bracket for Cantilever Sliding Gates

The end stop bracket supports the gate when it is fully open and fully closed.

End Stop Bracket For Cantilever Sliding Gate

Cantilever Gate Hardware End Stop Bracket

"C" Profile Guide For Cantilever Gate, 5mm Thickness, Hot Deeped Galvanized German Steel

"C" Profile Guide For Cantilever Sliding Gate, 5mm Hot Deepped Thickness, Galvanized German Steel

Steel "C" Profile Guide For Cantilever Sliding Gate

Enhanced design and superior products from Europe using high-quality German steel.

Formed from high-quality, heavily galvanized German steel in an 18-stage process with a slow rolling speed to reduce heat build-up and memory

• Holes at the track's top allow it to be easily bolted to an aluminium gate.
• The steel is sourced from the leading German company, Wumperman. It is galvanized after slitting so that there are no exposed raw steel edges that would otherwise quickly rust.
• The slow rolling process minimizes the tendency for the track to spring open where it is cut to length.

DIFFERENCE BETWEEN A CANTILEVER GATE AND A SLIDING GATE

The obvious benefit of choosing a cantilever sliding gate system is " no need to track"

Unlikly standard sliding gates, the cantilever sliding gate solution doesn't need a perfectly level or concrete flat surface and can deal with dirt or gravel driveway perfectly.

BENEFITS OF CANTILEVER GATES

• Perfect solution for sloped and/or non-concrete driveways
• Esthetic design, easy installation, no welding needed
• Long lasting durable hardware, silent and maintenance-free
• An effective way to improve security on your property

The Cantilever gate is a unique type of sliding gate, but with distinctive, interesting differences from your typical gate with wheels. One of the primary differences between a cantilever gate and a sliding gate is the location of the wheels that helps the gate move. A cantilever sliding gate rests and rolls on a wheel on the front bottom edge of the gate with a track supporting wheels on the back edge. In contrast, a cantilever gate is held above the ground, moving along rollers running along the top and inside of the fence, with wheels attached to a vertical concrete foundation.

CANTILEVER SLIDING GATE DESIGN and PERFORMANCE

Sliding gates have simpler and smaller operating mechanisms than cantilever gates, and as a result, wheel contact with the ground can make operation coarse and noisier than cantilever gates. Since cantilever gate wheels are off the ground, this style can span a wider range of terrain including gravel, grass, blocks, and uneven, angled, or steeply inclined surfaces. The absence of contact with the ground also allows cantilever gates to function easily in all weather conditions.

The smart appearance, efficient design, and craftsmanship in a cantilever gate are sure to impress owners, visitors, and customers visiting the property.

Cantilever gate designs are frequently used as no track work needs to be installed. This makes cantilever gates an option for surfaces that are inappropriate for track gates.

Cantilever gates have been designed to glide through the air rather than along tracks on the driveway and do not require any ground installation. Cantilever Sliding Gate All-In-One Systems are quicker and easier to install and have longer lifespans as they float through the air.

Cantilever gates aren’t only contemporary and modern in appearance, besides cantilever design automatic sliding gates are the ideal choice for anyone with uneven ground, paving that is organic in shape, and gravel driveways.
