Product SKU: MONOS4-4000-SOL-FGEK

Solar Powered Farm Gate Opener Essentials Kits with Entry and Exit Wireless Push Buttons, Long Distance Remote Control, 24V Solar Powered Brushless 100% Italian Made by Roger Technology MONOS4 for Swing Gate Automation and APC UNO Standalone Complete Solar Power System | Super Intensive Use, 100% Duty Cycle, Brushless Electric Gate Motor with Telescopic Arm | Max. 4.2m/450kg Opening Driveway Gate Leaf

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

2 YEAR WARRANTY
  • On Sale

Solar Powered Farm Gate Opener Essentials Kits with Entry and Exit Wireless Push Buttons, Long Distance Remote Control, 24V Solar Powered Brushless 100% Italian Made by Roger Technology MONOS4 for Swing Gate Automation and APC UNO Standalone Complete Solar Power System | Super Intensive Use, 100% Duty Cycle, Brushless Electric Gate Motor with Telescopic Arm | Max. 4.2m/450kg Opening Driveway Gate Leaf

Product SKU: MONOS4-4000-SOL-FGEK

  • In Stock

  • New
Get More Info..
Free Shipping Free Shipping

Kit Price:

$1,795.00 $1,973.00 APC Automotion Plus Sale

  • Or in 4 payment of $448.75 with afterpay info

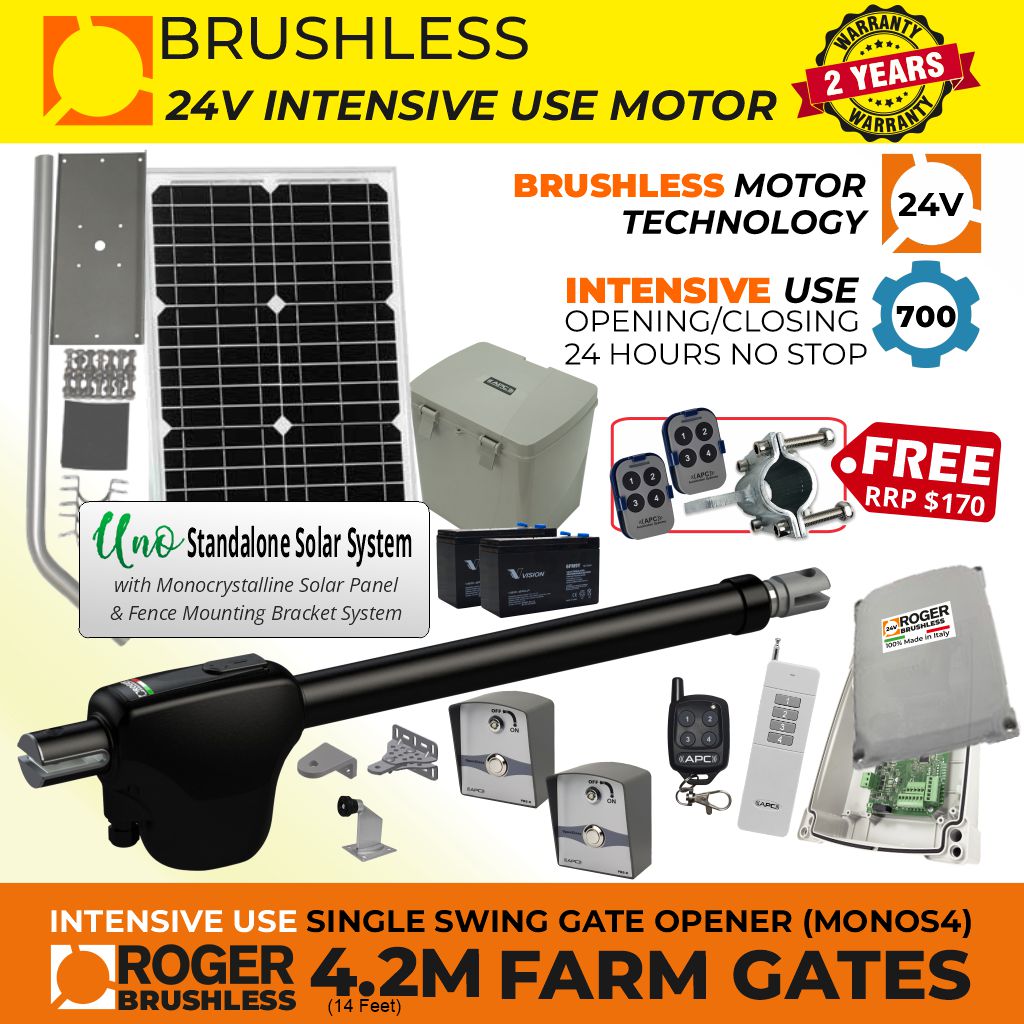

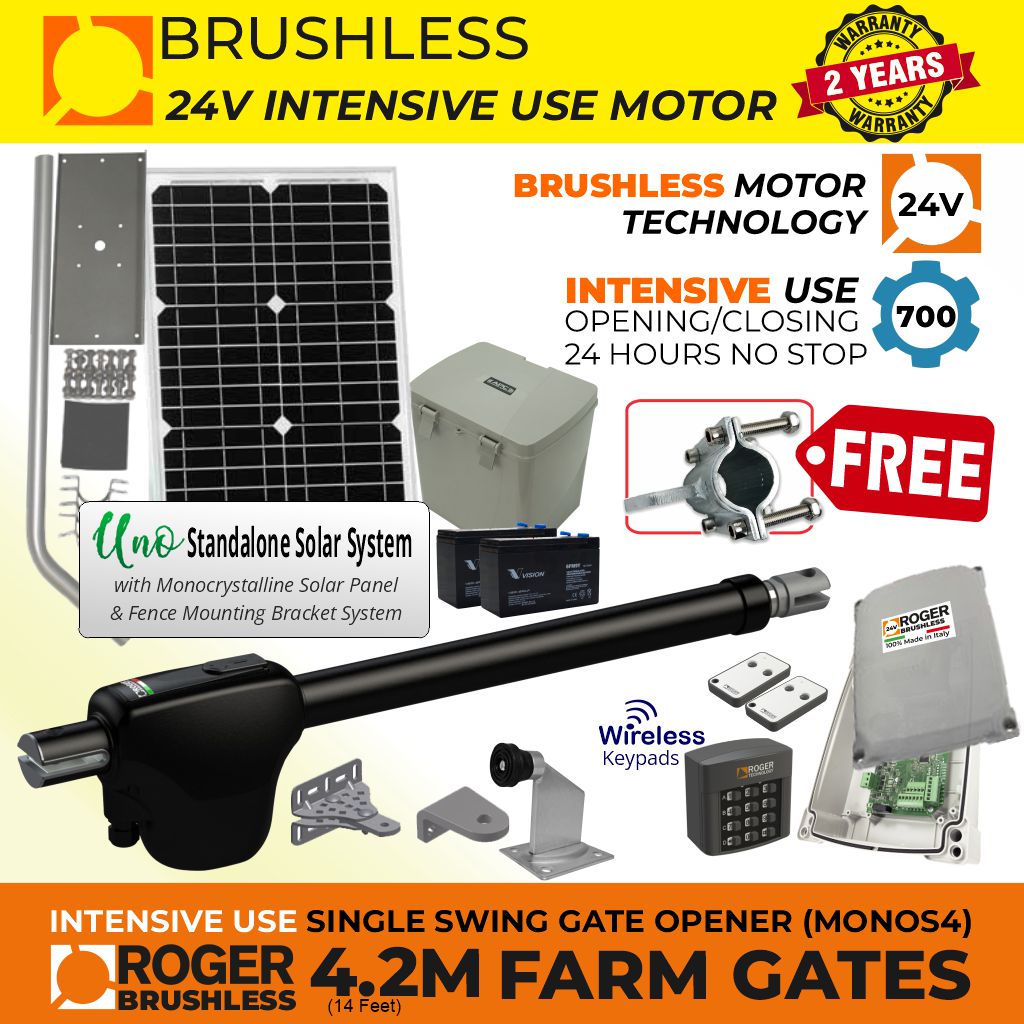

  • Solar Powered 24V Super Intensive Use Brushless Farm Gate Automotion System | Max. 4.2m/450kg Opening Driveway Gate Leaf

  • Kit Includes

    01 Roger Technology 24V Brushless Swing Gate Opener with Telescopic Arm | Super Intensive Use | 100% Italian Made by Roger Technology MONOS4 for Swing Gate Automation System. (QTY: 1)
    02 3m 3 Core Non-Shielded Cable (QTY: 1)
    03 B70/2ML Roger Technology 24V Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box. | 100% Italian Made | (QTY: 1)
    04 APC Four Button Keyring Remote (QTY: 1)
    05 APC Four Button Long Distance Remote (QTY: 1)
    06 APC Wireless Single Push Button Switch with Key Issolation (QTY: 2)
    07 APC Retro Reflective Safety Sensor - for gate opening system safety Retro Reflective Gate Sensor (QTY: 1)
    08 24v 20 Watts Solar Panel (QTY: 1)
    09 Solar Panel Fence Post & Bracket for APC 20 Watt Solar Panels (QTY: 1)
    10 APC Uno Multipurpose Battery Box (QTY: 1)
    11 APC Sun Power Series 12V/24V 10A PWM Solar Regulator (QTY: 1)
    12 9aH High Capacity Battery (QTY: 2)
    13 115mm High Bolt Down Galvanized Gate Stop (QTY: 1)
    14 Roger Technology FIVE YEAR Parts Warranty on Stator and Rotor of the Brushless Digital Motor and TWO YEAR Warranty on All Other Parts Including Electronics (Excluding consumables - remotes, batteries etc) (QTY: 1)
    15 FREE Farm Gate Bracket | Complete Adjustable Universal Galvanized Farm Gate Bracket System (QTY: 1)
    16 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order. (QTY: 2)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

BRUSHLESS 24V DC SWING GATE MOTOR with Telescopic Arm | 100% Italian Made by Roger Technology MONOS4 Super Intensive Use Gate Opener.

BRUSHLESS Swing Gate Opener Motor
100% Italian Made by Roger Technology MONOS4(Brushless Gate Motor) for Swing Gate Automation System.

Italian-Made Roger Technology Brushless Swing Gate Motor
| Max. 4.2M or 450KG Each Leaf | Super Intensive Use |

100% Duty Cycle Brushless Engine With Telescopic Arm

Electromechanical actuator BRUSHLESS, low voltage, super intensive use, with native encoder onboard, ideal for swing gates with leaf up to 4.2m length, with telescopic arm with farm gate bracket system.



Actuator Overview | Brushless Gate Motor for Swing Gate Automation System

Extra Heavy Duty Single Gate Opener



Dimensions and System Capacity | MONOS4 Brushless Gate Motor for Swing Gate Automation System

 All measurements are expressed in mm.

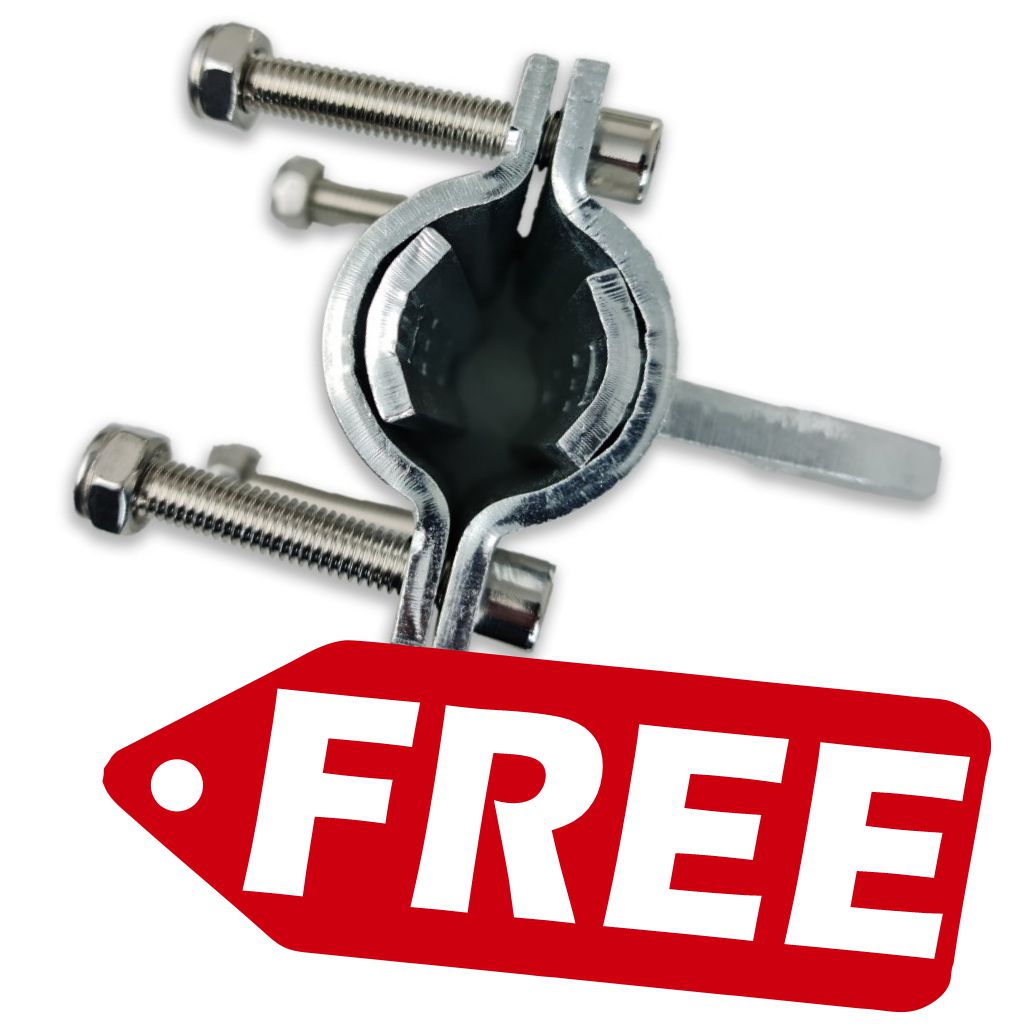

Farm Gate Bracket

  • The farm gate bracket will work on ANY round tube gate design, 32mm direct fit and 25mm using the supplied tube reducers
  • 8mm tongue thickness
  • 9mm connection hole for automation connection, which can be drilled up to 25mm without any negative affect
  • Suitable for any gate automation system

Installation Geometry | Swing Gate Automation Brushless Gate Motor

 All measurements are expressed in mm.



Technical Specifications

Power line supply:    230V AC - 50Hz
Motor power supply:    24V
Power rating:    200W
Frequency of use:    Intensive use
Thrust:    2200N
Operating temperature:    -20 C° +55 C°
Protection level:    IP44
Manoeuvre speed:    2,10 cm/s
Opening time:    19-35 s
Stroke:    400 mm
Encoder:    Digital native encoder SENSORLESS 48 PPR
Operating cycles per day (opening/closing - 24 hours, no stop):    700
Maximum dimension product in mm (L x W x H):    1223 x 178 x 111





Roger Technology 24V Swing Gate Digital Control Board
for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made | B70/2ML/BOX |

The Roger Technology 24V B70/2ML/BOX Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made |

The 24V B70/2ML control unit controls 1 or 2 ROGER brushless motors in sensorless mode for applications on medium-sized gate leaves.

The control board is protected with a cover to avoid insect damage (the most significant cause of control board failure in Australia).



Technical Features



Power line supply:    230V AC - 50 Hz
Operating temperature:    -10+55 C°
Protection level:    IP54
N. motors activated:    2 Brushless motor
Max power per motor:    110W
Max courtesy light charge:    100W 230V AC - 40W 24V AC/DC
Max power gate open light:    3W (24V DC)
Max voltage accessories output:    10W (24V DC)
Electrical-Lock max power:    15W (12V DC)
Flashlight voltage:    24V DC
Max flashing light charge:    25W
Battery:    Optional
Maximum dimension product in mm (L x W x H):    330 x 230 x 115

Control Board Overview



Accessories Compatibility and Controlling Options

  • Constant DC Accessories Output
  • Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
  • Remote controls
  • Induction Loops
  • Weekly Timers
  • Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
  • Keypads (Wired and Wireless Options Available)
  • Exit/entry sensors
  • Intercom system with dry contact output
  • Automatic switching timer
  • WiFi Control System (App-Based Control)
  • GSM Control Systems (Mobile Call/SMS-based Control)





 24V 20 Watt Solar Panel
24V 20 Watt Solar Panel

The SP-24V-20 is a 20 Watt, 24 Volt solar panel, and will provide enough power to trickle charge a 24V vehicle or deep cycle battery. Helps run pumps, lights, fans, and small appliances such as stereos, televisions and VCRs in caravans, boats or cabins.

A heavy-duty anodized aluminium frame provides strength and convenient mounting access. Cells are laminated between high transmissivity, low-iron, 3mm tempered glass and sheet of tedlar-polyester-tedlar (TPT) material by two sheets of ethylene Vinyl acetate (EVA). This protects against moisture penetrating into the module.

24V 20 Watt Solar Panel

Open Circuit Voltage 42.48V
Optimum Operating Voltage 36V
Short Circuit Current 0.61A
Optimum Operating Current 0.55A
Dimensions 640 x 300 x 25MM
Cells Mono Crystalline







Solar Panel Post & Bracket for APC 20 Watt Solar Panel


This solar panel post & bracket set is suitable for the APC 10 watt and 20 watt solar panels.



24V 20 Watt Solar Panel

Kit Contents

24V 20 Watt Solar Panel
- Solar Panel Mounting Post
- Solar Panel Mounting Plate
- Nuts, Bolts and Washers
- Saddle Clamps
- Rubber Pad



APC Uno Standalone Solar System

The APC Uno is an articulate all in one design allowing for clean and secure housing the APC Sun Power Solar Regulator and multiple batteries.

Key Features:

  • APC Sun power Regulator Built In
  • Sleek contoured design
  • Cable management entries for a clean installation
  • Subtle grey to suit all installation environments
  • Heavy duty 5mm galvanized 6 hole mounting plate Supports multiple mounting surfaces (piers, posts, walls etc.)
  • Easy to access with the tool free clip lock system
  • Can be secured with a small padlock
  • Four output glands allowing for completely weatherproof entry/exit of cables up to 9mm OD each

Dimensions

Outer Dimensions

Height 205mm (Including cable glands) 180mm Without
Width 180mm
Depth 249mm Including Mounting bracket, 210mm without

Clear Inner Dimensions

Height 140mm
Width 165mm
Depth 170mm

Typical Configuration

Extra Heavy Duty Single Gate Opener



At a glance

  • 12-24V Compatible
  • LITHIUM Battery Compatible
  • Easy to use LCD Interface
  • Compatible with Most Batteries
  • 32 Bit Micro Controller
  • Extra Large Wiring Terminals
  • 12 Stages of Protection including short circuit, temperature, over and undercharge etc.
  • Metal Heat sink
  • USB Output



In Depth



apc sun power

apc sun power

Automatic Voltage Selection

The APC Sun Power System can automatically detect the batteries voltage and set itself into the appropriate charging mode of 12V or 24V.

Multiple Battery Modes

The APC Sun Power can be set to to be used with Sealed lead acid, flooded batteries, gel batteries and even Lithium Batteries.

Overcharge and Discharging

The APC Sun Power systems built in temperature sensor will automatically adjust the charging voltage to best suit the environment and as a result a 30% increase in battery lifetime can be expected. Furthermore if the ambient temperature within the enclosure it is installed within exceeds 85° Celsius the Sun Power system will automatically turn off.

Overload and Short Circuit Protection

The APC Sun Power load output will automatically switch off once the load output exceeds 10 Amps (or short circuit) and auto re -try after 30 seconds.

Reverse Polarity Protection

In case of an installation error the Sun Power solar regulator will not be damaged by incorrect polarity on the solar connection or the battery connection.

USB Output Terminals

The Sun Power Series has Two built in USB terminals, each USB terminal is rated to 5V 1A and can be used to operate low current USB devices such as USB powered speakers, tablet and mobile phone charging, warmers, fans etc.

Heavy Duty Design

Built to be last and be used in duty applications the Sun Power System not only offers a powder coated steel heat sink backing plate to keep the controller cool in all charging conditions but also has extra large 10mm wire terminals allowing for use with heavy duty cabling, large bootlace crimps or multiple wires per terminal.

Specifications

System Voltage 12V/24V DC auto
PV Max Input Voltage 55V
Self-consumption 10mA
Max Charging current 10A
Max Discharging current 10A
Battery type Sealed(Default)/Gel/Flood/Lithium
LVD 11.0V ADJ 9V...12V ; x2/24V
LVR 12.6V ADJ 11V...13.5V ;x2/24V
Float Voltage 13.8V ADJ 13V... 15V ; x2/24V
Boost Voltage 14.4V ADJ 13V...17V ;x2/24
battery voltage less than 12.6v auto boost 2hours
Battery Over Voltage 16.5V ; x2/24V
Reverse Connection Protection Yes
Load Over Current Protection Yes, each 30s auto restart again
Controller Over Temperature Yes
USB Output 5VDC/1A 2PCS
Charging Type PWM
Charge circuit voltage drop <=0.25V
Discharge circuit voltage drop <=0.1V
Temperature Consumption#  For 12V system:-24mV /°C ; x2/24V
Relative humidity ≤95%, N.C.
Working Temperature -20°C~+55deg;C(Product can work continuously at full load)
LCD temperature range -20°C~+70°C
Waterproof grade IP32
Mounting hole size Φ5mm
Terminals 10mm²/8AWG
Weight 245g
Overall dimension(mm) 190×108×41.5

Galvanized Gate Stop






  • Galvanized steel construction for long life outdoor use

  • 115mm Height

  • 40mm Rubber bumper

  • Solid 100x80mm base

  • Pre-punched 10mm fixing holes



Long Distance Remote







The APC-RC450S Long range remote is capable of achieving operating distances of up to 400 metres, coupled with the add on booster antenna it can reach up to 800 metres. With these distances you can operate the gate system from around the property, at the home or from the workshop. Multiple long range remotes can be used on the one system.



APC Automation Systems FOUR Button Keyring Remote Control





  • Featuring High-Security rolling codes transmitting a unique code chosen at random
  • Slim design
  • Keyring Clip-on System
  • Compatible with APC RX2 Two Channel Receiver
  • Completely Backwards Compatible with all legacy APC control boards


Wireless Push Button with Isolation Key







The wireless push button switch is a simple and easy to use method to operate the gate. It is mounted in the general area of the gate and can be isolated by using the supplied keys without affecting the rest of the system, this is handy if you want to continue using the remotes or any other method of operation but wish to stop use of the push button itself.

The push button can be used for over 50 metres in operating distance.

Your Customised Kit Includes:

No Changes.
        • Kit Quantity:
          • 1
        • Your (Kit and Add-On) Price:

          $1,795.00
