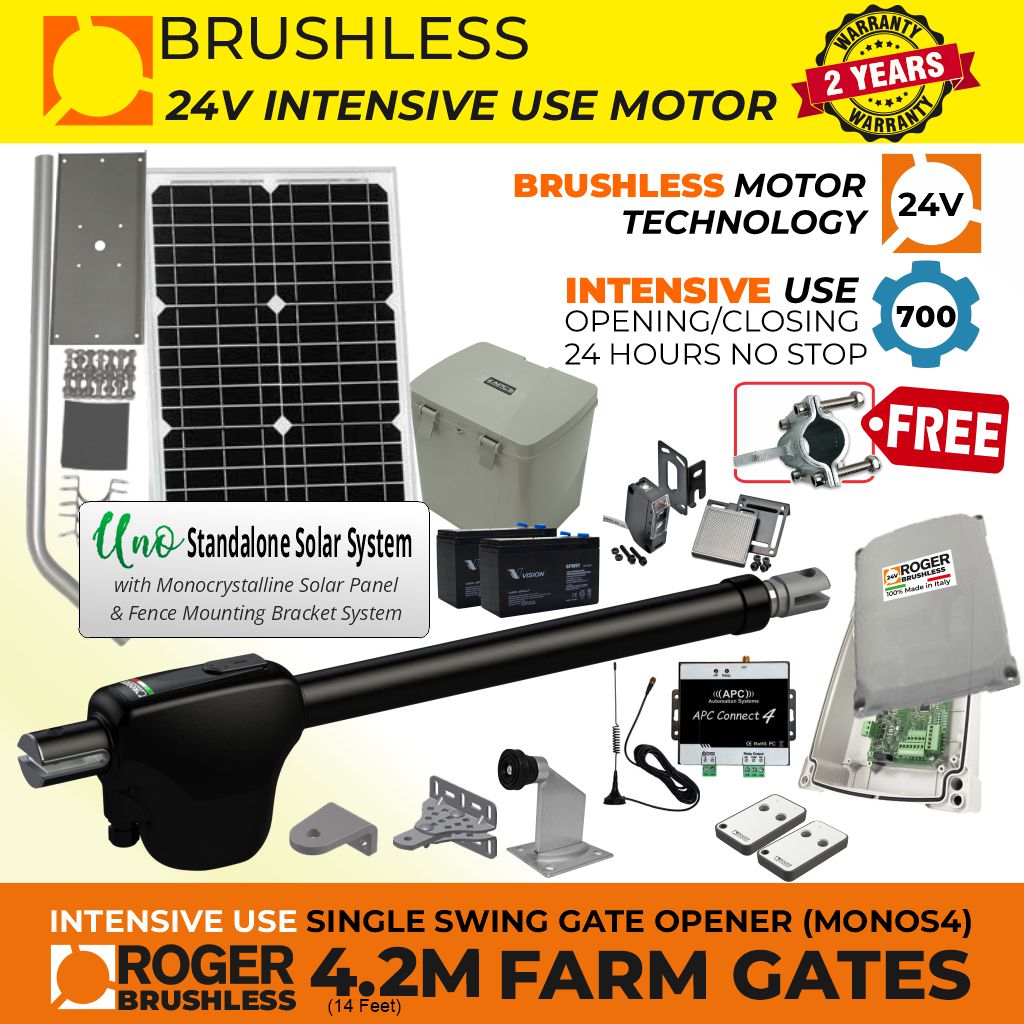

Brushless Farm Gate Opener 4G GSM Kit with Retro Reflective Safety Sensor, 4G Network Receiver (4G/VoLTE Compatible), 24V Solar Powered Brushless 100% Italian Made by Roger Technology MONOS4 for Swing Gate Automation and APC UNO Standalone Complete Solar Power System | Super Intensive Use, 100% Duty Cycle, Brushless Electric Gate Motor with Telescopic Arm | Max. 4.2m(14 Feet)/450kg Opening Driveway Gate Leaf

BRUSHLESS 24V DC SWING GATE MOTOR with Telescopic Arm | 100% Italian Made by Roger Technology MONOS4 Super Intensive Use Gate Opener.

BRUSHLESS Swing Gate Opener Motor
100% Italian Made by Roger Technology MONOS4(Brushless Gate Motor) for Swing Gate Automation System.

Italian-Made Roger Technology Brushless Swing Gate Motor
| Max. 4.2M or 450KG Each Leaf | Super Intensive Use |

100% Duty Cycle Brushless Engine With Telescopic Arm

Electromechanical actuator BRUSHLESS, low voltage, super intensive use, with native encoder onboard, ideal for swing gates with leaf up to 4.2m length, with telescopic arm with farm gate bracket system.

Actuator Overview | Brushless Gate Motor for Swing Gate Automation System

Dimensions and System Capacity | MONOS4 Brushless Gate Motor for Swing Gate Automation System

 All measurements are expressed in mm.

Farm Gate Bracket

• The farm gate bracket will work on ANY round tube gate design, 32mm direct fit and 25mm using the supplied tube reducers
• 8mm tongue thickness
• 9mm connection hole for automation connection, which can be drilled up to 25mm without any negative affect
• Suitable for any gate automation system

Installation Geometry | Swing Gate Automation Brushless Gate Motor

 All measurements are expressed in mm.

Technical Specifications

Roger Technology 24V Swing Gate Digital Control Board
for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made | B70/2ML/BOX |

The Roger Technology 24V B70/2ML/BOX Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made |

The 24V B70/2ML control unit controls 1 or 2 ROGER brushless motors in sensorless mode for applications on medium-sized gate leaves.

The control board is protected with a cover to avoid insect damage (the most significant cause of control board failure in Australia).

Technical Features

Control Board Overview

Accessories Compatibility and Controlling Options

• Constant DC Accessories Output
• Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
• Remote controls
• Induction Loops
• Weekly Timers
• Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
• Keypads (Wired and Wireless Options Available)
• Exit/entry sensors
• Intercom system with dry contact output
• Automatic switching timer
• WiFi Control System (App-Based Control)
• GSM Control Systems (Mobile Call/SMS-based Control)

24V 20 Watt Solar Panel
The SP-24V-20 is a 20 Watt, 24 Volt solar panel, and will provide enough power to trickle charge a 24V vehicle or deep cycle battery. Helps run pumps, lights, fans, and small appliances such as stereos, televisions and VCRs in caravans, boats or cabins. A heavy-duty anodized aluminium frame provides strength and convenient mounting access. Cells are laminated between high transmissivity, low-iron, 3mm tempered glass and sheet of tedlar-polyester-tedlar (TPT) material by two sheets of ethylene Vinyl acetate (EVA). This protects against moisture penetrating into the module.
Open Circuit Voltage 42.48V Optimum Operating Voltage 36V Short Circuit Current 0.61A Optimum Operating Current 0.55A Dimensions 640 x 300 x 25MM Cells Mono Crystalline

Solar Panel Post & Bracket for APC 20 Watt Solar Panel
This solar panel post & bracket set is suitable for the APC 10 watt and 20 watt solar panels.
Kit Contents
	- Solar Panel Mounting Post - Solar Panel Mounting Plate - Nuts, Bolts and Washers - Saddle Clamps - Rubber Pad

APC Uno Standalone Solar System

The APC Uno is an articulate all in one design allowing for clean and secure housing the APC Sun Power Solar Regulator and multiple batteries.

Key Features:

• APC Sun power Regulator Built In
• Sleek contoured design
• Cable management entries for a clean installation
• Subtle grey to suit all installation environments
• Heavy duty 5mm galvanized 6 hole mounting plate Supports multiple mounting surfaces (piers, posts, walls etc.)
• Easy to access with the tool free clip lock system
• Can be secured with a small padlock
• Four output glands allowing for completely weatherproof entry/exit of cables up to 9mm OD each

Dimensions

Outer Dimensions

Clear Inner Dimensions

Typical Configuration

At a glance

• 12-24V Compatible
• LITHIUM Battery Compatible
• Easy to use LCD Interface
• Compatible with Most Batteries
• 32 Bit Micro Controller
• Extra Large Wiring Terminals
• 12 Stages of Protection including short circuit, temperature, over and undercharge etc.
• Metal Heat sink
• USB Output

In Depth

Automatic Voltage Selection

The APC Sun Power System can automatically detect the batteries voltage and set itself into the appropriate charging mode of 12V or 24V.

Multiple Battery Modes

The APC Sun Power can be set to to be used with Sealed lead acid, flooded batteries, gel batteries and even Lithium Batteries.

Overcharge and Discharging

The APC Sun Power systems built in temperature sensor will automatically adjust the charging voltage to best suit the environment and as a result a 30% increase in battery lifetime can be expected. Furthermore if the ambient temperature within the enclosure it is installed within exceeds 85° Celsius the Sun Power system will automatically turn off.

Overload and Short Circuit Protection

The APC Sun Power load output will automatically switch off once the load output exceeds 10 Amps (or short circuit) and auto re -try after 30 seconds.

Reverse Polarity Protection

In case of an installation error the Sun Power solar regulator will not be damaged by incorrect polarity on the solar connection or the battery connection.

USB Output Terminals

The Sun Power Series has Two built in USB terminals, each USB terminal is rated to 5V 1A and can be used to operate low current USB devices such as USB powered speakers, tablet and mobile phone charging, warmers, fans etc.

Heavy Duty Design

Built to be last and be used in duty applications the Sun Power System not only offers a powder coated steel heat sink backing plate to keep the controller cool in all charging conditions but also has extra large 10mm wire terminals allowing for use with heavy duty cabling, large bootlace crimps or multiple wires per terminal.

Specifications

Galvanized Gate Stop



• Galvanized steel construction for long life outdoor use


• 115mm Height


• 40mm Rubber bumper


• Solid 100x80mm base


• Pre-punched 10mm fixing holes

Long Distance Remote

The APC-RC450S Long range remote is capable of achieving operating distances of up to 400 metres, coupled with the add on booster antenna it can reach up to 800 metres. With these distances you can operate the gate system from around the property, at the home or from the workshop. Multiple long range remotes can be used on the one system.

APC Automation Systems FOUR Button Keyring Remote Control



• Featuring High-Security rolling codes transmitting a unique code chosen at random
• Slim design
• Keyring Clip-on System
• Compatible with APC RX2 Two Channel Receiver
• Completely Backwards Compatible with all legacy APC control boards



APC-RR-11 Retro Reflective Sensor

The retro-reflective Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

The sensor ( which is the transmitter and receiver) is wired back to the control box of the gate system using the pre-connected cable. There is no requirement for wiring across the driveway using this type of sensor.


• Up to 11 Metres Infrared beam operating distance


• Only powers on when the command is given to close the gates


• Alignment & Misalignment led to assist in the installation process


• Resin filled for the ultimate weatherproofing

APC 4G Network Reciever (4G/VoLTE Compatible) GSM Controller, GSM Switch
4G/VoLTE Compatible GSM Remote Control Single Relay for Automatic Gate Opener Systems



APC Connect 4 V | 4G/VoLTE Compatible GSM Controller, GSM Switch

The APC Connect 4 V will allow all programmed users to ring the device from anywhere, at any time, with the ability to toggle the connected device to operate. If desired, the unit can also be set to public mode so that any telephone number to call can toggle the operation.

The administrator/installer can easily adjust the method of operation and toggle from the system features by sending simple SMS commands from their mobile phone.



(4G/VoLTE GSM Controller, GSM Switch) How does it work:

1. An active SIM card must be installed on the device. Using the sim card in this device will not incur more than the cost of keeping it active if you turn off alerts, but the sim card needs to be active and able to receive incoming calls).
2. The device is then wired to the relevant system that needs to be operated, and up to 200 users can be programmed through quick SMS commands.
3. When any of these programmed numbers ring the device, it will ring once, reject the call, and proceed to open/close the system. The device can be dialled from anywhere at any time by any programmed user.



Prerequisites:

An active SIM card with good to excellent mobile coverage in the area where Connect 4 V will be installed is required. The SIM card cannot be a data SIM and must have an active telephone number.

The SIM card's voicemail feature must be disabled. The service provider (Telstra, Optus, Vodafone, Aldi, etc.) can do this for you.

A voltage Supply to power the device. It has a high compatibility of 9-24V DC (Any APC Gate Automation System can power this GSM unit)

Note: If your system cannot supply the required voltage, three solutions are available at an extra cost.

a) A power adapter 24VDC (PP-24) or 12VDC (PP-12) can be supplied.

• 24V Adapter. Click here for more information
• 12V Adapter. Click here for more information

b) A power convertor (APC-PC12) to transform a voltage source in AC/DC 16-28V to a 12V DC output.

• Power Converter: Click here for more information.

Features: (4G/VoLTE Network GSM Controller, GSM Switch)

• 4G Access Control Device, which is VoLTE-capable
• OPEN/CLOSE or turn ON/OFF access control systems, automatic gate systems, machines, and more.
• Ring the system from anywhere in the world.
• PRIVATE MODE: Caller ID is used for verification, but unknown numbers are ignored.
• PUBLIC MODE: Any call or SMS can operate the system
• Up to 200 authorized phone numbers can be configured simultaneously.
• SMS confirmation to an authorized phone number or master user when the system is triggered to OPEN/CLOSE or turn ON/OFF.
• Easy to configure the device by SMS.

Specifications

Quick Reference Diagrams of 4G/VoLTE Network GSM Controller, GSM Switch

What is 4G/VoLTE?

Voice over LTE (VoLTE) is an LTE high-speed wireless communication standard for voice calls and SMS using mobile phones and data terminals.

Voice over LTE (VoLTE) lets you make clearer phone calls over 4G (LTE) networks. Mobile network operators are beginning to shut down their 3G networks, so VoLTE will be needed to keep your mobile network access control device operating.

What is Required for Devices To Be 4G/VoLTE Compatible?

To use VoLTE, you will need a 4G device that is VoLTE-capable and compatible with the required technology and bands.

The APC Connect4 V 4G access control device is VoLTE-capable and can operate in the following bands/frequencies:

Band: B1/B2/B3/B4/B5/B7/B8/B28/B40
Frequency: 850/900/1800/1900MHZ (4G/VoLTE Compatible)

Package Contents

• 1 x APC-Connect 4 V (4G/VoLTE Compatible)
• 1 x Antenna
• 1 x Installation Manual
