Product SKU: TWIN DRIVE 3.0-BE20-6M

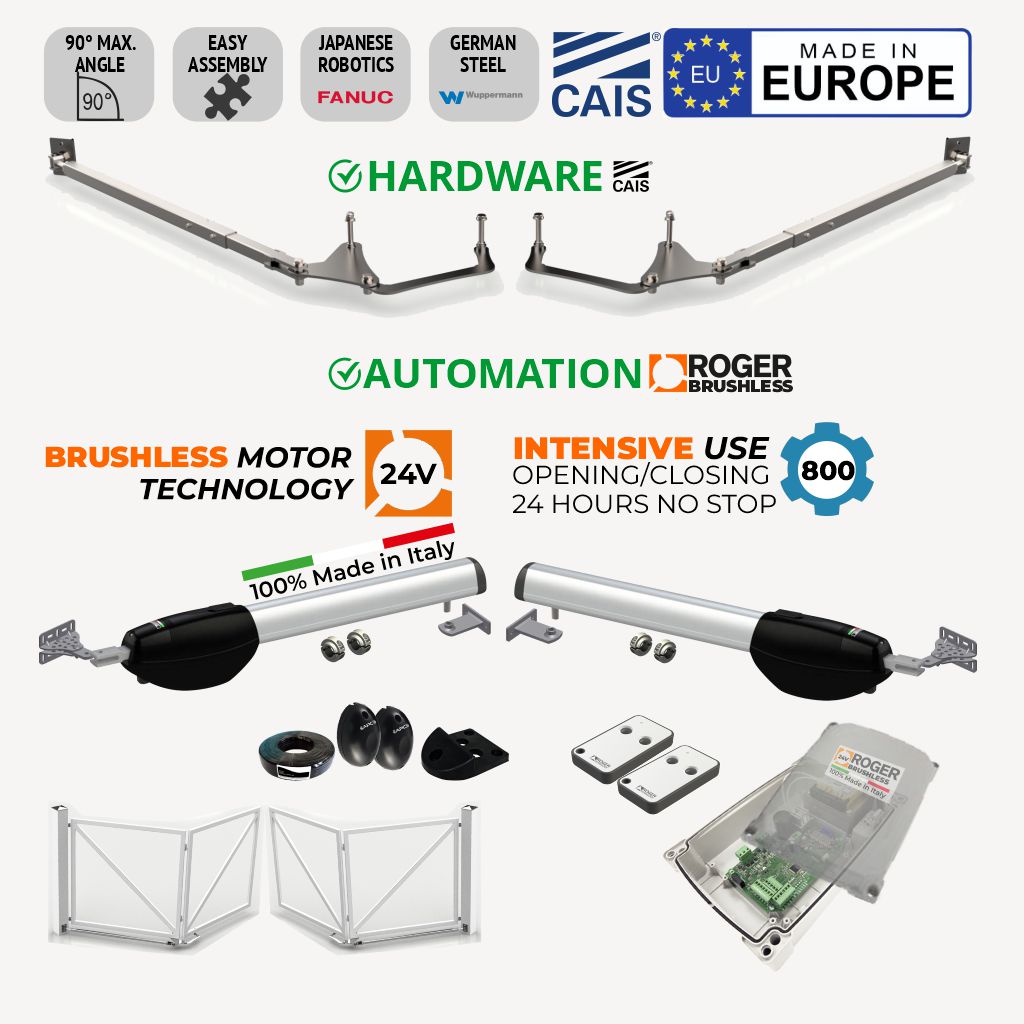

Bi-folding Space-Saving Feature Double Swing Gate Hardware (CAIS) with 24V Brushless Gate Automation Kit 100% Italian Made by Roger Technology | (Gates are not included.)

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

  • On Sale

Bi-folding Space-Saving Feature Double Swing Gate Hardware (CAIS) with 24V Brushless Gate Automation Kit 100% Italian Made by Roger Technology | (Gates are not included.)

Product SKU: TWIN DRIVE 3.0-BE20-6M

  • In Stock

  • New
Get More Info..
Free Shipping Free Shipping

Kit Price:

$3,689.00 $3,789.00 APC Automotion Plus Sale

  • Bi-Folding Gate Hardware, Central Hinges Included, for Single Leaf Max Lenght 3m, Max Weight 110kg, Max Height 2m

  • Kit Includes

    01 Bi-folding Gate Hardware for Single Swing Gate Leafs, Space-Saving Feature | CAIS TWIN DRIVE 3.0 Trackless Bi-folding Swing Gate Hardware (QTY: 2)

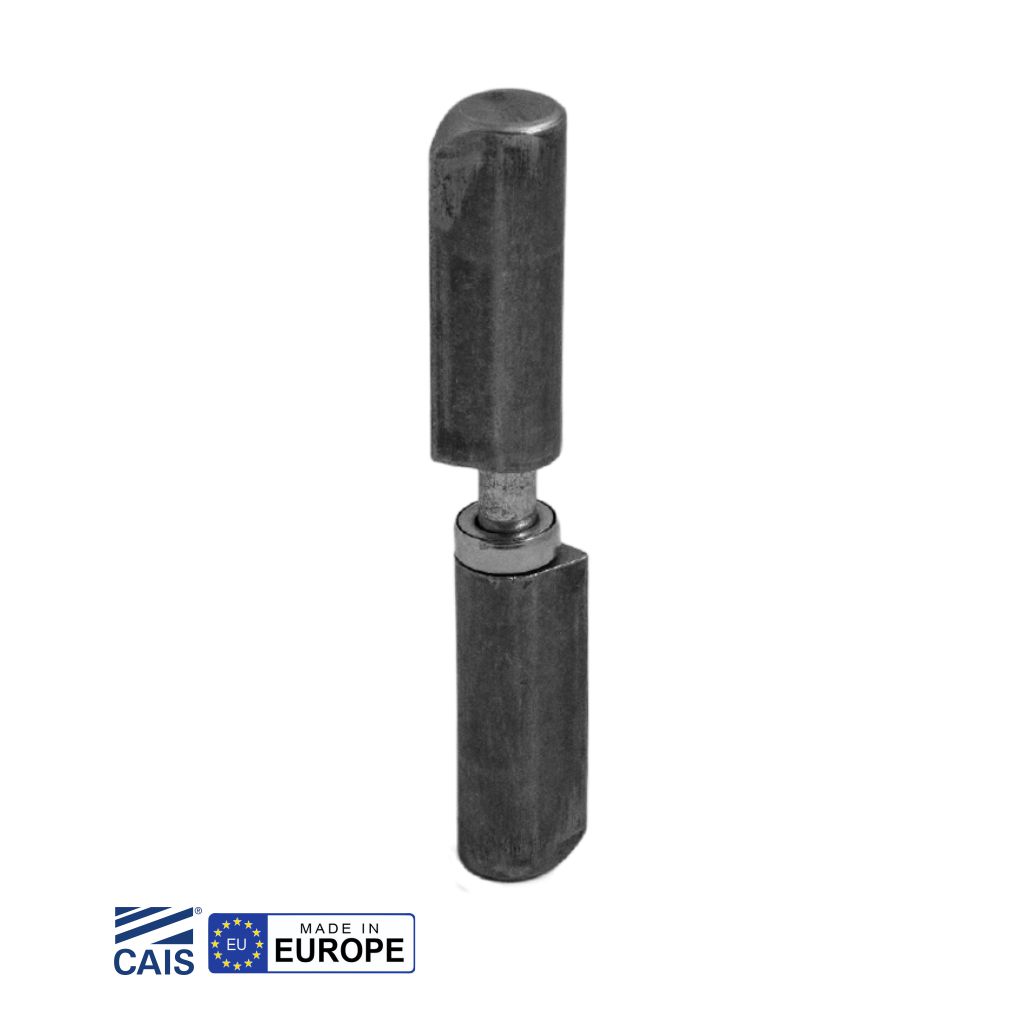

    02 Bullet Hinges (Weld-On / Weld-On) with Bearing Washer Steel Pin for Swing Gates, Bi-Fold Driveway Gates, Made in Europe | CAIS HTW-140 Gate Hinge with Heavy-Duty Bearing Washer and Steel Pin (QTY: 4)
    03 24V Brushless Gate Motor for Automatic Swing Gates | 100% Italian Made by Roger Technology BE/200 Series Gate Automation System (QTY: 2)
    04 B70/2ML Roger Technology 24V Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box. | 100% Italian Made | (QTY: 1)
    05 Standard AC/DC Powered (Upgrade Option Below for 24V LV External Transformer) (QTY: 1)
    06 Roger Technology Two-Button Remote Control (QTY: 2)
    07 10m 3 Core Non-Shielded Cable (QTY: 1)
    08 65mm High Centre Driveway Rubber Gate Stop with Steel Base (QTY: 1)
    09 Gate Sensor | APC Photoelectric Gate Safety Sensor - Safety Beam Infrared Photocell Gate Sensor Detector (QTY: 1)
    10 10m 4 Core Non Shielded Cable (QTY: 1)
    11 Roger Technology FIVE YEAR Parts Warranty on Stator and Rotor of the Brushless Digital Motor and TWO YEAR Warranty on All Other Parts Including Electronics (Excluding consumables - remotes) (QTY: 1)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Bi-Folding Double Swing Gate Hardware (Central Hinges Included)

For Single Leaf

  • Max Lenght 3m,
  • Max Height 2m,
  • Max Weight 110kg,

Gates are not included.



Trackless Bi-Folding Driveways Swing Gate Hardware, Space-Saving Feature, All-In-One Box

FREE UP EXTRA SPACE

A traditional type swing-gate use up to 100% more backspace in its opening and closing if compared with bi-folding swing gates. Meaning that the standard space taken up by a conventional swing gate will be free to utilise in some other way. The CAIS TWIN DRIVE bi-folding hardware is particularly useful in places where space is at a premium, such as urban areas with high population density. The traditional swinging gate will take up valuable space and can be quite inconvenient to use at times. The CAIS TWIN DRIVE bi-folding system will free up more space for vehicles or foot traffic.

The Installation Steps | Bi-folding Driveways Swing Gate Complete Hardware

The installation does not require complicated steps and materials. No welding is required; therefore, the working time is not too long. We invite you to follow the below installation steps.



Other Benefits of Bi-Folding Gate Hardware (Swing Gate Leaf Twin Drive)

Swing Gate Bi-Folding TWIN DRIVE is an ideal solution for driveway entrance access. It is designed to allow a vehicle user full manoeuvrability around a property. A Bi-Folding Gate will be less expensive to automate than a double swing gate since it requires only one gate operator instead of two. It is a perfect solution for the entrance with a gravel surface, considering that you do not need to lay down the rails. There‘s no doubt that Bi-Folding Gates is a money and space-saving alternative that is convenient and can be very stylish.



Extremely Quiet

In the past, Swing Bi-Folding gates were originally very noisy. Older versions use steel rails and wheels, which can be very noisy compared to New CAIS TWIN DRIVE Trackless Bi-Folding System.

Reliable

The CAIS TWIN DRIVE Trackless Bi-Folding System is reliable in any weather condition, even if the wind blows heavily.

Bi-Folding Swing Gate System's Special Needs

They need a special frame, so a few factors need to be considered, such as cross-bracing. The reason why cross-bracing is fundamental is primarily to keep the leaf from sagging.  A compression cross-brace transfers weight from the top bar by pushing down against the bottom hinge or a vertical component or post, which transfers the load to both hinges. Improper or missing cross-bracing will cause the Vertical deflection of the leaf.  Cross-bracing should always “lean into opening”. Furthermore, the bi-folding swing gate only works properly when the internal hinges are properly welded concerning the vertical axle. You‘ll also need to consider the wiring of safety edges, as this feature should be accommodated in the frame.



24V DC Brushless Gate Motor | 100% Italian Made by Roger Technology BE20 Series Super Intensive Use Gate Opener.

Brushless Swing Gate Opener Motor
100% Italian Made by Roger Technology BE20 Series 24V (Brushless Gate Motor) for Swing Gate Automation System.

Italian-Made Roger Technology Brushless Swing Gate Motor
| Max. 3M or 300KG Each Leaf | Super Intensive Use |

100% Duty Cycle Brushless Gate Motor with Mechanical Stoppers Opening and Closing

Electromechanical actuator BRUSHLESS, low voltage, super intensive use, with native encoder onboard, ideal for swing gates with leaf up to 3m or 300kg.



Actuator Overview | Brushless Gate Motor for Swing Gate Automation System



Dimensions and System Capacity | BE20/200 Brushless Gate Motor for Swing Gate Automation System

 All measurements are expressed in mm.

Installation Geometry | Swing Gate Automation Brushless Gate Motor

 All measurements are expressed in mm.



Technical Specifications

Power line supply:    230V AC - 50Hz
Motor power supply:    24V
Power rating:    200W
Frequency of use:    Intensive use
Thrust:    2200N
Operating temperature:    -20 C° +55 C°
Protection level:    IP44
Reductor Type:  Irreversible
Manoeuvre speed:    1,66 cm/s
Opening time:    15-25 s
Stroke:    400 mm
Limit switch:    Mechanical stopper in opening and closing
Encoder:    Digital native encoder SENSORLESS 48 PPR
Operating cycles per day (opening/closing - 24 hours, no stop):    800
Maximum dimension product in mm (L x W x H):    867 x 105 x 155





Roger Technology 24V Swing Gate Digital Control Board
for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made | B70/2ML/BOX |

The Roger Technology 24V B70/2ML/BOX Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made |

The 24V B70/2ML control unit controls 1 or 2 ROGER brushless motors in sensorless mode for applications on medium-sized gate leaves.

The control board is protected with a cover to avoid insect damage (the most significant cause of control board failure in Australia).



Technical Features



Power line supply:    230V AC - 50 Hz
Operating temperature:    -10+55 C°
Protection level:    IP54
N. motors activated:    2 Brushless motor
Max power per motor:    110W
Max courtesy light charge:    100W 230V AC - 40W 24V AC/DC
Max power gate open light:    3W (24V DC)
Max voltage accessories output:    10W (24V DC)
Electrical-Lock max power:    15W (12V DC)
Flashlight voltage:    24V DC
Max flashing light charge:    25W
Battery:    Optional
Maximum dimension product in mm (L x W x H):    330 x 230 x 115

Control Board Overview



Accessories Compatibility and Controlling Options

  • Constant DC Accessories Output
  • Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
  • Remote controls
  • Induction Loops
  • Weekly Timers
  • Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
  • Keypads (Wired and Wireless Options Available)
  • Exit/entry sensors
  • Intercom system with dry contact output
  • Automatic switching timer
  • WiFi Control System (App-Based Control)
  • GSM Control Systems (Mobile Call/SMS-based Control)





Remote Control Features

E80/TX52R/2

Fix code transmitter 433,92 Mhz. 2 channels, with radio for copy.

Technical features

Standard power: 3V DC
Absorption: 12mA
Operating temperature: -10+55 °C
The number of channels: 2
Codification: Fix code
Modulation: AM/ASK
Carried frequency: 433.92MHz
The number of combinations: 65536
Radio for a copy: Yes
The maximum distance in the open field: 150m
Battery: Mod "CR2032" 3V
Maximum dimension product in mm
(L x W x H):
38 x 68 x 11







APC-PE2000 Photoelectric Safety Sensor Set



The Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

Both sensors (transmitter and receiver) are wired back to the control box of the gate system using the supplied cable roll, alternatively a reflective sensor upgrade is available which will only require wiring from the sensor mounted at the control box.

  • Up to 15 Metres Infared beam operating distance

  • Only powers on when the command is given to close the gates

  • Alignment led to assist in the installation process

  • Weather sealed with the supplied cover seals

  • Easy screw down wiring termination


  •





65mm Rubber Gate Stop







The supplied 65mm rubber gate stop with a steel base is used for the gate alignment and tension whilst they are in the closed position; it also allows the gates to be mounted up to 50mm off the ground.

Being that the minimum vehicle height from the ground is 100mm, it will not interfere with the vehicle. In the case that the vehicle was lower than the typical minimum, the stopper would not cause any damage as it is constructed from solid rubber but retains its general strength from the steel plate used at the bottom side contacting the driveway.



65mm Rubber Gate Stop Dimensions
