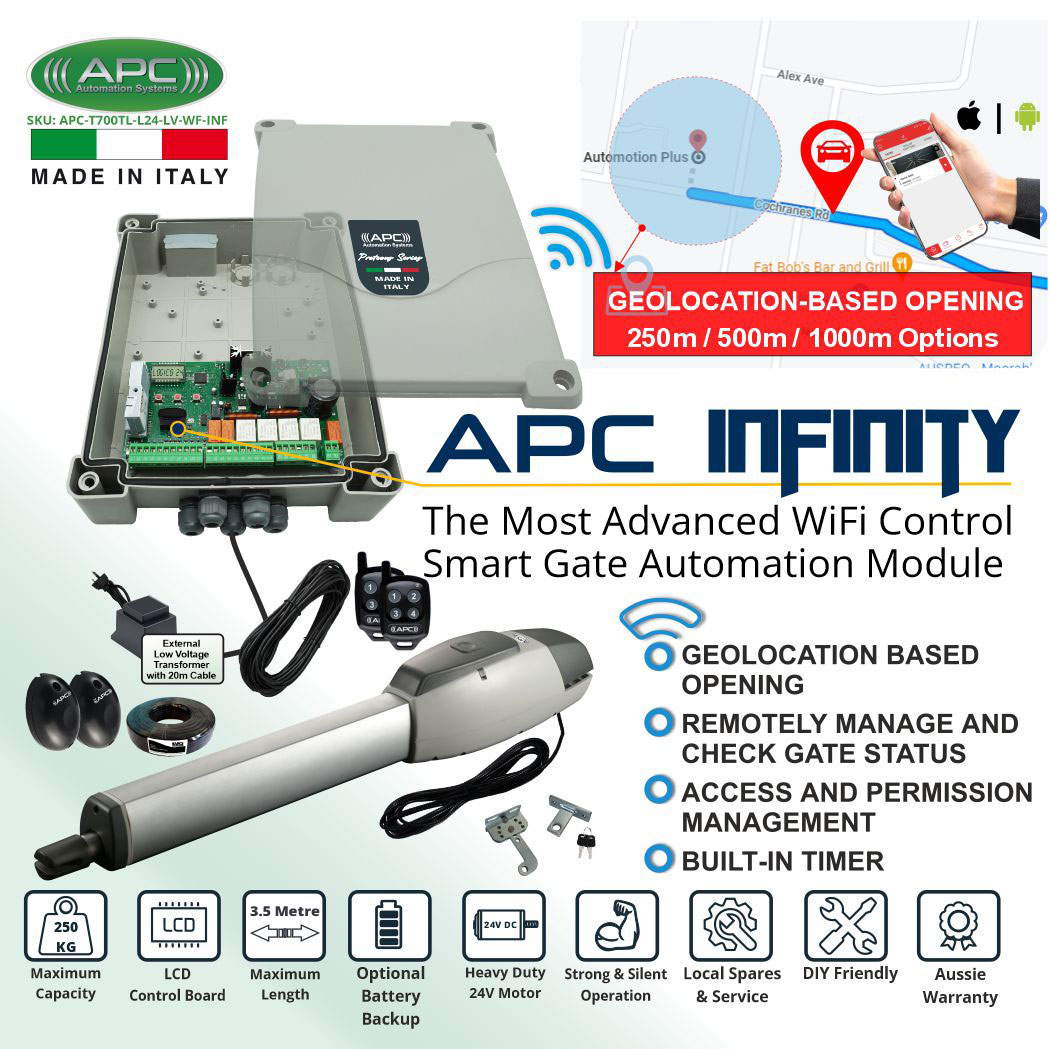

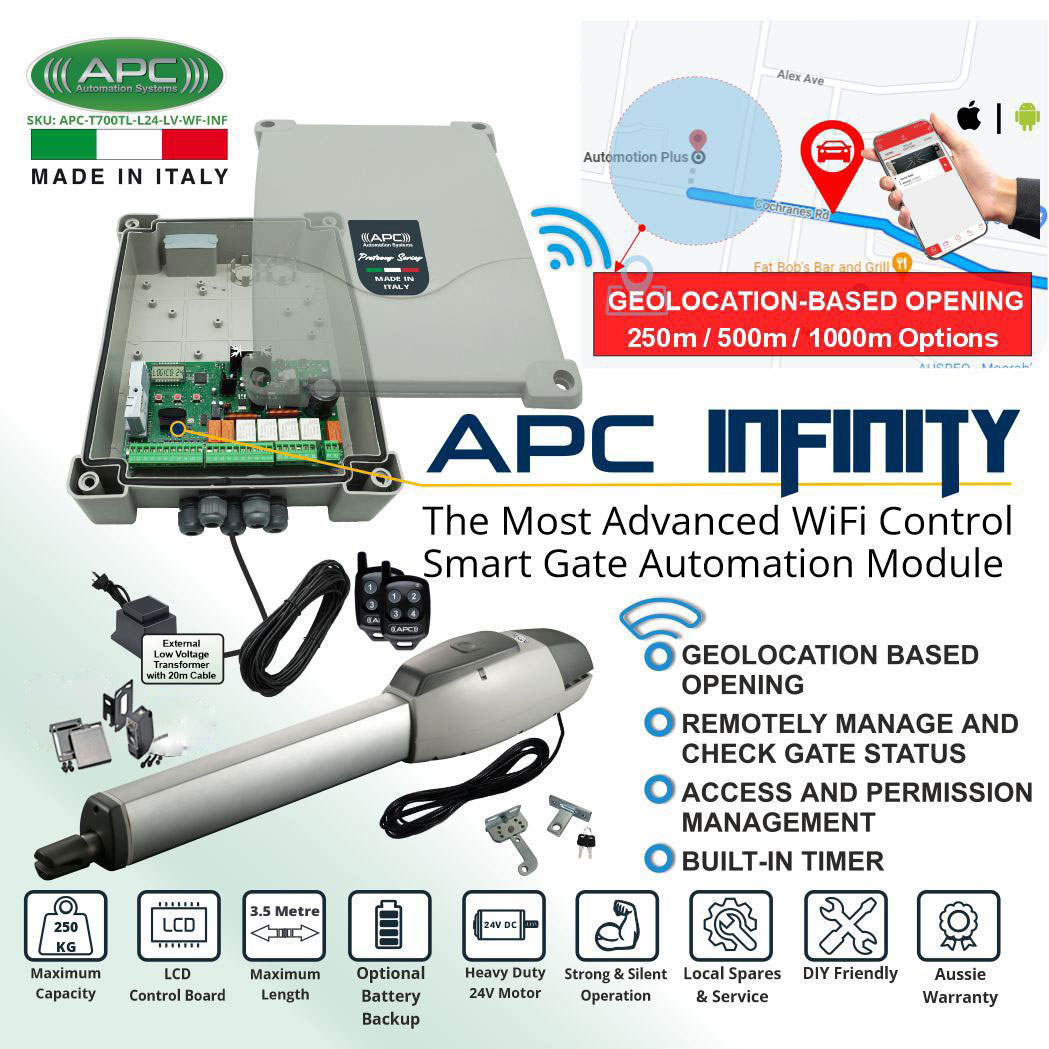

Extra Heavy Duty Telescopic Linear Actuator with Open and Close Limit Switches
Heavy Duty 24V Motor with powerful and quiet operation Sleek European design with a compact and neat appearance Easy to use manual override via the supplied keys in a emergency situation. The system can handle light and heavy gates up to 250kg maximum weight or up to 3.5m maximum length.
Easy to Adjust Top Limit Switches ensure precise setting of the open and closed positions along with a less strenuous life for the actuator.
Emergency Override
Simple to use manual override in case of an emergency. Simply insert the supplied key to unlock then turn the override knob.
Actuator Overview

Installation Geometry
Specifications
Gear Type |
Metal Lead Screw, Mixed Reduction |
Motor Voltage
|
24v DC
|
Manual override
|
Via override keys supplied
|
Working temperature
|
-10° - 50°
|
Duty Cycle
|
20%
|
Maximum stroke
|
350mm (without limit switches)
|
Gates size
|
3.5m max
|
Gate weight
|
250kg max
|
Feature Rich and Highly Versatile Control Box
Special Features
Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Direct electric lock connection
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers
Extra Features With Infinity WiFi Module
Geolocation-Based Opening - Activate the GPS and the gate will open automatically as soon as it has detected the presence of your Smartphone at the set distance (250m / 500m/1000m options)
Remotely Manage and Check Gate Status - You can control the gate even when you are not at home and remotely check the status of your automation (Did I close my gate, or did I leave it open?) and the latest movements (when was the last time it was opened?)
Access and Permission Management - Permissions: grant other users the use of one or more of your automation, but only in the time slot you decide.
Built-in Timer - Set new scenarios according to your needs, choosing for each one whether to activate it manually or automatically at a specific time/day
Unlimited User - First 4 User Free (Admin +3 user)
Safety Features
Adjustable Over current adjustments
Supports encoder motors and limit switch motors
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times
Simple to use LCD interface
.gif)
Control Board Overview
.jpg)
Accessories Compatibility and Controlling Options
Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)
Remote Features

External Transformer (Extendable up to 80 metres cable distance)
24V External weatherproof designed to be used in a low voltage cabling application of up to 80 meters, supplied with a pre-connected 20 meter cable this is a perfect solution when running mains power to the gate is not a viable option due to costs, difficulty or just simply to DIY.

Specifications
Transformer |
24V AC |
Rectification |
In Box Rectifier |
Motor Output Voltage |
24v DC |
Max Operating Power |
250 Watts (Accesories + Running Motors) |
Max. Accesories Load |
7W |
Control Board Duty Cycle |
80% |
Working temperature |
-20° - 50° |
RF |
APC Rolling code 433.92mhz |
Auxiliary Inputs |
0V Momentary Pulse |
Accessories Voltage |
24V DC |
Operator Inbuilt Safety |
Over current + Encoder Sensitivity |
APC Infinity The Most Advanced WiFi Control Smart Gate Automation Management Module (for APC Proteous Range only)

The most advanced gate automation Wi-Fi module (for APC Proteous Range only)
Geolocation-Based Opening - Activate the GPS and the gate will open automatically as soon as it has detected the presence of your Smartphone at the set distance (250m / 500m/1000m options)
Remotely Manage and Check Gate Status - You can control the gate even when you are not at home and remotely check the status of your automation (Did I close my gate, or did I leave it open?) and the latest movements (when was the last time it was opened?)
Access and Permission Management - Permissions: grant other users the use of one or more of your automation, but only in the time slot you decide.
Built-in Timer - Set new scenarios according to your needs, choosing for each one whether to activate it manually or automatically at a specific time/day
Unlimited User - First 4 User Free (Admin +3 user)| $29 per extra user.
Compatible With
- APC Proteous Sliding Gate Opener Systems
- APC Logico24 Swing Gate Opener Systems
Features
- Remotely manage all your automation even when you are not at home. Not only check their status but also control them! (Open, close, stop, activate the pedestrian opening, etc.)
- Geo Location Enabled - Enter your home without lifting a finger. By using the geolocation from your smartphone, APC Infinity knows where you are and will open the chosen automation for you when you approach it (250m, 500m, 1000m options)
- Check at any time who comes and goes. The App lets you manage all your access by giving specific time slots to who you want when you want.
- Set up programmed scenarios to manage your gate access the way you want: Daily, weekly, monthly programable timer options
TECHNICAL FEATURES
Input |
Voltage |
15V |
Current |
45mA |
Max absorbed power |
700mW |
WiFi interface |
Type |
802.11b/g/n – 2.4GHz |
Power e.i.r.p. |
≤ 100mW |
Safety |
OPEN/WEP/WPA-PSK/WPA2-PSK |
Environment |
Operating temperature |
-20°C ... +50°C |
Storage temperature |
-25°C ... +70°C |
Humidity |
15% - 85% |
STATUS OF LED
• FIXED RED: The module is in Access Point mode, waiting for a connection
• FLASHING RED: Mismatch between the serial of the control panel and the serial stored in the module. Perform the module reset procedure
• FIXED BLUE: STA mode, module connected to the server
INSTALLATION
1. Disconnect the power supply to the control unit
2. Insert the module into the ADI port of the control board
3. At the first installation, make sure that the module is in access point mode (RED LED ON STEADY)
4. Then proceed to enroll the control panel to the server following the instructions provided by the Mobile APP
NOTE: If the module is not in access point mode, reset the module using the reset procedure: press the reset button for 3 seconds, the LED must go out and light up again, remaining steady red
How does APC Infinity Smart Gate Automation Management Wi-Fi Module work?

Download the free Application from the official stores (Google Play, Apple App Store)
- Multiple management of unlimited gate automation systems (also located on different sites)
- Geolocation via GPS (Activation of openings and devices in automatic or manual mode)
- Access control (History Log)
- Permissions for other users
- Set new scenarios at a specific time/day, according to your needs
To use the App, you need to connect to your APC Proteous Range Gate Opener System via APC Infinity Module
APC Infinity Access Control Features
- FULL REMOTE CONTROL OF THE AUTOMATION
• Opening
• Closing
• Stopping
• Managing outputs
• Geo fence management of the automation
• Knowing the status of the automation (opened, closed, % opened, stopped)
- FULL ACCESS CONTROL FEATURES
• Defining the users that can have access to the site
• Limiting user access in time (hour, day, week, and month)
• Log and record every access to each user
• Adding/Blocking/Deleting users
- AUTOMATIC SETUP OF SCENARIOS
• Opening and closing with scenarios
• Each scenario can be performed under a timing ( specific hours of the day, daily, monthly, specific day of the year)
• Managing multiple automation with one single command/scenario
Optional Battery Back Up Box
An optional battery backup system is available for the automation kit. The back up battery system will allow for continued use of the gate system and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up ready for use. The systems is supplied with the charger module along with the 2.2aH battery pack installed in a weatherproof placstic enclosure and is installed directly below the main control box..
APC-PE2000 Photoelectric Safety Sensor Set
The Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.
If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.
Both sensors (transmitter and receiver) are wired back to the control box of the gate system using the supplied cable roll, alternatively a reflective sensor upgrade is available which will only require wiring from the sensor mounted at the control box.
- Up to 15 Metres Infared beam operating distance
- Only powers on when the command is given to close the gates
- Alignment led to assist in the installation process
- Weather sealed with the supplied cover seals
- Easy screw down wiring termination
