Product SKU: EV-D295A

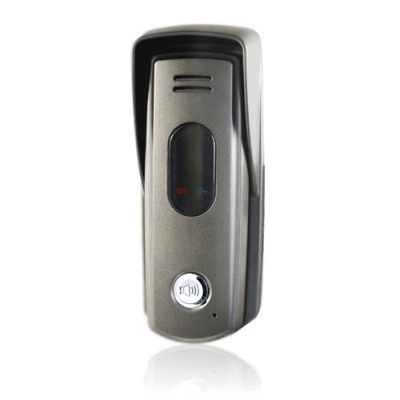

Audio Doorstation for Eyevision® 2 Wire Audio Intercom Systems

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

Audio Doorstation for Eyevision® 2 Wire Audio Intercom Systems

Product SKU: EV-D295A

  • In Stock

Price :

$95.00

Get More Info..

Product Information

Add-On Doorbell Ring Door Station for Eyevision® 2 Wire Audio Intercom Systems

2 Wires Doorbell Ring Door Audio Station NO Polarity

This sleek-looking and compact design door station is designed for all two-wire Eyevision® audio intercom systems. The front panel is made of zinc alloy, allowing better protection against vandalism.
This unit may be surface mounted on walls, brick piers and most metal posts with or without the rain cover.

Main Features:

  • Zinc alloy elegant housing with a compact design
  • Surface-mounted with or without rain cover
  • Outstanding audio performance
  • Comfortable call button
  • Weatherproof
  • Unlock feature when connected to a two-wire Eyevision® audio handset




Specifications:

Power Supply: 24V DC
Working temperature: -10ºC ~ 45ºC
Power·Consumption: Standby 60mA Working 200mA
Wiring: 2 Wires, non-polarity



Add-On Door Station for Eyevision® 2 Wire Audio Intercom Systems

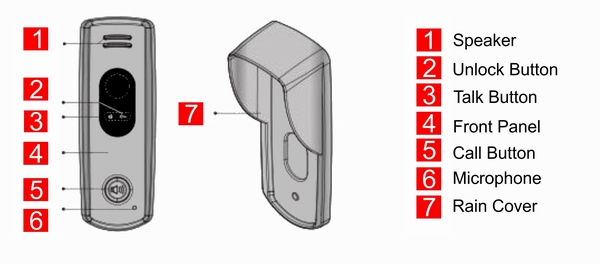

Door Station Functions and Features

Add-On Door Station for Eyevision® 2 Wire Audio Intercom Systems

Door Stations dimensions

Door Station Dimensions:

Height: 137mm
Width: 49mm
Depth: 28mm

Rain Cover Dimensions:

Height: 150mm
Width: 60mm
Depth: 40mm

Add-On Door Station for Eyevision® 2 Wire Audio Intercom Systems




Cable Requirements

Eyevision® 2 wire Cable Requirements



Cabling

  • CAT5 up to 80m between the door station and each apartment.
  • Straight Pair 1mm2 up to 50m between the door station and each apartment.
  • Twisted Pair 1mm2 up to 120m between the door station and each apartment.
  • Twisted Pair 1.5mm2 up to 200m between the door station and each apartment.



Recommendation:

The Eyevision® 2 wire monitors are very powerful and will deliver high-quality video and audio, it is recommended to use the best quality cables that will suit your installation. Use cables with very good-quality copper conductors in order to maximize the clarity of the system.
