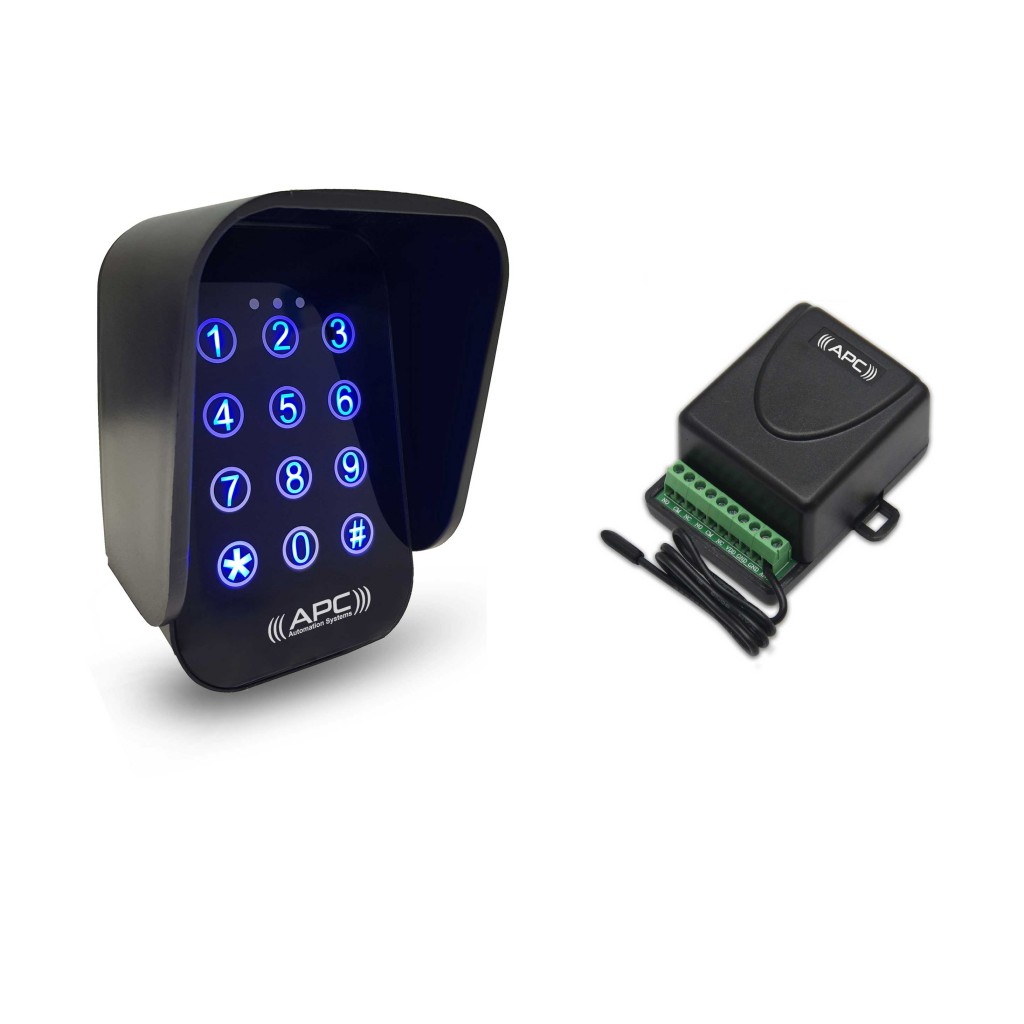

APC Wireless Keypad with Reciever Combo

Two Channel Wireless Keypad

With 2 Channel Receiver

Suitable for Most Gate Openers, Garage Door Systems, Boom Gate Operators and Alarm Systems

Please Note:

• This wireless keypad is compatible with most makes and models of Gate Openers, Garage Door Systems, Boom Gate Operators, and Alarm Systems.
• APC Wireless Keypad that will work on all the APC range of Gate Openers and Boom Gate Operators.

Features

• Low Power Consumption, only 18uA on standby.
• Easy to replace AA battery-powered system (supplied) with up to two years of usage on general use.
• High-strength tempered glass face plate with an ultra-modern and highly reliable touch-sensitive operation.
• Blue Backlight illumination upon touch with an automatic timeout to return to standby.
• Using separate pin codes, the two-channel operation lets users control two items or functions.
• Two dedicated LED indicators indicating the accepted pin code (green) and also security lockout (red)
• IP53 Weatherproof rated and suited for outdoor and indoor environments.
• Built-in Anti Tamper alarm and security lockout to help prevent theft and unauthorized usage.
• PIN code scramble allows the user to input a series of random numbers before the PIN code to prevent theft.

Compatibility when using the supplied receiver:
- Most Generic Gate Opener Systems
- Most Generic Garage Door Opener Systems
- Most Generic Boom Gate Systems
- Most Alarm Systems Requiring Latching or Momentary Receiver Mode

How It Works
The receiver is wired into the device (e.g., gate openers, garage door openers, boom gate systems, or alarm systems), and then the keypad is paired with the receiver.

Keypad Dimensions:
88mm (W) x 122mm (H) x 80mm (D)

Receiver Dimensions
125mm + 155mm Antenna (H) x 68mm (W) x 35mm (D)

Keypad Specifications:

• Touch-sensitive buttons
• Tempered glass face plate
• 6V DC supply (4x AA Batteries)
• Consumption 18uA Standby, 6mA Active, 28mA Working
• Two-channel output (CH1=8 Pins, CH2=3 Pins)
• LED Indicators + Backlight
• Anti-tamper + PIN code scramble
• IP53 Rated

Receiver Specifications

• 2 Channels (can operate two systems)
• Dual modes, momentary or latching
• Power requirements: 12/24v AC/DC
• Supplied with 433.92MHZ Antennal

See the videos below for pairing examples to several APC Automation Systems equipment:

Available Option for the Above Keypad

Heavy Duty Black Pedestal, Keypad Stand & Intercom Stand

Click Here for Black Pedestal

Example usage for the Pedestal

It can be used for most opening /closing controllers, keypads, Switches, and intercom door stations.

See the dimensions below.
