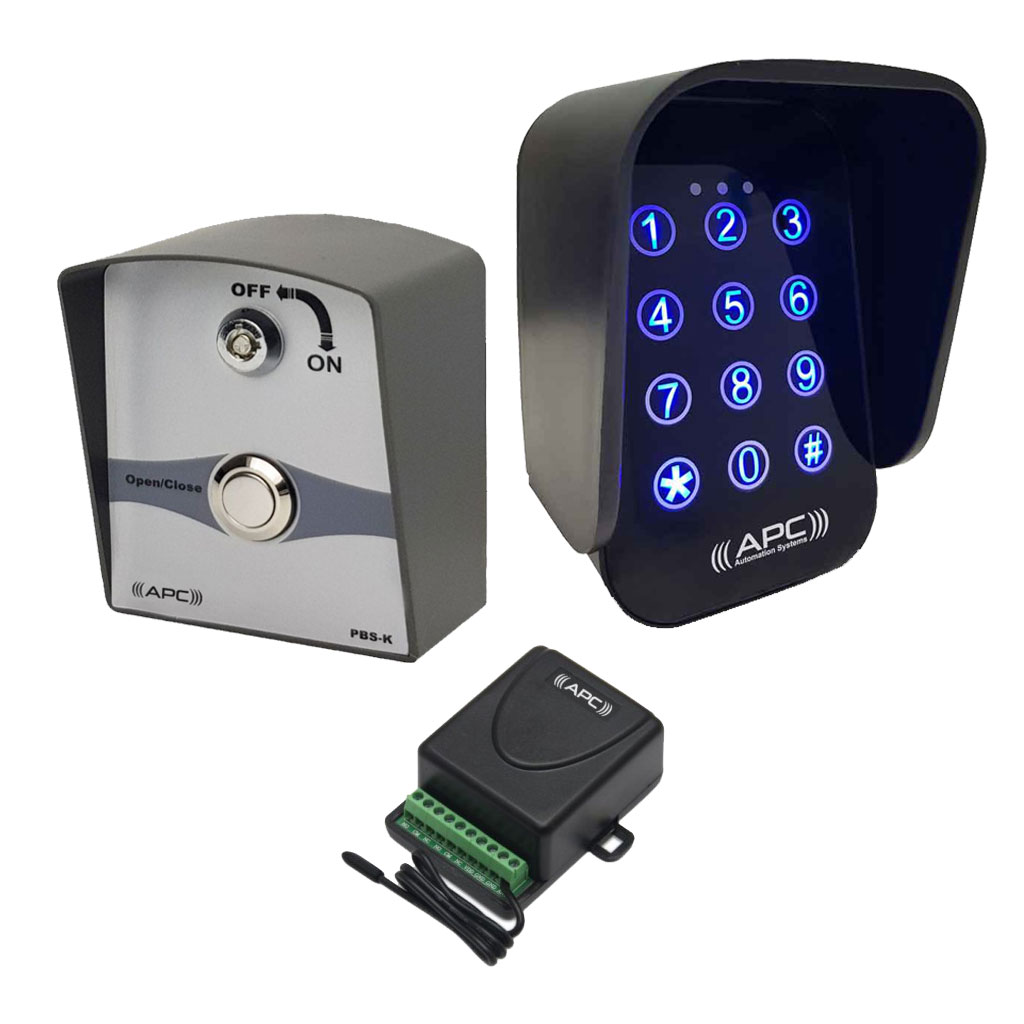

APC-KP2W Wireless Keypad Features
- Low Power Consumption only 18uA in standby.
- Easy to replace AA battery-powered system (supplied) with up to two years usage on general use.
- High strength tempered glass faceplate with an ultra-modern and highly reliable touch-sensitive operation.
- Blue Backlight illumination upon touch with an automatic timeout to return to standby.
- Two dedicated LED indicators indicating and accepted pin code (green) and also security lockout (red)
- IP53 Weatherproof rated and suited for outdoor and indoor environments.
- Built in Anti Tamper alarm and security lockout to help prevent theft and unauthorized usage.
- Pin code scramble allowing the user to input a series of random number before the pin code to prevent pin code theft.
- Two-Channel operation allowing the user to control two different items or functions using separate pin codes.
Channel 1 supports up to 8 Pin Numbers (Full Gate Feature)
Channel 2 supports up to 3 Pin Numbers (Pedestrian Gate Feature)
|
Two-Channel Wireless Keypad
|
|
|
Suitable for Most Gate Openers, Garage Door Systems, Boom Gate Operators and Alarm Systems
|
|
| |
|
|
|
|
| |
|
Please Note: This wireless keypad will work with most makes and models of Gate Openers, Garage Door Systems, Boom Gate Operators and Alarm Systems.
Click Here for the wireless keypad that will work on all the APC range of Gate Openers & Boom Gate Operators. |
|
|
Features
- Low Power Consumption, only 18uA on standby.
- Easy to replace AA battery-powered system (supplied) with up to two years of usage on general use.
- High-strength tempered glass face plate with an ultra-modern and highly reliable touch-sensitive operation.
- Blue Backlight illumination upon touch with an automatic timeout to return to standby.
- Two Channel operation allows the user to control two items or functions using separate pin codes.
- Two dedicated LED indicators indicating the accepted pin code (green) and also security lockout (red)
- IP53 Weatherproof rated and suited for outdoor and indoor environments.
- Built-in Anti Tamper alarm and security lockout to help prevent theft and unauthorized usage.
- Pin code scramble allows the user to input a series of random numbers before the pin code to
prevent pin code theft.
Compatibility when using the supplied receiver:
- Most Generic Gate Opener Systems
- Most Generic Garage Door Opener Systems
- Most Generic Boom Gate Systems
- Most Alarm Systems Requiring Latching or Momentary Receiver Mode
How It Works
The receiver is wired into the device (for example, gate openers, garage door openers, boom gate systems or alarm systems), and then the keypad is paired into the receiver.
Keypad Dimensions:
88mm (W) x122mm (H) x80mm (D)
Receiver Dimensions
125mm + 155mm Antenna (H)
68mm (W)
35mm (D)
Keypad Specifications:
- Touch-sensitive buttons
- Tempered glass face plate
- 6V DC supply (4x AA Batteries)
- Consumption 18uA Standby, 6mA Active, 28mA Working
- Two-channel output (CH1=8 Pins, CH2=3 Pins)
- LED Indicators + Backlight
- Anti-tamper + Pin code scramble
- IP53 Rated
Receiver Specifications
- 2 Channels (can operate two systems)
- Dual modes, momentary or latching
- Power requirements: 12/24v AC/DC
- Supplied with 433.92MHZ Antennal
|
|
| |
|
|
|
|
|
|
|
|
Available Option for the above keypad
 |
Goose Neck Pedestal
Why get out of the car?, the gooseneck pedestal makes it easy to reach the opening devise for your automatic gate.
The goose neck pedestal is ideal for mounting keypad and access controls units, it allows the keypad(s), entry or exit or both to be mounted away from the entry and exit points of the gates.
it offers extra reach to operate the keypad from inside the vehicles
This Pedestal is an optional extra but is offered at only $79 when purchased with the keypad at the same time
Specifications:
- Heavy duty steel construction
- Powder coated in Black
- Rectangular base with mounting holes
Suitable for: This Pedestal is a universal size in height, reach and the mounting face, the mounting face may need to be drilled with new mounting holes and trimmed to size to suite the device you are mounting on it, the pedestal is suitable for,
- Keypads
- Push Button Switches
- Key Switches
- Finger print readers
- Intercoms door stations
|
|
|
| |
|
Wireless Push Button with Isolation Key
The wireless push button switch is a simple and easy to use method to operate the gate. It is mounted in the general area of the gate and can be isolated by using the supplied keys without affecting the rest of the system, this is handy if you want to continue using the remotes or any other method of operation but wish to stop use of the push button itself.
The push button can be used for over 50 metres in operating distance.
APC RX2 Two Channel Receiver
The APC two-channel receiver can be used on gates, garage doors regardless of the brand to allow for the entire APC wireless family of equipment such as remotes, wireless keypads, wireless push buttons, etc to operate the connected device.
Prerequisites
open/close, open/stop/close, OSC, PUSH, or any other input on the integrating system 12-24V AC/DC power (power adapter available for cases where this is not accessible.
There is no longer a need to carry multiple remotes as this simple solution would integrate all connected systems onto the one APC control system. The prerequisite of the system to accept the receiver is that it has a functional open/close terminal on its control card. Some systems will be labeled (open/close whereas others are labeled PUSH or OSC). In such a situation the button of your choosing on the remote would open and close the connected system based on its current position.
If the system has an input exclusively for the open command and another exclusively for the close command the receiver can still be used as it has two separate relay outputs and each output could connect to the exclusive command, this would mean that one button on the example remote would be for the open movement and another button on the remote would be for the close movement. In cases of side by side double garage doors, you can use the two outputs of the receiver to control each of the systems separately.
Other uses
The APC Smart two-channel receiver has a further feature of setting an output for latching circuit, this could be used to control systems to ON/OFF per button press such as lights, pumps, safety devices inputs, alarms, etc.
Package options
The receiver can be purchase in multiple package options such as
- Receiver only
- Receiver with a low voltage power adapter (in case power is not available for the device)
- Receiver and a two remote combo
- Receiver, power adapter and a two remote combo
- Receiver, wireless two feature entry keypad, wireless single feature exit button three remote combo
- Receiver, wireless two feature entry keypad, wireless two feature exit button three remote combo
- or any package can be made using any of the APC compatible devices
Compatible devices
- APC-RC4S Four Button Keyring remote
- APC-RC4-SV Four Button Sun Visor Remote (six colour choices)
- APC-RC450S Long Distance Remote
- APC-KP2W Two Channel Wireless Keypad APC-KP2W
- APC-PBS-KW Single Wireless Button with Isolation Key
- APC-PBD-KW Double Wireless Button with Isolation Key
- ANT-1 External Boosted Antenna
Specifications
- 433.92Mhz High-Security Rolling Code compatible with APC devices
- Dual Mode Receiver with momentary and latching modes
- Normally Open and Normally Closed circuits
- Supports 12-24V AC/DC
- Single Remote Delete or Full Format
- Max switching load 24VDC/2A
