Product SKU: APC-UNO-Large

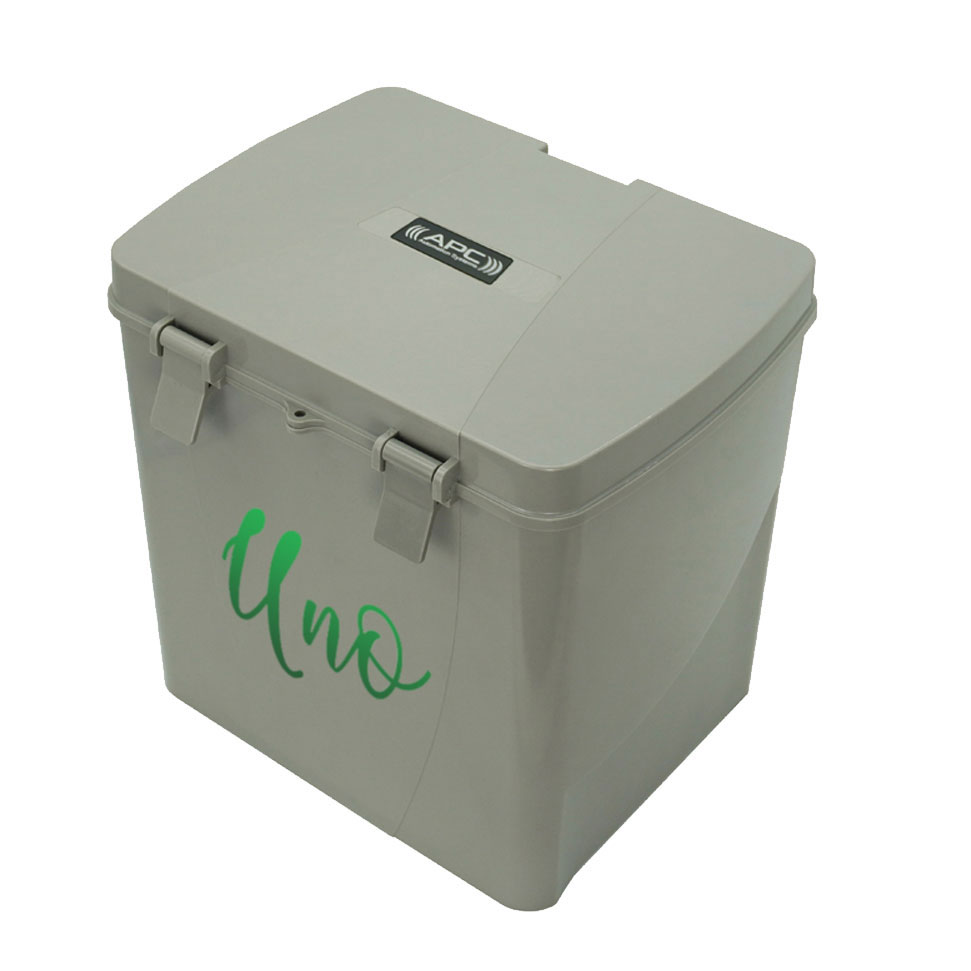

APC Uno Multipurpose Battery Box Large

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

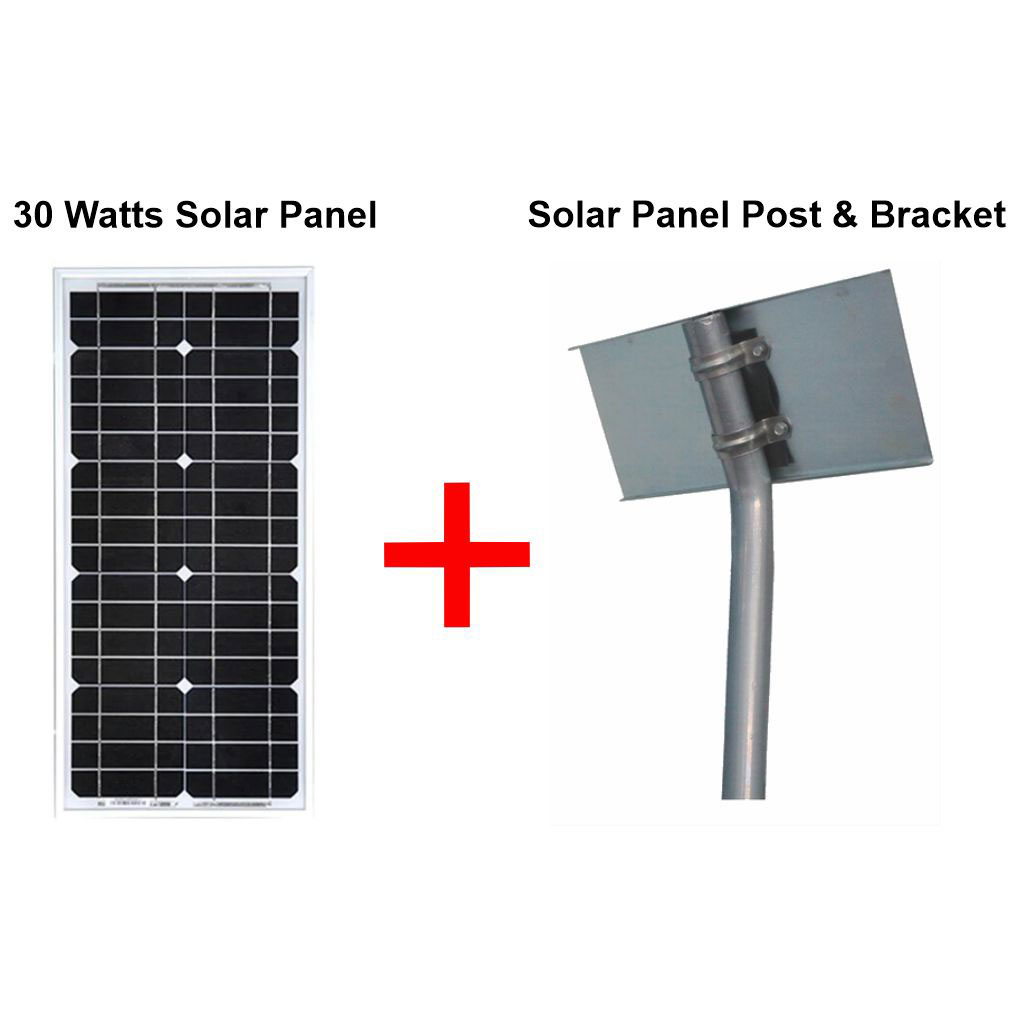

  • Solar Energy Kit - Multipurpose Battery Large Box

    On Sale

APC Uno Multipurpose Battery Box Large

Product SKU: APC-UNO-Large

  • In Stock

Get More Info..

Kit Price:

$89.00 $109.00 APC Automotion Plus Sale

  • Or in 4 payment of $22.25 with afterpay info

Add-On Items (Discounted when purchased along with this Kit)

Product Information





The APC Uno is an articulate all in one design allowing for clean and secure housing the APC Sun Power Solar Regulator and multiple batteries. The housing can fit up to 2x 9aH batteries (Uno Box), 2x 17aH batteries(Uno Large Box), and 1x 33aH battery(Uno Large Box). In the case of 33aH batteries a Master Uno Large Box and Slave Uno Large Box are required, see details below.

Key Features:

  • Direct fitting of APC Sun power Regulator (available separately)
  • Sleek contoured design
  • Cable management entries for a clean installation
  • Subtle grey to suit all installation environments
  • Heavy duty 5mm galvanized 6 hole mounting plate Supports multiple mounting surfaces (piers, posts, walls etc.)
  • Easy to access with the tool free clip lock system
  • Can be secured with a small padlock
  • Four output glands allowing for completely weatherproof entry/exit of cables up to 9mm OD each

Dimensions (UNO BOX and UNO BOX LARGE)

UNO BOX

Uno Box Outer Dimensions

Height 205mm (Including cable glands) 180mm Without
Width 180mm
Depth 249mm Including Mounting bracket, 210mm without

UNO BOX LARGE

Extra Heavy Duty Single Gate Opener

Uno Box Large Outer Dimensions

Height 281mm (Including cable glands) 255mm Without
Width 263mm
Depth 230mm Including Mounting bracket, 189mm without

Battery Requirments and Configuration

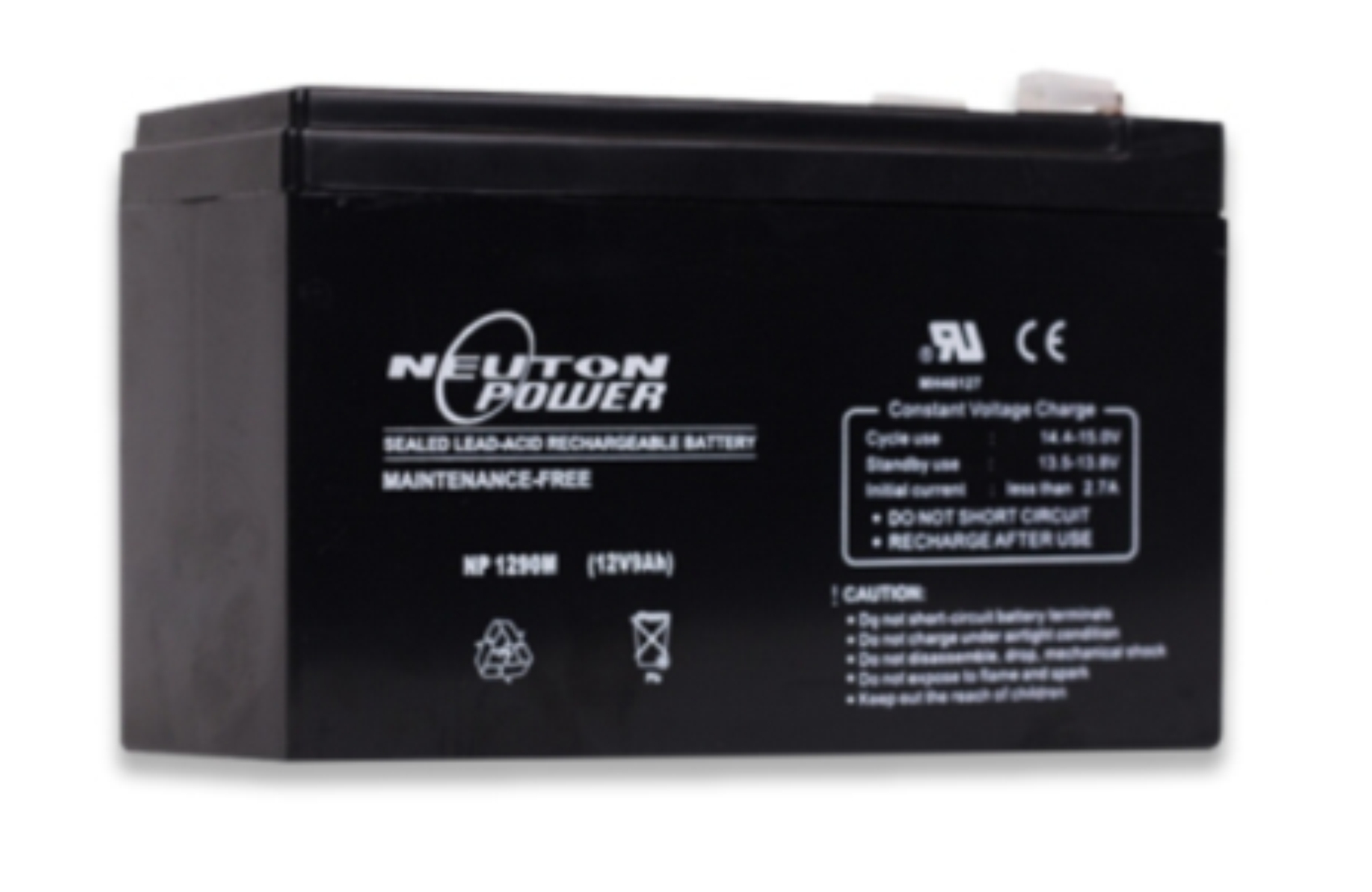

Battery Dimensions (each) Battery Size 12V Configuration 24V Configuration Uno Box Requirments
151x65x99mm BAT-9 (9aH) 1x Battery Required 2x Batteries Required Up to Two Batteries in one Master Uno Box
181x77x167mm BAT-17 (17aH) 1x Battery Required 2x Batteries Required Up to Two Batteries in one Master Uno Box Large
195x130x167mm BAT-33 (33aH) 1x Battery Required 2x Batteries Required One Battery in Master Uno Box Large
(and One Battery in Slave Uno Box Large for 24V)

Typical Configuration

Extra Heavy Duty Single Gate Opener

Battery Wiring


33aH Configuration

Extra Heavy Duty Single Gate Opener
