Product SKU: APC-T725L-LM

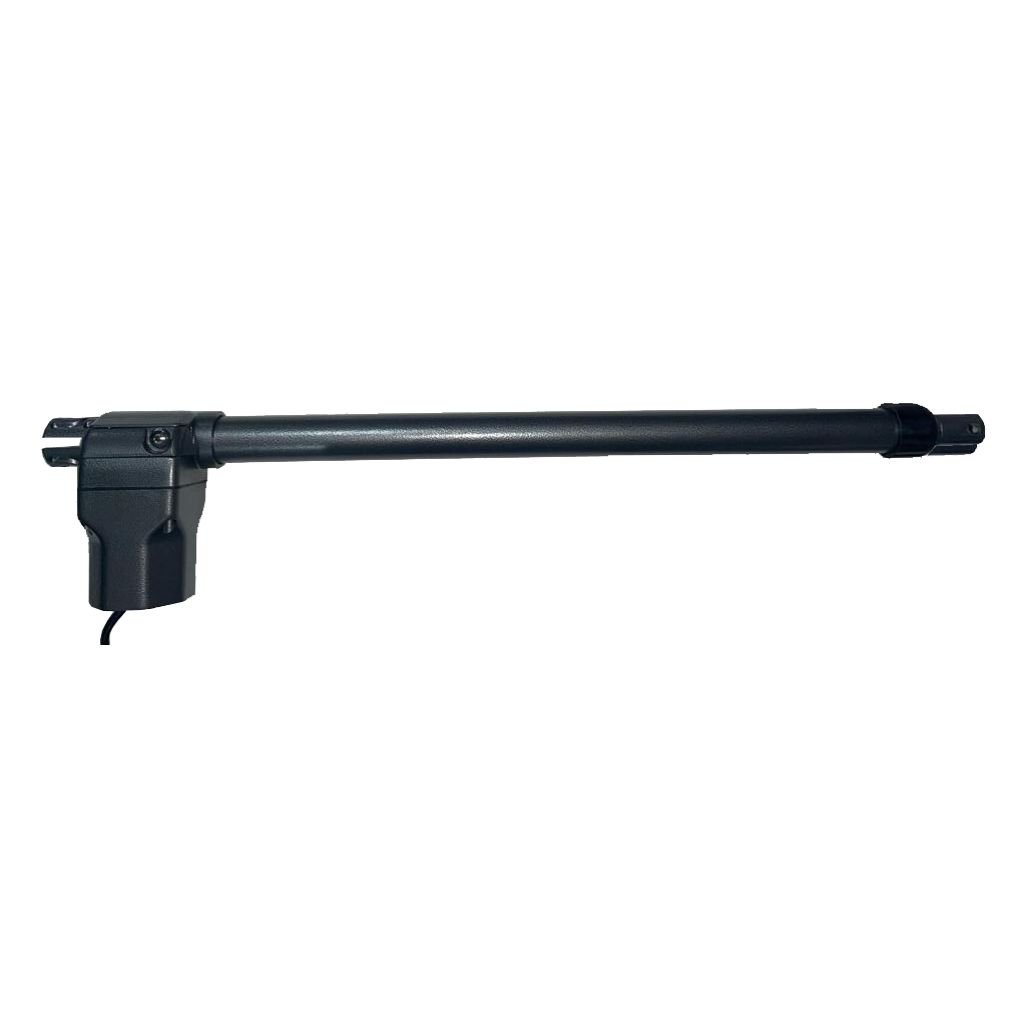

APC-T725L Left Side Swing Gate Motor | 24V DC Extra Long Stroke Length All Metal Gear Linear Actuator Electric Swing Gate Automation

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

APC-T725L Left Side Swing Gate Motor | 24V DC Extra Long Stroke Length All Metal Gear Linear Actuator Electric Swing Gate Automation

Product SKU: APC-T725L-LM

  • Out Of Stock

Price :

$395.00

Get More Info..

Product Information

Heavy Duty 24V Extra Long Stroke (Left & Right) Telescopic Linear Actuator | Swing Gate Automation



Heavy Duty 24V Swing Gate Left or Right  Automation with All Metalic gears, powerful and quiet operation. Easy to use manual override using the supplied key in an emergency. The system can handle light and heavy gates up to 175kg maximum weight or 3m maximum length (for each gate).



Emergency Clutch Override

Easy manual override in case of an emergency using the supplied key, slot in and turn clockwise to operate the gates manually.

Actuator Dimensions

Specifications



Motor Voltage
 24v DC
Manual override
 Via override key supplied
Working temperature
 -10° ~50°
Maximum stroke
 650mm
Gates size
 3m max (for each gate)
Gate weight
 175kg max (for each gate)
Absorbed power  70W
Current  5.2A
Motor speed  1800RPM
Thrust  1800N





Installation Geometry

Pull to Open Installation

Before beginning installation, identify the left/right side motor. The manual override for the gate motor determines this.

The manual override should not be facing the gate to allow easy accessibility.



Push to Open Installation

Before beginning installation, identify the left/right side motor. This is determined by the manual override for the gate motor.

The manual override should not be facing the gate to allow easy accessibility.
