Product SKU: APC-T700TL-M

APC-T700TL Top Limit Actuator Kit

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

  • APC-T700TL Top Limit Actuator Kit
  • APC-T700TL Top Limit Actuator Kit
  • APC-T700TL Top Limit Actuator Kit
  • APC-T700TL Top Limit Actuator Kit
  • APC-T700TL Top Limit Actuator Kit
  • APC-T700TL Top Limit Actuator Kit

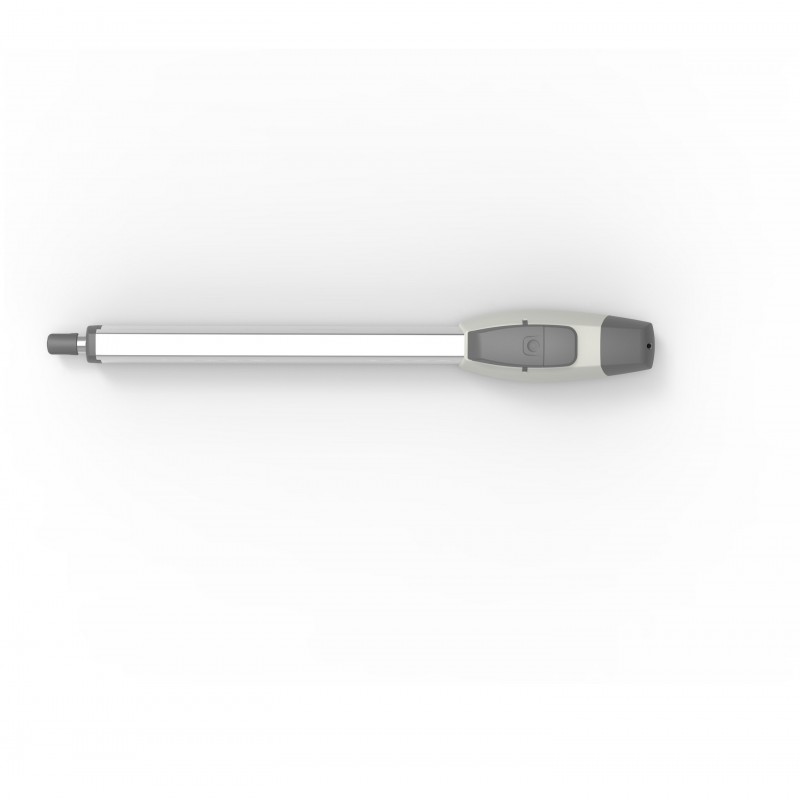

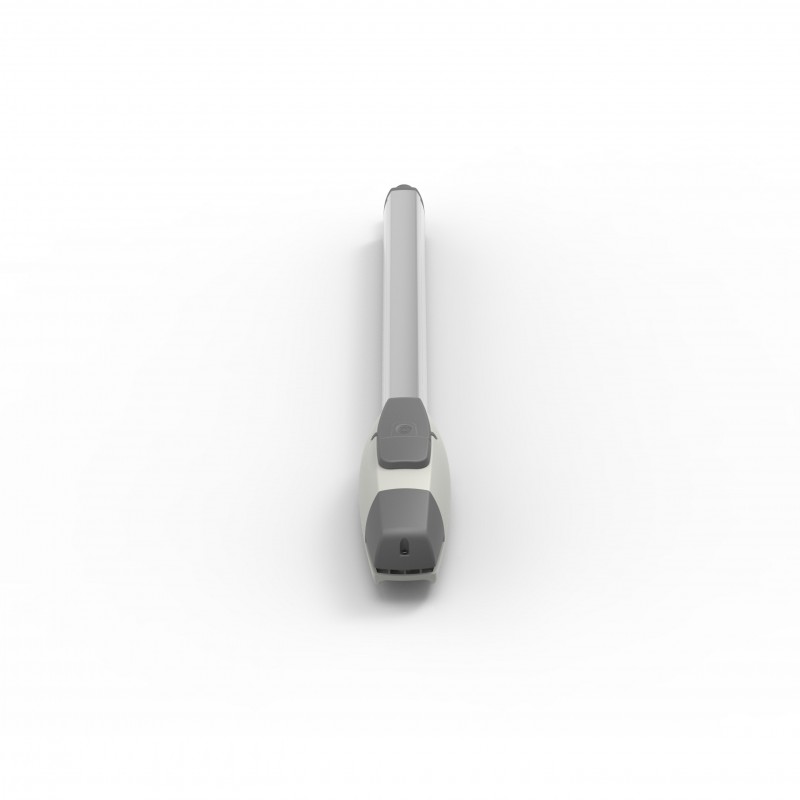

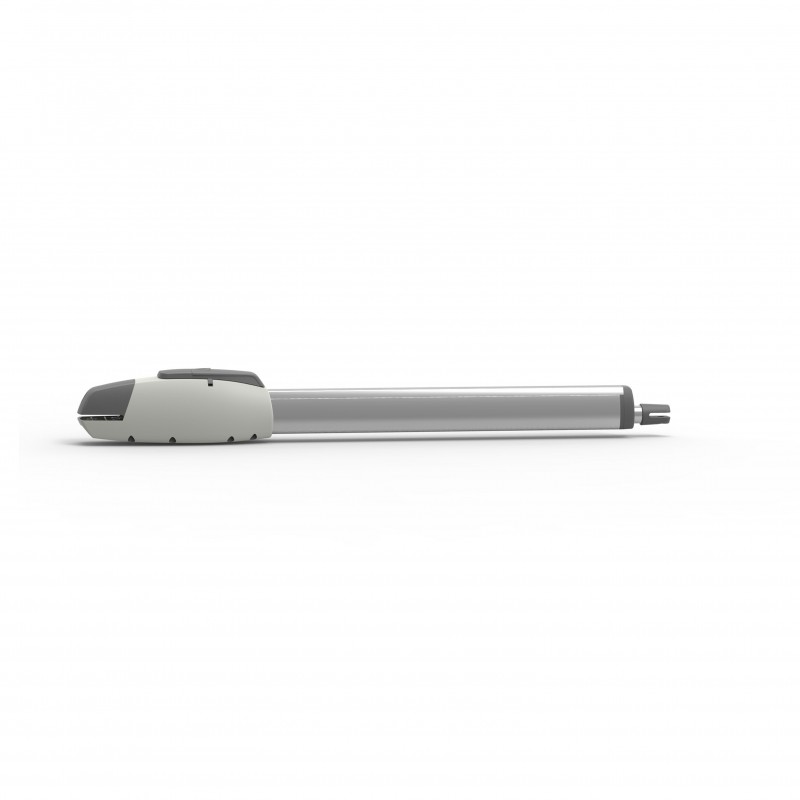

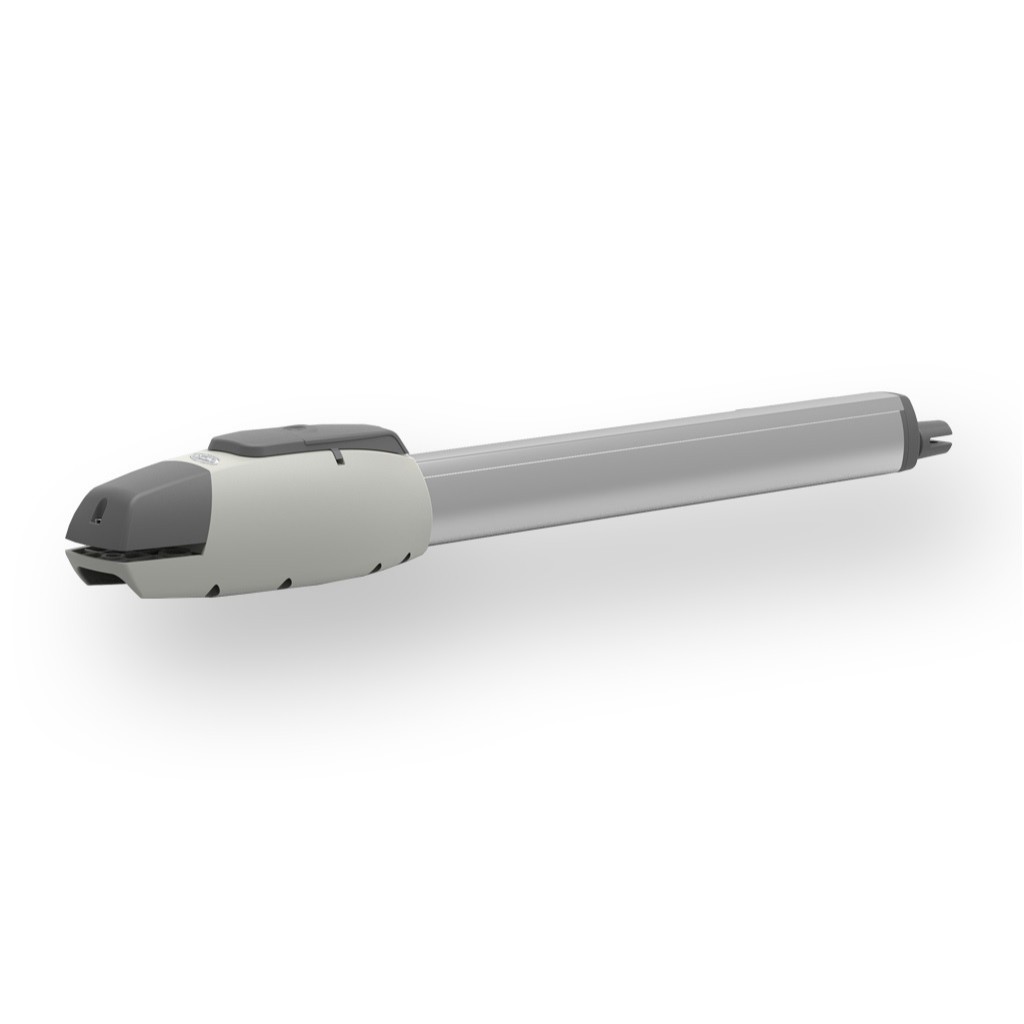

APC-T700TL Top Limit Actuator Kit

Product SKU: APC-T700TL-M

  • In Stock

Price :

$525.00

Get More Info..

Product Information

This ad is for a single replacement actuator kit

Extra Heavy Duty Telescopic Linear Actuator with Open and Close Limit Switches






Heavy Duty 24V Motor with powerful and quiet operation Sleek European design with a compact and neat appearance Easy to use manual override via the supplied keys in a emergency situation. The system can handle light and heavy gates up to 250kg maximum weight or up to 3.5m maximum length.

Easy to Adjust Top Limit Switches ensure precise setting of the open and closed positions along with a less strenuous life for the actuator.



Emergency Override


Simple to use manual override in case of an emergency. Simply insert the supplied key to unlock then turn the override knob.


Actuator Overview



Extra Heavy Duty Single Gate Opener



Installation Geometry



Specifications

Gear Type Metal Lead Screw, Mixed Reduction
Motor Voltage
24v DC
Manual override
Via override keys supplied
Working temperature
-10° - 50°
Duty Cycle
20%
Maximum stroke
350mm (without limit switches)
Gates size
3.5m max
Gate weight
250kg max
