Product SKU: APC-T575L-M

APC-T575L Actuator Kit

  • In Stock

Price :

$275.00

Get More Info.. Get More Info..

Product Information

Heavy-Duty 24V Motor

Replacement Motor for APC-T575L and APC-T675L Units (Motor Only)

WARNING: Please note this product is a replacement motor for an existing APC gate automation system. Warranty is only valid when used in conjunction with the APC equipment. No guarantee is given when used for another brand other than the APC brand.

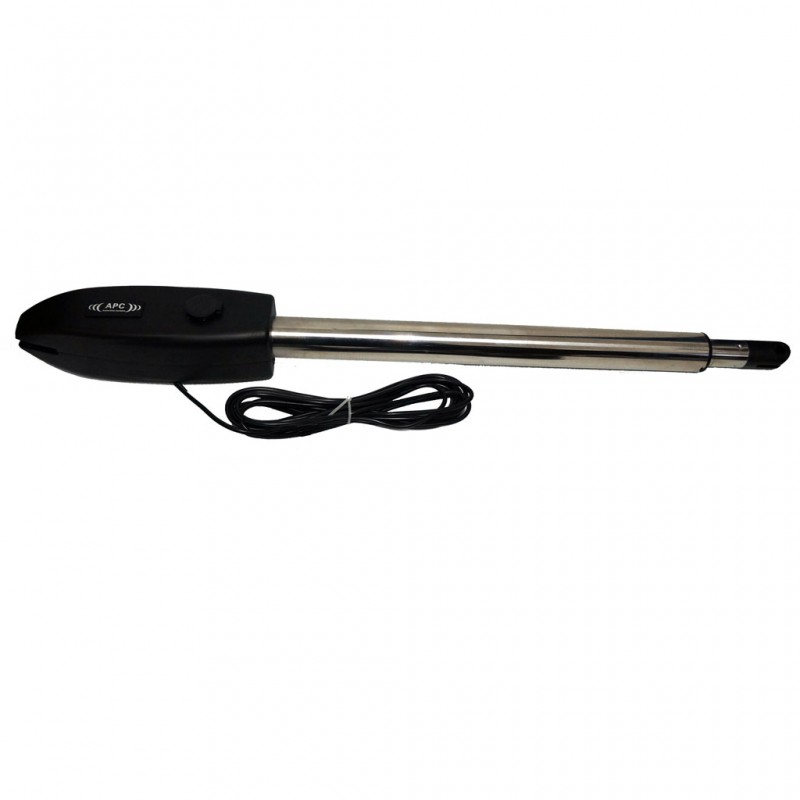

24V Extra Heavy Duty Swing Gate Replacement Motor

Actuator Dimensions

24V Extra Heavy Duty Swing Gate Replacement Motor

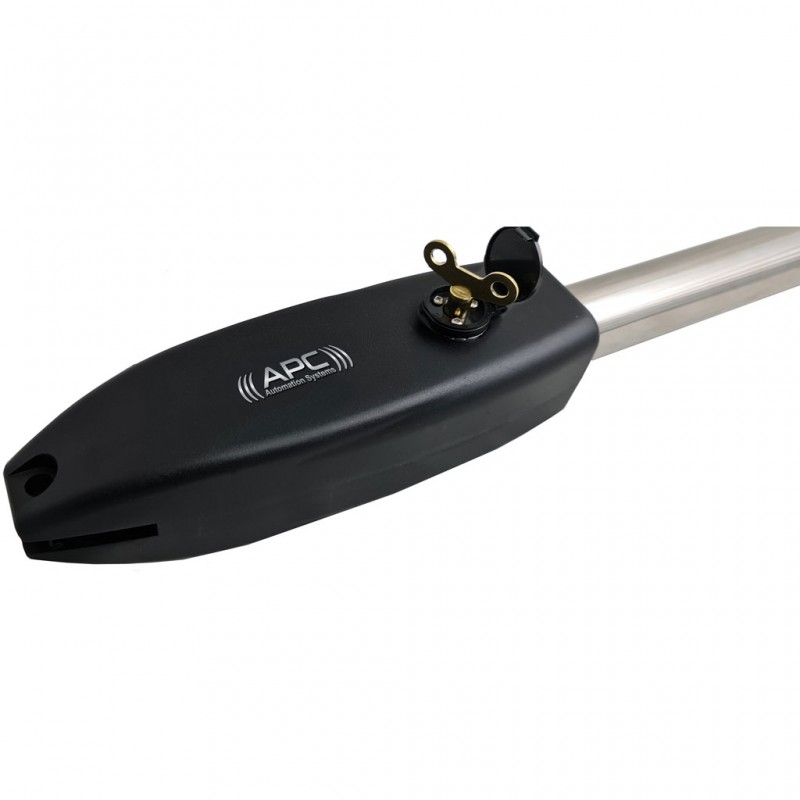

Emergency Override

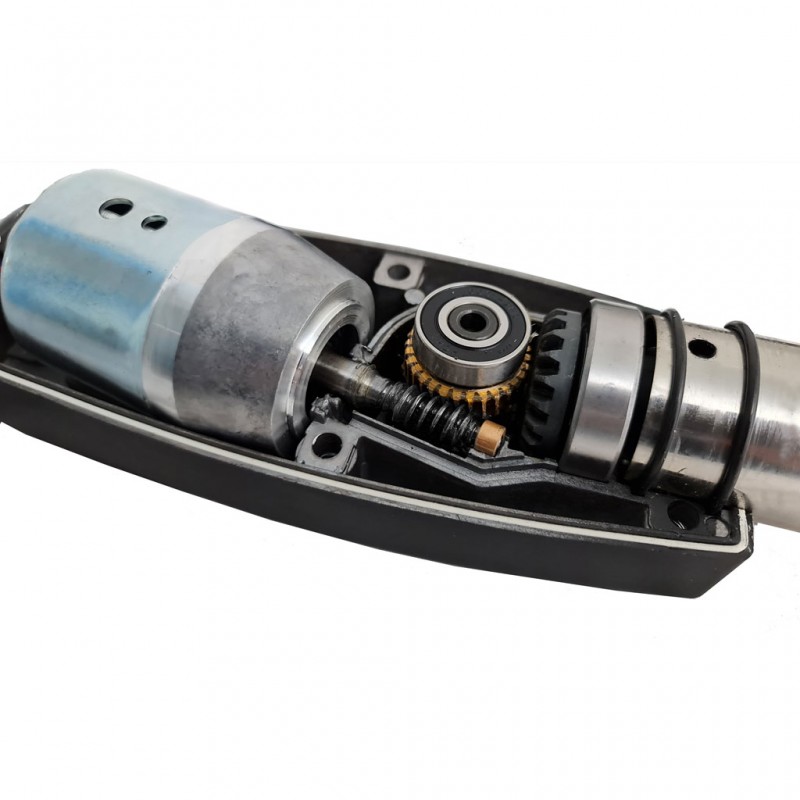

Motor Exposed

24V Extra Heavy Duty Swing Gate Replacement Motor 24V Extra Heavy Duty Swing Gate Replacement Motor

Built-in easy manual override
in case of an emergency such as power failure.

Powerful 24V Motor with all metal
gears as shown in the picture above.

Please note: This Ad is for 1 Motor only.

Specifications

Duty Cycle

25%

Power supply

240v AC to the Control Panel

Power to motor

24v DC

Battery backup

2 x 12v 5Ah (24V x 5Ah)

Average power consumption

1.7A

Motor rating

40W max

Manual override

Via override keys supplied

Working temperature

-10 - +70 degrees

Actuator length when retracted

740mm

Actuator length fully expanded

1080mm

Maximum stroke

430mm

Recommended stroke

350mm Max.

Opening/closing running time

12-15 seconds

Gates size

3m max

Gate weight

250kg max

PE sensor power

24Vac, 3W max.

RF frequency

Rolling code 433.92mhz
