Swing Gate Automation Electric Motor

APC-T550 Actuator Kit Gate Automation Electric Motor

Product SKU: APC-T550-M

  • In Stock

Price :

$250.00

Get More Info.. Get More Info..

Product Information

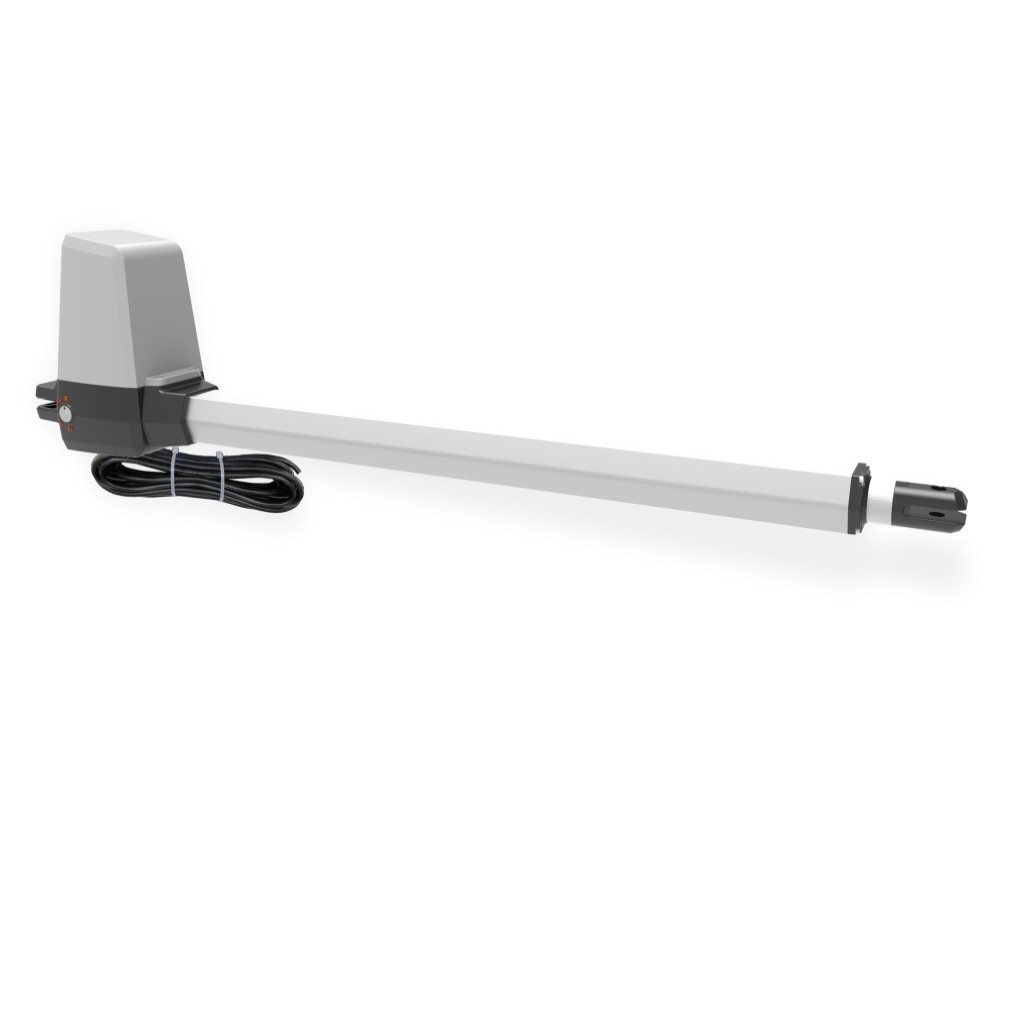

Quick Operation Aluminum Telescopic Linear Actuator



Engineered to be Fast, Powerful, and Quiet. The Heavy Duty 24V actuator is comprised of an aluminum piston housing and a stainless steel piston with an elegant light grey powder coat for a neutral non-obtrusive feel.

Universal left and Right Side installation.

Simple 2 wire low voltage system making this motor a breeze to install for all skill levels.

The system can handle light and heavy gates up to 175kg maximum weight or up to 3m maximum length.

Engineered to last



Perfect gear cuts allow for almost silent operation with no movement in the gear system.

Sealed bearings at each end of the gear set for a 100% smoothness and consistency every single cycle.

Ribbed casing for extreme rigidity and the ultimate holding strength with no flex whatsoever.

Emergency Clutch Override





The simplest of override systems simply slot in the key and turn towards the unlock icon to operate the gates manually. Once finished just turn back to the locked icon.

Actuator Dimensions

Specifications

Gear Type Metal Lead Screw, Mixed Composite
Motor Voltage
24v DC
Manual override
Using Allen Key
Working temperature
-10° - 50°
Duty Cycle
20%
Maximum stroke
400mm
Gates size
3m max
Gate weight
175kg max

* Not suitable for fully cladded gates.

** Need a gate stop as there are no limits in this motor.

Installation Geometry
