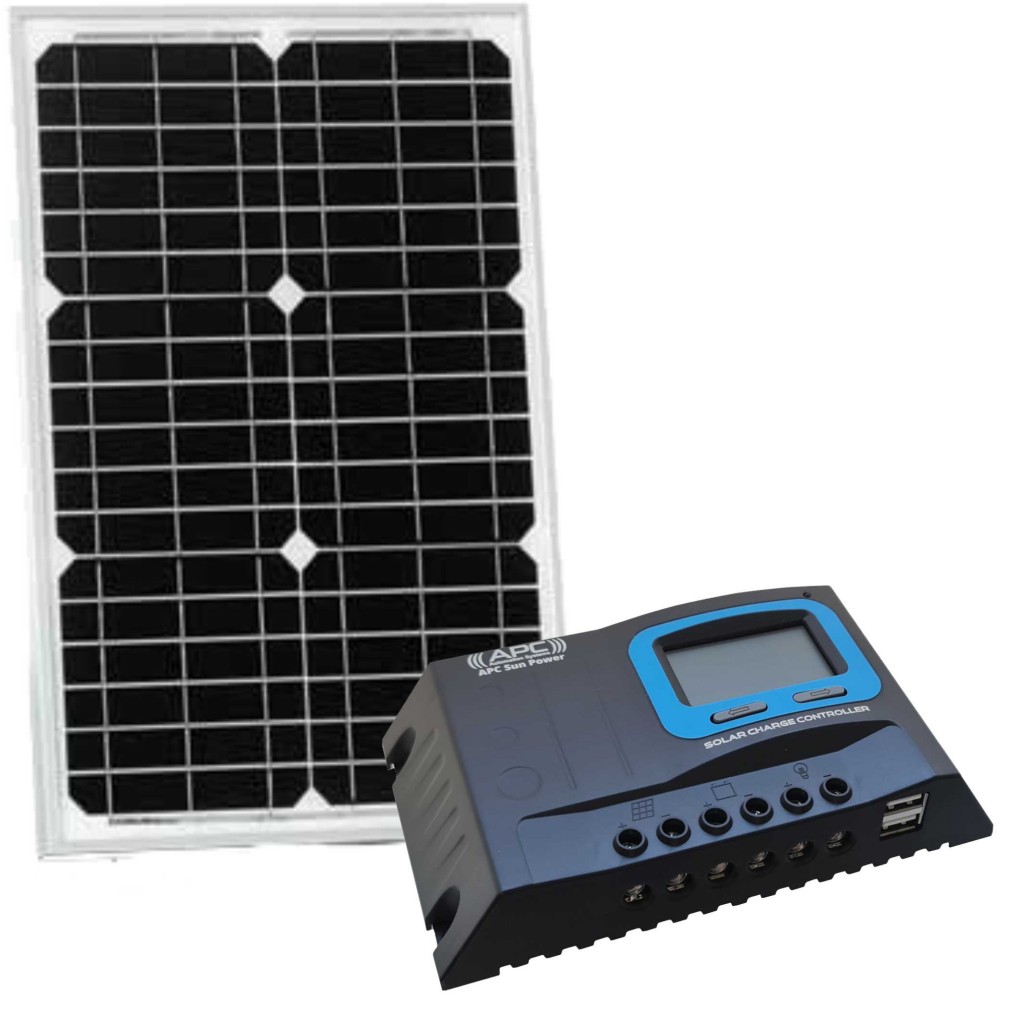

APC Sun Power Regulator and Solar Panel Combo

Product SKU: APC-SP-R-10A-24V-20W

  • In Stock

Get More Info.. Get More Info..

Kit Price:

$109.00 $178.00 APC Automotion Plus Sale

  • Or in 4 payment of $27.25 with afterpay info

Add-On Items (Discounted when purchased along with this Kit)

Product Information

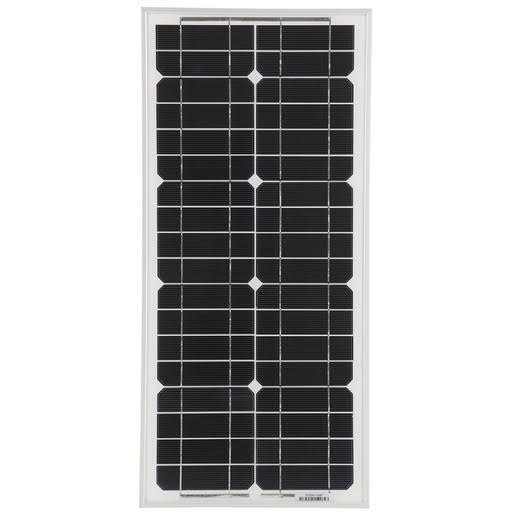

24V 20 Watt Solar Panel



The SP-24V-20 is a 20 Watt, 24 Volt solar panel, and will provide enough power to trickle charge a 24V vehicle or deep cycle battery. Helps run pumps, lights, fans, and small appliances such as stereos, televisions and VCRs in caravans, boats or cabins.

A heavy-duty anodized aluminium frame provides strength and convenient mounting access. Cells are laminated between high transmissivity, low-iron, 3mm tempered glass and sheet of tedlar-polyeaster-tedlar (TPT) material by two sheets of ethylene Vinyl acetate (EVA). This protects against moisture penetrating into the module.

24V 20 Watt Solar Panel

Open Circuit Voltage 42.48V
Optimum Operating Voltage 36V
Short Circuit Current 0.61A
Optimum Operating Current 0.55A
Dimensions 640 x 300 x 25MM
Cells Mono Crystalline


At a glance

  • 12-24V Compatible
  • LITHIUM Battery Compatible
  • Easy to use LCD Interface
  • Compatible with Most Batteries
  • 32 Bit Micro Controller
  • Extra Large Wiring Terminals
  • 12 Stages of Protection including short circuit, temperature, over and undercharge etc.
  • Metal Heat sink
  • USB Output



In Depth



apc sun power

apc sun power

Automatic Voltage Selection

The APC Sun Power System can automatically detect the batteries voltage and set itself into the appropriate charging mode of 12V or 24V.

Multiple Battery Modes

The APC Sun Power can be set to to be used with Sealed lead acid, flooded batteries, gel batteries and even Lithium Batteries.

Overcharge and Discharging

The APC Sun Power systems built in temperature sensor will automatically adjust the charging voltage to best suit the environment and as a result a 30% increase in battery lifetime can be expected. Furthermore if the ambient temperature within the enclosure it is installed within exceeds 85° Celsius the Sun Power system will automatically turn off.

Overload and Short Circuit Protection

The APC Sun Power load output will automatically switch off once the load output exceeds 10 Amps (or short circuit) and auto re -try after 30 seconds.

Reverse Polarity Protection

In case of an installation error the Sun Power solar regulator will not be damaged by incorrect polarity on the solar connection or the battery connection.

USB Output Terminals

The Sun Power Series has Two built in USB terminals, each USB terminal is rated to 5V 1A and can be used to operate low current USB devices such as USB powered speakers, tablet and mobile phone charging, warmers, fans etc.

Heavy Duty Design

Built to be last and be used in duty applications the Sun Power System not only offers a powder coated steel heat sink backing plate to keep the controller cool in all charging conditions but also has extra large 10mm wire terminals allowing for use with heavy duty cabling, large bootlace crimps or multiple wires per terminal.

Specifications

System Voltage 12V/24V DC auto
PV Max Input Voltage 55V
Self-consumption 10mA
Max Charging current 10A
Max Discharging current 10A
Battery type Sealed(Default)/Gel/Flood/Lithium
LVD 11.0V ADJ 9V...12V ; x2/24V
LVR 12.6V ADJ 11V...13.5V ;x2/24V
Float Voltage 13.8V ADJ 13V... 15V ; x2/24V
Boost Voltage 14.4V ADJ 13V...17V ;x2/24
battery voltage less than 12.6v auto boost 2hours
Battery Over Voltage 16.5V ; x2/24V
Reverse Connection Protection Yes
Load Over Current Protection Yes, each 30s auto restart again
Controller Over Temperature Yes
USB Output 5VDC/1A 2PCS
Charging Type PWM
Charge circuit voltage drop <=0.25V
Discharge circuit voltage drop <=0.1V
Temperature Consumption#  For 12V system:-24mV /°C ; x2/24V
Relative humidity ≤95%, N.C.
Working Temperature -20°C~+55deg;C(Product can work continuously at full load)
LCD temperature range -20°C~+70°C
Waterproof grade IP32
Mounting hole size Φ5mm
Terminals 10mm²/8AWG
Weight 245g
Overall dimension(mm) 190×108×41.5
