Product SKU: APC-KP1-C

APC Slimline Vandal Resistant Keypad with EM card Reader

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

APC Slimline Vandal Resistant Keypad with EM card Reader

Product SKU: APC-KP1-C

  •  In Stock

Get More Info..

Kit Price:

$195.00

  • Or in 4 payment of $48.75 with afterpay info

Add-On Items (Discounted when purchased along with this Kit)

Product Information

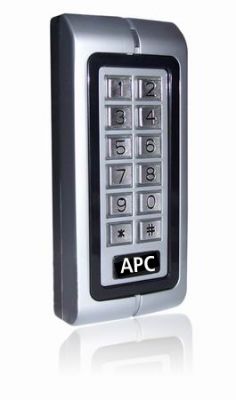

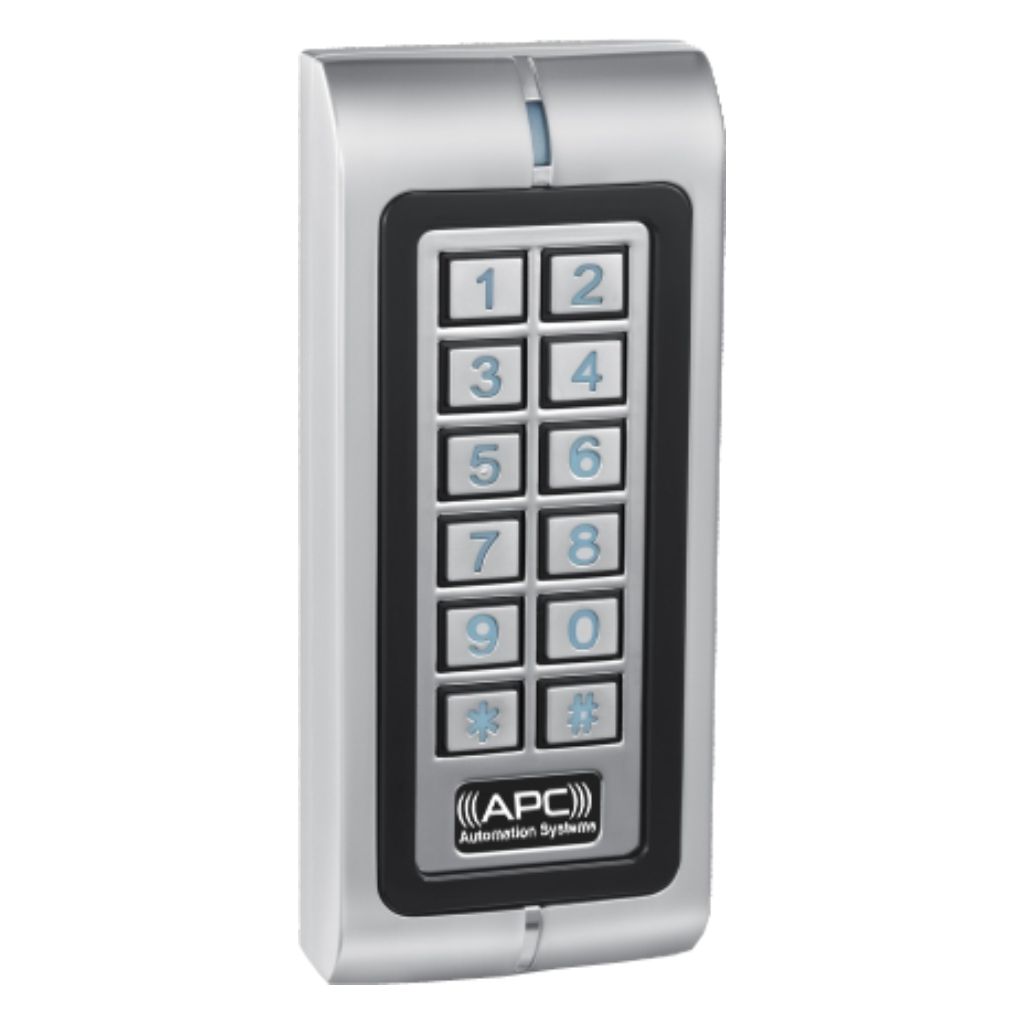

APC-KP1C Wired keypad with built in card reader



The APC-KP1C keypad is a waterproof low voltage keypad which is wired back to the control board using the supplied cable roll. It is of alloy construction and extremly robust. It can be seen day or night thanks to its backlit keys. Two EM swipe cards are also supplied suitable for any temporary or permanent user that need to gain access into the property without a pin code.

Key Features:

  • Built-in EM card reader.
  • Robust cast alloy construction
  • Resin filled for ultimate weatherproofing
  • Blue backlit keys
  • Anti-tamper feature
  • IP65 Waterproof rated and suited for outdoor and indoor environments.
  • Up to 2000 users for pin code and EM card.



Technical Specifications

Dimension

Features  Description
Appearance Metal case, anti-explosion and anti-tamper
Waterproof IP 65
Dimension 135×58×26mm
Input voltage DC: 12-24V
AC: 12-18V
Capacity(max) 2000 Users
PIN 4-8 digits.
Not related to the card.
Master card Add/Delete User
As reader Supports Wiegand 26bits; PIN Wiegand output is a virtual number.
Connect external reader Can connect any EM/HID/IC readers with Wiegand 26 output
Connect a high-power alarm. External current of the alarm ≥3A
