Product Information

Gate Sensor | APC Retro-Reflective Sensor Gate Automation Safety System

Gate safety sensor for automatic gate opening system for garage door and all other gate automation systems with a safety beam input.
Retro Reflective Gate Sensor

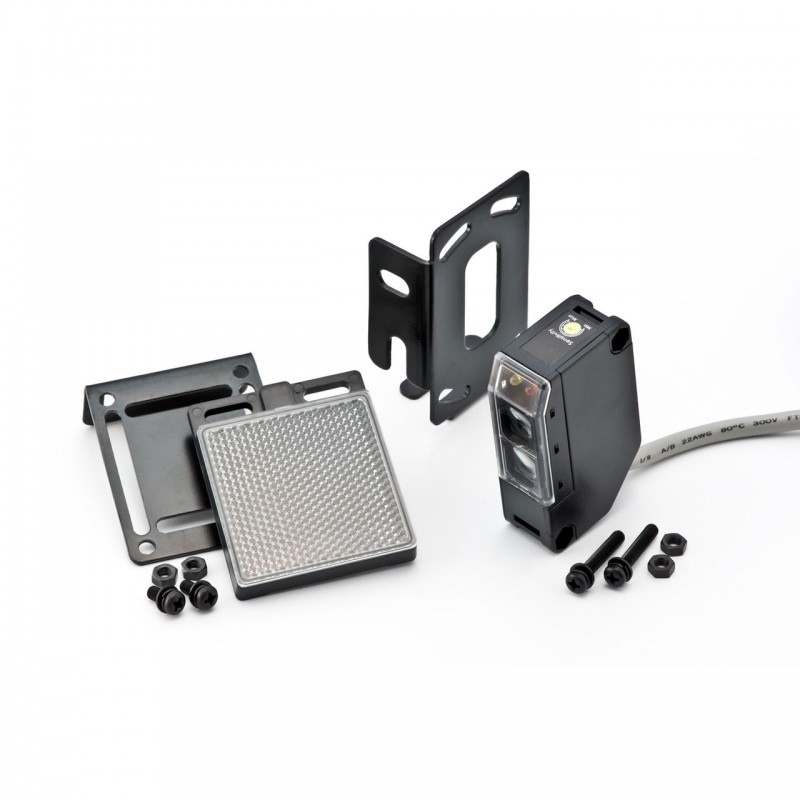

The APC-RR-11 is a Retro-Reflective type gate sensor that is ideal for use when wiring can only be provided to one side of your driveway, garage, or automation application.
The Retro-Reflective safety sensor can provide a voltage free contact with the choice of both normally open and normally closed circuit making it ideal to be used as:

  • Safety sensor for automatic gate opening system, garage door systems, and all other systems with a safety beam input.
  • Opening the gate sensor for units with a dedicated opening input.
  • Intrusion detection.
  • Parking Detection.
  • Connecting to a buzzer system for shop entries.

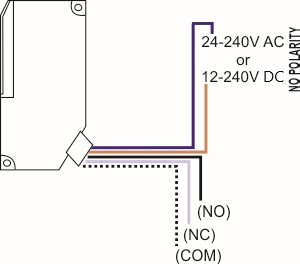

Gate Sensor Output Diagram

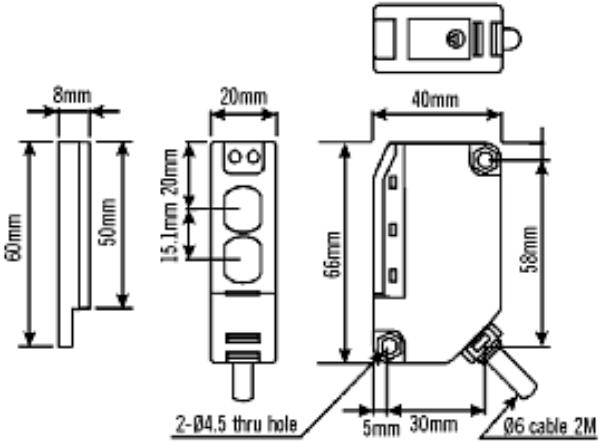

Gate Safety Sensor Dimensions




Retro Reflective Gate Sensor Specifications

Sensing Range 11m
Supply Voltage DC 12-240V or AC 24-240V
Response Time 10ms max.
Emitting Element IR LED
IP Rating IP 66
Ambient Temperature -20 to +55 Deg (C)
